Dodge durango steering box in a YJ

OK here's my first attempt at a write-up. Before I begin, I have to give a big to Brandon Yj, whom through blood sweat and thrown wrenches, helped me accomplish this swap. By the way.... apparently he can't dodge a dodgeball either.

A little background on my jeep: I have a 91 with 4.0/tf999/231, pushing 151,000 miles. 35x12.5 mickey T's claws, 4.56 in the front 30 (W/lockrite) and rear 8.8(with Det Lkr). When I bought the jeep, it's steering was sloppy as heck. I had at least 45* of play left or right without the wheels so much as moving. Not very good at highway speeds. After tightening the Yj box as far as it would go W/O blowing it up, I decided to do the swap with a 99 dodge durango power steering box. Now some of this write up is a bit repetitive of the TJ swap, but as both Brandon and I found out... not all the wrench sizes are the same. I don't remember some of the sizes, but if they are different from the TJ here http://www.universityofjeep.ca/Tech/...onversion.html Then I will note it.

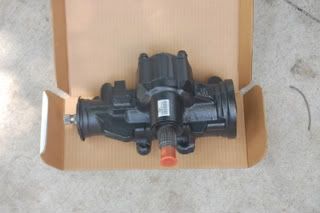

The box needs to come from the following vehicle(s)
98-99 Dodge Durango/Dakota
4x4
V-8
I got mine from Auto zone with a warranty for $185 + $110 core deposit. Now I'm not at all condoning dishonest behavior, but I turned in my YJ box W/O having the difference discovered. This part can also be found at any salvage yard. I just chose to forgo the hassle of prying one off.

****PB Blast is your friend..... use it on every blot to be undone******
--------------------------------------------------------------------------------------

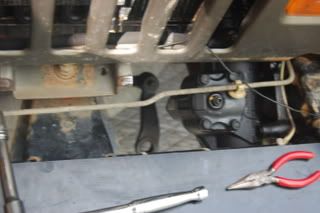

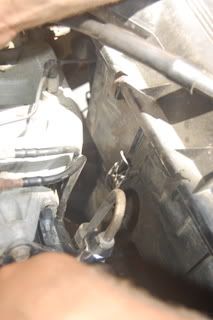

At this point decide whether or not you want to remove the grill.***We did this with the grill still on***Disconnect the high pressure hose and return line from the Yj box. Don't be like us unless you have the hands of a kid.

--------------------------------------------------------------------------------------
We had a helluva time getting the high pressure hose off the box, so we left it on and just disconnected the hose from the pump.

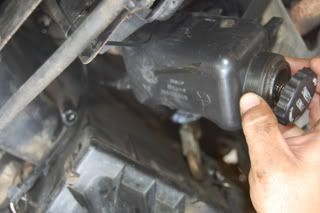

Then went he hose from the power steering fluid resiviour.

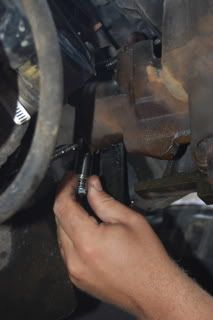

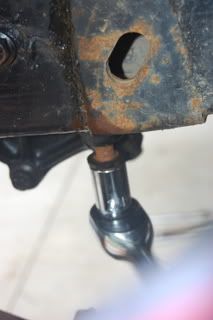

At this point you can unbolt the steering shaft using a 7/16 socket and a 10" ratchet extension. (Not the 13mm suggest on the TJ swap) We just gave the wheel a little turn to allow us to get proper alignment underneath.

*****NOW THAT THE STEERING SHAFT IS DISCONNECTED FROM THE STEERING BOX, DO NOT SPIN THE STEERING WHEEL AS IT WILL BREAK THE CLOCK SPRING IN THE STEERING COLUMN. THIS THING PROVIDES THE ELECTRICAL CURRENT TO THE HORN.*****

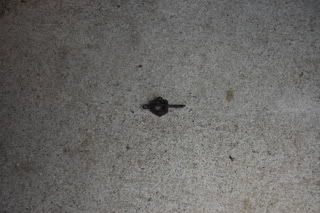

The next step was performed, but not to the full extent that was called for. I found it unnecessary to remove the tie rod end from the pitman arm, but I removed the Cotter pin and castle nut anyway.

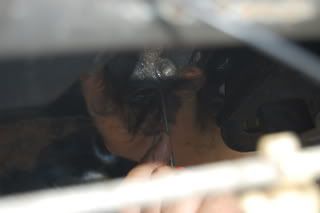

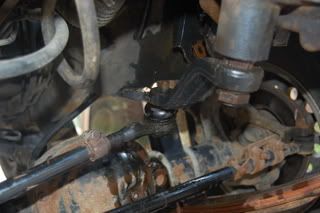

Next we tackled the pitman arm. Here is where PB is a God's gift to Jeepin. Now we had no socket big enough to fit the nut (33mm for info sake), but were able to get the nut off with a couple of turns with a channel lock.

I swear it seamed as if the pitman arm could have been pulled off without the puller.


Last edited by Marine_Mike; 06-17-2008 at 08:06 PM..
Marine_Mike is offline   Reply With Quote
Unread 06-17-2008, 07:46 PM   #2
yjcrawlr
Registered User
1990 YJ Wrangler

Join Date: Jan 2008
Location: Southern Oklahoma
Posts: 1,784
How much stronger is the durango box? Is the ratio different from the yj box? Nice thread!
yjcrawlr is offline   Reply With Quote
Unread 06-17-2008, 08:03 PM   #3
Marine_Mike
Registered User
1991 YJ Wrangler

Join Date: Feb 2006
Location: Mount Clemens, MI
Posts: 524

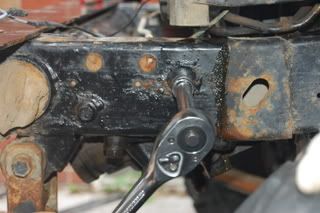

This next part really is better with another set of hands. loosen the bolts connecting box to the frame.

Then remove the bolts from the box to the steering box brace and frame. You will have to remove the far top bolt in order to get a proper seat on the frame bolt.

Then carefully remove the bolts from the top portion on the frame. I suggest one person hole the box and the other unbolt.
Carefully slide the steering column shaft off the box and you're free.

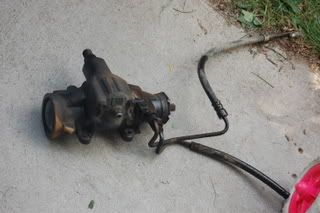

Here is the fruit of our labors!

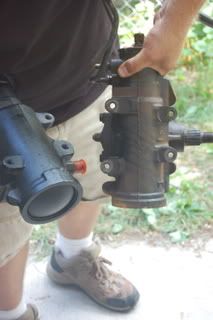

Notice the difference between the two boxes. Now one important fact to point out is that the durango box only has 3 bolt holes as compared to the Yj's 4.

Here is another side by side view.

At this point it would serve you well to clean out any and all threaded holes. Also note the flat part of the steering column cuff, as later when you install the new box it will need to be lined up.

Now just reverse the directions with the exception of the 2nd top fram bolt as noted earlier.
Here is it installed.

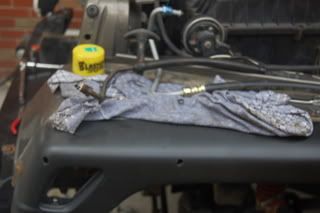

Now as I stated earlier, the high pressure hose could not be pried from the yj box, so a new one was purchased.

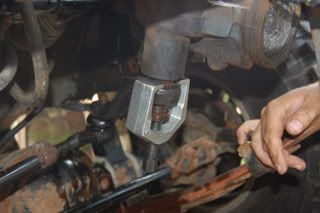

You'll notice that the pitman arm is not lining up correctly with the durango box. This is because the box is wider than the old yj one. The tie rod will have to be shortened to correct this.
After buttoning up everything else, fill your resivour. You'll have to put a little more than before, since the new box is bigger. Your pump may wine a bit upon starting the jeep, but rest assure it will quiet down once the pump works out the air in it.
Now enjoy a tougher box and quicker turning ratio. I might have left out some socket sizes, but I will answer any and all question as best as I can.
