Clutch Replacement Write up - With Pictures!

Hi guys, my throwout bearing recently blew up on me while driving so i decided it was time for a new clutch kit and a trans overhaul. I figured i would do a write up on how to replace a clutch for anyone who wasnt sure how its done. I didnt get pictures while lowering the transmission but thats pretty straight forward.

TOOLS NEEDED
  • Set of standard sockets (1/2 drive, 3/8 drive craftsmen set will work fine)
    Standard wrenches
    Impact gun (if available)
    Breaker bar
    Hammer
    Torque wrenches
    White bread

Start off by supporting your engine under the oil pan using a block of wood.

Remove the transmission by disconnecting driveshafts, starter, wiring, shifter levers, skidplate, etc and drop trans out of the way (sorry didnt take pictures of this)

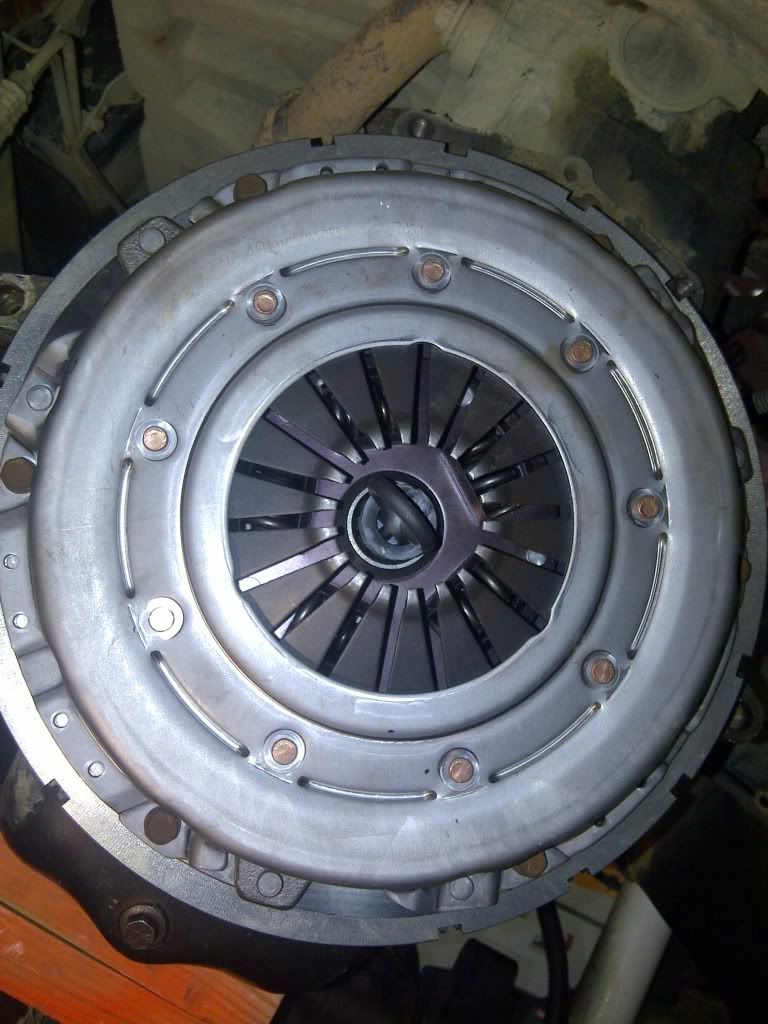

Now this is what you will be looking at. The outer plate with the fingers and the writing on it is the pressure plate. The heavy metal peice with the teeth on the outside edge behind it is the flywheel and sandwiched between is the clutch itself.



Your new clutch kit will come with a new clutch disc, pressure plate, throwout bearing and pilot bearing.



Start zipping the pressure plate bolts off with the impact, grab the plate before taking the last bolt out because it will fall. the clutch will come with it.

If you do not have an impact, hold the crank pulley with a 3/4 in socket on a breaker bar as you break the bolts loose.



You now are looking at the bare flywheel and in the dead center is the pilot bearing.



Remove the 6 3/4 in bolts connecting the flywheel to the crankshaft.
Dont worry about marking the location, the bolt holes only line up one way.



Remove the flywheel, careful, its heavy! And pack the hole in the pilot bearing
full of white bread. (yes good ole wonder bread)
Take big *** bolt, (3/4in i believe) and press it in the hole in the pilot bearing.
Hit it a few times with the hammer and fill with more bread as needed.
Eventually the bearing will pop out like so



__________________
1995 Jeep Wrangler YJ, AMC 242, AX-15, 4" Rough Country Lift Kit, Hunter Green
Green Jeep Club Member #360
Bl4cK_kNiF3 is offline   Reply With Quote
Unread 05-20-2012, 01:33 PM   #2
Bl4cK_kNiF3
Registered User
1995 YJ Wrangler

Join Date: Jan 2009
Location: Itasca, Illinois
Posts: 226
Remove all the old bread and take the new pilot bearing and lightly lubricate it on the outside and carefully tap it into the crankshaft. Use a socket that fits it perfectly. Make sure the small rubber seal on the inside of the bearing faces the transmission. Pack the inside of the bearing with grease.





Next, install the new flywheel if you bought a new one, torquing each of the 6 bolts to 105 ft-lbs in a criscross pattern.



Slide the clutch disc over the dummy input shaft tool that came with the clutch kit.



Make sure the damper springs face the transmission side and place dummy shaft into pilot bearing.



Carefully set the pressure plate over the clutch disc and hand start all of the bolts to the flywheel.

Torque the bolts EVENLY a little at a time, in two steps, first 20ft lbs for all the bolts in a crisscross pattern, and then a final torque of 38 ft lbs.



This is what your left with..



Remove the dummy plug and thats it!



The throwout bearing is pretty self explainatory, just snaps over the shift fork in the bell housing.

Hope this helps some people out!
