can anyone tell me what these wires are???

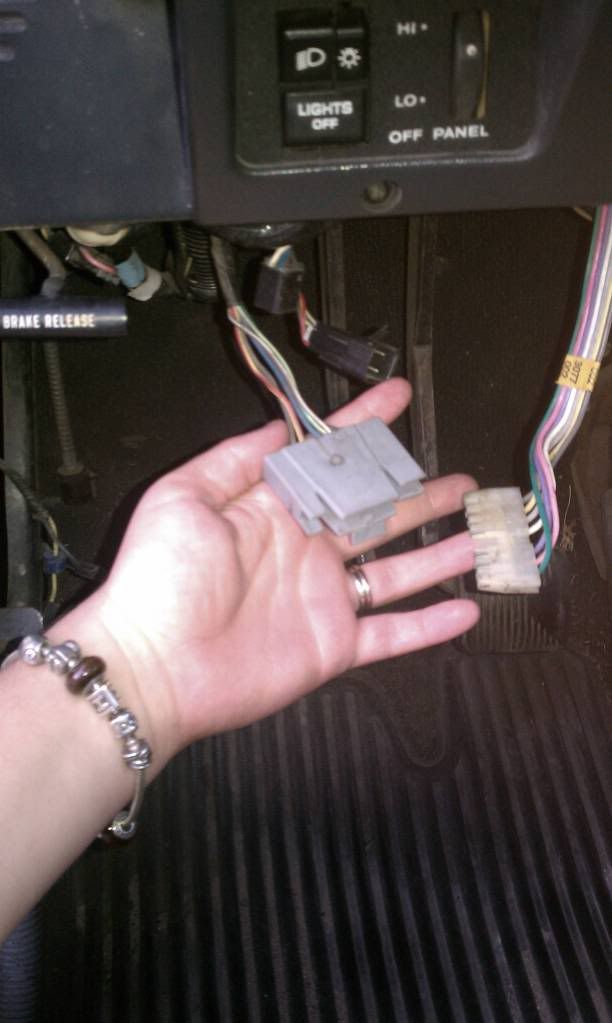

The other day I was cruising down the road and smelled burning wires... I assumed it was my wipers (the motor goes bad every 6-8 months) so I pulled over and went to disconnect the wires under the dash and discovered these wires were the ones that were burning hot. I disconnected them and everything seems to be functional. What is the world are they for???


hollybygolly is offline   Reply With Quote Quick reply to this message
Unread 09-10-2011, 07:14 PM   #2
ROWA
Member

ROWA's Avatar
1994 YJ Wrangler

Join Date: Jun 2007
Location: Cary, NC
Posts: 342
The one in the middle looks like the brake switch plug, the one on the right is your steering column plug. I don't know what the left one is.
Good luck and check the wiper wiring for a short you shouldn't have to replace your wiper motor that often. I would look in the wiper switch for a short.
__________________
94 YJ Sahara

The best Engineering is no match against natural Stupidity.
ROWA is offline   Reply With Quote Quick reply to this message
Unread 09-10-2011, 07:50 PM   #3
bft89yj
Registered User
1989 YJ Wrangler

Join Date: Jan 2011
Location: beaufort, SC
Posts: 390
does everything work and drive with out them
__________________
not so stock 89 yj on 35s
bft89yj is offline   Reply With Quote Quick reply to this message
Unread 09-11-2011, 07:25 AM   #4
hollybygolly
Registered User
2005 LJ Wrangler

Join Date: May 2011
Location: Freeland, Michigan
Posts: 164
Everything appears to be functional (except for my wipers... I disconnected those... that's the wire you see at the tip of my index finger). I've had to replace the motor that often because I've had a nasty dash leak. I FINALLY found the source and fixed the leak but the damage was already done. I'm just not sure what the wires in my hand above go to. I thought they went to my dash but everything is as it should be.
hollybygolly is offline   Reply With Quote Quick reply to this message
Unread 09-11-2011, 07:31 AM   #5
TSEJEEPERS
Registered User
1993 YJ Wrangler

Join Date: Dec 2003
Location: Morton IL
Posts: 5,014
On mine those are for the wiper.
__________________
93 YJ SOA 2" springs front, XJ springs rear w/main leaf added, High pinon 9 inch rear detroit locker front Dana 44 ARB 4.56 Gears, 36 inch Irok tires too much to list. www.mijc.org
TSEJEEPERS is online now   Reply With Quote Quick reply to this message
Unread 09-11-2011, 07:44 AM   #6
mrmark
Registered User
1994 YJ Wrangler

Join Date: Apr 2011
Location: Orange Park, FL
Posts: 1,951
Quote:
Originally Posted by hollybygolly View Post
Everything appears to be functional (except for my wipers... I disconnected those... that's the wire you see at the tip of my index finger). I've had to replace the motor that often because I've had a nasty dash leak. I FINALLY found the source and fixed the leak but the damage was already done. I'm just not sure what the wires in my hand above go to. I thought they went to my dash but everything is as it should be.
Go to this link for your dash leak, it tells where most all leaks come from, helped me fix mine.

http://www.jeepforum.com/forum/f12/t...up-how-628941/
__________________
Wave as you pass me :D

The problems of owning 2 Jeeps ... I never know which one to work on or which YJ gets the next mod ...
mrmark is offline   Reply With Quote Quick reply to this message
Unread 09-11-2011, 09:56 AM   #7
sbsg2005
Registered User
1995 YJ Wrangler

Join Date: May 2009
Location: Terre Haute, Indiana
Posts: 539
that's the wiring for your wiper switch. the right side runs up into the column, the left runs either to the wiper module, or the motor depending on which wiper system you have.
sbsg2005 is offline   Reply With Quote Quick reply to this message
Unread 09-11-2011, 02:00 PM   #8
hollybygolly
Registered User
2005 LJ Wrangler

Join Date: May 2011
Location: Freeland, Michigan
Posts: 164
The wires that are in my hand above are not for my wipers. The wires that are detached from each other with black connectors just above my thumb and pointer finger are for my wipers...
hollybygolly is offline   Reply With Quote Quick reply to this message
Unread 09-11-2011, 02:32 PM   #9
Fin_Reaper
Registered User
1988 YJ Wrangler

Join Date: Sep 2010
Location: Stayton, Oregon
Posts: 143
They look like the connectors for the intermittent wiper module. I'll post a pic of mine shortly.
__________________
88 YJ with stuff
Fin_Reaper is offline   Reply With Quote Quick reply to this message
Unread 09-11-2011, 03:25 PM   #10
copleydad
Senior Member

copleydad's Avatar
1989 YJ Wrangler

Join Date: Jun 2009
Location: Woburn, MA
Posts: 539
Quote:
Originally Posted by Fin_Reaper View Post
They look like the connectors for the intermittent wiper module. I'll post a pic of mine shortly.
x2
__________________
'89 Islander 4.2l 5 speed
'04 WJ Laredo 4.0 4 speed automatic w/ SelecTrack

One Jeep is Never Enough
copleydad is offline   Reply With Quote Quick reply to this message
Unread 09-11-2011, 04:12 PM   #11
alilredjeep
Registered User
1992 YJ Wrangler

Join Date: Sep 2003
Location: Opp, Alabama
Posts: 340

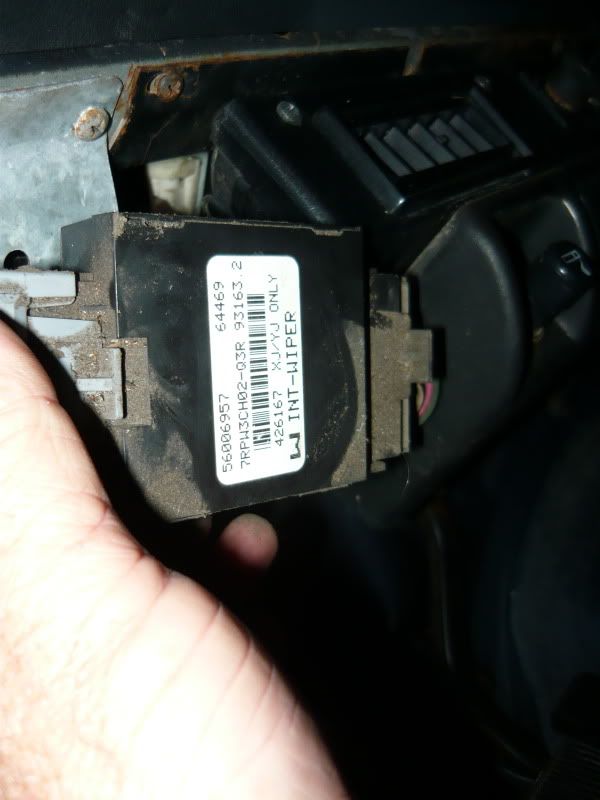

Below is a pic of a wiper intermitent module.
The gray plug in your hand looks very similiar to what is connected to the intermitent module pic below and also...when I googled the number on the wire ribbon (3077) I came up with a multi function switch topic from a few years back.
Visit that link and note that there apparently are two different part numbers noted and do a bit of research to make sure a P.O. hasn't substituted one for the other.

Good luck!

http://www.jeepforum.com/forum/f12/p...-95-yj-330872/

__________________
Eddie
RED JEEP CLUB MEMBER #92

'92 WRANGLER, 2.5 Litre, 5 Speed, Rag Top, Superwinch LP8500, Cepek 130W Driving Lights, 31x10.50/AT with no lift, Of course! It rubs!
alilredjeep is offline   Reply With Quote Quick reply to this message
Unread 09-12-2011, 05:16 AM   #12
hollybygolly
Registered User
2005 LJ Wrangler

Join Date: May 2011
Location: Freeland, Michigan
Posts: 164
I've owned this jeep for nearly 10 years so I'm not sure if the PO changed any of the wires. It would make sense though... my intermittent wipers haven't worked... ever. The only speeds I have are fast faster and the manual one at a time. Years ago my dad replaced some switch and he said he'd never do it again... apparently it was a pain. This ol jeep is a electrical nightmare. I'd love to take it to somewhere and just have them rewire the entire darn thing.
hollybygolly is offline   Reply With Quote Quick reply to this message
Unread 09-12-2011, 03:50 PM   #13
tdewit
Registered User
1991 YJ Wrangler

Join Date: Sep 2006
Location: Ohio
Posts: 533
Quote:
Originally Posted by hollybygolly View Post
I've owned this jeep for nearly 10 years so I'm not sure if the PO changed any of the wires. It would make sense though... my intermittent wipers haven't worked... ever. The only speeds I have are fast faster and the manual one at a time. Years ago my dad replaced some switch and he said he'd never do it again... apparently it was a pain. This ol jeep is a electrical nightmare. I'd love to take it to somewhere and just have them rewire the entire darn thing.
Your intermittent wipers won't work. You need the "black box" that goes in between the big male and female plug.
tdewit is offline   Reply With Quote Quick reply to this message
Unread 09-12-2011, 05:20 PM   #14
hollybygolly
Registered User
2005 LJ Wrangler

Join Date: May 2011
Location: Freeland, Michigan
Posts: 164
Quote:
Originally Posted by tdewit View Post
Your intermittent wipers won't work. You need the "black box" that goes in between the big male and female plug.
I do? Huh.... you learn something new every day lol to the junk yard I go!
hollybygolly is offline   Reply With Quote Quick reply to this message
Unread 09-14-2011, 11:34 PM   #15
JWELK
Registered User
1999 XJ Cherokee

Join Date: Apr 2011
Location: Ceiba, PR
Posts: 799
The wires in your hand(s) are for the wipers. normally an intermittent wiper module goes between them. I've seen them on ebay for 6 bucks or so. New they are 55 to 60. Someone has rewired something using the black plug above your thumb. That is a Molex plug not an OEM plug.

Regards,

Jim W.
JWELK is offline   Reply With Quote Quick reply to this message
