Can anybody confirm this alternator bracket part number?

Hello all. In the midst of my 4.0 swap, and the donor motor didn't come with all alternator mounts.

This is a '94 4.0 out of a '94 going into my '95 Wrangler.

I have a new Grand Cherokee alternator, and I have the upper AC/alternator mount already installed. I do not have the lower bracket, or brackets. Do I need more than one? I think I just need Part No. 5300 6869, but part retailers list this as a Cherokee part.

Can somebody confirm that I only need Part #13 in this diagram (5300 6869)?



The upper mount that I already have installed looks like so:



Cheers.


'95 YJ 123bhp 4-banger powerhouse.
UPDATE: 2.5L ENGINE RETIRED; she was still running strong at 212,000mi.
4.0 swap in progress.
Alheim is offline
Sponsored Links
Advertisement

post #2 of 13 Old 01-13-2013, 04:26 PM Thread Starter
Alheim
Registered User
1995 YJ Wrangler

Join Date: Apr 2002
Location: NYC
Posts: 523
bueller? bueller?

'95 YJ 123bhp 4-banger powerhouse.
UPDATE: 2.5L ENGINE RETIRED; she was still running strong at 212,000mi.
4.0 swap in progress.
Alheim is offline
post #3 of 13 Old 01-13-2013, 05:29 PM
gunshw301
Registered User
1994 YJ Wrangler

Join Date: Nov 2009
Location: St. Louis
Posts: 1,384
Is 14 the upper you already installed? I don't think there is another mount. I think the lower just bolts to the mount on the alternator and hole on the block. Am not at my jeep right now so can't confirm.

F/S Dana 35, 4:10, open make an offer, local pick up only, will not ship. 3-8-13


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
gunshw301 is offline

post #4 of 13 Old 01-13-2013, 07:28 PM Thread Starter
Alheim
Registered User
1995 YJ Wrangler

Join Date: Apr 2002
Location: NYC
Posts: 523
Thanks, but no, the bracket I already have is the upper alternator bracket / AC compressor mounting bracket, as pictured below. I need the bracket that goes below the alt. Unfortunately the lower alt mounting hole doesn't bolt straight to the block.


'95 YJ 123bhp 4-banger powerhouse.
UPDATE: 2.5L ENGINE RETIRED; she was still running strong at 212,000mi.
4.0 swap in progress.
Alheim is offline
post #5 of 13 Old 01-13-2013, 08:55 PM
gunshw301
Registered User
1994 YJ Wrangler

Join Date: Nov 2009
Location: St. Louis
Posts: 1,384


Here is a pic of mine with the gc alternator. Only difference could be I have the 2.5l, but I would think they are similar if not the same.

F/S Dana 35, 4:10, open make an offer, local pick up only, will not ship. 3-8-13


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
gunshw301 is offline
post #6 of 13 Old 01-13-2013, 09:00 PM
gunshw301
Registered User
1994 YJ Wrangler

Join Date: Nov 2009
Location: St. Louis
Posts: 1,384
http://item.mobileweb.ebay.com/viewi...d=181053239375

http://www.jeepforum.com/forum/f12/l...acket-1015724/

http://www.factorychryslerparts.com/.../53011275.html

If you look at this post ^, it says 2.5l but then also lists the 4.0 below as an application. I am not sure if all this helps, but I can't seem to find a 4.0 listed bracket. There is one I keep finding on eBay right now for 9.00 and free shipping.

Hope all works out.

F/S Dana 35, 4:10, open make an offer, local pick up only, will not ship. 3-8-13


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
gunshw301 is offline
post #7 of 13 Old 01-13-2013, 09:28 PM Thread Starter
Alheim
Registered User
1995 YJ Wrangler

Join Date: Apr 2002
Location: NYC
Posts: 523
Great picture and info gunshow. Did you take that picture just for me? If so, thank you.

Anyway - I'm still working on this one. Here is the rest of the parts diagram page (I had cropped it earlier):



^ This leads me to believe that the 4.0 is in fact different from the 2.5.

I think I still have the bracket you've shown me from my 2.5l; if so I will check tomorrow. I'll let you know. Thanks.

'95 YJ 123bhp 4-banger powerhouse.
UPDATE: 2.5L ENGINE RETIRED; she was still running strong at 212,000mi.
4.0 swap in progress.
Alheim is offline
post #8 of 13 Old 01-13-2013, 09:33 PM
gunshw301
Registered User
1994 YJ Wrangler

Join Date: Nov 2009
Location: St. Louis
Posts: 1,384
Wonder if #2 in your diagram is the bracket?

F/S Dana 35, 4:10, open make an offer, local pick up only, will not ship. 3-8-13


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
gunshw301 is offline
post #9 of 13 Old 01-13-2013, 09:34 PM
gunshw301
Registered User
1994 YJ Wrangler

Join Date: Nov 2009
Location: St. Louis
Posts: 1,384
Oh, nm I see what you mean.

F/S Dana 35, 4:10, open make an offer, local pick up only, will not ship. 3-8-13


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
gunshw301 is offline
post #10 of 13 Old 01-13-2013, 09:40 PM
gunshw301
Registered User
1994 YJ Wrangler

Join Date: Nov 2009
Location: St. Louis
Posts: 1,384
Looks to me like you will need 13 and 14, sandwiched between the alternator.

F/S Dana 35, 4:10, open make an offer, local pick up only, will not ship. 3-8-13


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
gunshw301 is offline
post #11 of 13 Old 01-13-2013, 09:44 PM Thread Starter
Alheim
Registered User
1995 YJ Wrangler

Join Date: Apr 2002
Location: NYC
Posts: 523
Yep, damned confusing. No. 14 is just for the XJ Cherokee as per the parts list. No. 2 in the diagram looks similar to No. 25 (the bracket in your photo), but I don't know.

And in your photo, I think you are missing No. 3, the 'Brace'! I know I have that part from my 2.5l and you can have it for free if interested, as I likely won't need it. We'll know tomorrow ....

'95 YJ 123bhp 4-banger powerhouse.
UPDATE: 2.5L ENGINE RETIRED; she was still running strong at 212,000mi.
4.0 swap in progress.

Last edited by Alheim; 01-13-2013 at 09:46 PM. Reason: Details, details ...
Alheim is offline
post #12 of 13 Old 01-13-2013, 10:01 PM
gunshw301
Registered User
1994 YJ Wrangler

Join Date: Nov 2009
Location: St. Louis
Posts: 1,384
Humm will have to look into that! It seems they are different. I keep finding pics for expired eBay listings. They are close but definitely different.

F/S Dana 35, 4:10, open make an offer, local pick up only, will not ship. 3-8-13


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
gunshw301 is offline
post #13 of 13 Old 01-15-2013, 05:42 AM Thread Starter
Alheim
Registered User
1995 YJ Wrangler

Join Date: Apr 2002
Location: NYC
Posts: 523
Well, looks like I sorted it out. I got the bracket & hardware at a local junkyard, All-American Auto Wreckers in Patchogue, Long Island.

I've concluded that it's just a poor parts diagram. The part I needed was Part No. 5300 7606, "BRACKET, Alternator and A/C Mounting", part no. 25 in the parts diagram.

It's used on the 4.0 in the YJ, TJ, and others, including the Cherokee.

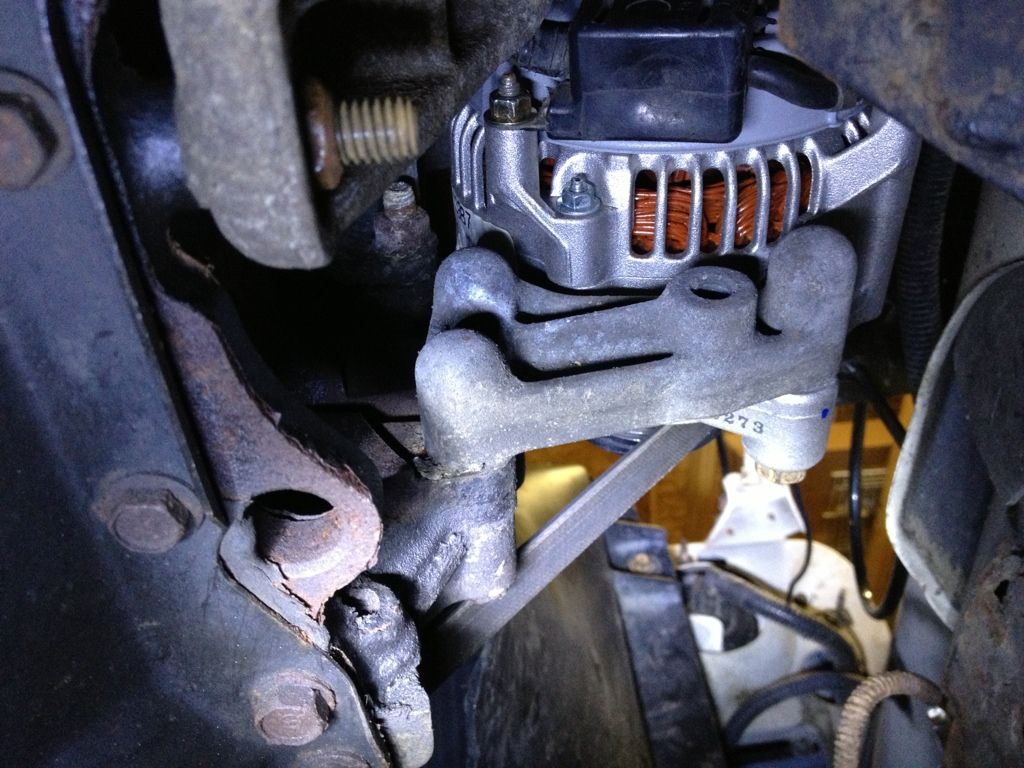

Looks like this:



Hope that helps somebody one day.
