Cage build

I've been posting this in the what did you do to your YJ thread and started thinking maybe I'd just create a cage build thread instead of posting it all willy nilly in there. For reference I'm using a Lincoln 135Amp welder with flux-core wire. I don't have a tubing notcher or anything, I'm doing it all with a chop saw and an angle grinder, which I don't recommend.

Here is a list of what I purchased to build this for those contemplating something similar:

Extreme Custom Fabrication's parts:
Rear Family bar conversion
Front Sport cage add on w/dash bar & grab handles

AtoZ Fabrication's parts:
Rear cross bar add-on
Front U-hoop
Front windshield v-bars

Ballistic Fabrication's parts:
Skull Gussets

Frame tie ins:
Poly Performance's tie ins

Straight sticks of tubing purchased from Allmetalsinc.com:
2 x 8' sticks of 2" 11ga HREW
3 x 8' sticks of 1.5" 11ga HREW

PRP Seats and harnesses:
Premier High back seats - I went with black pleather the back and arms, Dark grey cordura for the outside of the seat, and blue cordura piping.
4 Point harnesses

Paint:
Valspar Implement Paint (Enamel) - Low Gloss Black


All the add on bars were trim and notch to fit. The AtoZ pieces all came pre-notched, which is nice, but I'm not building mine exactly in the same dimentions as they were designed to fit, thus requiring trimming and re-notching.

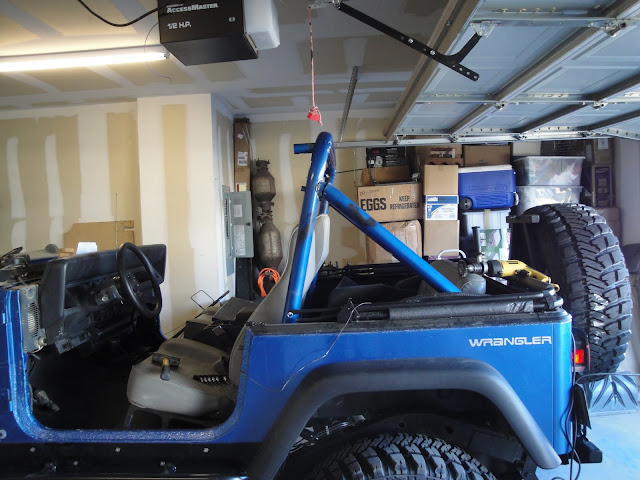

Well, with those pieces in mind, here is how it all started: your standard 91 sport bar stock seats.

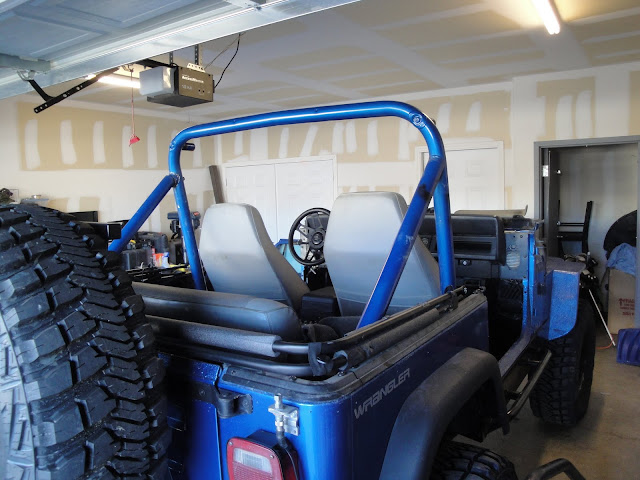

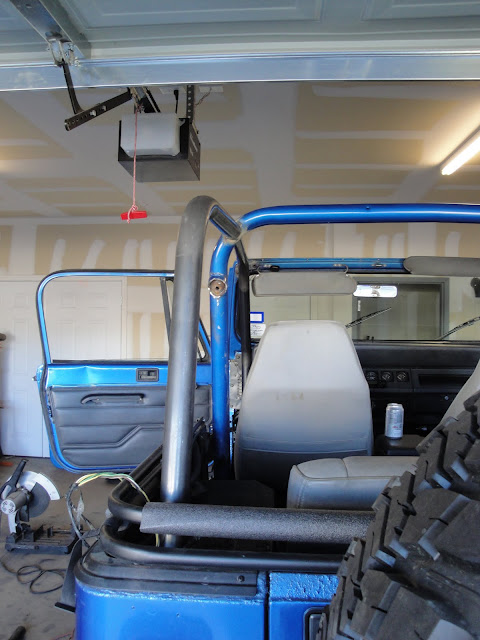

I started by cutting the rear sport bar and then cut the bolts holding the wheel well plate to the tub and removing the rear bar. Then I took and mated the new rear hoop bars to the b-pillar and down to a new floor plate. I chose to mate the rear hoops to the b-pillar directly behind where the stock spreader bar mounts (and where my front hoops ended up mounting). I think this creates a nice line in addition to a direct one point tie in between the Front and rear side hoops.

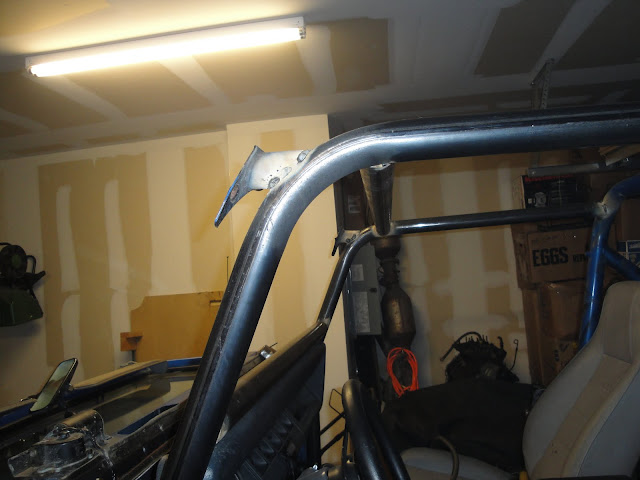

Then I went to mount the front hoop on the driver side, I mounted it just far enough away from the dash to allow use of the parking brake in the stock location. In the second picture the bolts in the floor are where my rocker guards bolt from underneath.







Then did the same for the p-side and ran the dash bar and front cross bar between the two front side hoops.

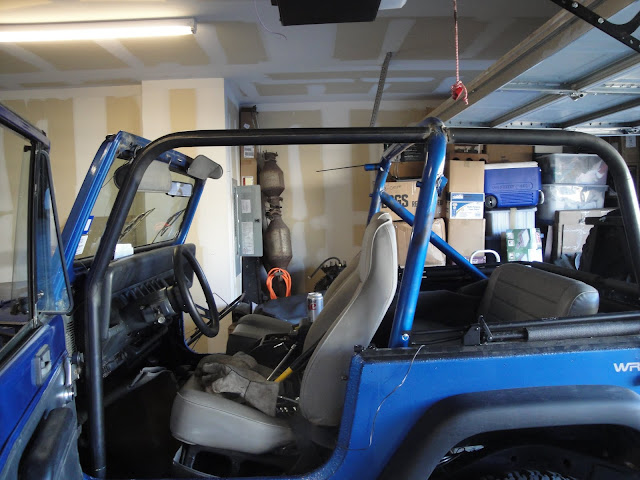

Then I re-purposed the stock spreader bars and used most of them to connect the b-pillar and the rear side hoop near the tub line and then took the windshield mounting bracket portion and welded them to the front side hoops to allow the windshield to bolt in like stock.







Once that all got tacked together, I built some hip bars and made sure that my full doors still closed and that they didnt' cover up any of the essential parts of the doors. After I got all that tacked together, the wife and I pulled the cage out of the Jeep to add some other parts and burn it all together.

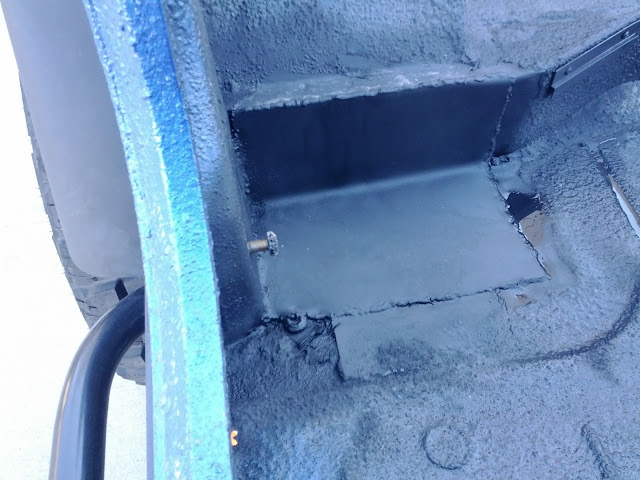

Unfortunately I found that the floor on both sides behind where the b-pillar mounted was completely rotten. So I built some new patch panels from 16ga steel, using some cardboard to mock up and trace onto the metal. Great technique, worked really well for getting a nice piece. I cut out a bunch of the rot then overlapped a little with the new metal.

So far, I've just primered and put some black rust inhibiting paint on them until I get the holes for the cage mount drilled and new nuts welded in, then its going to get some bedliner like the rest of the tub. Did I mention I hate welding sheet metal?






13 GC Overland - (Wife's DD) 5.7, stock
Past Jeeps: 99TJ, 78CJ7, 91YJ, 01WJ, 03TJ, 05KJ
dillonjm is offline
Sponsored Links
Advertisement

post #2 of 50 Old 01-29-2012, 07:26 PM Thread Starter
dillonjm
Registered User
2013 WK

Join Date: Jun 2003
Location: Wichita Falls, TX
Posts: 4,203
It was about this time that I decided I should just go all in and upgrade my seats/tie them into the frame and add some harnesses. My Jeep is 99% off road, it sees maybe 1000-1500 miles a year road use, so I decided to go with harnesses instead of stock 3-point style seatbelts.

So, I ordered seats and harnesses from PRP. I went with their high back premier seat and 4 point harnesses. They looked like quality seats and were American made so I decided to take a risk and buy them without ever seeing some in person. May or may not have been a stupid decision, we'll see.

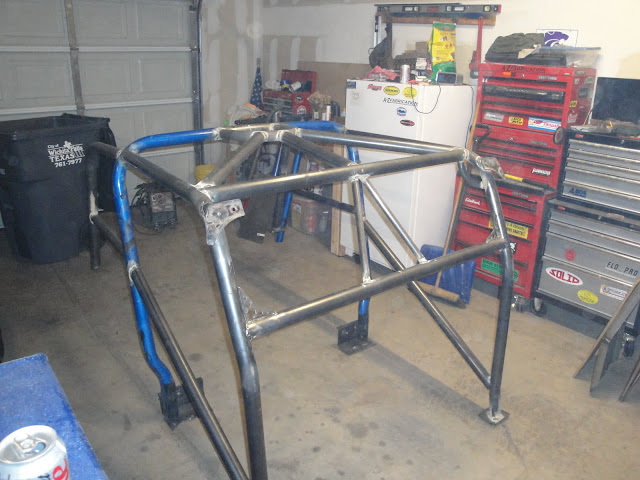

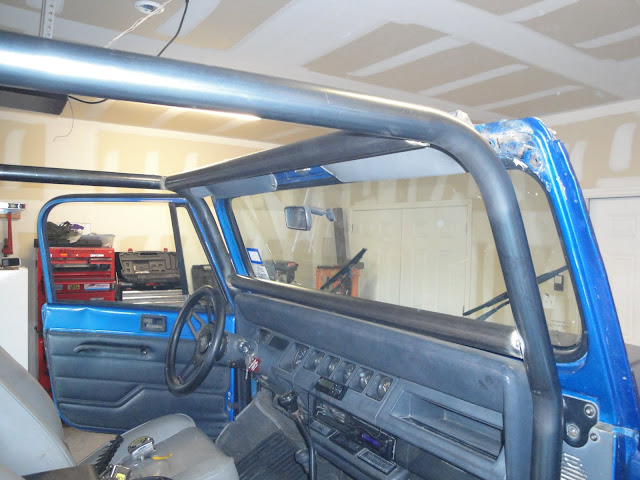

Anyway, onto more welding. I started by adding the overhead bars, v-bars in the windshield, and 2 gussets. The plan was originally to only have the u-hoop and 2 bars tied into the corners near the windshield. However, after some thought I decided a center bar to link the windshield v-bars to the b-pillar was a good idea and ended up with this:

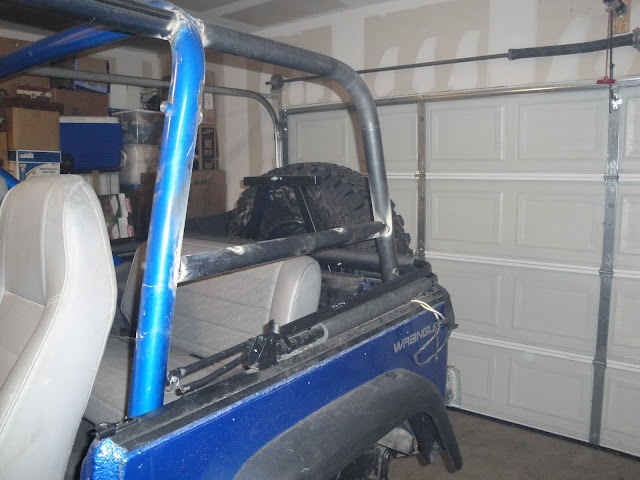

Then, I rolled into the rear portion of the cage overhead bars, utilizing the AtoZ bars. I decided to mount the bar a little farther forward than Zach does with his cages. I did this because I shifted the rear side hoops back a little farther than they are stock and wanted my SuperTop's bows to clear the cage to allow the top to easily go up and down still.
