brakes -Is this right?

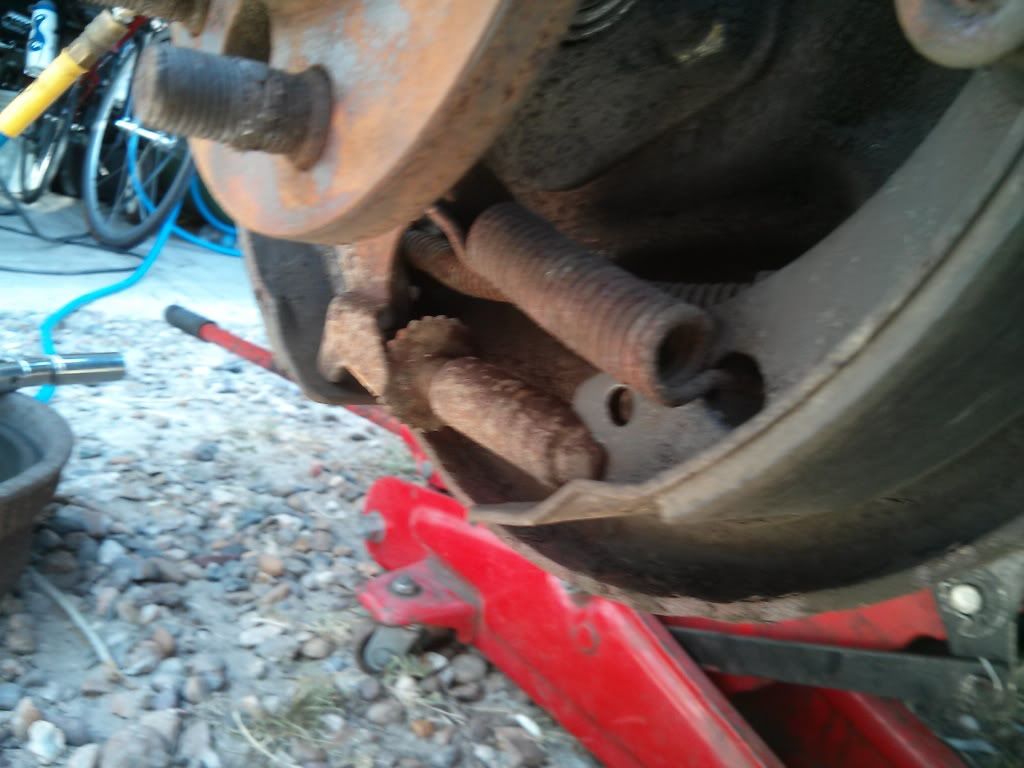

My first time. Thoughts? Am I missing something?












Jeep title says '88, but everything points toward '92-'95...weird.
mattyrayb is offline
Sponsored Links
Advertisement

post #2 of 21 Old 07-20-2013, 03:15 PM
Mobile_Homie
Desert Rat

Mobile_Homie's Avatar
1994 YJ Wrangler

Join Date: Jun 2008
Location: Winnemucca, NV
Posts: 1,412
It looks good to me, but just to be sure, compare to the other side.

Mark



Smoke em if you got em!

Click here
Mobile_Homie is offline
post #3 of 21 Old 07-20-2013, 04:27 PM
superj
Registered User

Join Date: Mar 2008
Location: corpus christi
Posts: 7,057
You a e missing some stuff. Hold on while I find the photo bucket stuff from last week when I did mine








You are missing the cable that hooks to the top and wraps around that metal quarter pie shaped piec and hooks to the piece on the bottom where the e-brake connects.

I don't feel like working on anything at this time so i sold my yj.
superj is offline
post #4 of 21 Old 07-20-2013, 04:29 PM
superj
Registered User

Join Date: Mar 2008
Location: corpus christi
Posts: 7,057
What rear end are you running?

I don't feel like working on anything at this time so i sold my yj.
superj is offline
post #5 of 21 Old 07-20-2013, 04:32 PM
superj
Registered User

Join Date: Mar 2008
Location: corpus christi
Posts: 7,057
Also, next time, wire brush everything out of the brake area. You have a lot of dust and crud built up inside your drum area that is holding moisture or fluid in there. See how everything looks wet. You can wire brush it off or use a can or two or brake cleaner.

I don't feel like working on anything at this time so i sold my yj.
superj is offline
post #6 of 21 Old 07-20-2013, 04:36 PM
bigbossd1030
Registered User
1995 YJ Wrangler

Join Date: Feb 2010
Location: Edmonton, AB
Posts: 2,514
Yup those aren't going to work right. Go to your local parts store and get a spring kit and an adjuster repair kit. Both are cheap. I think it was 50 bucks for both kits, for both sides here. They will come with everything you need, plus a few pieces you don't. Don't drive that jeep! Yet.

Sent from my iPhone, probably because I am bored at work.

/l ,[____],
l----L-[]lllllll[]-
()_)-()_)--o)_)

OFFICIAL JEEPER
Any Jeepers in Edmonton, AB
I am on channel 33.

I live, I ride, I am JEEP.
bigbossd1030 is offline
post #7 of 21 Old 07-20-2013, 04:36 PM
superj
Registered User

Join Date: Mar 2008
Location: corpus christi
Posts: 7,057
One of the pieces missing is on the ground in your second picture. That is what your e-brake cable hooks to. It spins the self adjuster when you hit the brakes which in turn ratchets that little star on the rod between your back shoes and expands the shoes as they wear. The cable you are missing (the one not hooked up in my pic) connects to that and goes around that little metal pie pan piece and hooks to the top where your top springs are hooked up.

I don't feel like working on anything at this time so i sold my yj.
superj is offline
post #8 of 21 Old 07-20-2013, 04:39 PM
Mean Max
Don't poke the bear

Mean Max's Avatar
1991 YJ Wrangler

Join Date: Jul 2007
Location: Stuart, Florida
Posts: 13,734
Yes, you're missing some stuff.

Look here.

http://www.lunghd.com/Tech_Articles/...ke_Service.htm

You have 10" brakes.

Max

Click here to see all of my different albums on Photobucket.
Choose any album to see all of my pics!


Quote:
Originally Posted by UltimatE View Post
Max has a picture of every Jeep part ever made.
Quote:
Originally Posted by Benderff View Post
No one here knows what they are talking about. You should try Pirate 4x4 they will be happy to help you.

There is no situation that cannot be improved with a small but well-placed explosive.
Mean Max is offline
post #9 of 21 Old 07-20-2013, 04:49 PM
Anticanman
RIP one good jeeper

Anticanman's Avatar
1994 YJ Wrangler

Join Date: Aug 2009
Location: Ripon
Posts: 20,368
Max to the rescue!!

Luck Favours The Prepared
Anticanman is offline
post #10 of 21 Old 07-20-2013, 04:50 PM
Mean Max
Don't poke the bear

Mean Max's Avatar
1991 YJ Wrangler

Join Date: Jul 2007
Location: Stuart, Florida
Posts: 13,734
Quote:
Originally Posted by Anticanman View Post
Max to the rescue!!


Max

Click here to see all of my different albums on Photobucket.
Choose any album to see all of my pics!


Quote:
Originally Posted by UltimatE View Post
Max has a picture of every Jeep part ever made.
Quote:
Originally Posted by Benderff View Post
No one here knows what they are talking about. You should try Pirate 4x4 they will be happy to help you.

There is no situation that cannot be improved with a small but well-placed explosive.
Mean Max is offline
post #11 of 21 Old 07-21-2013, 06:05 AM Thread Starter
mattyrayb
Registered User
1989 YJ Wrangler

Join Date: Aug 2005
Posts: 64
I think I got it now.
Yeah/Nay?

Now I can't get my drums on...arrrgh!

Passenger side




Drivers


Jeep title says '88, but everything points toward '92-'95...weird.
mattyrayb is offline
post #12 of 21 Old 07-21-2013, 06:09 AM Thread Starter
mattyrayb
Registered User
1989 YJ Wrangler

Join Date: Aug 2005
Posts: 64
Also is it normal for the tops of the shoes not to be sure snug? I feel like I have to keep smacking them around to center

Jeep title says '88, but everything points toward '92-'95...weird.
mattyrayb is offline
post #13 of 21 Old 07-21-2013, 06:17 AM
UltimatE
Resident Audio Guru

UltimatE's Avatar
1994 YJ Wrangler

Join Date: Sep 2004
Location: Worcester, Mass
Posts: 7,104
Yes, that is normal. The tops of the pads ride on the brake cylinder, which moves around.

-Matt

White '94 YJ Sport
Black '98 ZJ Laredo - 45x60 Surco Rack - 2" Budget Boost, Addco Front Swaybar

Project (s)Low - A build log.
UltimatE is offline
post #14 of 21 Old 07-21-2013, 07:27 AM
Mark05059
Registered User
1989 YJ Wrangler

Join Date: Mar 2009
Location: quechee Vermont
Posts: 4,699
your adjuster screws are probably out too far... turn them in and try getting your drums on.. you can adjust themfro the back after the drum is on.

1998 ZJ 5.2 Auto

1989 Wrangler Black Bone Stock 2.5l 5spd
/l , [____],
|---L--[]lllllll[]-
()_) ()_)==O=)_)
Mark05059 is offline
post #15 of 21 Old 07-21-2013, 07:51 AM Thread Starter
mattyrayb
Registered User
1989 YJ Wrangler

Join Date: Aug 2005
Posts: 64
I put the adjusters in, pulled the ebrake multiple times after each adjustment.
Drums went on.
Hopefully I'll get confirmation on the brakes and then take it for a drive

Jeep title says '88, but everything points toward '92-'95...weird.
mattyrayb is offline
