post #1 of 69 Old 11-15-2009, 10:25 PM Thread Starter
Mean Max
Don't poke the bear

Mean Max's Avatar
1991 YJ Wrangler

Join Date: Jul 2007
Location: Stuart, Florida
Posts: 13,734
Basic Maintenance - Fuel Filter Replacement

This fuel filter write-up is one more of my "Basic Maintenance" threads and pertains to '87-'95 2.5L and '91-'95 4.0L YJ models.

Today a fellow JF member WhatsWrong came to my house so we could do some work on his '93 4.0L YJ that he needed to get done. One of those things was a fuel filter replacement on his nearly pristine Jeep. Even though his Jeep is in excellent condition, it might be possible that the previous owners may have never changed the fuel filter. Since he has recently acquired the Jeep, he has been working on getting all the little things sorted out. If your YJ is new to you, a fuel filter replacement is a cheap bit of insurance and can be accomplished in just a few minutes.

Start with the correct fuel filter in the brand of your choice. Note that it has been marked "IN" and "OUT" indicating the direction of fuel flow, "IN" meaning into the filter from the tank, and "OUT" meaning out of the filter to the engine.


Remove the gas cap to release pressure in the tank.


Locate the schrader valve on the fuel rail.


Remove the cap & place some old rags around the valve.


Depress the stem in the center of the valve to release pressure from the line. The rag is there to absorb the fuel.
CAUTION!!! The fuel in the rail is under extreme pressure, exercise caution when releasing pressure to avoid being sprayed by fuel! Safety glasses are advisable.


The fuel filter is located underneath the Jeep on the frame rail, just forward of the rear tire on the driver's side. It has a protective guard plate attached with 4 screws.


The are 2 screws on the underside of the frame rail.


The remaining 2 screws are on the side of the frame rail.




Loosen the clamps for the inlet & outlet closest to the filter body before removing the filter clamp bolt. This will hold the filter steady while loosening the clamps.
CAUTION!!! There will still be plenty of fuel in the lines & filter! Eye protection is a minimum requirement!


Here you can see the bolt that is on the clamp. Once you remove the bolt, the top portion of the clamp that is hinged to the lower portion behind the filter can be removed.


Now the filter can be removed.
CAUTION!!! A lot more fuel than you think will still be in the filter! BE CAREFUL!


Install the new filter, paying close attention to the direction of flow as indicated on the new filter. Tighten the hose clamps securely, reinstall the filter clamp & bolt, and finally the guard plate.


Reinstall the cap on the gas tank & on the schrader valve on the fuel rail. Get in the Jeep & turn the key to the "ON" position for at least 10 seconds and then off again. Repeat this cycle at least 7 or 8 times, this will help refill the lines & filter and also build some pressure in the system. Failure to do so will result in a much longer & harder initial start-up.

Lastly, there are some things to keep in mind:

1) Check for leaks as soon as you restart the engine. If there is a leak, the sooner you know about it, the better!

2) Check the hoses for signs of deterioration and replace them as needed. The 2 small hoses located at the filter are distinctly different sizes, and are a dealer item only, to the best of my knowledge.

This is an extremely easy project for even the most inexperienced novice. It's a good way to start learning about your Jeep, and building your mechanical skills slowly & confidently.

Thanks again to fellow JF member WhatsWrong for allowing me to use his YJ in this write-up!

Max


Click here to see all of my different albums on Photobucket.
Choose any album to see all of my pics!


Quote:
Originally Posted by UltimatE View Post
Max has a picture of every Jeep part ever made.
Quote:
Originally Posted by Benderff View Post
No one here knows what they are talking about. You should try Pirate 4x4 they will be happy to help you.

There is no situation that cannot be improved with a small but well-placed explosive.

Last edited by Mean Max; 11-15-2009 at 11:48 PM.
Mean Max is offline
Sponsored Links
Advertisement

post #2 of 69 Old 11-15-2009, 10:27 PM
Apollo12227
Registered User
1992 YJ Wrangler

Join Date: Oct 2009
Location: Orlando
Posts: 2,663
Well done max, perfectly simple yet effective. Another awsome writeup lol, haynes needs to hire you to write the book on jeep
Apollo12227 is offline
post #3 of 69 Old 11-15-2009, 10:29 PM
bigbelman2009
Registered User
1989 YJ Wrangler

Join Date: Oct 2008
Location: fredericksburg
Posts: 503
great write up
bigbelman2009 is offline
post #4 of 69 Old 11-15-2009, 10:50 PM
Joe Dillard
Electric Chair Operator

Joe Dillard's Avatar
1991 YJ Wrangler

Join Date: May 2004
Location: Lexington Park
Posts: 13,236
Nicely done!

I have seen enough YJ's experiance clogged fuel filters, that I carry a spare in my trailbox. Not just for myself, but if somebody else's gets clogged.
Joe Dillard is offline
post #5 of 69 Old 11-15-2009, 11:04 PM
Hurley91
Registered User
2006

Join Date: Jun 2009
Location: Ontario Canada
Posts: 1,090
Thanks alot Max, i need to change mine soon.
Hurley91 is offline
post #6 of 69 Old 11-15-2009, 11:18 PM
SDGBASSE
Registered User
1990 YJ Wrangler

Join Date: Jul 2009
Location: Mtl, Qc
Posts: 650
Great write-up, I would only add one little thing.....when you remove your old filter empty the "IN" port by gravity to check for rust in the tank, of course this isn't really usefull on those lucky newer models with plastic tanks......

Quote:
Originally Posted by ZeroGravity View Post
I didn't click the link because it says "power probe" in the url.
SDGBASSE is offline
post #7 of 69 Old 11-16-2009, 06:27 AM
havasu
On permanent vacation

havasu's Avatar
2004 TJ Wrangler

Join Date: Mar 2008
Location: Southern California
Posts: 1,343
Without placing a dark cloud on a nice write up, but I would have spent a few extra bucks and replaced the old fuel lines as well. Another great write up Max!
havasu is offline
post #8 of 69 Old 11-16-2009, 06:37 AM
Louie4
Jeep Enjuneering

Louie4's Avatar
1993 YJ Wrangler

Join Date: Aug 2008
Location: Raleigh
Posts: 10,771
Solid write-up.

Lou

I have a jeep...and it is modified...I win.

YJOTM July 2012
YJOTM February 2014

Louie4's YJ Build
Poison Spyder Fender Install
Warn M8000 Rebuild Adventure
University of Georgia
Louie4 is offline
post #9 of 69 Old 11-16-2009, 06:43 AM
J-Quad
Registered User
1995 YJ Wrangler

Join Date: Aug 2008
Location: Mid-Michigan
Posts: 410
Great writeup, as usual Max!

Boy, I wish my rusty '95 was as half as clean as the underside of 'WhatsWrong' '93!
When I went to change out my fuel filter (which I'm sure wasn't done for years), the clamps and protective guard plate attaching bolts were all rusted and corroded.
Even after hosing them down with PB Blaster prior to beginning the work, it was a Pain-in-the-But-Mister!

Consider yourself lucky to have such a clean undercarriage, WhatsWrong!

J-Quad

-- '95 YJ, 4-cyl, 5-speed.
From Dec-Mar, it wears an 80" snowplow. From Apr-Nov, it gets muddy on the 2-tracks!
"War does not determine who is right, war determines who is left."
J-Quad is offline
post #10 of 69 Old 01-20-2010, 08:25 PM
Przemekmsu
Registered User
1990 YJ Wrangler

Join Date: Jan 2010
Location: Jersey
Posts: 77
I was looking for the filter in my Jeep and it was not in the same place as where your pictures are showing. I own a 1990 its a 6cyl, 4.2 L . Can any one guide me where I can find it??? Thanks
Przemekmsu is offline
post #11 of 69 Old 01-20-2010, 08:44 PM Thread Starter
Mean Max
Don't poke the bear

Mean Max's Avatar
1991 YJ Wrangler

Join Date: Jul 2007
Location: Stuart, Florida
Posts: 13,734
Quote:
Originally Posted by Przemekmsu View Post
I was looking for the filter in my Jeep and it was not in the same place as where your pictures are showing. I own a 1990 its a 6cyl, 4.2 L . Can any one guide me where I can find it??? Thanks
Carbed models should have a filter in the fuel line near the intake manifold.


Max

Click here to see all of my different albums on Photobucket.
Choose any album to see all of my pics!


Quote:
Originally Posted by UltimatE View Post
Max has a picture of every Jeep part ever made.
Quote:
Originally Posted by Benderff View Post
No one here knows what they are talking about. You should try Pirate 4x4 they will be happy to help you.

There is no situation that cannot be improved with a small but well-placed explosive.
Mean Max is offline
post #12 of 69 Old 01-20-2010, 09:10 PM
Przemekmsu
Registered User
1990 YJ Wrangler

Join Date: Jan 2010
Location: Jersey
Posts: 77

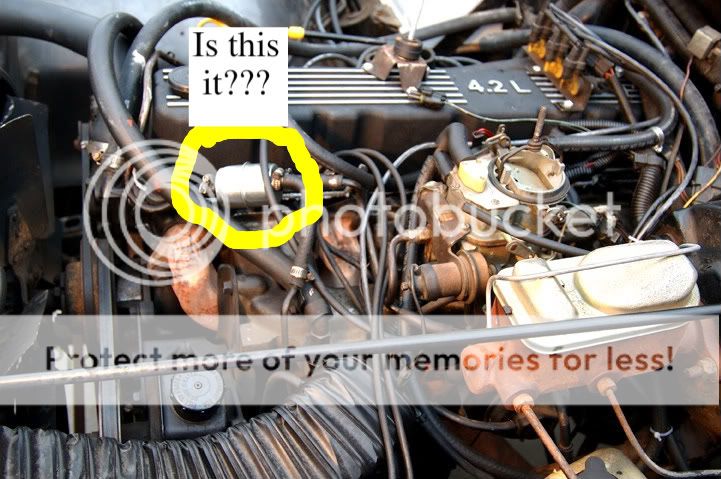

Is this it????
Przemekmsu is offline
post #13 of 69 Old 01-20-2010, 09:16 PM Thread Starter
Mean Max
Don't poke the bear

Mean Max's Avatar
1991 YJ Wrangler

Join Date: Jul 2007
Location: Stuart, Florida
Posts: 13,734
Quote:
Originally Posted by Przemekmsu View Post
Is this it????
Yessir!

Max

Click here to see all of my different albums on Photobucket.
Choose any album to see all of my pics!


Quote:
Originally Posted by UltimatE View Post
Max has a picture of every Jeep part ever made.
Quote:
Originally Posted by Benderff View Post
No one here knows what they are talking about. You should try Pirate 4x4 they will be happy to help you.

There is no situation that cannot be improved with a small but well-placed explosive.
Mean Max is offline
post #14 of 69 Old 01-20-2010, 09:16 PM
Przemekmsu
Registered User
1990 YJ Wrangler

Join Date: Jan 2010
Location: Jersey
Posts: 77
Thank You!!!!
Przemekmsu is offline
post #15 of 69 Old 01-20-2010, 09:59 PM
rustywrangler
Got my eye on you.....

rustywrangler's Avatar

Join Date: Apr 2005
Location: Syracuse, NY
Posts: 18,613
Quote:
Originally Posted by Przemekmsu View Post
Thank You!!!!
To add to that, make sure your filter is level or just above the float of the carb.


Congenital Heart Disease is a reality for me, BOTH of my children have it. Please read up and become aware for future generations

Lydia Ann-Acquired 08/05/05 Open Heart surgery 08/10/05
Jacob Patrick-Acquired 01/17/08 Open Heart surgery 02/15/08
