Basic Maintenance - 4.0L serpentine belt tension adjustment

Today we were getting a lot of Jeep work done, and one of the things on the list was adjusting the tension of the serpentine belt on my red '91 4.0L YJ.

The belt actually needs to be replaced, but until I get the new one I wanted to get the belt squeal under control.

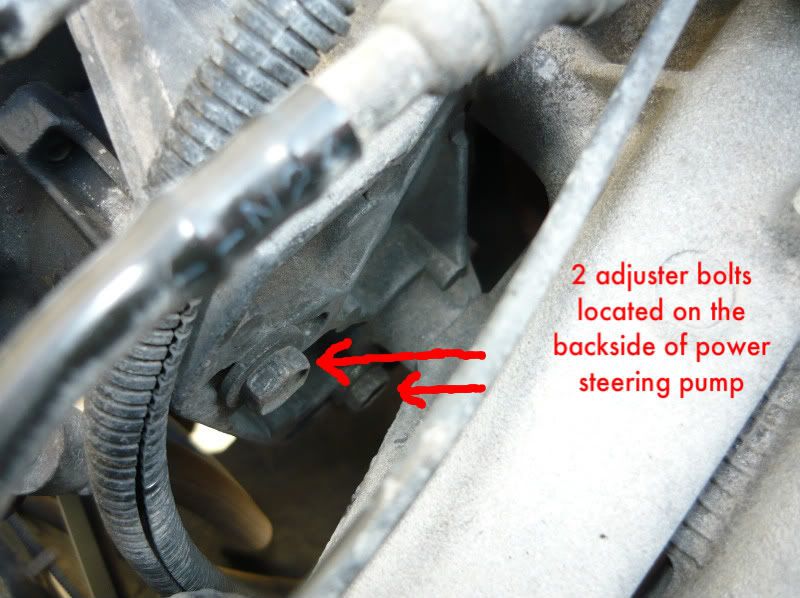

Here is where I started, loosening the two 13MM bolts located at the rear of the power steering pump. I access these from the top, using a long 13MM boxed end wrench.
It is only necessary to loosen them about 1/2 to 1 turn.

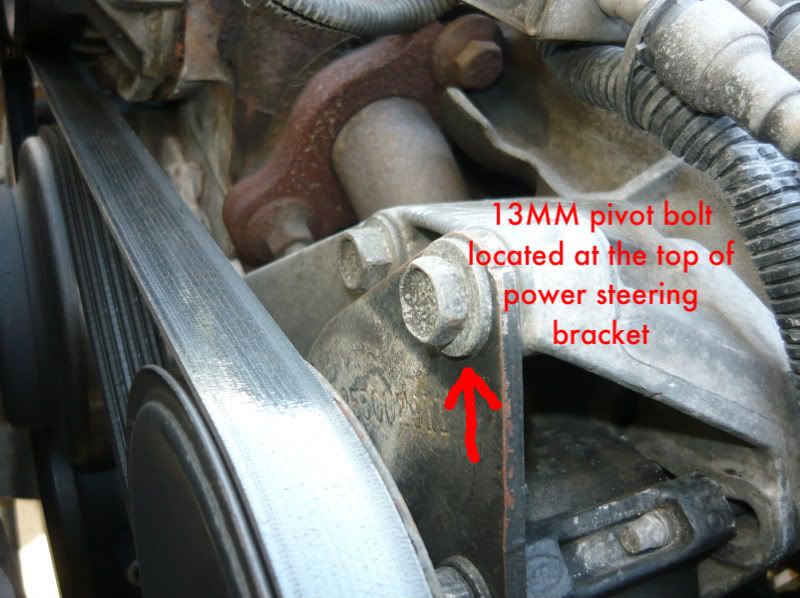

Next loosen the 13MM pivot bolt located at the top of the power steering pump, just above the pulley.


Then loosen the nut located underneath the pulley that locks down the belt tension adjuster bolt. I used a 13MM shallow socket on a 1/4" drive ratchet.

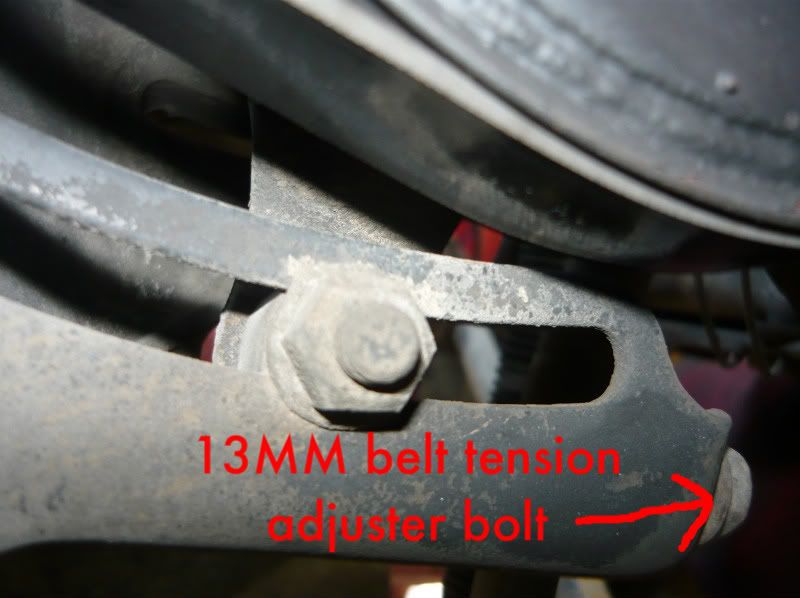

Now you can loosen or tighten the belt tension using the belt tension adjuster bolt. Tightening the bolt will tighten the belt, loosening the bolt will loosen the belt. I used a 13MM shallow socket on a 1/4" drive ratchet for this as well.


The belt needs to be fairly snug to avoid squealing. It's really difficult to describe the tension requirement exactly, but tight is pretty descriptive. After tightening the belt to the desired tension, be sure to tighten all 4 of the mounting points.

Max
