Unread 10-27-2010, 03:55 PM   #16
ZacoWacko
Registered User
1991 YJ Wrangler

Join Date: Jul 2010
Location: Lawton, OK
Posts: 60
Good point. My junk yards r full of idiots, who wan to charge near full price and then make u take it off.

ZacoWacko is offline   Reply With Quote Quick reply to this message
Unread 10-28-2010, 08:10 AM   #17
Mean Max
Don't poke the bear

Mean Max's Avatar
1991 YJ Wrangler

Join Date: Jul 2007
Location: Stuart, Florida
Posts: 13,682

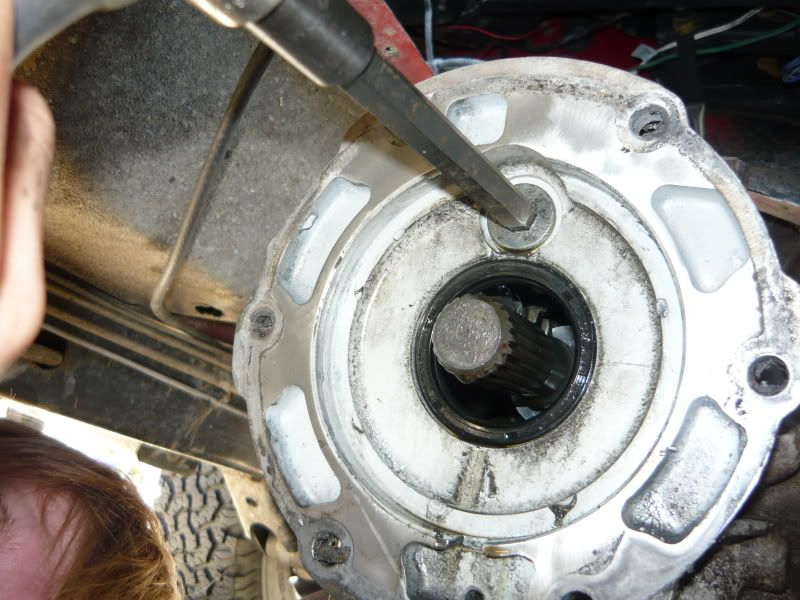

Hey Doc, I just noticed something! Look at this picture of yours. See the threaded hole above the output shaft? Does yours not have a plug in it?


That's the access hole for part of the shifter mechanism. Without a plug it will definitely leak fluid! Here's what the plug looks like.


Max
__________________
Click here to see all of my different albums on Photobucket.
Choose any album to see all of my pics!


Quote:
Originally Posted by UltimatE View Post
Max has a picture of every Jeep part ever made.
Quote:
Originally Posted by Benderff View Post
No one here knows what they are talking about. You should try Pirate 4x4 they will be happy to help you.

There is no situation that cannot be improved with a small but well-placed explosive.
Mean Max is offline   Reply With Quote Quick reply to this message
Unread 10-28-2010, 12:44 PM   #18
Feetwet
Enjoying the Ride

Feetwet's Avatar
1995 YJ Wrangler

Join Date: Mar 2008
Location: South Jersey
Posts: 816
Thanks for checkin up on me Max.

I"ve got a nice dry bottom these days thanks to that seal job. If you look closely at that photo, you can see the plug in there with the hex wrench hole in it. I never disturbed that plug, its screwed in there about 3/8" deep or so.

The seals are holding up fine, fluids stay clean and topped off, I check em regularly.

You"d think the Big Dogs would have added this to the YJ FAQs and Writeups by now...hint,hint
__________________
Fight Crime...Shoot Back

Friends don't let friends roll over without a negative-G strap

Feetwet's Ford 8.8 Axle Teardown/Rebuild/Install

AX5 Output Shaft Seal Replacement

Hand Throttle Install

AX5 Vent Install
Feetwet is online now   Reply With Quote Quick reply to this message
Unread 10-29-2010, 07:55 AM   #19
Mean Max
Don't poke the bear

Mean Max's Avatar
1991 YJ Wrangler

Join Date: Jul 2007
Location: Stuart, Florida
Posts: 13,682

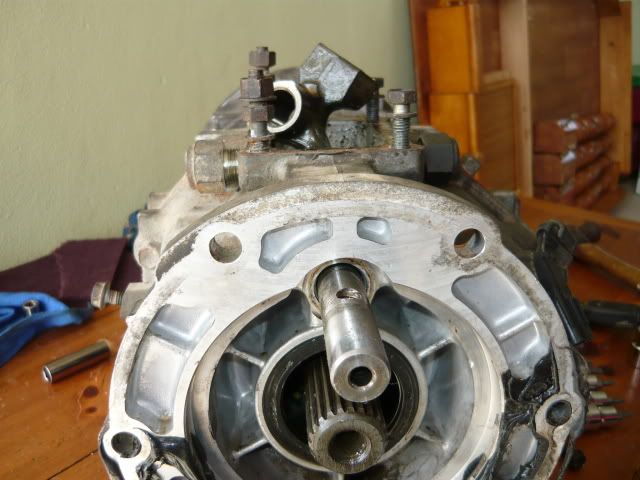

I hate to sound persistent, but it really doesn't look like the plug. The plug seals on the outside flange, not on the threads down in the case.

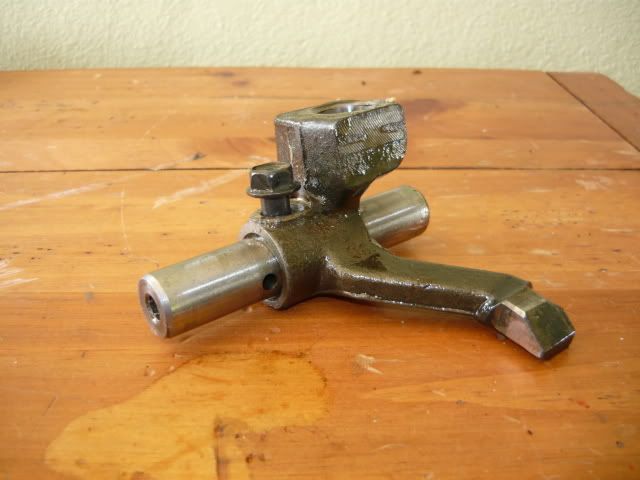

I think what I'm seeing down in the hole, is the shaft for the shifter "dog leg" mechanism.




Please feel free to tell me to mind my own business if you're tired of hearing the old fat guy's opinion!

Max
__________________
Click here to see all of my different albums on Photobucket.
Choose any album to see all of my pics!


Quote:
Originally Posted by UltimatE View Post
Max has a picture of every Jeep part ever made.
Quote:
Originally Posted by Benderff View Post
No one here knows what they are talking about. You should try Pirate 4x4 they will be happy to help you.

There is no situation that cannot be improved with a small but well-placed explosive.
Mean Max is offline   Reply With Quote Quick reply to this message
Unread 10-29-2010, 12:28 PM   #20
Feetwet
Enjoying the Ride

Feetwet's Avatar
1995 YJ Wrangler

Join Date: Mar 2008
Location: South Jersey
Posts: 816
Please feel free to tell me to mind my own business if you're tired of hearing the old fat guy's opinion!

Max [/QUOTE]

Your PERSISTANCE made me go back and look at my original picture files. I can blow those dudes up huge and still see good detail because I used a 10 megapixel SLR camera. As much as it pains me to say this, I believe I have to pull my TC again. I don't see a flush plug in my pics at all. As i said before, I never disturbed that plug/nonplug so I guess it was missing to begin with.
(Outraged) I been ROBBED!

I don't seem to have lost any transmission fluid, the housing and skid are both dry and that weep hole is clean. I"ll recheck the trans fluid level again but I guess I have to hunt down a replacement plug. Not a lot of old AX5s layin around these parts, but I'll start looking.

See, this is why they should hold parades for guys like you, Max. I know everyone appreciates your input around here and thanks you for your time and effort, but has anybody ever sent you a nice Fruit Basket?



I'll keep you posted....
__________________
Fight Crime...Shoot Back

Friends don't let friends roll over without a negative-G strap

Feetwet's Ford 8.8 Axle Teardown/Rebuild/Install

AX5 Output Shaft Seal Replacement

Hand Throttle Install

AX5 Vent Install
Feetwet is online now   Reply With Quote Quick reply to this message
Unread 10-30-2010, 07:27 AM   #21
Mean Max
Don't poke the bear

Mean Max's Avatar
1991 YJ Wrangler

Join Date: Jul 2007
Location: Stuart, Florida
Posts: 13,682
Quote:
Originally Posted by Feetwet View Post
Please feel free to tell me to mind my own business if you're tired of hearing the old fat guy's opinion!

Max

Your PERSISTANCE made me go back and look at my original picture files. I can blow those dudes up huge and still see good detail because I used a 10 megapixel SLR camera. As much as it pains me to say this, I believe I have to pull my TC again. I don't see a flush plug in my pics at all. As i said before, I never disturbed that plug/nonplug so I guess it was missing to begin with.
(Outraged) I been ROBBED!

I don't seem to have lost any transmission fluid, the housing and skid are both dry and that weep hole is clean. I"ll recheck the trans fluid level again but I guess I have to hunt down a replacement plug. Not a lot of old AX5s layin around these parts, but I'll start looking.

See, this is why they should hold parades for guys like you, Max. I know everyone appreciates your input around here and thanks you for your time and effort, but has anybody ever sent you a nice Fruit Basket?



I'll keep you posted....
PM me your address, I'll throw a plug in the mail to you.

Loved the fruit! I cut it up & soaked in in a pitcher of Sangria!

Max
__________________
Click here to see all of my different albums on Photobucket.
Choose any album to see all of my pics!


Quote:
Originally Posted by UltimatE View Post
Max has a picture of every Jeep part ever made.
Quote:
Originally Posted by Benderff View Post
No one here knows what they are talking about. You should try Pirate 4x4 they will be happy to help you.

There is no situation that cannot be improved with a small but well-placed explosive.
Mean Max is offline   Reply With Quote Quick reply to this message
Unread 10-30-2010, 08:17 AM   #22
Feetwet
Enjoying the Ride

Feetwet's Avatar
1995 YJ Wrangler

Join Date: Mar 2008
Location: South Jersey
Posts: 816
PM sent.

Hope you have a fork lift handy to get that thing to the Post Office....
__________________
Fight Crime...Shoot Back

Friends don't let friends roll over without a negative-G strap

Feetwet's Ford 8.8 Axle Teardown/Rebuild/Install

AX5 Output Shaft Seal Replacement

Hand Throttle Install

AX5 Vent Install
Feetwet is online now   Reply With Quote Quick reply to this message
Unread 03-07-2011, 05:06 PM   #23
Feetwet
Enjoying the Ride

Feetwet's Avatar
1995 YJ Wrangler

Join Date: Mar 2008
Location: South Jersey
Posts: 816
Thought it would be a good idea to update this thread. Max sent me the plug. I pulled the TC and mine WAS missing. Installed the plug, put it all back together and all is well.

Thanks again Max!
__________________
Fight Crime...Shoot Back

Friends don't let friends roll over without a negative-G strap

Feetwet's Ford 8.8 Axle Teardown/Rebuild/Install

AX5 Output Shaft Seal Replacement

Hand Throttle Install

AX5 Vent Install
Feetwet is online now   Reply With Quote Quick reply to this message
Unread 03-07-2011, 06:57 PM   #24
Mean Max
Don't poke the bear

Mean Max's Avatar
1991 YJ Wrangler

Join Date: Jul 2007
Location: Stuart, Florida
Posts: 13,682
Good on ya Doc!

On a side note, I check my numbers each week hoping I'll be calling you to share a beer or three with me but it still hasn't happened yet......

Nice to see you around!

Max

Sent from my HTC Incredible Droid
__________________
Click here to see all of my different albums on Photobucket.
Choose any album to see all of my pics!


Quote:
Originally Posted by UltimatE View Post
Max has a picture of every Jeep part ever made.
Quote:
Originally Posted by Benderff View Post
No one here knows what they are talking about. You should try Pirate 4x4 they will be happy to help you.

There is no situation that cannot be improved with a small but well-placed explosive.
Mean Max is offline   Reply With Quote Quick reply to this message
Unread 03-07-2011, 08:03 PM   #25
Feetwet
Enjoying the Ride

Feetwet's Avatar
1995 YJ Wrangler

Join Date: Mar 2008
Location: South Jersey
Posts: 816


That's gonna be one hellacious road trip.....
__________________
Fight Crime...Shoot Back

Friends don't let friends roll over without a negative-G strap

Feetwet's Ford 8.8 Axle Teardown/Rebuild/Install

AX5 Output Shaft Seal Replacement

Hand Throttle Install

AX5 Vent Install
Feetwet is online now   Reply With Quote Quick reply to this message
Unread 07-16-2011, 09:06 PM   #26
Siva283
Registered User
1995 YJ Wrangler

Join Date: May 2011
Location: Falling Waters, WV
Posts: 3,698
I have been searching for this thread for 2 days. You just saved me from having to use stop leak to buy some time. Hoping to knock this one out tomorrow since I gotta drive it to work Monday. How long did it take you to remove the transfer case change the seal and the put it all back together? Is this something someone that is not new but not experienced can do in a day?
Siva283 is offline   Reply With Quote Quick reply to this message
Unread 07-16-2011, 09:37 PM   #27
Mean Max
Don't poke the bear

Mean Max's Avatar
1991 YJ Wrangler

Join Date: Jul 2007
Location: Stuart, Florida
Posts: 13,682
I'll reply for Doc. The whole job is very simple. Remove tranmission mount bolts/nuts and torque arm nut from center of skid plate. Support transmission just forward of skid plate & then remove the skid plate entirely. Drain the transfer case & remove driveshafts at the pinion of each axle. The rear shaft will slide out, the front can stay attached to the transfer case. Pop the round transfer case shift rod loose at the forward end, then unplug the vacuum switch, vent line, and the speedometer cable/wire on the transfer case. Unbolt the 6 nuts (5 on most 4 cylinder models) that attach the transfer case to the transmission & remove the transfer case. Replace the seal & reverse the procedure to reinstall. Plan on a few hours the first time, I've had so many Jeeps apart that I can do that job in under 45 minutes on the lift in my shop. But not being familiar with the tools & fastener sizes required, plus laying on your back all adds up to more time. Just don't rush, think it through & be safe! Make sure you follow all the rules for safe working conditions, like chocking the wheels, set parking brake, etc. and you'll be fine.

Max
__________________
Click here to see all of my different albums on Photobucket.
Choose any album to see all of my pics!


Quote:
Originally Posted by UltimatE View Post
Max has a picture of every Jeep part ever made.
Quote:
Originally Posted by Benderff View Post
No one here knows what they are talking about. You should try Pirate 4x4 they will be happy to help you.

There is no situation that cannot be improved with a small but well-placed explosive.
Mean Max is offline   Reply With Quote Quick reply to this message
Unread 07-17-2011, 06:58 AM   #28
Feetwet
Enjoying the Ride

Feetwet's Avatar
1995 YJ Wrangler

Join Date: Mar 2008
Location: South Jersey
Posts: 816
Thanks for all that typing Max, kinda glad you saw Siva283's new post before I did.

Max's summary of the job is dead-on, as usual.

Siva283, please refer to the first post in this thread for information regarding the locations and sizes of all the fasteners you will need to remove, as well as the connections to the Transfer Case that must be undone.

It is a very straightforward process. Follow the steps, refer to the pics and Take Your Time. Read the thread again, Be Safe!

The skid plate bolts may be an issue but there are plenty of threads out there for dealing with them.

Good luck and ask questions if you need to. I'll get Max to answer em for you.....
