?about making front bumper for YJ

OK I have been doing a search and no good pictures or explanation of how you attach a front bumper that will be a winch mount to the front of a YJ.

The factory bumper bolts to the top of the frame.

I want to use some 2x6 tubing and make one but not sure how to mount it.

Any one have some good pictures of the mounting brackets?

Do you notch the tubing and slide it over the frame rails and bolt it down using factor mount?

Is that strong enough to hold a winch/recovery point?


2015 Jeep Wrangler JKU "Tank" Sport S
2002 Avalanche: To many mods to list
jeepwrnglr92 is offline
Sponsored Links
Advertisement

post #2 of 22 Old 10-11-2007, 07:47 AM
1 ton yj
Registered User

1 ton yj's Avatar
2000 XJ Cherokee

Join Date: Feb 2006
Location: New Milford NJ
Posts: 2,079
Mine is 2x4 and welded to the front of the frame rails. I made a winch mount from a peice of 1.5x.120 tube and some 1/4" plate I had lying around. The mount is flush with the bottom of the frame and the fairlead is in the bumper.
1 ton yj is offline
post #3 of 22 Old 10-11-2007, 08:38 AM
Joe Dillard
Electric Chair Operator

Joe Dillard's Avatar
1991 YJ Wrangler

Join Date: May 2004
Location: Lexington Park
Posts: 13,147
Like Chris, I used 2"x4" rectangular tubing for the fit I wanted since the frame is 4" tall & for simplicity. I made some tabs & drilled holes in them then welded the tabs to the top & bottom of the bumper. My winch plate is a Warn.




For the ends, you can see that I notched the ends so that I could bend a flap over & weld things together for a nice fit. This is not the easy way to do things, but the fitment was excellent & made for easy welding with my MIG.



Joe Dillard is offline
post #4 of 22 Old 10-11-2007, 08:59 AM
1 ton yj
Registered User

1 ton yj's Avatar
2000 XJ Cherokee

Join Date: Feb 2006
Location: New Milford NJ
Posts: 2,079
Joe D always comes through with pics!
1 ton yj is offline
post #5 of 22 Old 10-11-2007, 09:05 AM
Big-n-Broke-YJ
BUILT. NOT BOUGHT.

Big-n-Broke-YJ's Avatar
1989 YJ Wrangler

Join Date: Apr 2005
Location: Wilmington, NC
Posts: 5,766
welded mine!

regret it some days.... but not when i'm yanking on it!

'89 Wrangler, 4.0/AW4, 106" Wheelbase, SOA, custom XJ packs, 2" Body. Front High Pinion Dana 44 w/yukon super-joints, chromo inners and outers, and a Lincoln Locker. Rear Dana 60 w/Yukon 1.5" 35 Spline chomo shafts and detroit locker. 5.38 Yukon Gears. Hydro-Assist, 39.5x18" Boggers on 15x12 RockKrawler's w/ 2.75" of backspacing. Comp cut, tube fenders, custom bumpers and rock sliders, fuel cell, CB, Stewart Warner Gauges, SmittyBilt XRC8 Winch, 140 Amp CS-144 Alternator, Electric Fan, and a cooler of beer. 3897 lbs

March 1st, 8pm. WILMINGTON, NC MEET & GREET @ HOOTERS!
Big-n-Broke-YJ is offline
post #6 of 22 Old 10-11-2007, 11:27 AM Thread Starter
jeepwrnglr92
Registered User
2015 JK Wrangler

Join Date: Feb 2007
Location: WPB FL
Posts: 2,748
Thanx that what i needed to see. I just got back from the steel supplier so I guess I am going to have at it shortly.

I had a feeling that was the way t o mount it. I also was thinking of using some plate across the front. Still working tings out. Ill take pictures along the way.

Oh ya what the measurement. I t looks like a 1" cap but how much is the angle? I was thinking of making it like 3" in from the end.



How wide did you make it too. I have seen some that go in front of the tire but not sure if that is good or not.

2015 Jeep Wrangler JKU "Tank" Sport S
2002 Avalanche: To many mods to list
jeepwrnglr92 is offline
post #7 of 22 Old 10-11-2007, 11:32 AM
timatoe
Registered User

timatoe's Avatar
1990 YJ Wrangler

Join Date: Aug 2006
Location: Grass Valley California
Posts: 14,756
Go HERE, he's got a good write up.

Quote:
Originally Posted by George Orwell
We sleep safe in our beds because rough men stand ready in the night to visit violence on those who would do us harm.
timatoe is offline
post #8 of 22 Old 10-11-2007, 11:37 AM Thread Starter
jeepwrnglr92
Registered User
2015 JK Wrangler

Join Date: Feb 2007
Location: WPB FL
Posts: 2,748
Quote:
Originally Posted by timatoe
Go HERE, he's got a good write up.

Just what the Jeep Dr ordered.. Thanx

2015 Jeep Wrangler JKU "Tank" Sport S
2002 Avalanche: To many mods to list
jeepwrnglr92 is offline
post #9 of 22 Old 10-11-2007, 04:13 PM Thread Starter
jeepwrnglr92
Registered User
2015 JK Wrangler

Join Date: Feb 2007
Location: WPB FL
Posts: 2,748

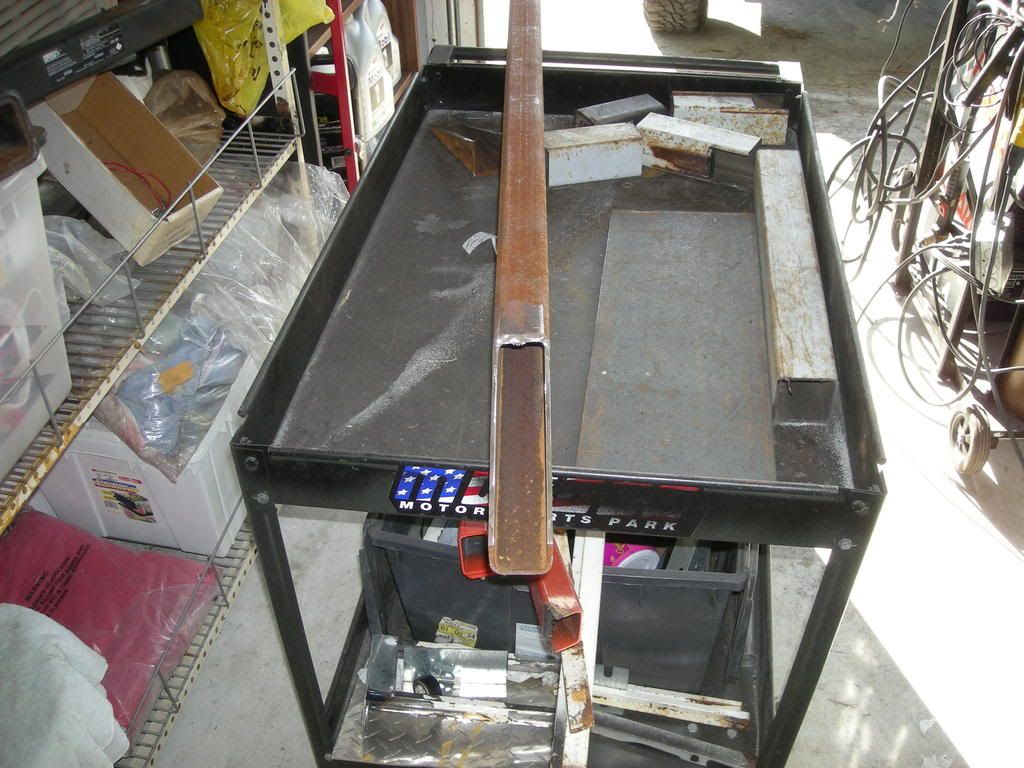

Ok this is as far as I got today after getting all the stock
