Unread 11-10-2011, 03:33 PM   #1
5.7YJ
Senior Member

5.7YJ's Avatar
1987 YJ Wrangler

Join Date: Aug 2006
Location: Rockledge, Florida
Posts: 900
95 Dual diaphram booster/master cylinder upgrade

After a few to many close calls trying to stop the Jeep, I ended up doing the 95 dual diaphram booster upgrade. After doing some research and reading as many post on here that have done this, I went out and bought the parts and completed the swap. Here are some pictures and descriptions of how everything went for me.


Brake booster and master cylinder from a 1995 Wrangler with 4.0ltr.




Here is the old master cylinder and lines(Needed to be changed on looks alone).




Removed the master cylinder.




I covered up the proportioning valve to prevent debres getting into the system.




Disconected the booster rod from the brake pedal and switch.




Removed the booster leaving the bracket(Looks better already!).




Here is one difference between the 87 and 95 rod, the 87 rod hole is 5/8" and the 95 is 9/16" I believe. The other is the 95 rod is 1/4" shorter than the 87. I didn't worry about the 1/4" difference and can't really tell now that it's in.




Here is the rod after I drilled it out to 5/8", one of my friends had a bit or it would have cost me another $20.




I went ahead and painted the booster with Rusoleum Hamerite paint.

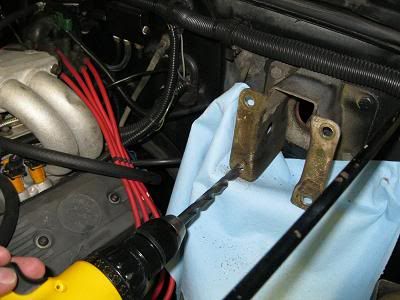

The 95 booster has larger studs(3/8") to mount it to the bracket, I drilled the four holes out to 1/2".




One issue I had was the brake light switch would not fit due to the casting at the end of the rod(later models use a different switch). I used an angle grinder and removed material until the mounting pin would fit with the switch on. I also had to bend the small tabs on the switch towards the rod end to get it to work properly.




Here is the booster mounted in it's new home.




Due to the master cylinder having bubble type fittings, I purchased adapters for the master cylinder. The fittings you will need are Edelmann #265000 and #271300. They both adapt to standard 3/16 brake line fittings. The lines I used where Carquest #NC320, they are nickle/copper and bend really nice.




I went and bought an extra line and cut it in half to make bleeded lines. I really don't like using those plastic plugs that come with the master cylinders.




Here are the adapter lines for the proportioning valve. I was going to reuse the original fittingsand double flare the lines myself but just could not get them to flare the way I wanted.




Here is the finished product, looks a whole lot better than it did with the old setup.

I bled all of the lines to get any air out and to flush out all of the old fluid.

I took it out for a test drive and I have to say it brakes a lot better than before(and I thought it wasn't that bad before). I don't think I will have to stand on the brake pedal any more when some idiot pulls out in front of me and decides to stop. The entire swap cost less than $250.00 and it was worth every penny!

__________________
87 YJ, TPI 5.7, 700R4, NP231, BDS 3.5" lift, 1" front & 5/8" rear boomerang shackles, Rubicon Dana 44 rear axle, 33" Goodyear Duratracs











My brake boster/master cylinder upgrade: http://www.jeepforum.com/forum/f12/9...grade-1287758/
5.7YJ is offline   Reply With Quote Quick reply to this message
Unread 11-10-2011, 03:41 PM   #2
jsawduste
Web Wheeler
2006 YJ Wrangler

Join Date: Jul 2006
Posts: 3,038
jsawduste is offline   Reply With Quote Quick reply to this message
Unread 11-10-2011, 03:56 PM   #3
TSEJEEPERS
Registered User
1993 YJ Wrangler

Join Date: Dec 2003
Location: Morton IL
Posts: 5,031
Looks good.
Did you have any problems finding the 95 booster and master cylinder?
When I did my brake upgrade I had a heck of a time finding the booster.
No one local could get it, I finally found it online.
__________________
93 YJ SOA 2" springs front, XJ springs rear w/main leaf added, High pinon 9 inch rear detroit locker front Dana 44 ARB 4.56 Gears, 36 inch Irok tires too much to list. www.mijc.org
TSEJEEPERS is offline   Reply With Quote Quick reply to this message
Unread 11-10-2011, 03:59 PM   #4
5.7YJ
Senior Member

5.7YJ's Avatar
1987 YJ Wrangler

Join Date: Aug 2006
Location: Rockledge, Florida
Posts: 900
Quote:
Originally Posted by TSEJEEPERS View Post
Looks good.
Did you have any problems finding the 95 booster and master cylinder?
When I did my brake upgrade I had a heck of a time finding the booster.
No one local could get it, I finally found it online.
Thanks. No problem at all, went down to the Carquest I deal with a lot and had it in a couple of days.
__________________
87 YJ, TPI 5.7, 700R4, NP231, BDS 3.5" lift, 1" front & 5/8" rear boomerang shackles, Rubicon Dana 44 rear axle, 33" Goodyear Duratracs











My brake boster/master cylinder upgrade: http://www.jeepforum.com/forum/f12/9...grade-1287758/
5.7YJ is offline   Reply With Quote Quick reply to this message
Unread 11-10-2011, 04:46 PM   #5
jfrabat
Registered User
1994 YJ Wrangler

Join Date: Jan 2007
Location: San Josť, Costa Rica
Posts: 130
I did this upgrade as well a while back... It did improve my braking, but me being me, I could not let good enough alone, so I went to hydroboost. HB does work better, but now when I stall the engine, I loose brake booster, which makes it rather interesting when you stall on a steep slope...
__________________
'94 YJ 2.5L with 4" RE lift, Adv. Ad. SYE, Woody Shaft, Superwinch EPi9.0, 62mm TB, FoMoCo e-Fan, SD30 and SD35 w/ARB-4.88, 165A alt., 4 KC aux lights, Aluminum Rad with BRX hoses, 33" BFG KM2 on 15" AR wheels, Sony sound system, Pavement Ends Hardtop, Bosch 19# Injector, Safari Snorkel, 95.5 Brakes
jfrabat is offline   Reply With Quote Quick reply to this message
Unread 11-10-2011, 05:49 PM   #6
Come On Comet
Registered User
1987 YJ Wrangler

Join Date: Nov 2005
Location: Assachusetts
Posts: 63
Outstanding write-up! Photos and part numbers all in one place.
Come On Comet is offline   Reply With Quote Quick reply to this message
Unread 11-10-2011, 06:03 PM   #7
Louie4
Powah Injanir

Louie4's Avatar
1993 YJ Wrangler

Join Date: Aug 2008
Location: Raleigh, NC
Posts: 9,974
Nice write-up man! You did a good job on the swap.
__________________
Lou

I have a jeep...and it is modified...I win.

YJOTM July 2012
YJOTM February 2014

Louie4's YJ Build
Poison Spyder Fender Install
Warn M8000 Rebuild Adventure
University of Georgia
Louie4 is offline   Reply With Quote Quick reply to this message
Unread 11-10-2011, 06:07 PM   #8
hotelconucc93
Senior Member

hotelconucc93's Avatar
2010 YJ Wrangler

Join Date: Jun 2008
Location: Chesterfield, VA, VA
Posts: 753
Nice man. I put the Ford E-350 master cylinder in mine. Was much cheater, but I really like your route also.

Need that stopping power!

Good man!
__________________
Axles and bolts and springs....Oh My!

My Build Thread --->>> http://www.jeepforum.com/forum/f12/t...ilding-869713/

Not my write up, but now one of my jeeps losing a BA and gaining an AX-> http://www.jeepforum.com/forum/f19/y...ite-up-312203/
hotelconucc93 is offline   Reply With Quote Quick reply to this message
Unread 11-10-2011, 06:13 PM   #9
5.7YJ
Senior Member

5.7YJ's Avatar
1987 YJ Wrangler

Join Date: Aug 2006
Location: Rockledge, Florida
Posts: 900
Thanks for all your comments.
__________________
87 YJ, TPI 5.7, 700R4, NP231, BDS 3.5" lift, 1" front & 5/8" rear boomerang shackles, Rubicon Dana 44 rear axle, 33" Goodyear Duratracs











My brake boster/master cylinder upgrade: http://www.jeepforum.com/forum/f12/9...grade-1287758/
5.7YJ is offline   Reply With Quote Quick reply to this message
Unread 11-11-2011, 07:35 AM   #10
Que89YJ
Web Wheeler
1989 YJ Wrangler

Join Date: Apr 2008
Location: Detroit, Michigan
Posts: 15,676
Bookmarked for future refrence. Great writeup!
Que89YJ is offline   Reply With Quote Quick reply to this message
Unread 11-11-2011, 07:51 AM   #11
jay1335
Registered User
1996 XJ Cherokee

Join Date: Jan 2009
Location: new york
Posts: 404
What year jeeps will this benefit? I have a 94 yj with the 4.0. I guess im wondering if anyone knows what year they changed everything to the better stuff?
__________________
My Build Thread -http://www.jeepforum.com/forum/f11/m...-build-664589/
jay1335 is offline   Reply With Quote Quick reply to this message
Unread 11-11-2011, 08:20 AM   #12
Que89YJ
Web Wheeler
1989 YJ Wrangler

Join Date: Apr 2008
Location: Detroit, Michigan
Posts: 15,676
Yes it will be good for you Jay. 1995 on the 4.0L is the year they did it.
Que89YJ is offline   Reply With Quote Quick reply to this message
Unread 11-13-2011, 08:41 AM   #13
5.7YJ
Senior Member

5.7YJ's Avatar
1987 YJ Wrangler

Join Date: Aug 2006
Location: Rockledge, Florida
Posts: 900
I had a minor issue come up with the swap, one of the adapter fittings on the master cylinder was leaking. I took the fitting out and looked it over real good and it looks like it was machined wrong. I bought another fitting and after giving it a once over, installed it. The new fitting worked and there are no more leaks!
__________________
87 YJ, TPI 5.7, 700R4, NP231, BDS 3.5" lift, 1" front & 5/8" rear boomerang shackles, Rubicon Dana 44 rear axle, 33" Goodyear Duratracs











My brake boster/master cylinder upgrade: http://www.jeepforum.com/forum/f12/9...grade-1287758/
5.7YJ is offline   Reply With Quote Quick reply to this message
Unread 11-13-2011, 01:36 PM   #14
Virjeep
Registered User
2000 TJ Wrangler

Join Date: Jan 2011
Location: Bassett, VA
Posts: 153
Nice write up! I did this to my 87 and it was well worth it. Good job.
Virjeep is offline   Reply With Quote Quick reply to this message
Unread 11-13-2011, 01:44 PM   #15
1SASjeepster
Registered User
1992 YJ Wrangler

Join Date: Apr 2010
Location: Smith,TN, Tennessee
Posts: 720
What a great upgrade!! Thanks for "photo documenting" it.
