89YJ Wiring Question

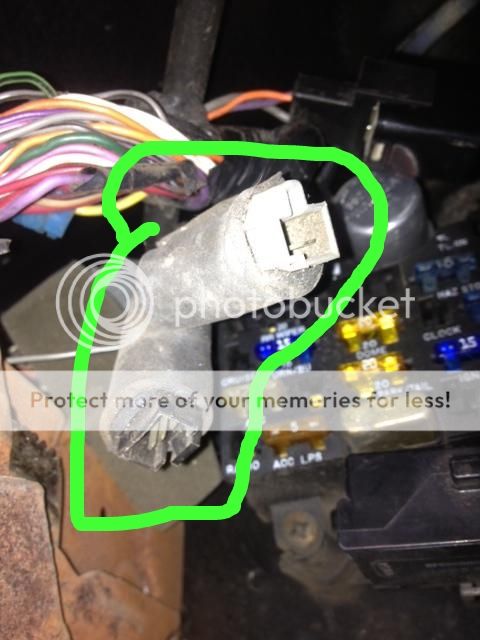

I recently purchased an 89YJ and I am gradually fixing the miscellaneous broken things. While working on the horn and changing the horn relay down by the fuse panel, I noticed two plugs hanging free not connected to anything. One plug has three contacts, the other has one contact. The only two things that do not work on the Jeep are the A/C and the radio. I'm pretty sure this is not related to the radio.




matt89yj is offline   Reply With Quote Quick reply to this message
Unread 09-06-2013, 09:54 AM   #2
Que89YJ
Web Wheeler
1989 YJ Wrangler

Join Date: Apr 2008
Location: Detroit, Michigan
Posts: 15,691
It could be the rear wiper and fogs. Just guessing. Here is a link to the factory service manual. Look up the wire colors and you should be able to figure out what they go to. If you still cant post back with the wire colors on the connectors and I will look at mine:
To download the fsm:
http://dl.dropbox.com/u/40590346/87-88%20YJ%20Jeep%20Wrangler%20FSM%20manual.pdf
http://dl.dropbox.com/u/40590346/1990%20Jeep%20Factory%20Service%20Manual.pdf
Que89YJ is offline   Reply With Quote Quick reply to this message
Unread 09-07-2013, 02:20 PM   #3
matt89yj
Registered User
1989 YJ Wrangler

Join Date: Sep 2013
Location: Wesley Chapel, Florida
Posts: 5
Checked plugs today. 3-prong plug is brown, brown/white, & blue/white. The 1-prong is black.
matt89yj is offline   Reply With Quote Quick reply to this message
Unread 09-08-2013, 08:26 PM   #4
Que89YJ
Web Wheeler
1989 YJ Wrangler

Join Date: Apr 2008
Location: Detroit, Michigan
Posts: 15,691
Did you download the manual and try to look it up?
Que89YJ is offline   Reply With Quote Quick reply to this message
Unread 09-09-2013, 09:56 AM   #5
matt89yj
Registered User
1989 YJ Wrangler

Join Date: Sep 2013
Location: Wesley Chapel, Florida
Posts: 5
Yes, I downloaded the manuals. Looked through it and I think you are right. Thank you for the download. I will be referencing them constantly I'm sure.
matt89yj is offline   Reply With Quote Quick reply to this message
Unread 09-09-2013, 10:47 AM   #6
Que89YJ
Web Wheeler
1989 YJ Wrangler

Join Date: Apr 2008
Location: Detroit, Michigan
Posts: 15,691
The great thing about the manuals is the wiring color is searchable because its in the standard pdf format. You need to get the wiring color abbreviations right but other then that it is easy. The colors switched so much on circuits through the years I can never remember what goes to what but the manuals will help you figure it out.
