8.8 Parking Brake Shoe - Problem

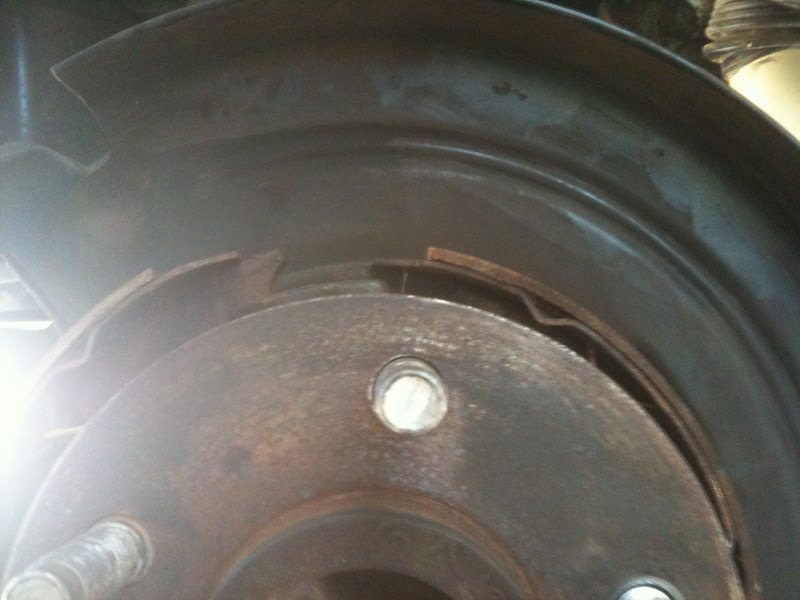

While working on my 8.8, I discovered that one of the shoes for the parking brake is a bit dislodged. I was turning the shaft from the other side with a lug stud not all the way seated from behind and am not sure if it knocked something lose. I know nothing about drum brakes and am looking for advice to get this back into place.







1994 YJ Wrangler, 4.0, AX15, NP231, 35x12.50x15 BFG KM2s, 4" RC lift, 1" lift Boom Shackles, 1" BL, 4.10 gears, 8.8 LSD in rear and D30 Aussie Locker in front, on-board air conversion, Ramsey RE8000 winch.
linusb is offline
Sponsored Links
Advertisement

post #2 of 8 Old 10-10-2010, 12:05 PM
provinT13
Registered User
1999 TJ Wrangler

Join Date: Oct 2007
Location: Colorado Springs
Posts: 4,631
pics from the inside or looking down. Looks like something maybe hitting it.

2 Hands Working Do More Than 1000 Hands Praying

94 YJ Build

99 TJ Build
provinT13 is offline
post #3 of 8 Old 10-10-2010, 12:17 PM
Joe Dillard
Electric Chair Operator

Joe Dillard's Avatar
1991 YJ Wrangler

Join Date: May 2004
Location: Lexington Park
Posts: 13,213
With the axle shaft out of the way, this is what it *should* look like:





In your case - I *think* what happened was that the loose lug contacted this piece & dislodged it while you were turning the shaft.

Joe Dillard is offline
post #4 of 8 Old 10-10-2010, 12:17 PM Thread Starter
linusb
Registered User
1994 YJ Wrangler

Join Date: Aug 2009
Location: Lexington,SC
Posts: 1,838
Quote:
Originally Posted by provinT13 View Post
pics from the inside or looking down. Looks like something maybe hitting it.

The back of the lug stud was hitting it...one was broken and I replaced it with a new one. Nothing is hitting it now, I'm just not sure how to get it back into place. I can take more pics.

1994 YJ Wrangler, 4.0, AX15, NP231, 35x12.50x15 BFG KM2s, 4" RC lift, 1" lift Boom Shackles, 1" BL, 4.10 gears, 8.8 LSD in rear and D30 Aussie Locker in front, on-board air conversion, Ramsey RE8000 winch.
linusb is offline
post #5 of 8 Old 10-10-2010, 12:21 PM Thread Starter
linusb
Registered User
1994 YJ Wrangler

Join Date: Aug 2009
Location: Lexington,SC
Posts: 1,838
Quote:
Originally Posted by Joe Dillard View Post

In your case - I *think* what happened was that the loose lug contacted this piece & dislodged it while you were turning the shaft.
I bet you are exactly right. What do I do to fix? Do I need to remove axle shaft? What is the way to remove the shaft?

1994 YJ Wrangler, 4.0, AX15, NP231, 35x12.50x15 BFG KM2s, 4" RC lift, 1" lift Boom Shackles, 1" BL, 4.10 gears, 8.8 LSD in rear and D30 Aussie Locker in front, on-board air conversion, Ramsey RE8000 winch.
linusb is offline
post #6 of 8 Old 10-10-2010, 12:26 PM
Joe Dillard
Electric Chair Operator

Joe Dillard's Avatar
1991 YJ Wrangler

Join Date: May 2004
Location: Lexington Park
Posts: 13,213
Since the axle shaft flange makes it difficult to get at the backing plate & attachment parts, you *might* have to pull the shaft to get to the loose/dislodged part.

If so, you'll need to pull the diff cover, remove the main cross shaft retaining pin, then slide the main pin out, then spin the c-clip so you can pull it out with some needle nose plyers. Once the c-clip is pulled, you can gently slide the axle shaft out enough to get to the brake parts.

Be extra carefull NOT to damage the axle shaft seal.
Joe Dillard is offline
post #7 of 8 Old 10-10-2010, 12:27 PM
Joe Dillard
Electric Chair Operator

Joe Dillard's Avatar
1991 YJ Wrangler

Join Date: May 2004
Location: Lexington Park
Posts: 13,213
If you'd like, I can PM you my cell phone number......
Joe Dillard is offline
post #8 of 8 Old 10-10-2010, 12:30 PM Thread Starter
linusb
Registered User
1994 YJ Wrangler

Join Date: Aug 2009
Location: Lexington,SC
Posts: 1,838
I think I got it taken care of...just tapped it back into place.

Thanks for the tips on removing axle! Hopefully all is good...guess I won't know until I try to engage and disengage the parking brake! ...whenever that might be since none of it is yet hooked up!

1994 YJ Wrangler, 4.0, AX15, NP231, 35x12.50x15 BFG KM2s, 4" RC lift, 1" lift Boom Shackles, 1" BL, 4.10 gears, 8.8 LSD in rear and D30 Aussie Locker in front, on-board air conversion, Ramsey RE8000 winch.
