8.8 E-BRAKE solution

Just finished my 8.8 swap. No real surprises here, spring under so I was able to use the flexible brake lines that came with the explorer axle. Had to fab a couple of brackets to hold the soft lines in place.

If you can get an extra soft brake hose from the explorer right side (passenger) either new or from the JY, that can be used on the left side in place of the ford connector. Then use the special bolt and the distribution block from you old D35 to hook up the hard brake lines. I did not do this because frankly I did not think of it at the time but did use this method on another 8.8 swap.


The real issue was the e-brake. I searched all over the place for a good way to do it and it seemed that there were a million good ideas, a few expensive ones and a few bad ones. What I ended up with is so simple that I can't believe that no one has posted it before.

First. When I pulled my donor axle at the junkyard I was able to get the full set of ebrake cables and the soft line with it. Without that this would be more of a challenge, or more costly.


1. Cut the existing 8.8 cable housings to be the same length as the former D35 cables. I used an angle grinder for this, very carefully so as not to cut the inner cable. A dremel or a hacksaw would work too, but I am not that patient. Do not cut with pliers, or anything that will crimp the cable.

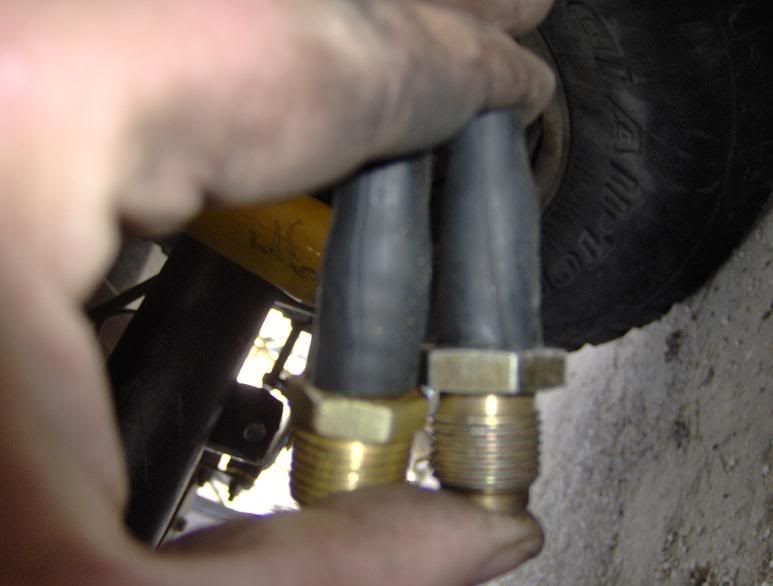

2. Put a 3/8 hose barb on the end of each cable, as shown. Was a perfect snug fit.

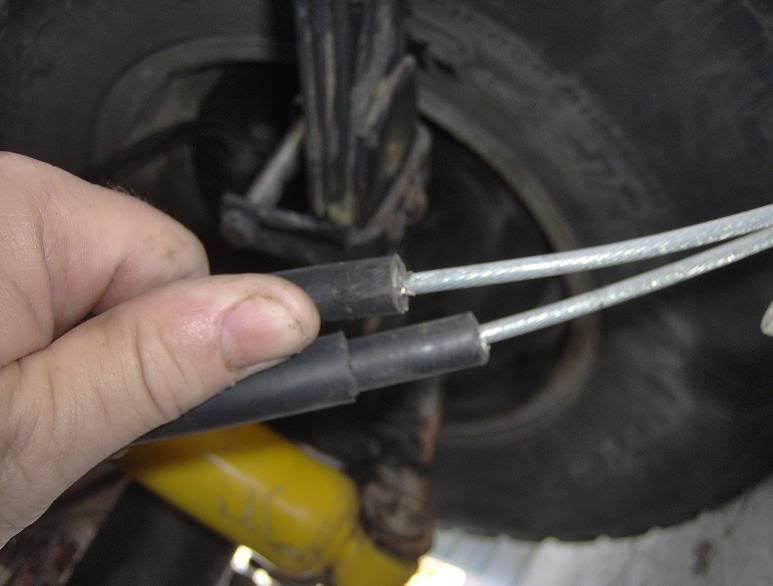

3. I later added a piece of hose to the end of each barb to stop them from rattling, but it is probably not needed. After it is tightened up there will be no rattle.

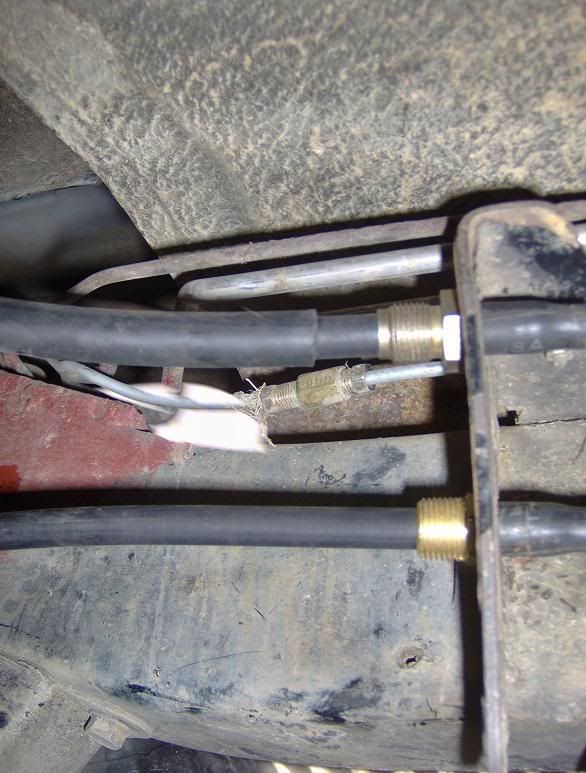

4. Slide the cable ends into the existing e-brake cable bracket.

Cable stops are Dorman #03339. You may need to drill the hole out a little, depending on your cable. Try not to lose the little ball bearing inside the stop. It helps hold the cable but it seems to work fine without it too.





5. cut the extra end of the cables so they are long enough to reach the adjuster and a little past. Used the grinder here too, got a nice clean cut.

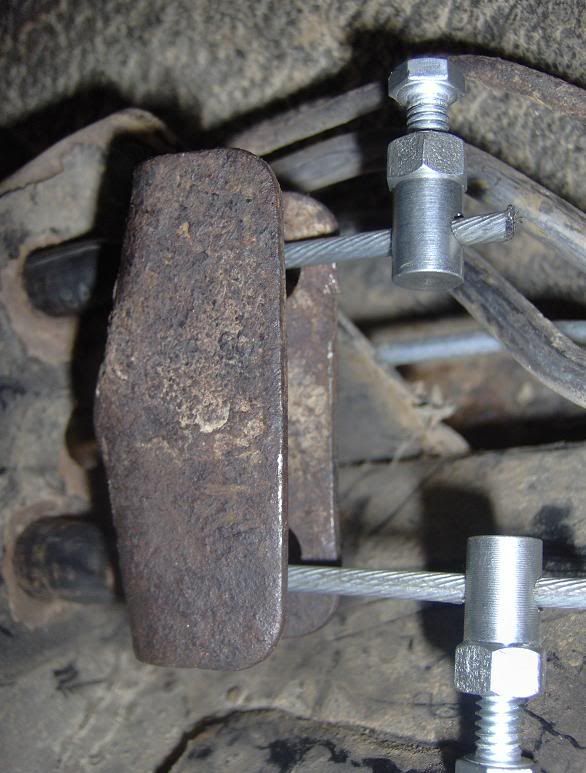

Slide on a pair of cable stops and tighten them down good and snug. Make sure they are even so there will be a straight and even pull on the adjuster.

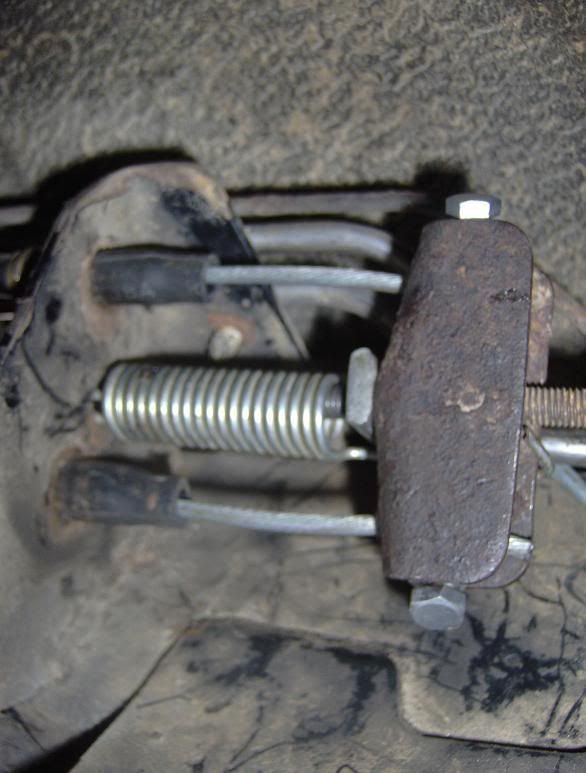

6. Then slide in the cable that comes from the pedal and adjust as needed. I added an extra spring because my main cable has a little kink that keeps the pedal from coming all the way back up. This spring fixes that.



That's it. The most important thing is that for this all to work properly the cable and the brake shoe parts must be free moving and the shoes must be adjusted properly before tightening the cable. Release the e brake in the cab an hold the pedal all the way up with a bungee to make sure you have full avaliable travel. Last make sure all the slack is out of the cables and they are pulling on the springs a little before you lock them. IF you do all this the brake should hold well.

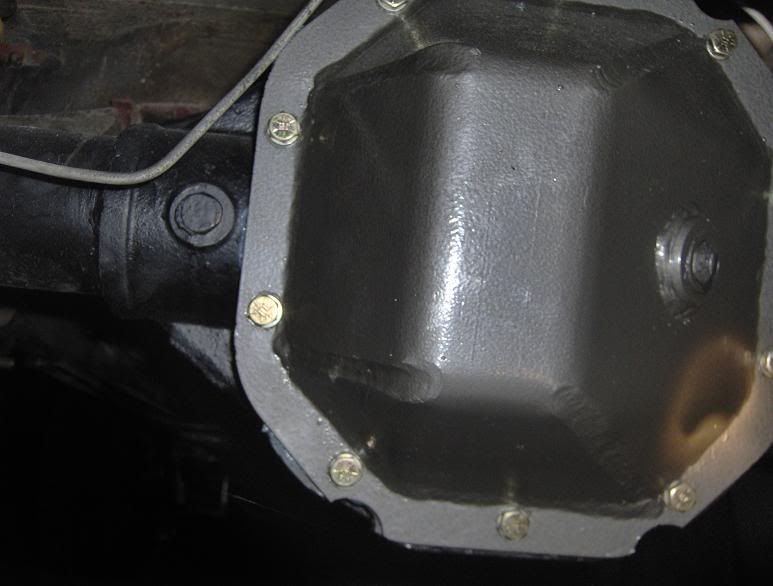

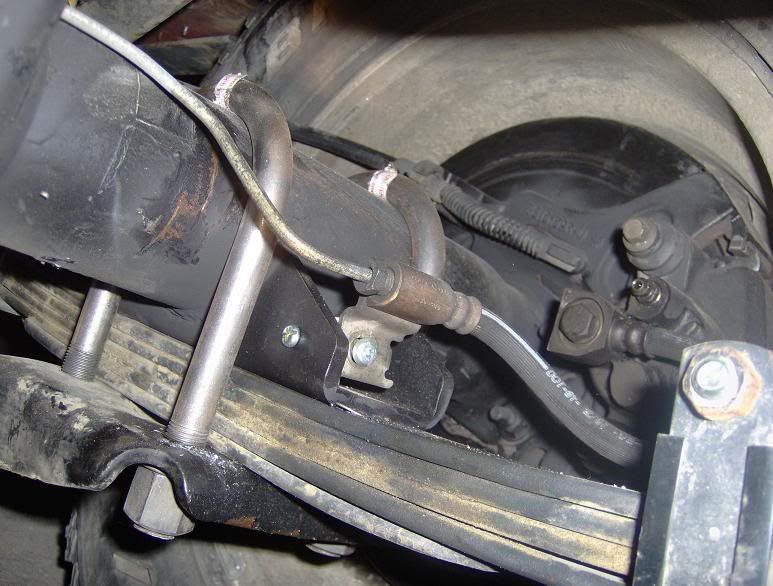

Here are a couple of pictures of my hard lines and my snazzy new Ruff Stuff diff cover.








__________________
.
"The right to be heard does not necessarily include the right to be taken seriously." —Hubert Humphrey
.
If you live within wheeling distance of San Diego county, click here

Last edited by jbolty; 09-21-2009 at 10:10 PM..
jbolty is offline   Reply With Quote Quick reply to this message
Unread 07-07-2008, 11:03 PM   #2
Marine_Mike
Registered User
1991 YJ Wrangler

Join Date: Feb 2006
Location: Mount Clemens, MI
Posts: 525
I bought my rig from the PO W/O an emergency brake. Any ideas as to how I could rig up your type of brake from scratch?
Marine_Mike is offline   Reply With Quote Quick reply to this message
Unread 07-07-2008, 11:09 PM   #3
jbolty
Moderator

jbolty's Avatar
1990 YJ Wrangler

Join Date: Jun 2007
Location: San Diego, CA
Posts: 16,085
Quote:
Originally Posted by Marine_Mike View Post
I bought my rig from the PO W/O an emergency brake. Any ideas as to how I could rig up your type of brake from scratch?
as long as the parts are still in the drum and the bracket is still on the frame you just need cables and a pedal assembly. The end of the cable for the D35 is different than the ford cable and I would imagine that the ford cable for drum brakes would be different too.
__________________
.
"The right to be heard does not necessarily include the right to be taken seriously." —Hubert Humphrey
.
If you live within wheeling distance of San Diego county, click here
jbolty is offline   Reply With Quote Quick reply to this message
Unread 07-07-2008, 11:12 PM   #4
Joe Dillard
Electric Chair Operator
1991 YJ Wrangler

Join Date: May 2004
Location: King George, VA
Posts: 12,465
Excellent work Jeff. Nice pics and well written for ease of understanding.
Joe Dillard is online now   Reply With Quote Quick reply to this message
Unread 07-07-2008, 11:15 PM   #5
Marine_Mike
Registered User
1991 YJ Wrangler

Join Date: Feb 2006
Location: Mount Clemens, MI
Posts: 525
I have the pedal assy, just nothing btwn there and the axle.
Marine_Mike is offline   Reply With Quote Quick reply to this message
Unread 07-08-2008, 12:16 AM   #6
fratis
......

fratis's Avatar
1991 YJ Wrangler

Join Date: Dec 2003
Location: Hale'iwa, Hawai'i
Posts: 4,914
nice work....hmmm maybe ill hook up some ebrakes one of these days...
fratis is offline   Reply With Quote Quick reply to this message
Unread 07-08-2008, 05:57 AM   #7
chupacabrah
Registered User
1993 YJ Wrangler

Join Date: Feb 2006
Location: Greensboro, NC
Posts: 2,088
very nice

my e brake on the 8.8 has never worked properly. I ghetto rigged my lines though, i may do something like what you did here. great ideas.
__________________
-Jon
'93 YJ with 1 ton SOA in progress (slowly).

Build Thread
jeep stuff
chupacabrah is offline   Reply With Quote Quick reply to this message
Unread 07-08-2008, 08:20 AM   #8
MLJeeper
Registered User
1988 YJ Wrangler

Join Date: Nov 2004
Location: Birmingham, Al.
Posts: 5,029
Nice job! you have way more patience than i do.

i went with a line lock
__________________
Your limited slip differential sucks.

Quote:
Originally Posted by Anticanman View Post
Any video of the sound?
MLJeeper is offline   Reply With Quote Quick reply to this message
Unread 07-08-2008, 10:51 AM   #9
coachchuck
Registered User
1990 YJ Wrangler

Join Date: Apr 2006
Location: Olathe, KS
Posts: 376
Nice work, Looks like I may copy you.
I still got the ebrake lines on mine, but not hooked up.
I like it.
__________________
Chuck
Sold : 93 YJ, 33s, 4.1, HO 4.0, AX15, d300 flipped
Building 90YJ. 37s, 5.38, 350, 4L60, np241, d44-ARB, D60-spool
coachchuck is offline   Reply With Quote Quick reply to this message
Unread 07-08-2008, 11:36 AM   #10
jeepster93
Registered User
1993 YJ Wrangler

Join Date: Sep 2006
Location: Englewood, CO
Posts: 3,968
My jury rig...
It works.
I also use a ruffstuff cover(on both ends) GOOD PRODUCT!
jeepster93 is offline   Reply With Quote Quick reply to this message
Unread 07-08-2008, 06:09 PM   #11
nic99007
Registered User
2000 XJ Cherokee

Join Date: Dec 2007
Location: Idaho Falls, ID
Posts: 173
Great simple fix. Thanks for sharing
nic99007 is offline   Reply With Quote Quick reply to this message
Unread 07-10-2008, 04:13 PM   #12
Matt Graham
Registered User
2001 TJ Wrangler

Join Date: Aug 2001
Location: LaGrange, Georgia
Posts: 1,399
great idea. I think I'll try that solution. Where did you buy the parts?
__________________
Instagram: @mattgraham79
Youtube: http://goo.gl/ar21Wp
Matt Graham is offline   Reply With Quote Quick reply to this message
Unread 07-10-2008, 04:47 PM   #13
jbolty
Moderator

jbolty's Avatar
1990 YJ Wrangler

Join Date: Jun 2007
Location: San Diego, CA
Posts: 16,085
Quote:
Originally Posted by Matt Graham View Post
great idea. I think I'll try that solution. Where did you buy the parts?
The only parts I had to buy were the hose barbs from home depot and the cable stops from kragen.
__________________
.
"The right to be heard does not necessarily include the right to be taken seriously." —Hubert Humphrey
.
If you live within wheeling distance of San Diego county, click here
jbolty is offline   Reply With Quote Quick reply to this message
Unread 08-31-2008, 07:14 PM   #14
Dmax5er
Registered User
1993 YJ Wrangler

Join Date: Apr 2008
Location: Ar
Posts: 362
very good idea, i didnt do that but i did figure it out. i build another bracket and welded it to the frame and only had to cut one cable, i use the oem ford ends hooked right up to the jeep cable. i done my brake lines like yours and they hooked right up. thanks for letting me know about this its a great idea.

Dmax5er is offline   Reply With Quote Quick reply to this message
Unread 01-27-2009, 07:36 PM   #15
demo44
Registered User
1988 YJ Wrangler

Join Date: Jun 2008
Location: USA
Posts: 120
I wish i had pics to share but i'll try to explain what i did.
After searching a couple threads including this one i (borrowed a couple ideas & incorperated them
First i cut the end of the e-brake cables off the (towards the front) closest to the E-brake main cable on the 8.8 & old D35

Then i slid the cables out off all four cable sleaves putting the ford cables in the factory D35 sleaves.

Then @ the rearend bracket the cable sleave hooks into, take a grinder & cut 3/8" off the mounting tabs that are on the D35 cable sleave. They will then fit in the mounts of the 8.8 & be fastened in place.

All left to do is hook up the cables to the e-brake with cable stops as in this post.You end up with basicily a stock e-cable set up. It works Great!!!
demo44 is offline   Reply With Quote Quick reply to this message
