I slipped and cut into my clutch lines while cutting off the motor mounts. Where do I go for those? Napa? It's the metal lines that run along the frame.

__________________
1992 YJ - 5.2L V8
2003 WJ Limited - 4.7L H.O. V8

Still not enough power.
SunDevilJeeper is offline   Reply With Quote
Unread 01-16-2014, 09:02 AM   #62
skyj
Registered User
1990 YJ Wrangler

Join Date: Jan 2011
Location: Helena, MT
Posts: 2,501
Quote:
Originally Posted by SunDevilJeeper View Post
I slipped and cut into my clutch lines while cutting off the motor mounts. Where do I go for those? Napa? It's the metal lines that run along the frame.
dont you mean brake lines? you should be able to pick them up from napa, hopefully its not the rear brake line. I came awful close to cutting mine too. My clutch line is a plastic line that runs down the firewall to the bellhousing. before I did the external slave swap I had a metal line run down the firewall to the bellhousing for the internal slave.
__________________
build thread: http://www.jeepforum.com/forum/f22/skyj-eccentric-build-1467426/ '90 YJ 5.2 magnum MPI, AX15, NP231 SYE, Dana 30 4.56 open/ 8.8 4.56 detriot locker. 1" shackles
2" BL, 4" stretch all on saggy waggy springs.
skyj is offline   Reply With Quote
Unread 01-16-2014, 09:57 AM   #63
SunDevilJeeper
Registered User
1992 YJ Wrangler

Join Date: Jun 2010
Location: Phelan, CA
Posts: 3,066
Quote:
Originally Posted by skyj View Post
dont you mean brake lines? you should be able to pick them up from napa, hopefully its not the rear brake line. I came awful close to cutting mine too. My clutch line is a plastic line that runs down the firewall to the bellhousing. before I did the external slave swap I had a metal line run down the firewall to the bellhousing for the internal slave.
Yes, the brake lines. Don't know why I was thinking clutch.
__________________
1992 YJ - 5.2L V8
2003 WJ Limited - 4.7L H.O. V8

Still not enough power.
SunDevilJeeper is offline   Reply With Quote
Unread 01-23-2014, 11:58 AM   #64
skyj
Registered User
1990 YJ Wrangler

Join Date: Jan 2011
Location: Helena, MT
Posts: 2,501

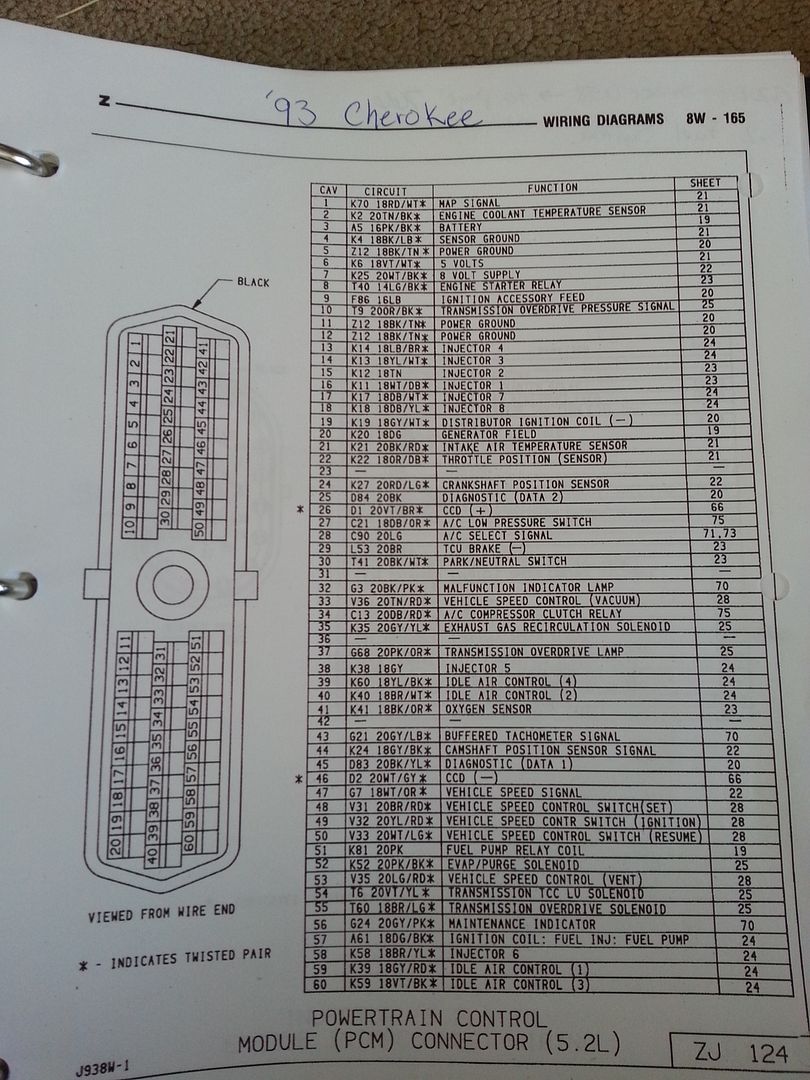

Can someone please confirm to me that I'm not going crazy. I've stripped the Cherokee harness of all unnecessary wiring using the wiring schematics from a service manual for my year of ZJ. Now my question is? I've got a Dodge Ram truck computer I've been told that I can use that. I do not have a service manual for the truck thus I can't confirm that the PCM connection is the same as the Cherokee? Is the PCM connector going to have the same locations for the sensors? I'm going to be making my final connections tonight and possibly trying to turn the motor over on its own I don't want to fry anything by hooking up the wrong computer. Please help
__________________
build thread: http://www.jeepforum.com/forum/f22/skyj-eccentric-build-1467426/ '90 YJ 5.2 magnum MPI, AX15, NP231 SYE, Dana 30 4.56 open/ 8.8 4.56 detriot locker. 1" shackles
2" BL, 4" stretch all on saggy waggy springs.
skyj is offline   Reply With Quote
Unread 01-23-2014, 12:19 PM   #65
SunDevilJeeper
Registered User
1992 YJ Wrangler

Join Date: Jun 2010
Location: Phelan, CA
Posts: 3,066
Quote:
Originally Posted by skyj View Post
Can someone please confirm to me that I'm not going crazy. I've stripped the Cherokee harness of all unnecessary wiring using the wiring schematics from a service manual for my year of ZJ. Now my question is? I've got a Dodge Ram truck computer I've been told that I can use that. I do not have a service manual for the truck thus I can't confirm that the PCM connection is the same as the Cherokee? Is the PCM connector going to have the same locations for the sensors? I'm going to be making my final connections tonight and possibly trying to turn the motor over on its own I don't want to fry anything by hooking up the wrong computer. Please help
I'm kinda confused, you're asking if the wiring harness plug will plug into the computer port, right? If so, then it should because the computers are the same for Jeep and Dodge, just different programs written into the computer.

If you're asking is the wiring and sensors not compatible, it should be. You won't fry anything.
__________________
1992 YJ - 5.2L V8
2003 WJ Limited - 4.7L H.O. V8

Still not enough power.
SunDevilJeeper is offline   Reply With Quote
Unread 01-23-2014, 12:25 PM   #66
skyj
Registered User
1990 YJ Wrangler

Join Date: Jan 2011
Location: Helena, MT
Posts: 2,501
Quote:
Originally Posted by skyj View Post
Can someone please confirm to me that I'm not going crazy. I've stripped the Cherokee harness of all unnecessary wiring using the wiring schematics from a service manual for my year of ZJ. Now my question is? I've got a Dodge Ram truck computer I've been told that I can use that. I do not have a service manual for the truck thus I can't confirm that the PCM connection is the same as the Cherokee? Is the PCM connector going to have the same locations for the sensors? I'm going to be making my final connections tonight and possibly trying to turn the motor over on its own I don't want to fry anything by hooking up the wrong computer. Please help

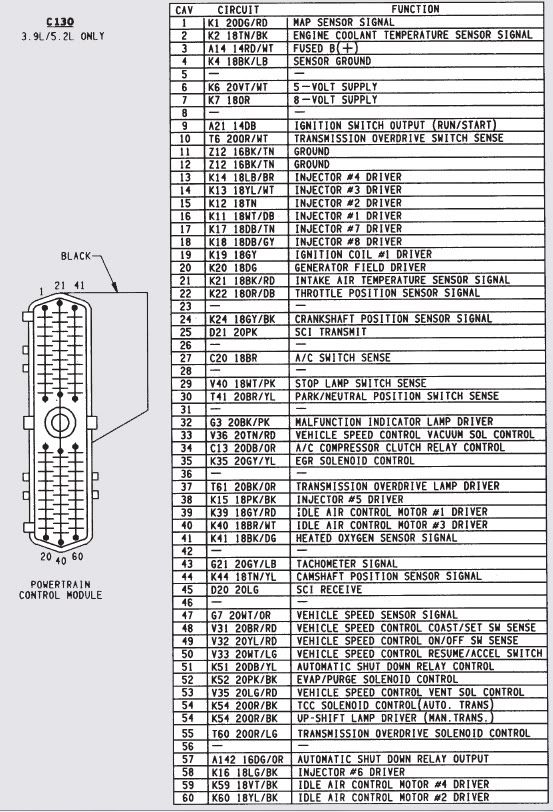

Just answered my own question. They are almost identical. Only differences are #8 on Cherokee is engine starter relay and the trucks is blank #9 on Cherokee is ignition acces. feed, the truck is start run.
#51 on cherokee is fuel pump relay and the truck is auto shut down relay control.
And lastly #57 on cherokee is ignition coil, fuel injection, and fuel pump, on truck it is the shut down relay which I do beleive they serve the same purpose just worded differently. Anyways here is a pic of the truck pcm plug in case your curious like me.
93 dodge Truck:

93 grand Cherokee:
__________________
build thread: http://www.jeepforum.com/forum/f22/skyj-eccentric-build-1467426/ '90 YJ 5.2 magnum MPI, AX15, NP231 SYE, Dana 30 4.56 open/ 8.8 4.56 detriot locker. 1" shackles
2" BL, 4" stretch all on saggy waggy springs.
skyj is offline   Reply With Quote
Unread 01-23-2014, 12:28 PM   #67
bmgadg
Registered User
1992 YJ Wrangler

Join Date: Mar 2008
Location: Mississippi
Posts: 457
I think what you're asking is are the pinouts for the ecm connector the same between models. I think they are the same, but don't hold me to that! I remember thinking wow the yj ecm connector is almost pinned the same as the dodge ram, so I would think zj 5.2 would be identical to ram 5.2 connectors.

EDIT, I'm a slow typist apparently! Didn't get in until after you answered the question.
__________________
92 YJ Trail Project
06 XK Commander Daily Driver

My YJ Build Thread Magnum 5.9L 360, full width SOA
bmgadg is offline   Reply With Quote
Unread 01-23-2014, 12:29 PM   #68
skyj
Registered User
1990 YJ Wrangler

Join Date: Jan 2011
Location: Helena, MT
Posts: 2,501
Quote:
Originally Posted by SunDevilJeeper View Post

I'm kinda confused, you're asking if the wiring harness plug will plug into the computer port, right? If so, then it should because the computers are the same for Jeep and Dodge, just different programs written into the computer.

If you're asking is the wiring and sensors not compatible, it should be. You won't fry anything.
I was asking if the wires are in the same location on the plug as in is the map sensor, throttle position sensor, vss etc.all the same location. Either way I answered my own stuipid question with a quick search over on dodge forum. Thanks for the help guys this baby should come to life this weekend.
__________________
build thread: http://www.jeepforum.com/forum/f22/skyj-eccentric-build-1467426/ '90 YJ 5.2 magnum MPI, AX15, NP231 SYE, Dana 30 4.56 open/ 8.8 4.56 detriot locker. 1" shackles
2" BL, 4" stretch all on saggy waggy springs.
skyj is offline   Reply With Quote
Unread 01-23-2014, 01:32 PM   #69
SunDevilJeeper
Registered User
1992 YJ Wrangler

Join Date: Jun 2010
Location: Phelan, CA
Posts: 3,066
Quote:
Originally Posted by skyj View Post
I was asking if the wires are in the same location on the plug as in is the map sensor, throttle position sensor, vss etc.all the same location. Either way I answered my own stuipid question with a quick search over on dodge forum. Thanks for the help guys this baby should come to life this weekend.
Get it running asap! Mine still hasn't even come home from the shop for the welding I had done. That was months ago.
__________________
1992 YJ - 5.2L V8
2003 WJ Limited - 4.7L H.O. V8

Still not enough power.
SunDevilJeeper is offline   Reply With Quote
Unread 01-23-2014, 02:26 PM   #70
Chris
Guy with jeep

Chris's Avatar
1990 YJ Wrangler

Join Date: Jul 2008
Location: Wildomar/ Big Bear, CA
Posts: 2,474
I drove mine today.....
Chris is offline   Reply With Quote
Unread 01-23-2014, 02:30 PM   #71
mike_breaker_5
Web Wheeler

mike_breaker_5's Avatar
1994 YJ Wrangler

Join Date: Oct 2009
Location: emporium,, pennsylvania
Posts: 2,913
Quote:
Originally Posted by SunDevilJeeper View Post
Get it running asap! Mine still hasn't even come home from the shop for the welding I had done. That was months ago.
it's been a year since i drove mine... if the planets align today will be the first drive i have in it.
__________________
Ratmonkey donation page. all proceeds will go to his family.
http://www.youcaring.com/memorial-fu..._source=widget


it's not much to look at... but it's mine.
5.2lswap, metalcloaks, bedliner, tucked belly, d60's, soon to be nv4500 and d300.
http://www.jeepforum.com/forum/f22/m...r-junk-990191/
mike_breaker_5 is offline   Reply With Quote
Unread 01-23-2014, 02:53 PM   #72
94squareeyes
Registered User
1994 YJ Wrangler

Join Date: Apr 2013
Posts: 10
Are you using the ram computer because its a manual? If so, the stock auto zj computer will work fine. That's what I'm running with an ax15 and it runs fine. I didn't have to worry about the pinout
94squareeyes is offline   Reply With Quote
Unread 01-23-2014, 02:57 PM   #73
skyj
Registered User
1990 YJ Wrangler

Join Date: Jan 2011
Location: Helena, MT
Posts: 2,501
Quote:
Originally Posted by SunDevilJeeper View Post

Get it running asap! Mine still hasn't even come home from the shop for the welding I had done. That was months ago.
I hope to soon . A few more wiring questions though. For my VSS the Cherokee harness has three wires white/ orange, white/black, black/blue. The Sc108 VSS that I have is only a two wire plug. I know the white/black is 8 volts supply, and the black/blue is sensor ground, and the white/orange if you follow that wire back to the PCM connector it splits just before it gets to the PCM,where does that extra white/orange wire go what do I hook that to?
Next there is a orange/blue wire coming out of the PDC I have it labeled as fuel pump relay this wire went through the firewall up under the dash, there is also orange/blue wire coming from the PCM it goes down to the PDC through the interconnect I know this is all for the fuel pump relay just not quite sure how I'm supposed to hook up that one orange/blue wire coming out of the PDC the went through the firewall?
Next there's a blue wire coming out of the PDC labeled Engine control its a 30 amp fuse what do I hook that too?
Next there's a red/yellow wire coming out of the PDC labeled fuse block what do i hook that too?
next there's a light blue/red wire coming out of the PDC labeled auto shutdown relay what do I hook that too?
Next there's a sensor next to the heater core hose its 1 wire and it is violet/yellow it connected to the plug going into the instrument panel what's this for? It's not the coolant temperature sensor its a different sensor.
These are the wires holding me up causing me to scratch my head right now. Just to remind you all mighty and all knowing mopar wiring Gods my Jeep was carbureted and had been nuttered by the previous owner I put a junkyard HEI and Motorcraft 2100 carburetor on it. So most of the original wiring is gone. Sorry for the long winded post.
__________________
build thread: http://www.jeepforum.com/forum/f22/skyj-eccentric-build-1467426/ '90 YJ 5.2 magnum MPI, AX15, NP231 SYE, Dana 30 4.56 open/ 8.8 4.56 detriot locker. 1" shackles
2" BL, 4" stretch all on saggy waggy springs.
skyj is offline   Reply With Quote
Unread 01-23-2014, 03:36 PM   #74
SunDevilJeeper
Registered User
1992 YJ Wrangler

Join Date: Jun 2010
Location: Phelan, CA
Posts: 3,066
Quote:
Originally Posted by Chris View Post
I drove mine today.....
You...

Two butt cheeks, hole inbetween those... you!
__________________
1992 YJ - 5.2L V8
2003 WJ Limited - 4.7L H.O. V8

Still not enough power.
SunDevilJeeper is offline   Reply With Quote
Unread 01-23-2014, 04:07 PM   #75
Chris
Guy with jeep

Chris's Avatar
1990 YJ Wrangler

Join Date: Jul 2008
Location: Wildomar/ Big Bear, CA
Posts: 2,474
Yes I am! It was fun too.
Chris is offline   Reply With Quote
