Unread 08-07-2011, 06:11 PM   #61
AaronJ
Registered User
1992 YJ Wrangler

Join Date: Oct 2010
Location: New Orleans
Posts: 290
Yes, you can retain your YJ pump and btw, the throttle body has the fuel pressure regulator built into it (in case you didn't know, seems to be a common misconception). You don't need another one.

AaronJ is offline   Reply With Quote Quick reply to this message
Unread 08-07-2011, 07:40 PM   #62
YJames90
Registered User
1990 YJ Wrangler

Join Date: Jul 2007
Location: Dutchess County, NY
Posts: 6,928
Quote:
Originally Posted by AaronJ View Post
Yes, you can retain your YJ pump and btw, the throttle body has the fuel pressure regulator built into it (in case you didn't know, seems to be a common misconception). You don't need another one.
That is great news!!
Don, Its a 88
Another long day in the garage.
Had a problem with the AA mounts. I had set up a welder friend to come to my house to weld in the mounts. THey were C clamped in this morning. I marked the mounts and unbolted the motor from the mounts and raised it up.
Drilled the 2 mounting holes through the frame and bolted them on. I then tried to re mount the motor on the mounts and they came up short witdh wise. .
Was pissed that it wouldnt fit and I was sure that I didnt move the mounts when driling


I then remembered that I had to pull the frame mounts with the C clapm to get them on the frame. I looseened the bolts a bit then the bolt mounts lined up. I then tightened the frame bolts to draw them to the frame.
Both mounts are set at full width and mine are set a few inches forward of the originals. Wonder why they dont fit correctly? They work but are tight.
This awap is going very different from what I have read about othere.
First thing is the drive shafts. both of mine stil fit pefectly
Also it looks like the skid plate will fit too. I have plenty of space for the fan and the radiator. I also have good air cleaner to hood space

I am having a problem shifting the transfer case. Not to knowedgeable about when to shift into 4wd. Should the transmission be in N ?
I guess this is the least of my problems and should get to work on the electrics
Thsts it for tonight. Vacation is on Wednesday so i will have a week of down time. Im sure my wifes happy
__________________
Quote:
Originally Posted by Poke View Post
Spring Over is not for you.... yet





My 2.5 to 4.3 swap thread
http://www.jeepforum.com/forum/f12/4...begun-1237704/
YJames90 is offline   Reply With Quote Quick reply to this message
Unread 08-16-2011, 08:46 PM   #63
YJames90
Registered User
1990 YJ Wrangler

Join Date: Jul 2007
Location: Dutchess County, NY
Posts: 6,928
Im back from vacation and its time to dig into the swap again.

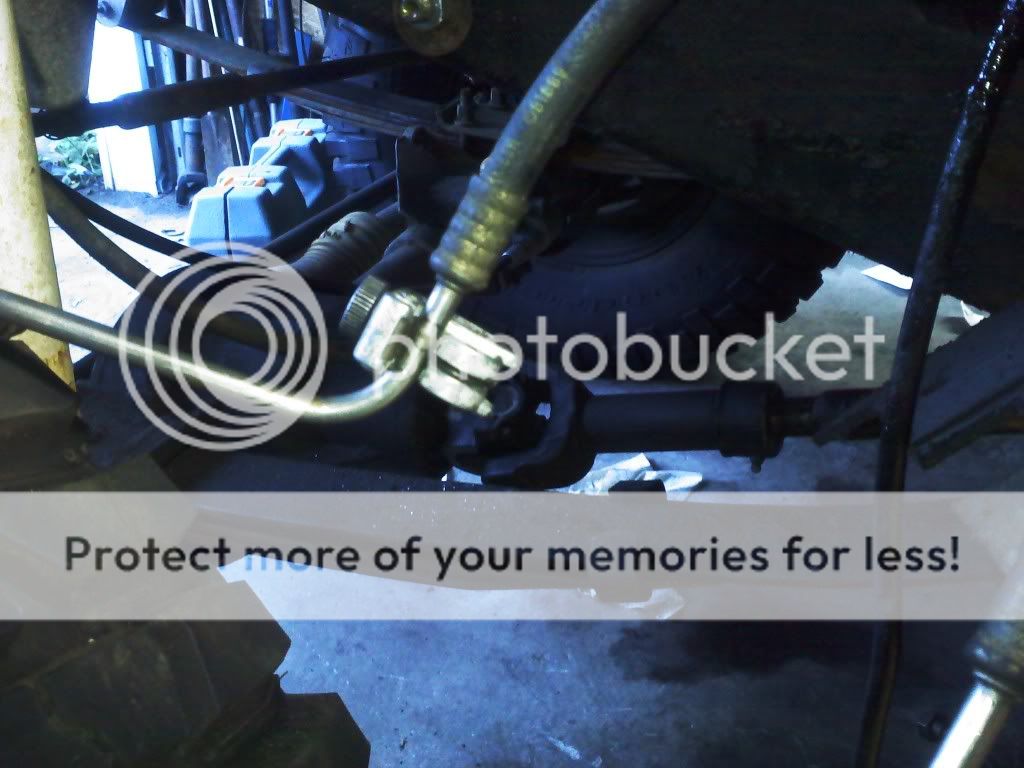

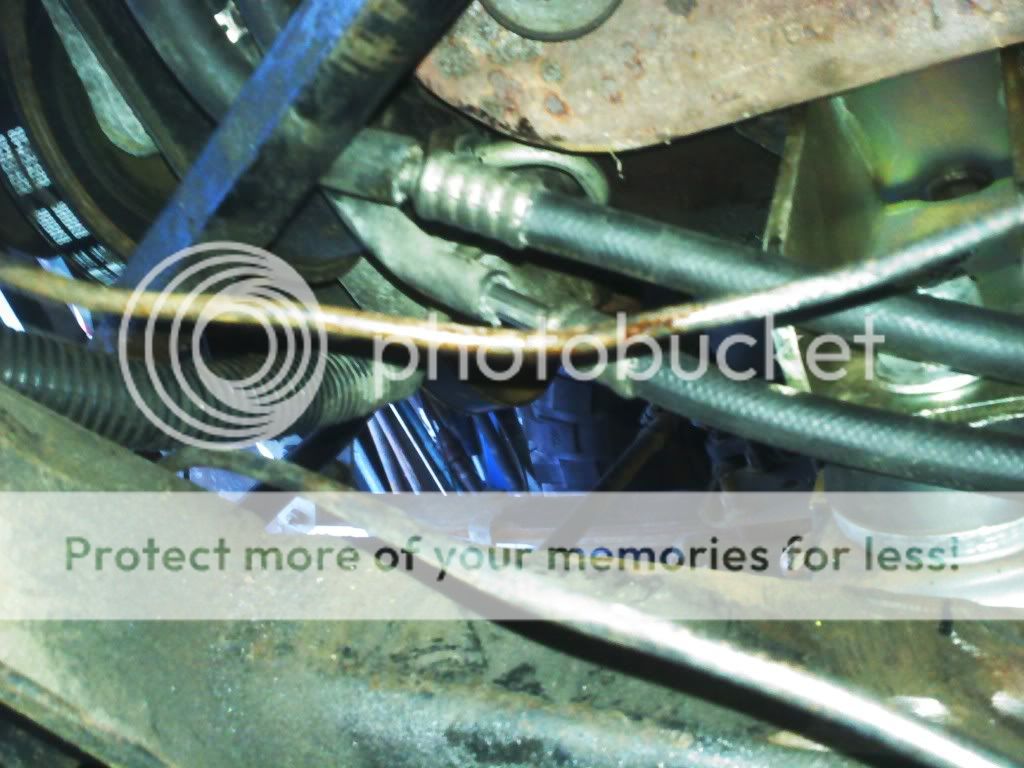

I replaced the distributer that I cracked when removing the 4.3 from the S10. Attatched the plug wires and a few of the plugs that go on the fire wall. I also attatched the ground strap to the firewall. Also cut the connections off the YJ fuel line so the S10 and YJ connect.


Here they are on temporally and need clamps

Tomorrow I plan on splicing in wires and getting it started before Saturday night
__________________
Quote:
Originally Posted by Poke View Post
Spring Over is not for you.... yet





My 2.5 to 4.3 swap thread
http://www.jeepforum.com/forum/f12/4...begun-1237704/
YJames90 is offline   Reply With Quote Quick reply to this message
Unread 08-17-2011, 04:46 PM   #64
YJames90
Registered User
1990 YJ Wrangler

Join Date: Jul 2007
Location: Dutchess County, NY
Posts: 6,928
I just bought an alldatadiy script. Why cant I find the bulk head pin out diagram?
__________________
Quote:
Originally Posted by Poke View Post
Spring Over is not for you.... yet





My 2.5 to 4.3 swap thread
http://www.jeepforum.com/forum/f12/4...begun-1237704/
YJames90 is offline   Reply With Quote Quick reply to this message
Unread 08-17-2011, 05:20 PM   #65
leftlanetruckin
XJ on 37's

leftlanetruckin's Avatar
1998 XJ Cherokee

Join Date: Jul 2006
Location: missouri via blackpool,lancs.
Posts: 10,606
You can look at the starter system diagram, and find all the connectors there. Look for the bulkhead connector and then go back and look in the connector views. That should give a pinout.
Kind of a long way around I know, Alldata isnt well known for making things easy to find! I normally just use the search function and then select from the list that appears.

Martin
__________________
1998 XJ on 37's.JK Rubi axles with chromo shafts and ctm's, 4:1 transfer case, etc etc etc.The Cherylkee....
2003 Range Rover HSE, 4.4 Quad Cam.
1998 Range Rover 4.6 HSE
2000 4.7 4WD WJ with a rebuilt motor.
4.3/700r4/new frame buildup (YJ)....
http://www.jeepforum.com/forum/f12/swap-offically-underway-324622/

Years to gain the hands on experience, and offer it freely.
Minutes to gain the knowledge from the internet, and quote it just as freely.
Choose wisely!
leftlanetruckin is offline   Reply With Quote Quick reply to this message
Unread 08-17-2011, 06:16 PM   #66
YJames90
Registered User
1990 YJ Wrangler

Join Date: Jul 2007
Location: Dutchess County, NY
Posts: 6,928
Quote:
Originally Posted by leftlanetruckin View Post
You can look at the starter system diagram, and find all the connectors there. Look for the bulkhead connector and then go back and look in the connector views. That should give a pinout.
Kind of a long way around I know, Alldata isnt well known for making things easy to find! I normally just use the search function and then select from the list that appears.

Martin
Thanks but I dont see it. Confused
__________________
Quote:
Originally Posted by Poke View Post
Spring Over is not for you.... yet





My 2.5 to 4.3 swap thread
http://www.jeepforum.com/forum/f12/4...begun-1237704/
YJames90 is offline   Reply With Quote Quick reply to this message
Unread 08-17-2011, 06:46 PM   #67
YJames90
Registered User
1990 YJ Wrangler

Join Date: Jul 2007
Location: Dutchess County, NY
Posts: 6,928

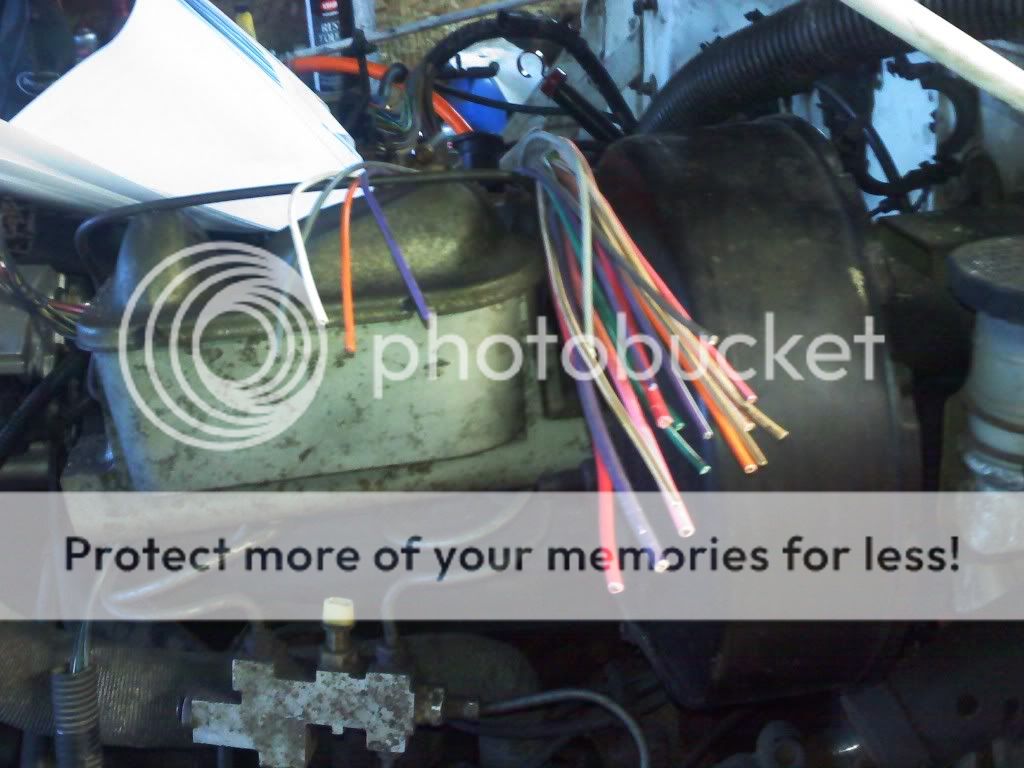

I have this which is Jeep with a whole lot of other relays and wires on the other end

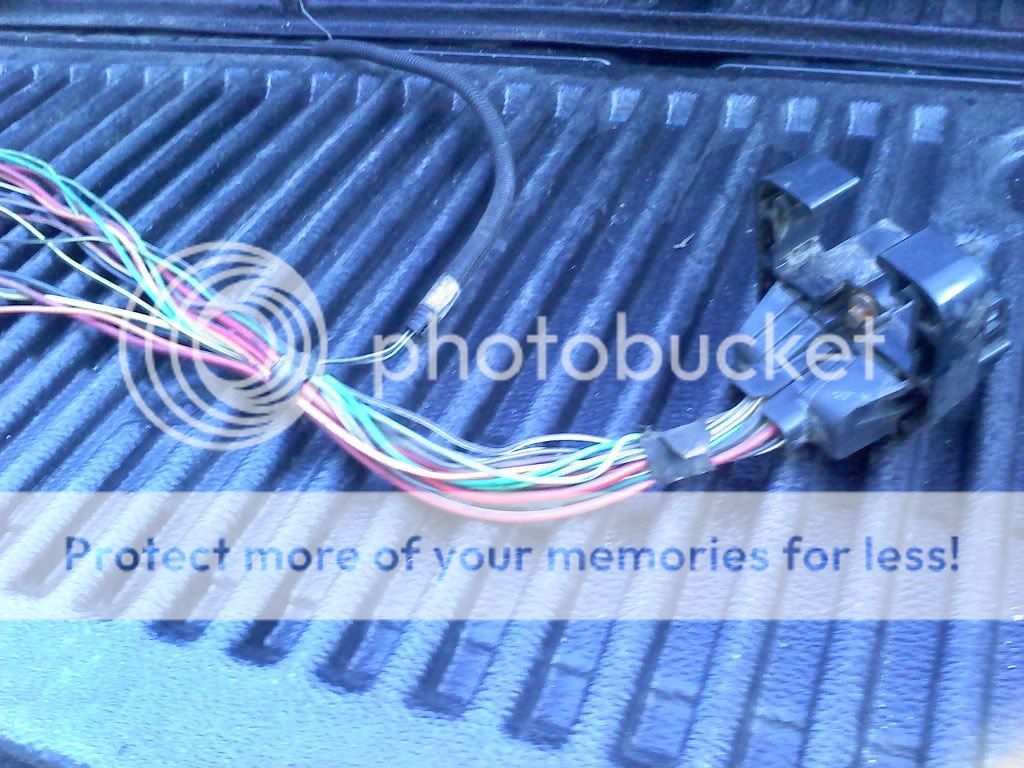

and this which had a bulk head plug on the end. The other ends have relays and everythings connected to the engine

Theres close to 20 wires on jeep vrs chevy .
It would seem too simple if i can just match the two sets up by a pin out diagram.
Im also confused as to why swaps are requireing a secondary fuse box
__________________
Quote:
Originally Posted by Poke View Post
Spring Over is not for you.... yet





My 2.5 to 4.3 swap thread
http://www.jeepforum.com/forum/f12/4...begun-1237704/
YJames90 is offline   Reply With Quote Quick reply to this message
Unread 08-17-2011, 07:08 PM   #68
YJames90
Registered User
1990 YJ Wrangler

Join Date: Jul 2007
Location: Dutchess County, NY
Posts: 6,928
When are they going to make a female/female bulk head plug that is pinned out for swaps? It would be a no brainer
__________________
Quote:
Originally Posted by Poke View Post
Spring Over is not for you.... yet





My 2.5 to 4.3 swap thread
http://www.jeepforum.com/forum/f12/4...begun-1237704/
YJames90 is offline   Reply With Quote Quick reply to this message
Unread 08-17-2011, 07:53 PM   #69
AaronJ
Registered User
1992 YJ Wrangler

Join Date: Oct 2010
Location: New Orleans
Posts: 290
This is for a '93 so I'm not sure how useful it is.
AaronJ is offline   Reply With Quote Quick reply to this message
Unread 08-17-2011, 07:59 PM   #70
AaronJ
Registered User
1992 YJ Wrangler

Join Date: Oct 2010
Location: New Orleans
Posts: 290
You can also pm me your email address and I'll send you a pdf file with a bunch of diagrams if you want. The pdf seems to cover all sorts of stuff from 87-95.
AaronJ is offline   Reply With Quote Quick reply to this message
Unread 08-17-2011, 08:04 PM   #71
YJames90
Registered User
1990 YJ Wrangler

Join Date: Jul 2007
Location: Dutchess County, NY
Posts: 6,928
I have the FSM for the YJ. Do you have someting for the S10?
__________________
Quote:
Originally Posted by Poke View Post
Spring Over is not for you.... yet





My 2.5 to 4.3 swap thread
http://www.jeepforum.com/forum/f12/4...begun-1237704/
YJames90 is offline   Reply With Quote Quick reply to this message
Unread 08-17-2011, 08:08 PM   #72
AaronJ
Registered User
1992 YJ Wrangler

Join Date: Oct 2010
Location: New Orleans
Posts: 290
Does your S-10 ecm say 1227747 or 16168625/16197427/16196395/16156930/16245358 somewhere on it?
AaronJ is offline   Reply With Quote Quick reply to this message
Unread 08-17-2011, 08:10 PM   #73
YJames90
Registered User
1990 YJ Wrangler

Join Date: Jul 2007
Location: Dutchess County, NY
Posts: 6,928
Quote:
Originally Posted by AaronJ View Post
Does your S-10 ecm say 1227747 or 16168625/16197427/16196395/16156930/16245358 somewhere on it?
Going out to the garage to check......... brb
__________________
Quote:
Originally Posted by Poke View Post
Spring Over is not for you.... yet





My 2.5 to 4.3 swap thread
http://www.jeepforum.com/forum/f12/4...begun-1237704/
YJames90 is offline   Reply With Quote Quick reply to this message
Unread 08-17-2011, 08:16 PM   #74
YJames90
Registered User
1990 YJ Wrangler

Join Date: Jul 2007
Location: Dutchess County, NY
Posts: 6,928
serv. no.1228062 anrw

869571 e180443427
__________________
Quote:
Originally Posted by Poke View Post
Spring Over is not for you.... yet





My 2.5 to 4.3 swap thread
http://www.jeepforum.com/forum/f12/4...begun-1237704/
YJames90 is offline   Reply With Quote Quick reply to this message
Unread 08-17-2011, 08:24 PM   #75
AaronJ
Registered User
1992 YJ Wrangler

Join Date: Oct 2010
Location: New Orleans
Posts: 290
...you had to be difficult didn't ya?

We'll assume you have the early style ecm rather than the later pcm. Try this and see if the colors seem to be accurate **note, the colors won't always be EXACT but it should be the same more often than not. If so, the pinout is correct**:
http://www.binderplanet.com/forums/s...ad.php?t=45293

If that looks correct then the pdf in the first post here will be invaluable:
http://www.binderplanet.com/forums/s...ad.php?t=54400

And a whole lot more info if you want it:
http://www.binderplanet.com/forums/s...ad.php?t=47254

That forum is dedicated to installing GM tbi systems on other engines (International Harvester I guess) but because of that, it also means they have all the info you could possibly need to make one work. That site is the reason I was able to hack the harness on my 350 and make it start on the first try.
AaronJ is offline   Reply With Quote Quick reply to this message
