post #211 of 252 Old 10-22-2013, 01:51 PM Thread Starter
lbsickboy
Registered User
1986 YJ Wrangler

Join Date: Aug 2011
Location: Den Haag
Posts: 193
Quote:
Originally Posted by SLO_Ken View Post
The solenoid ground/control wire is pink/black, position C20 on the Grey ECM connector.
i get which the ground wire is but it says,

With the ground wire removed from the ECM, turn the key on and then manually ground the Purge valve control wire.

what dose that mean?


http://www.jeepforum.com/forum/f12/4-0l-xj-97-motor-into-yj-87-a-1567705/
WANGLER 87 4.0 HO AW4
4,5 " ROUGH COUNTRY LIFT KIT, 1.5" BOOMERANG SHACKLES, 33'' BANDEN, ROUGH COUNTRY DUAL STEERING STABILIZER
lbsickboy is offline
Sponsored Links
Advertisement

post #212 of 252 Old 10-22-2013, 02:29 PM
SLO_Ken
Registered User
1986 CJ7

Join Date: Nov 2009
Location: California
Posts: 1,021
Quote:
3. To check for a problem on the control circuit (if the solenoid tests okay and you have voltage to the solenoid) plug the solenoid back in and remove the control circuit (ground) wire from the ECM connector (If you're unsure how to do this, do not attempt). With the ground wire removed from the ECM, turn the key on and then manually ground the Purge valve control wire. The solenoid should click. If it does, then you know there is no problem with the control wire to the solenoid and there is a problem with the ECM purge solenoid driver circuit in the ECM. You'll need a new ECM. However if it doesn't click, then there must be an open in the wiring between the ECM and and the solenoid. You must find it and repair it.
They want you to remove that pin C20 from the connector so you can manually ground the solenoid, bypassing the computer. The idea is to isolate the problem to either the wiring (if the solenoid does not click) or the computer (if it does click).
SLO_Ken is offline
post #213 of 252 Old 10-22-2013, 03:24 PM Thread Starter
lbsickboy
Registered User
1986 YJ Wrangler

Join Date: Aug 2011
Location: Den Haag
Posts: 193
OK ill get on to that tomorrow,i know the solenoid dus clik when i put on to a battery.

http://www.jeepforum.com/forum/f12/4-0l-xj-97-motor-into-yj-87-a-1567705/
WANGLER 87 4.0 HO AW4
4,5 " ROUGH COUNTRY LIFT KIT, 1.5" BOOMERANG SHACKLES, 33'' BANDEN, ROUGH COUNTRY DUAL STEERING STABILIZER
lbsickboy is offline
post #214 of 252 Old 10-22-2013, 03:28 PM
SLO_Ken
Registered User
1986 CJ7

Join Date: Nov 2009
Location: California
Posts: 1,021
right, you've established that the solenoid itself is working properly. Now you're trying to determine if the problem is in the wiring, or in the computer.
SLO_Ken is offline
post #215 of 252 Old 10-22-2013, 03:45 PM Thread Starter
lbsickboy
Registered User
1986 YJ Wrangler

Join Date: Aug 2011
Location: Den Haag
Posts: 193
Quote:
Originally Posted by SLO_Ken View Post
right, you've established that the solenoid itself is working properly. Now you're trying to determine if the problem is in the wiring, or in the computer.
Yes thats right it works i think and i hope its a wire problem and not the PCM.

http://www.jeepforum.com/forum/f12/4-0l-xj-97-motor-into-yj-87-a-1567705/
WANGLER 87 4.0 HO AW4
4,5 " ROUGH COUNTRY LIFT KIT, 1.5" BOOMERANG SHACKLES, 33'' BANDEN, ROUGH COUNTRY DUAL STEERING STABILIZER
lbsickboy is offline
post #216 of 252 Old 10-25-2013, 10:04 AM Thread Starter
lbsickboy
Registered User
1986 YJ Wrangler

Join Date: Aug 2011
Location: Den Haag
Posts: 193
Update:

Hi all so ive been busy getting all the codes out ofthe dam computer, only have 2 codes over,
bettery temp sensor and the high voltage for the fuel gauge,i can live with that.

the p0443 code turned out to be giving that fault code because of the o2 sensor (bank 1) i had solved that problem buy calling my local auto parts dealer, as you all know i was srtapt for cash,
i told the guys at the shop i neede a o2 sensor for a jeep xj, they only had the universal o2 sensors, they dint have any in stock but they had a used one which was used to test a cat on an other car for €20,
i told them i will take it.
placed it in the car and what next yes the codes are gone no more po443, p0132 , p1685



so the next job was the fuel gauge and cluster, what a head ace that was.

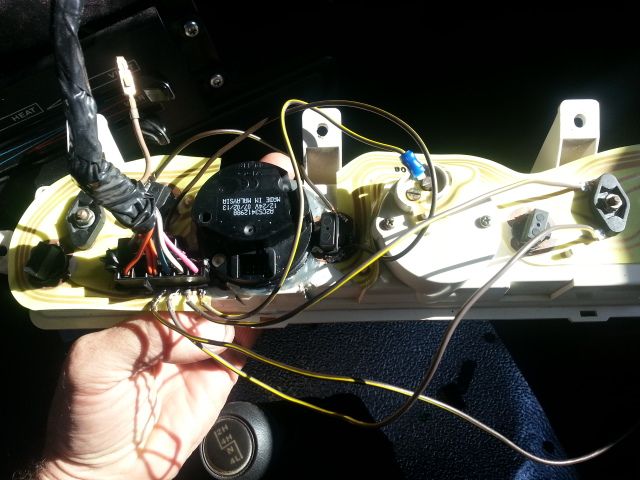

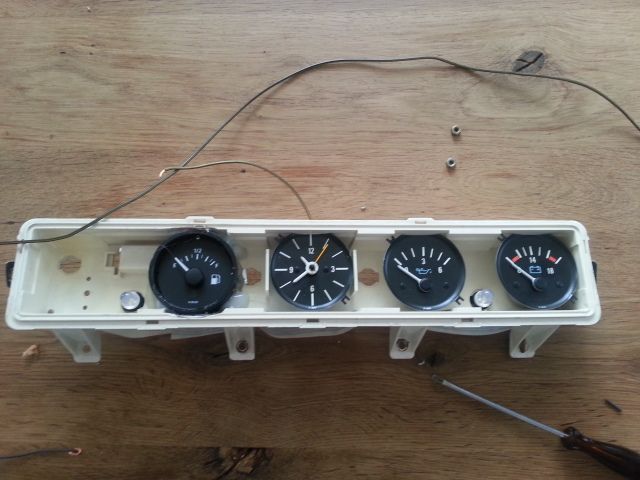

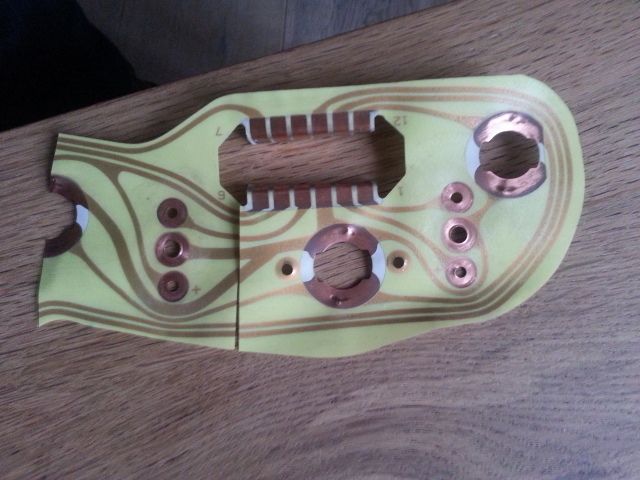

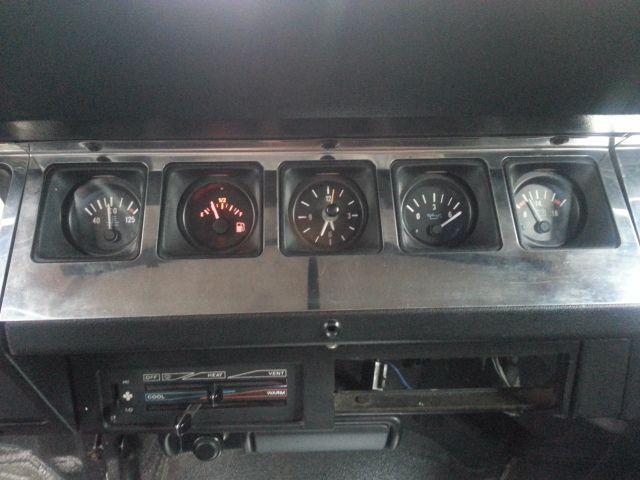

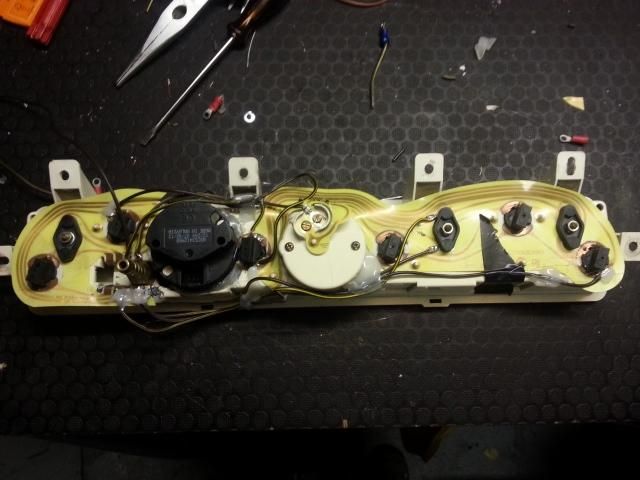

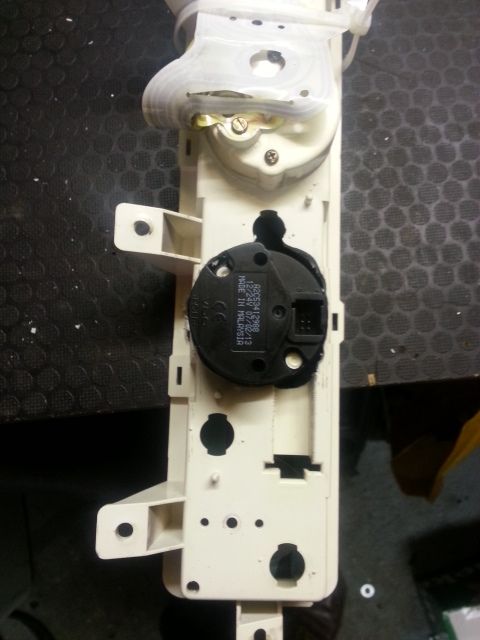

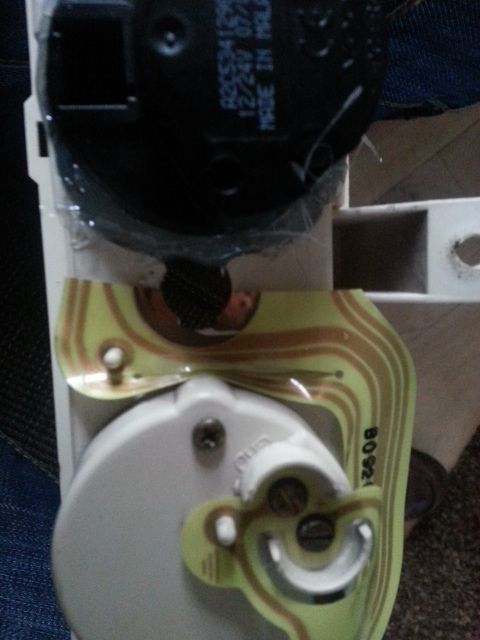

Photos of what i had done

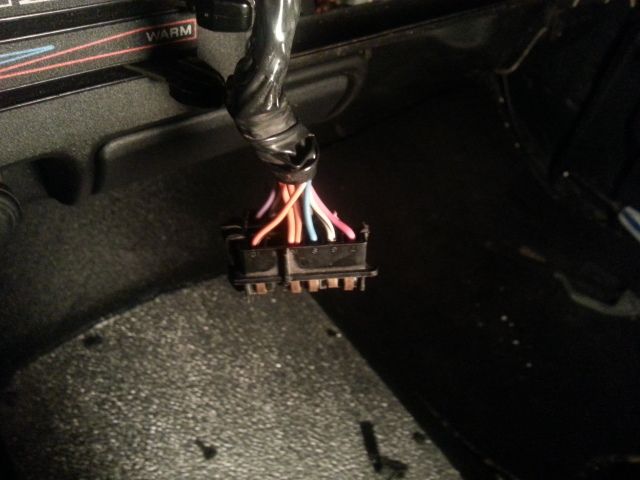

this photo the gauge cluster connector how it should be, i had to shorten the connector buy cutting away the last 2 pin holes to make room for the new fuel gauge otherwise i would not worked out, pin 5 and 6 are now moved to pin 8 , 9








all in done job took me 2 days to figure out the wires very


http://www.jeepforum.com/forum/f12/4-0l-xj-97-motor-into-yj-87-a-1567705/
WANGLER 87 4.0 HO AW4
4,5 " ROUGH COUNTRY LIFT KIT, 1.5" BOOMERANG SHACKLES, 33'' BANDEN, ROUGH COUNTRY DUAL STEERING STABILIZER
lbsickboy is offline
post #217 of 252 Old 10-25-2013, 10:09 AM
SLO_Ken
Registered User
1986 CJ7

Join Date: Nov 2009
Location: California
Posts: 1,021
Nicely done!!
SLO_Ken is offline
post #218 of 252 Old 10-25-2013, 12:11 PM
Que89YJ
Web Wheeler
1989 YJ Wrangler

Join Date: Apr 2008
Location: Detroit
Posts: 20,799
How does it run with the new o2 sensor?
Que89YJ is online now
post #219 of 252 Old 10-25-2013, 12:35 PM Thread Starter
lbsickboy
Registered User
1986 YJ Wrangler

Join Date: Aug 2011
Location: Den Haag
Posts: 193
Quote:
Originally Posted by SLO_Ken View Post
Nicely done!!
thanks very much pat on the back for me chap.

http://www.jeepforum.com/forum/f12/4-0l-xj-97-motor-into-yj-87-a-1567705/
WANGLER 87 4.0 HO AW4
4,5 " ROUGH COUNTRY LIFT KIT, 1.5" BOOMERANG SHACKLES, 33'' BANDEN, ROUGH COUNTRY DUAL STEERING STABILIZER
lbsickboy is offline
post #220 of 252 Old 10-25-2013, 12:40 PM Thread Starter
lbsickboy
Registered User
1986 YJ Wrangler

Join Date: Aug 2011
Location: Den Haag
Posts: 193
Quote:
Originally Posted by Que89YJ View Post
How does it run with the new o2 sensor?
well i took it out for a test drive all went well, had some guy trying to take me over on a one lane road, gonig down to the freeway what a git, so as he went to get in front of me i floored it and the git still coulndt get past me

lots and lots of power

http://www.jeepforum.com/forum/f12/4-0l-xj-97-motor-into-yj-87-a-1567705/
WANGLER 87 4.0 HO AW4
4,5 " ROUGH COUNTRY LIFT KIT, 1.5" BOOMERANG SHACKLES, 33'' BANDEN, ROUGH COUNTRY DUAL STEERING STABILIZER
lbsickboy is offline
post #221 of 252 Old 10-25-2013, 02:46 PM
Que89YJ
Web Wheeler
1989 YJ Wrangler

Join Date: Apr 2008
Location: Detroit
Posts: 20,799
So no more hesitation! Slo Ken you went way above and beyond on this one.
Que89YJ is online now
post #222 of 252 Old 10-25-2013, 03:00 PM Thread Starter
lbsickboy
Registered User
1986 YJ Wrangler

Join Date: Aug 2011
Location: Den Haag
Posts: 193
Quote:
Originally Posted by Que89YJ View Post
So no more hesitation! Slo Ken you went way above and beyond on this one.
No more hesitation what so ever
It s amazing how many codes get thrown at you if just one o2 sensor is out of wack.
On the bright side it great just one sensor solved all the codes that are important.

http://www.jeepforum.com/forum/f12/4-0l-xj-97-motor-into-yj-87-a-1567705/
WANGLER 87 4.0 HO AW4
4,5 " ROUGH COUNTRY LIFT KIT, 1.5" BOOMERANG SHACKLES, 33'' BANDEN, ROUGH COUNTRY DUAL STEERING STABILIZER
lbsickboy is offline
post #223 of 252 Old 10-27-2013, 05:15 PM Thread Starter
lbsickboy
Registered User
1986 YJ Wrangler

Join Date: Aug 2011
Location: Den Haag
Posts: 193
Im a happy fellow, jeeps is running fine no problems as of yet.
I would like to know if i connect the the fule level sensor wire k226 DG/LB to the pc will that stop the Neede on the gauge from moving up and down when i turn a cornner?
Its a pain in the back Side prity anoying. I was searching on the web about how to solve this and according to this web they menstion that the computer helps to keep the gauge still

Quote: As for filtering, it is your thought that code running in the ECU takes, for example a reading per second from the sensor, averages them out over 10 seconds and then drives the gauge to represent this average?

http://www.jeepsunlimited.com/forums...pointers/page2


So my question is can / should i run the dark blue /light green wire from the fuel level sender unit from the tank to the pc and then back to the fuel gauge will that Work?
Also if it will Work then it might just solve the high voltage code p0463 im getting for the fule level sensor .

http://www.jeepforum.com/forum/f12/4-0l-xj-97-motor-into-yj-87-a-1567705/
WANGLER 87 4.0 HO AW4
4,5 " ROUGH COUNTRY LIFT KIT, 1.5" BOOMERANG SHACKLES, 33'' BANDEN, ROUGH COUNTRY DUAL STEERING STABILIZER
lbsickboy is offline
post #224 of 252 Old 10-29-2013, 07:54 AM Thread Starter
lbsickboy
Registered User
1986 YJ Wrangler

Join Date: Aug 2011
Location: Den Haag
Posts: 193
any takers on my last post Please

http://www.jeepforum.com/forum/f12/4-0l-xj-97-motor-into-yj-87-a-1567705/
WANGLER 87 4.0 HO AW4
4,5 " ROUGH COUNTRY LIFT KIT, 1.5" BOOMERANG SHACKLES, 33'' BANDEN, ROUGH COUNTRY DUAL STEERING STABILIZER
lbsickboy is offline
post #225 of 252 Old 10-29-2013, 09:31 AM
SLO_Ken
Registered User
1986 CJ7

Join Date: Nov 2009
Location: California
Posts: 1,021
I think that would only work if you were using the stock XJ gauge. On the OBDII systems, there are a number of computer "modules" (engine control module, transmission control module, gauge cluster module, door module, security module, etc.) that communicate with each other via a coms bus (called the CCD Bus by Chrysler/Jeep). In the case of the stock XJ gauges, the senders all connect directly to the ECM. The sensor signals are used primarily to control the operation of the fuel injection and spark timing. The ECM also includes an abbreviated (filtered) digital version of those sensor signals on the CCD bus when it sends out its status. These filtered sensor signals are seen by the gauge cluster module, and the gauges are electrically actuated accordingly.

So, in summary, unless your gauge is using the CCD signal instead of the direct sensor signal, it will not make a difference.
