1994 AX5 to AX15 Conversion

My AX-5 shot 5th gear to the rear of the case punching a nice hole in it. In the driveway. It's time to upgrade.

I've sourced an AX-15/NP-231 combo and can find the '96-'98 Dakota 4cyl bell housing online from pick-n-pulls. Last part I think I need is the '84 Camaro 4cyl/4spd clutch from NAPA.

Since my wrangler is a 94, I already have the external slave setup. From what I've been reading I can bolt up everything else in the clutch setup to the new transmission and bell housing.

Is there anything else I need to get? The pirate writeup keeps the internal setup and the writeup on here talks about converting to the external setup. Neither of which help me too much.

__________________
-Matt

White '94 YJ Sport
Black '98 ZJ Laredo - 45x60 Surco Rack - 2" Budget Boost, Addco Front Swaybar

Project (s)Low - A build log.
UltimatE is offline   Reply With Quote
Unread 09-06-2009, 08:13 PM   #2
moonshinefuel
Registered User
1995 YJ Wrangler

Join Date: Feb 2009
Location: Los Angeles. California. United States.
Posts: 4,911
What exactly do you need help with?
__________________
AX5/NV3550 Conversion Thread. http://www.jeepforum.com/forum/f12/n...irrels-752742/
Bow Hunting www.bowsite.com
moonshinefuel is offline   Reply With Quote
Unread 09-06-2009, 08:21 PM   #3
moonshinefuel
Registered User
1995 YJ Wrangler

Join Date: Feb 2009
Location: Los Angeles. California. United States.
Posts: 4,911
Really most of the info. is already here on this forum regarding the external slave conversion which you will want to keep. czjeeper has a very good quick reference on how he did his here http://www.jeepforum.com/forum/f12/2...mplete-659386/ And I have beaten some of this info. into the ground regarding different detailed aspects of the NV3550 conversion. The NV3550 is very very similar to the ax15 so much of what I am going through now can also pertain to the ax15 for the most part. http://www.jeepforum.com/forum/f12/n...irrels-752742/
__________________
AX5/NV3550 Conversion Thread. http://www.jeepforum.com/forum/f12/n...irrels-752742/
Bow Hunting www.bowsite.com
moonshinefuel is offline   Reply With Quote
Unread 09-06-2009, 08:31 PM   #4
idaholtby
Registered User
1991 YJ Wrangler

Join Date: Apr 2008
Location: Meridian, Idaho
Posts: 2,554
Only other snag maybe the pilot bearing size. All depends on the year tranny that you are sourcing. Not a big deal though, just need to be aware of the possibility and be ready to deal with it.
idaholtby is offline   Reply With Quote
Unread 09-06-2009, 08:35 PM   #5
moonshinefuel
Registered User
1995 YJ Wrangler

Join Date: Feb 2009
Location: Los Angeles. California. United States.
Posts: 4,911
Right, not all were .750 correct?
It will either be .590 or .750. Depending on the year transmission, like you said. I believe that is correct. Unless there is another shaft size I am not aware of.
__________________
AX5/NV3550 Conversion Thread. http://www.jeepforum.com/forum/f12/n...irrels-752742/
Bow Hunting www.bowsite.com

Last edited by moonshinefuel; 09-06-2009 at 08:50 PM..
moonshinefuel is offline   Reply With Quote
Unread 09-07-2009, 12:24 AM   #6
Mean Max
Don't poke the bear

Mean Max's Avatar
1991 YJ Wrangler

Join Date: Jul 2007
Location: Stuart, Florida
Posts: 13,682
Depending on whether your AX-15 used an internal or external front bearing retainer, you may need to swap it out for the correct one.

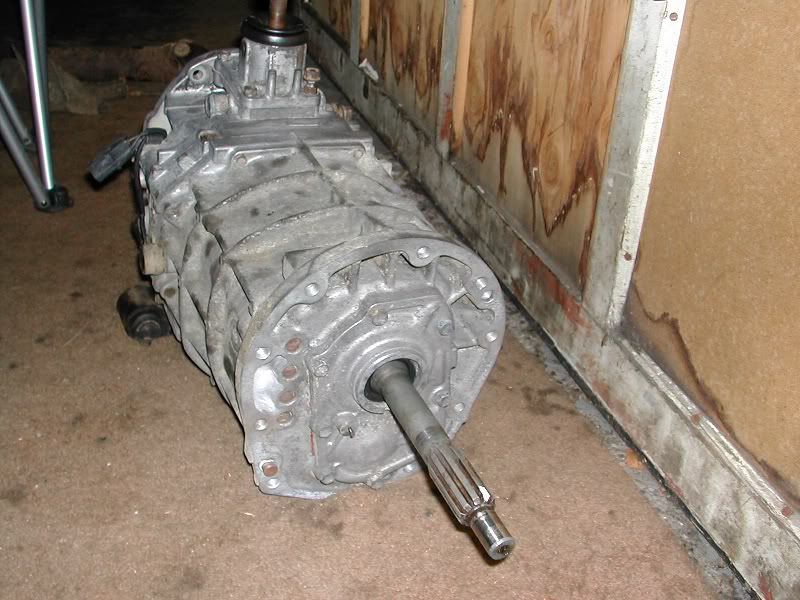

Internal slave style retainer (note 0.590 pilot bearing size input shaft)

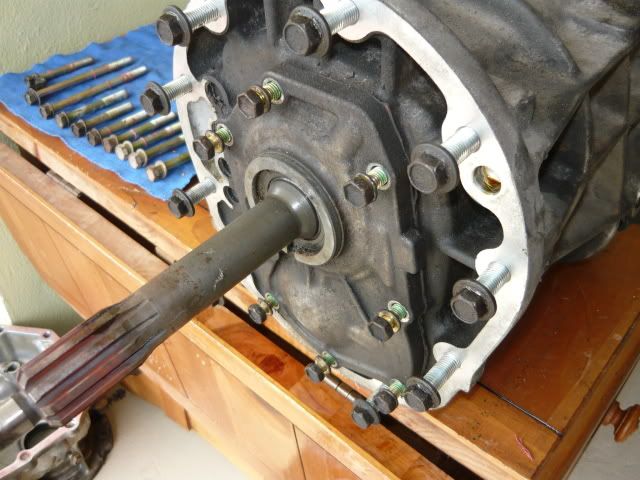

External slave style retainer (note 0.750 pilot bearing size input shaft)


Max
__________________
Click here to see all of my different albums on Photobucket.
Choose any album to see all of my pics!


Quote:
Originally Posted by UltimatE View Post
Max has a picture of every Jeep part ever made.
Quote:
Originally Posted by Benderff View Post
No one here knows what they are talking about. You should try Pirate 4x4 they will be happy to help you.

There is no situation that cannot be improved with a small but well-placed explosive.

Last edited by Mean Max; 09-07-2009 at 01:02 AM..
Mean Max is offline   Reply With Quote
Unread 09-07-2009, 12:48 AM   #7
moonshinefuel
Registered User
1995 YJ Wrangler

Join Date: Feb 2009
Location: Los Angeles. California. United States.
Posts: 4,911
Thanks Max. That makes perfect sense to me. That is a major factor to be aware of for anyone considering an ax5 to ax15 conversion. Information like this can save a person a lot of greif.
__________________
AX5/NV3550 Conversion Thread. http://www.jeepforum.com/forum/f12/n...irrels-752742/
Bow Hunting www.bowsite.com
moonshinefuel is offline   Reply With Quote
Unread 09-11-2009, 01:45 PM   #8
RollinThunder
Registered User
1997 TJ Wrangler

Join Date: Jul 2009
Location: San Diego
Posts: 67
If you're going with the NV3550, I believe those all had the setup for the external. At least all the ones that I've seen do.
RollinThunder is offline   Reply With Quote
Unread 09-11-2009, 06:59 PM   #9
UltimatE
Resident Audio Guru

UltimatE's Avatar
1994 YJ Wrangler

Join Date: Sep 2004
Location: Worcester, Mass
Posts: 7,036

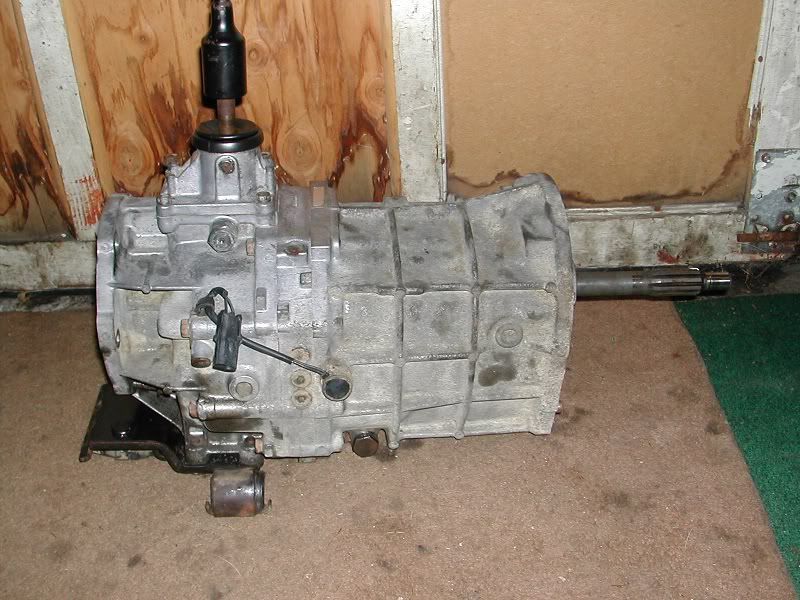

I picked up an AX-15 and 231 combo from what I was told a '94 4.0 YJ. I assumed that setup had the external slave cylinder.

The picture you posted of the internal slave matches my input shaft of the transmission (See pic below). However the diameter for the pilot bearing is 0.75" I am confused.

Diameter of the shaft before the gear section for the clutch is ~0.95", clutch splines are 1.125" and 10 teeth.



__________________
-Matt

White '94 YJ Sport
Black '98 ZJ Laredo - 45x60 Surco Rack - 2" Budget Boost, Addco Front Swaybar

Project (s)Low - A build log.
UltimatE is offline   Reply With Quote
Unread 09-11-2009, 07:10 PM   #10
Mean Max
Don't poke the bear

Mean Max's Avatar
1991 YJ Wrangler

Join Date: Jul 2007
Location: Stuart, Florida
Posts: 13,682
I wish I could see the pics!

I'm at work & they're blocked for me.....

Max
__________________
Click here to see all of my different albums on Photobucket.
Choose any album to see all of my pics!


Quote:
Originally Posted by UltimatE View Post
Max has a picture of every Jeep part ever made.
Quote:
Originally Posted by Benderff View Post
No one here knows what they are talking about. You should try Pirate 4x4 they will be happy to help you.

There is no situation that cannot be improved with a small but well-placed explosive.
Mean Max is offline   Reply With Quote
Unread 09-11-2009, 07:13 PM   #11
UltimatE
Resident Audio Guru

UltimatE's Avatar
1994 YJ Wrangler

Join Date: Sep 2004
Location: Worcester, Mass
Posts: 7,036
Quote:
Originally Posted by Mean Max View Post
I wish I could see the pics!

I'm at work & they're blocked for me.....

Max
Any way for me to get them to you? I'd like to know wtf's goin on ASAP
__________________
-Matt

White '94 YJ Sport
Black '98 ZJ Laredo - 45x60 Surco Rack - 2" Budget Boost, Addco Front Swaybar

Project (s)Low - A build log.
UltimatE is offline   Reply With Quote
Unread 09-11-2009, 07:15 PM   #12
moonshinefuel
Registered User
1995 YJ Wrangler

Join Date: Feb 2009
Location: Los Angeles. California. United States.
Posts: 4,911
It looks like an ax15, with a internal bearing retainer setup, with a .750 pilot. That sure is interesting. 94 was the transition year right? I think you have the white buffalo.
__________________
AX5/NV3550 Conversion Thread. http://www.jeepforum.com/forum/f12/n...irrels-752742/
Bow Hunting www.bowsite.com
moonshinefuel is offline   Reply With Quote
Unread 09-11-2009, 07:18 PM   #13
Mean Max
Don't poke the bear

Mean Max's Avatar
1991 YJ Wrangler

Join Date: Jul 2007
Location: Stuart, Florida
Posts: 13,682
Quote:
Originally Posted by UltimatE View Post
Any way for me to get them to you? I'd like to know wtf's goin on ASAP
PM sent.

Max
__________________
Click here to see all of my different albums on Photobucket.
Choose any album to see all of my pics!


Quote:
Originally Posted by UltimatE View Post
Max has a picture of every Jeep part ever made.
Quote:
Originally Posted by Benderff View Post
No one here knows what they are talking about. You should try Pirate 4x4 they will be happy to help you.

There is no situation that cannot be improved with a small but well-placed explosive.
Mean Max is offline   Reply With Quote
Unread 09-11-2009, 07:32 PM   #14
Mean Max
Don't poke the bear

Mean Max's Avatar
1991 YJ Wrangler

Join Date: Jul 2007
Location: Stuart, Florida
Posts: 13,682
It's a '89-'93 internal slave style AX-15.

The AX-15 production date location is on the bottom where the tranny mount bolts up.


The "304" means '93 (the "3" part) and it was built in April (the "04" part) then the "8152" is the production code number.


Max
__________________
Click here to see all of my different albums on Photobucket.
Choose any album to see all of my pics!


Quote:
Originally Posted by UltimatE View Post
Max has a picture of every Jeep part ever made.
Quote:
Originally Posted by Benderff View Post
No one here knows what they are talking about. You should try Pirate 4x4 they will be happy to help you.

There is no situation that cannot be improved with a small but well-placed explosive.

Last edited by Mean Max; 09-11-2009 at 07:50 PM..
Mean Max is offline   Reply With Quote
Unread 09-11-2009, 07:34 PM   #15
UltimatE
Resident Audio Guru

UltimatE's Avatar
1994 YJ Wrangler

Join Date: Sep 2004
Location: Worcester, Mass
Posts: 7,036
Figures, was just out in the garage looking for it -- It's covered in grease. Time to look again.

Edit: 10800278 ... the 1 seems to be bolded. Looks like it is indeed a 91 transmission. I bought it for $225, with unknown miles. It shifts perfectly, and seems to be really clean.

Is it worth it to swap out the input shaft, or find a 94+ AX15? I'm extremely tight on cash until my school money comes in...
