XJ rear swing out. your opinions on this idea (pics)


So I was helping my buddy install some goodies on his jeep a week ago and i really liked the look of his swing out carrier.




so i started thinking about how to do that for an XJ. I came up with what you see in the pictures below. I plan to "sandwich" the quarter panel in some areas to avoid ripping out any mounting bolts.

I'd like to get your feedback on this idea.




Thanks



http://www.jeepforum.com/forum/f11/96-xj-build-hybrid-1311863/

96 XJ, geared, 8.8, 5", 33s, dash
DoctorTim is offline
Sponsored Links
Advertisement

post #2 of 33 Old 01-11-2012, 12:07 AM
1990JEEPXJ
Registered User

1990JEEPXJ's Avatar
1990 XJ Cherokee

Join Date: Aug 2006
Location: San Diego, CA
Posts: 7,148

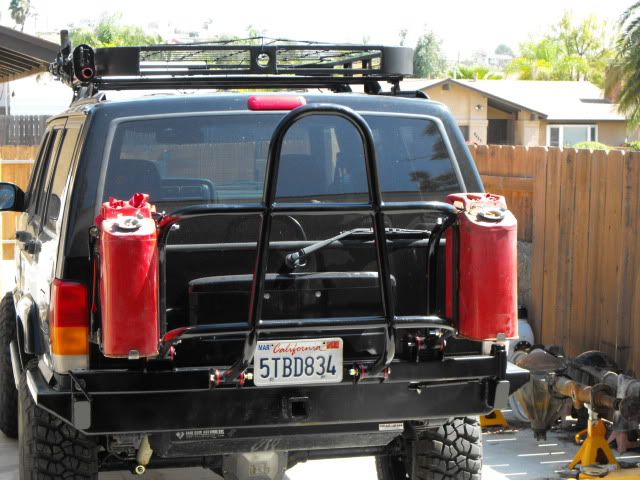

you could do it that way but i dont know if i trust the entire carrier on just sheet metal when its opened. heres my favorite bumper, its a swing out AND a swing down tire carrier

Quote:
Originally Posted by SPXJ View Post

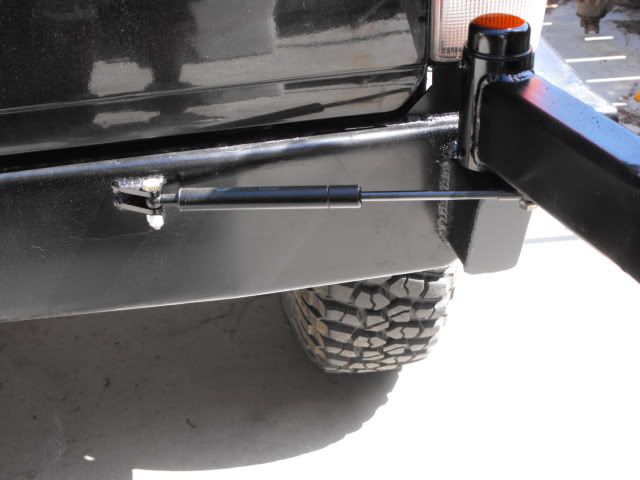

Rear Bumper.......The tire carrier swings out and down to remove the tire.











Completely stock, and keeping it that way...

My POS
Quote:
Originally Posted by Joe Dillard View Post
Yea, and I thought it was one of the 11 Commandments:
11) Thou shalt love, cherish, and honor till death, thine square headlights above all other earthy things sayith the Lord.
1990JEEPXJ is offline
post #3 of 33 Old 01-11-2012, 12:12 AM Thread Starter
DoctorTim
Registered User
1996 XJ Cherokee

Join Date: Sep 2010
Location: Huntington Beach
Posts: 2,457
Quote:
Originally Posted by 1990JEEPXJ View Post
you could do it that way but i dont know if i trust the entire carrier on just sheet metal when its opened. heres my favorite bumper, its a swing out AND a swing down tire carrier
thats nice, but i like the stability and long life of the bushings. i've hear too many stories of home made spindle swing outs failing after a few years. And im not the best welder. all i got is a flux core. i know i can do this if i use the poly bushings mainly because they dont experience as much stress that a single spindle experiences.

I just need to find a strong base for mounting. just thought i could possibly remove the tail lights and have a 90* bend in the quarter panel plate. that might not make sense but ill make a cardboard version tomorrow.

http://www.jeepforum.com/forum/f11/96-xj-build-hybrid-1311863/

96 XJ, geared, 8.8, 5", 33s, dash
DoctorTim is offline
post #4 of 33 Old 01-11-2012, 08:29 AM
Cherokee-at-16
Registered User
2000 XJ Cherokee

Join Date: Oct 2009
Location: Milford, CT
Posts: 1,041
I wish I could find you the threads, but many people have done this using the stock tire carrier off other vehicles and even stock Cherokee ones(rare). They generally mount on the other side, there's write-ups on the reinforcement and installation if you are up to search for them.

2000 Cherokee Sport Build: http://www.jeepforum.com/forum/f22/2000-xj-build-slow-uneventful-1162913/
Cherokee-at-16 is offline
post #5 of 33 Old 01-11-2012, 03:20 PM
portcityXJ
Registered User
1995 XJ Cherokee

Join Date: Jun 2008
Location: Brunswick, GA
Posts: 1,039
sweet idea. i planned to try something that's sort of a mix of those two ideas. its not gonna happen with school and barely working though.

I approve this message.

Quote:
Originally Posted by EricRollerSkate View Post
Do they come in any other varieties besides crap?
portcityXJ is offline
post #6 of 33 Old 01-12-2012, 11:54 AM Thread Starter
DoctorTim
Registered User
1996 XJ Cherokee

Join Date: Sep 2010
Location: Huntington Beach
Posts: 2,457
so here's my idea:
get rid of the stock taillights and fab taillights into the swing out.
bend 3/16" steel 90* and trim so it fits nicely
1/8" steel on the inside to avoid ripping out the mounting bolts
what do all of you think? strong enough to support a 33" tire and 2 gas cans?






Quote:
Originally Posted by Cherokee-at-16 View Post
I wish I could find you the threads, but many people have done this using the stock tire carrier off other vehicles and even stock Cherokee ones(rare). They generally mount on the other side, there's write-ups on the reinforcement and installation if you are up to search for them.
stock tire carriers are crap and look like it too, i dont wanna tinker with them.

http://www.jeepforum.com/forum/f11/96-xj-build-hybrid-1311863/

96 XJ, geared, 8.8, 5", 33s, dash
DoctorTim is offline
post #7 of 33 Old 01-12-2012, 05:54 PM
GenPatTuck
Registered User
1996 XJ Cherokee

Join Date: Oct 2009
Location: Gilbert
Posts: 167
I read somewhere that a guy took a bronco tire carrier and mounted it to his xj. His idea was similar to yours as he attached reinforced steel for the mounts but he did it from the inside so he could keep the stock look.
GenPatTuck is offline
post #8 of 33 Old 01-12-2012, 09:49 PM
fedx95
Registered User
1993 XJ Cherokee

Join Date: Nov 2010
Location: miami
Posts: 996
I did the bronco mounts. I never actually mounted it because I never got around to doing the upper mount. But I did test mount it with just the lower mount and it was pretty darn strong. Then someone threw away the carrier that i had stored in the backyard. The bronco carrier is fairly easy. Holden350 and keepishop did the tire carrier mods if I recall correctly.
fedx95 is offline
post #9 of 33 Old 01-12-2012, 09:51 PM
fedx95
Registered User
1993 XJ Cherokee

Join Date: Nov 2010
Location: miami
Posts: 996



I love the idea. Don't worry about fabbing lights. Cut out a circle in between the hinges and mount a round harbor freight light there. It will look great and function great. I love the idea.
fedx95 is offline
post #10 of 33 Old 01-12-2012, 09:56 PM
Climbit
Registered User
1999 XJ Cherokee

Join Date: Dec 2009
Location: San Diego
Posts: 6,369
for a spindle I would go this route:

http://www.atozfabrication.com/store...Hinge-Kit.html

and no, I would not put it on the sheet metal of the body.

I would tie it into the bumper mounts and the hitch mounts... kinda like I did mine.
(pics in the build thread)

there is a lot of weight back there once you get a tire/gas can... and quite a bit of leverage. if you were going with a small tire it might work.
Climbit is offline
post #11 of 33 Old 01-12-2012, 10:35 PM
fedx95
Registered User
1993 XJ Cherokee

Join Date: Nov 2010
Location: miami
Posts: 996
The sheetmetal will hold if you put a plate behind the sheetmetal and sandwich it. My lower mount could hold my weight (230 lbs)
fedx95 is offline
post #12 of 33 Old 01-13-2012, 08:06 AM
bluejunior
Hold my beer

bluejunior's Avatar
2001 XJ Cherokee

Join Date: Jan 2009
Location: Dallas
Posts: 4,391
Agreed, brace it and it should take, Just don't let anybody jump on it while it's swung out. Keep the pics coming! If this works out well I may do one myself!
bluejunior is offline
post #13 of 33 Old 01-13-2012, 09:22 AM
Azzy
Registered User
2001 XJ Cherokee

Join Date: Sep 2010
Location: Finleyville
Posts: 3,330
Got to love CAD... Cardboard Aided Design

Im the guy who makes new gauges, check out our gallery at Teamadw.com
Azzy is offline
post #14 of 33 Old 01-13-2012, 12:36 PM Thread Starter
DoctorTim
Registered User
1996 XJ Cherokee

Join Date: Sep 2010
Location: Huntington Beach
Posts: 2,457
here's what im thinkin i should do now that i've heard lots of opinions.

the two sides will be different one side will be the one that will support most of the weight (the side it swings out on) on the support side i will sandwich it and gusset it to the frame and the trunk floor.
3/16", body panel, 3/16"+gussets.

on the other side (the side that just keeps it closed) i will do a simple sandwich
3/16", body pannel, 1/8"

based off this mock-up


any thoughts? is 3/16" overkill?

http://www.jeepforum.com/forum/f11/96-xj-build-hybrid-1311863/

96 XJ, geared, 8.8, 5", 33s, dash
DoctorTim is offline
post #15 of 33 Old 01-13-2012, 12:41 PM Thread Starter
DoctorTim
Registered User
1996 XJ Cherokee

Join Date: Sep 2010
Location: Huntington Beach
Posts: 2,457
or just do it the way everyone else does it and use a spindle on the bumper..

http://www.jeepforum.com/forum/f11/96-xj-build-hybrid-1311863/

96 XJ, geared, 8.8, 5", 33s, dash
DoctorTim is offline
