Unread 02-09-2009, 08:18 PM   #406
AuburnXJ
Registered User
1993 XJ Cherokee

Join Date: Nov 2007
Location: Alabama
Posts: 303
2001 Cherokee Limited
Rusty's 4.5" Full Leaf Lift on Icons w/ 265s


Same w/ 32x11.5s


1993 Cherokee
Rustys 6.5" Longarm kit on 33" TSLs


__________________
2001 Jeep Cherokee Limited - DD
4.5" Rusty's SA Kit-32x11.5 BFG AT-Super 44 w/ turndown-JKS Discos

1993 Jeep Cherokee - Trail Rig
6.5" Rusty's LA kit-33x12.5 TSL-Pacesetter Header w/Delta 40-JKS Discos-Tom Woods Driveshaft-Advanced Adapters SYE-Custom CAI
Coming This Summer: 44/9", 4 link rear, and 37s
AuburnXJ is offline
Unread 02-14-2009, 04:21 PM   #407
Pedro7
Registered User
2000 WJ

Join Date: Jun 2008
Location: Morristown, NJ
Posts: 482

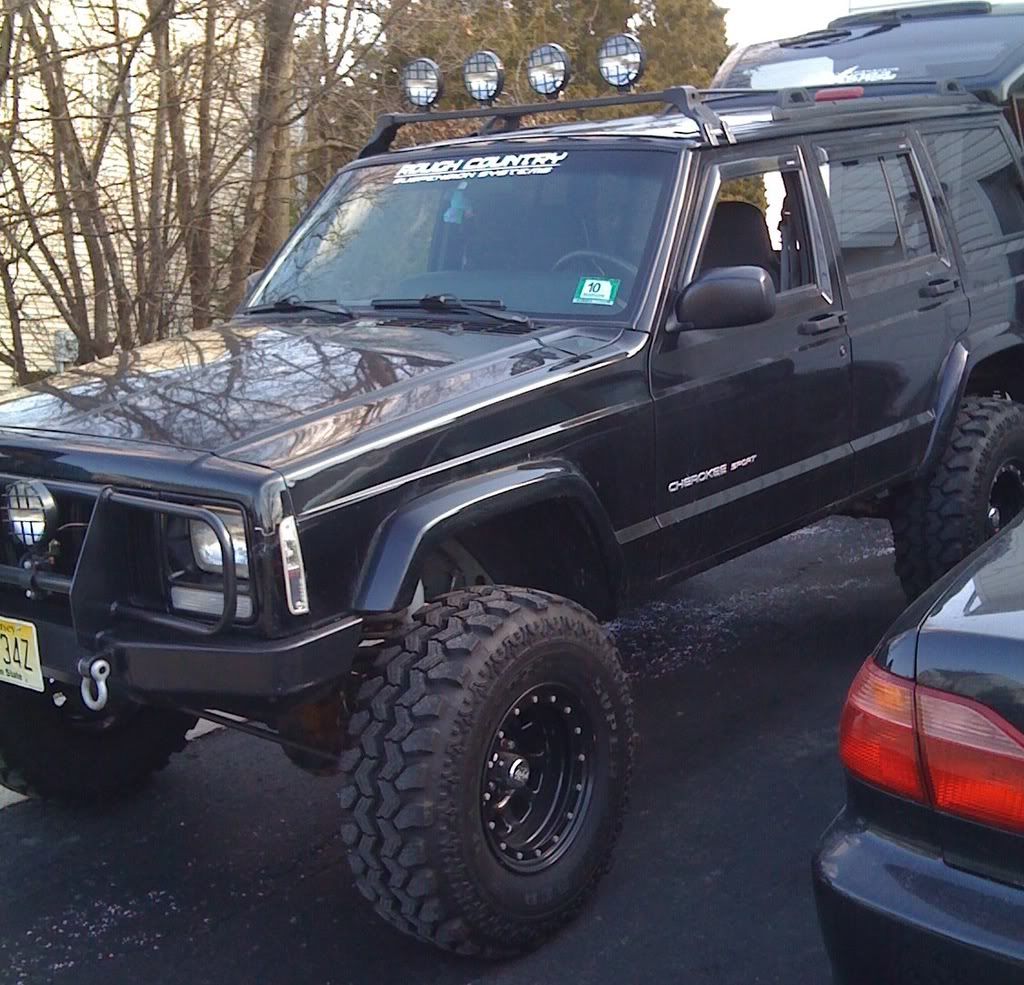

1999 XJ
Rustys 3" HD Full pack (actual about 4")
Rustys Shocks w/ Rustys BPE's
31X10.5 Goodyear MTRs
Cragar soft 8's 15x8, 3.75 BS
Notes: Kilby T-case/gas tank skid, doorless mod, JKS trackbar, Aussie Locker rear, some other things


__________________
KCCO
2000 WJ - Clayton, IRO, MileMarker, Custom Splice, JCR, Bilstein, Rola, Federal Tires
1997 TJ - Restoration completed thanks to: Cooper Tires, Rustys, Rough Country, and Quadratec.

Last edited by EricsXJ; 02-14-2009 at 07:12 PM..
Pedro7 is offline
Unread 02-16-2009, 12:48 PM   #408
phattysrt
Registered User
1998 XJ Cherokee

Join Date: May 2008
Location: las vegas
Posts: 262

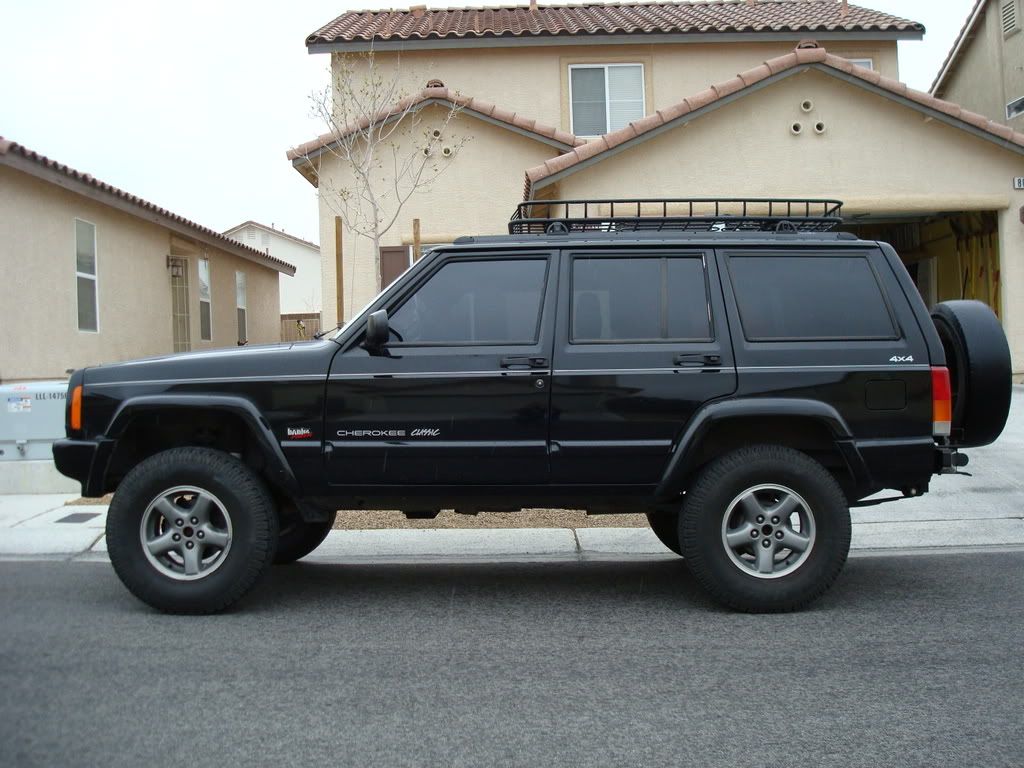

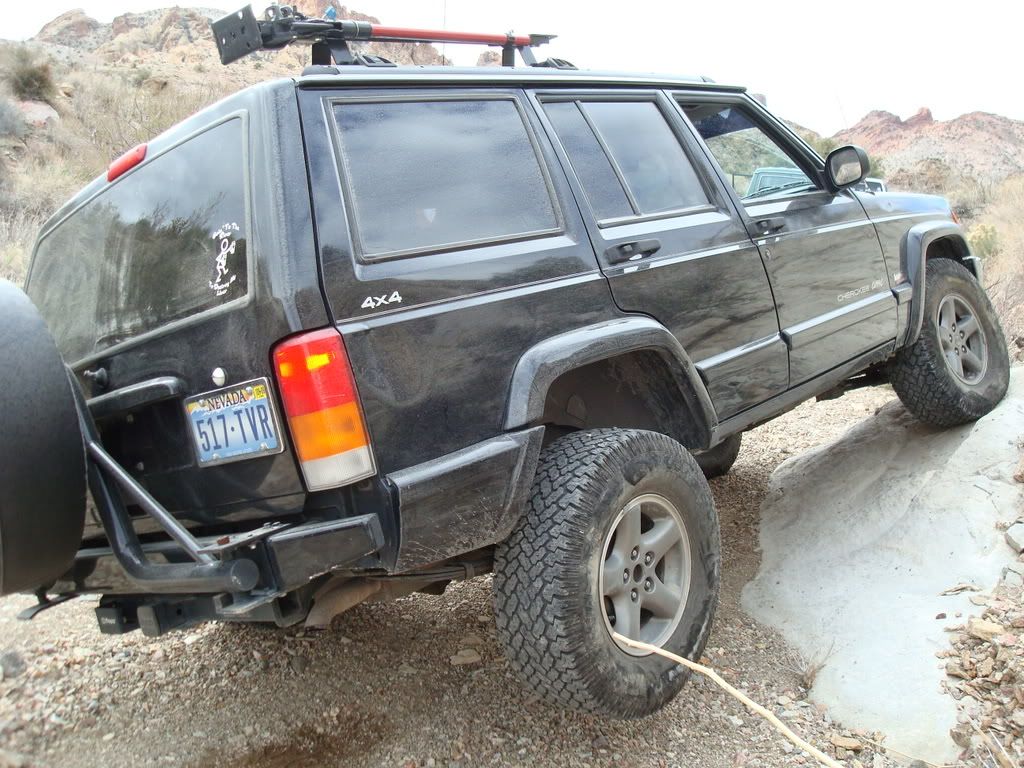

98 vegas XJ

1998 XJ
Rough Country 3" spring pack lift w/ 1 inch front spacer and 1.5-2.0" adjustable shackle. Procomp MX6 shocks for a 5" lift. Procomp 31/10.50 all terrain tires on stock 15 inch rims with original backspacing. Front and rear swaybars still on. does not rub and no fender trimming at full flex. No SYE but has slight vibration at 71 mph.




phattysrt is offline
Unread 02-20-2009, 01:27 PM   #409
Crusher16
Registered User
1991 XJ Cherokee

Join Date: Feb 2009
Location: Plano, Texas
Posts: 206

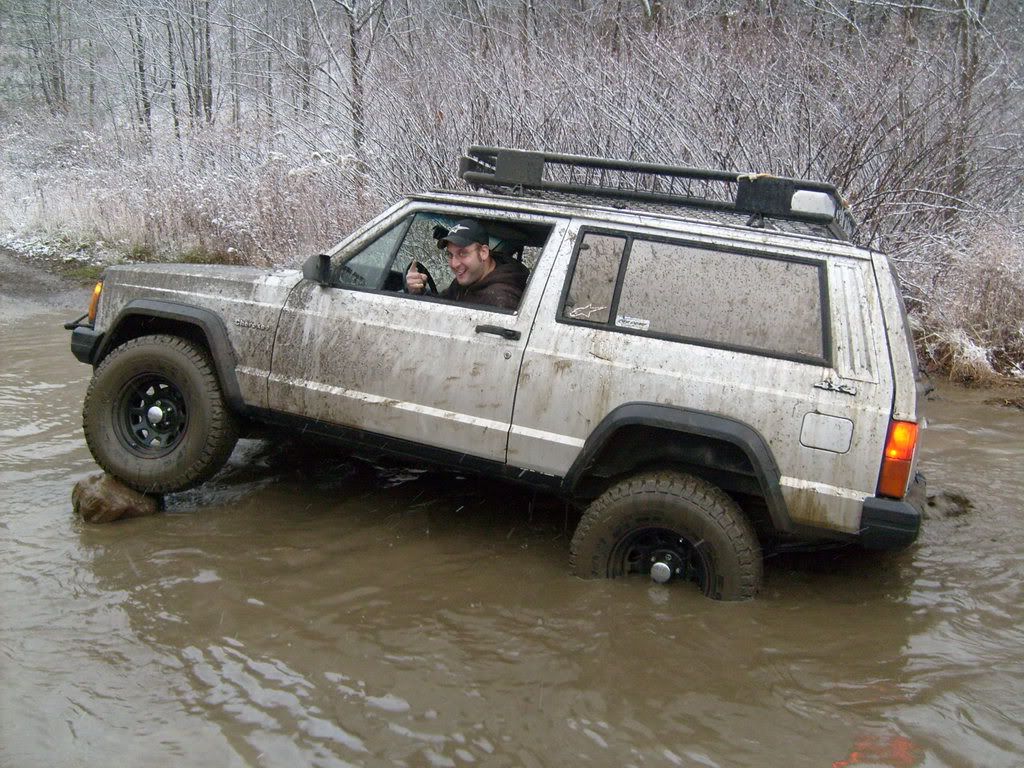

Year: 1991
Lift height: 2" Spacers up front and 1" lift shackles in rear
Shocks: Monroe Gas-Matics
Tire size: 30x9.5x15 BFG AT KOs
Wheel Size & backspacing: Stock 15x7 Honeycombs
Notes: Rear end is sagging from the shackles so actual lift is a little over an inch in the rear.





More pictures here.
Crusher16 is offline
Unread 02-20-2009, 02:14 PM   #410
lifted89xj
Registered User
1989 MJ Comanche

Join Date: Sep 2008
Location: Indiana PA
Posts: 393

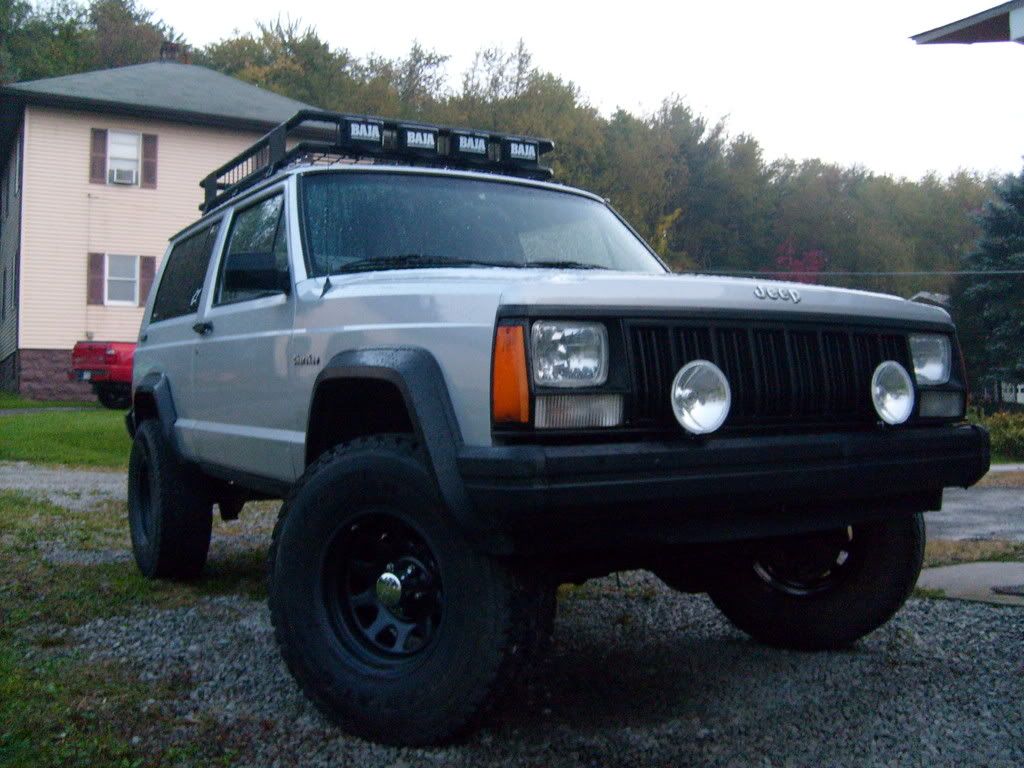

rustys 3.5 lift
AR wagon wheels 15x8
Iron man 31x10.50x15
pro comp shocks
home made roof rack
pre runner bumper bar


__________________
http://i7.photobucket.com/albums/y27...ow/jeep005.jpg

Alpinestars Racing Ahead....

HOOD VENT/ LOUVER SALE Click Below
http://www.jeepforum.com/forum/f129/...amaro-1020397/

Last edited by EricsXJ; 02-20-2009 at 03:59 PM..
lifted89xj is offline
Unread 02-22-2009, 07:24 PM   #411
vx1kxj
Registered User
2000 XJ Cherokee

Join Date: Jul 2008
Location: warwick, rhode island
Posts: 732

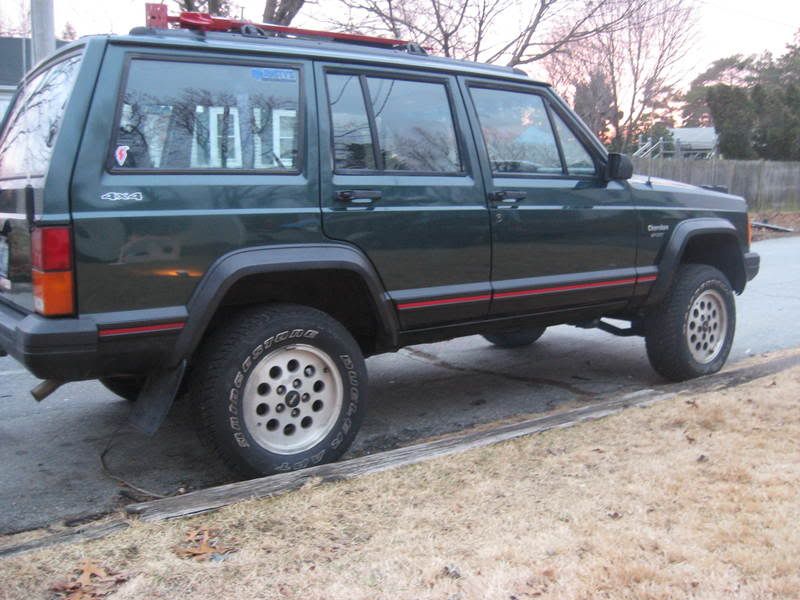

1994 xj 5 speed
lift: 3" ROUGH COUNTRY FULL PACK KIT, rusty's control arms, skyjacker hydro 7000 shocks
tires: Smaller than stock 27" Bridgestone dueler apts (put on by PO) on Stock pizza wheels
I must admitt, these tires are very good in the snow though and would recommend them to anyone needing a DD tire!
__________________
2000 forest green pearl coat xj,FACTORY HIDDEN 6000bl ramsey winch Up country package I installed myself (even the decal). then i added 3" RC lift with full packs, bilstein 5150's with jks BPE's, amc long black swap from a '95, K&N drop in, Helix throttle body spacer, IRO 2.5" cat back, Hella 500's. Kevin's Offroad light bar, jks quick disconnects MOOG v8 zj steering. 31x10.50 bfg rugged trail on factory steelies, tan power leather seats swapped in from a limited. MINT
vx1kxj is offline
Unread 02-23-2009, 08:04 AM   #412
Determined2Rise
Registered User
1996 XJ Cherokee

Join Date: Nov 2008
Location: O'Fallon, MO
Posts: 166
Year: 1996
Lift kit: Rough Country 4.5" lift Actual: a little over 5
Shocks: RC 4.5" Nitro 9000 upgrade shocks(could be better )
Tire size: 33x12.5 Super Swamper TSL Radials Actual: 32.8x12.70x15
Wheel size & backspacing: Pro Comp Rock Krawler Series 97 15x8 w/ 3.75 backspacing
Notes: Pretty bad rubbin only at full flex, rear sway bar removed, front disconnects. Hidden hitch
Future: C 4x4 Front Bumper with PreRunner bar, 4.56 gears, Tom Woods SYE and CV driveshaft, Rock sliders, etc Not necassarily in that order

Click Free?
http://i688.photobucket.com/albums/v...8/P1020357.jpg

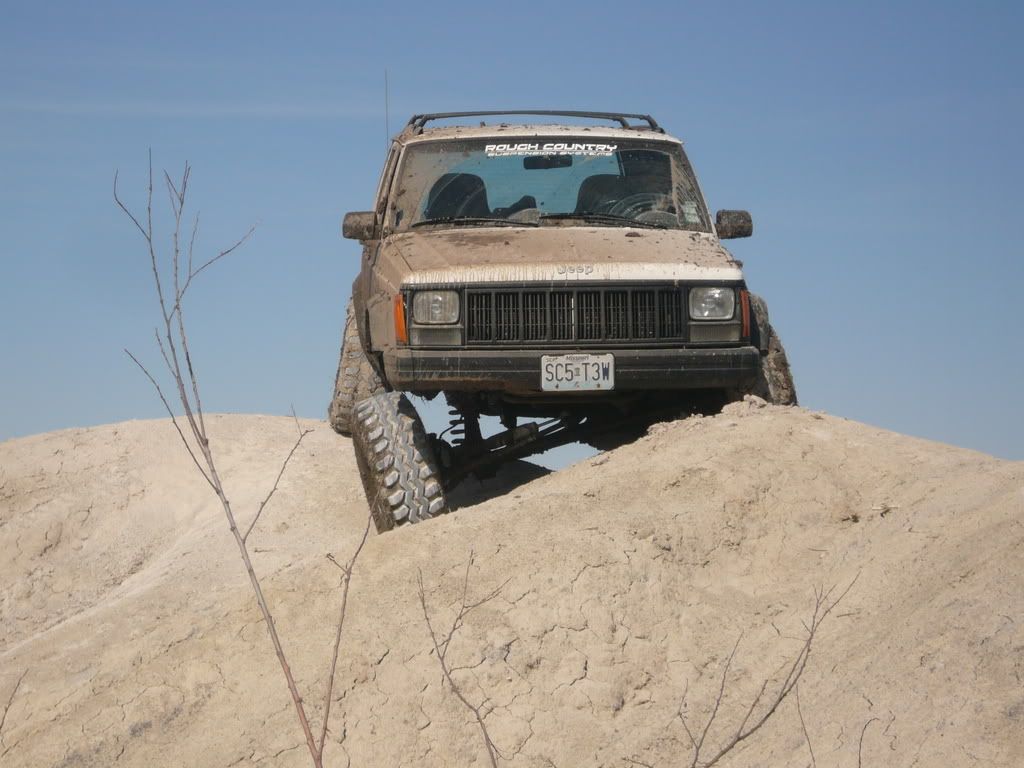

Almost rolled STEEP hil to the left
http://i688.photobucket.com/albums/v...k/P1020401.jpg
__________________
I have that Jeep thing! Now it hurts when I pee.

Last edited by EricsXJ; 02-24-2009 at 01:25 AM..
Determined2Rise is offline
Unread 02-23-2009, 08:10 AM   #413
nrpalmer32
Registered User
1987 XJ Cherokee

Join Date: Mar 2007
Location: Milwaukie, Oregon
Posts: 1,511
Click Free
Quote:
Originally Posted by Determined2Rise View Post
Year: 1996
Lift kit: Rough Country 4.5" lift Actual: a little over 5
Shocks: RC 4.5" kit shocks (could be better )
Tire size: 33x12.5 Super Swamper TSL Radials Actual: 32.8x12.70x15
Wheel size & backspacing: Pro Comp Rock Krawler Series 97 15x8 w/ 3.75 backspacing
Notes: Pretty bad rubbin only at full flex, rear sway bar removed, front disconnects. Hidden hitch
Future: C 4x4 Front Bumper with PreRunner bar, 4.56 gears, Tom Woods SYE and CV driveshaft, Rock sliders, etc Not necassarily in that order

Click Free?

Almost rolled STEEP hil to the left

Last edited by EricsXJ; 02-24-2009 at 01:26 AM..
nrpalmer32 is offline
Unread 02-23-2009, 08:05 PM   #414
qwikxr
Registered User
1996 XJ Cherokee

Join Date: Mar 2006
Location: Virginia
Posts: 10
Lift height - listed (actual): Rough Country 6.5" (6")
Shocks: Rough Country 9177/9178 (4-6" lift) Nitros
Tire size Listed (actual): Trail Cutter 33x12.50 (32.5 x 13.7)
Wheel Size & backspacing: Jeep Gambler 15x8 5.5" BS

Notes: Stock flares get chewed on from about 3/4 flex - onward. full flex rubs the front's top coil perch pretty good, as does flat, full lock rubs the LCAs. Full flex with slight turning makes the tire grab the flare at the rear, and the front fender bracing. I'll be trimming the front of the fender (lower brace and section behind bumper caps), as well as changing wheels to one with less BS. Also going to add Bushwackers. No SYE (yet) but run the long slipyoke. very minute vibes from 20-30mph. Rear sway removed, rear bumps MIA. Front sway disco'd, stop bumps.

Flat:




Flexed:

__________________
'96 XJ - 8" RC lift - 33x12.50s, IRO long-Arm, Rusty's leafs, Boomerangs, etc.
qwikxr is offline
Unread 02-24-2009, 05:20 PM   #415
blackwaterjeep
Registered User

Join Date: Jan 2007
Location: baker florida
Posts: 53
Year:1999
Lift height rusty's 3in but actual 3.6 front and rear
Shocks: rusty's 3in
Tire size: 31x10.5 sport king allterrains
Wheel Size & backspacing: cragar soft 8's 4.0 bs
Notes:added coil spring insulator up front to level it. rusty's adj trac bar. exteneded sway bar links. warrior front bumper. ( added in custom tabs that tie in the bumper further back on the frame. welded on bumper end and bolted to frame) also rhino lined the rocker panels fender plans and back bumper. got a 4ft fiberglass cb antenna with cb

__________________
len. black water 4wheelers
blackwaterjeep is offline
Unread 02-27-2009, 06:17 PM   #416
Stout95YJ
Registered User
2006 LJ Wrangler

Join Date: Sep 2007
Location: Wilmington, North Carolina
Posts: 820
2" AAL+spacer
33x12.50 BFG MT's on 15x8 soft 8's 4" bS
lots of front trimming

Stout95YJ is offline
Unread 02-28-2009, 04:00 PM   #417
gorman
Registered User
2000 XJ Cherokee

Join Date: Sep 2003
Location: Cape Town, South Africa
Posts: 360

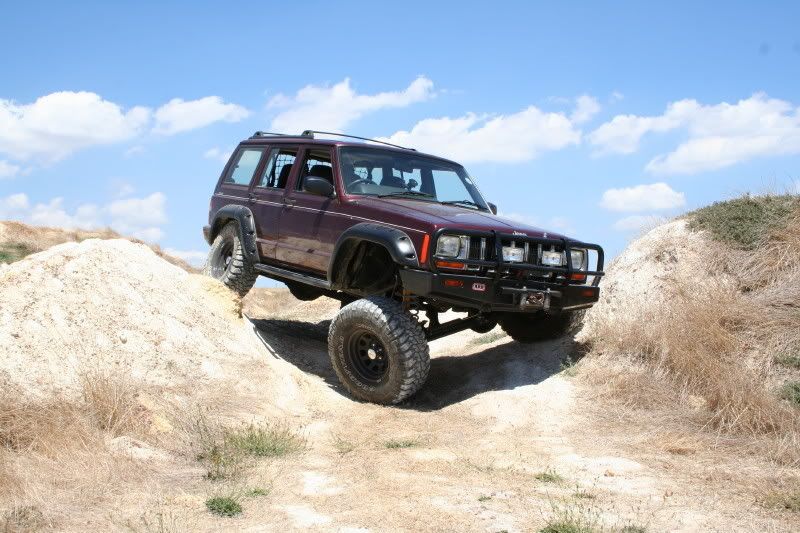

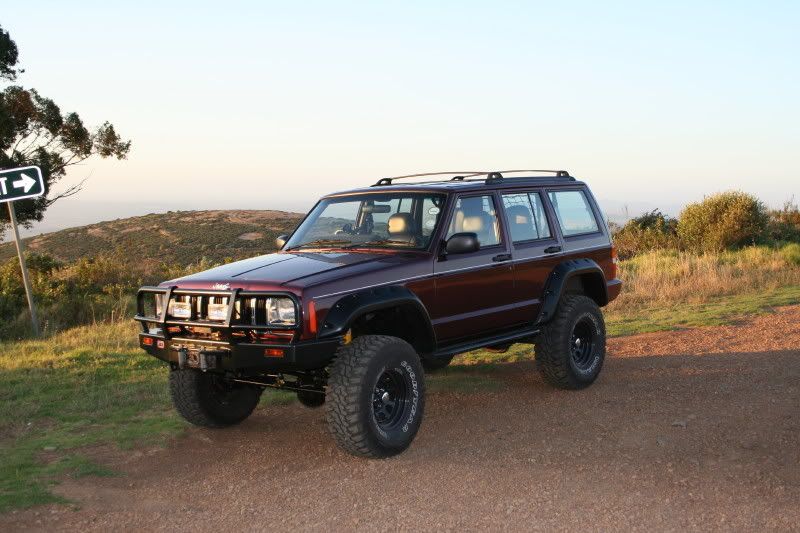

Year: 2000
Lift height (actual): 6" (RE 4.5" coils with spacer and OME CS034RA leafs with extra leaf and RE boomerang shackles)
Shocks: Front OME N35L (long travel) Rear OME N36 (normal length with raised shock mountings on axle)
Tire size: 33" Goodyear MTRs
Wheel Size & backspacing: Cragar D windows 15x8 with 4" backspacing
Notes: ARB bumper end caps were trimmed to line up with Bushwackers - tires still rub the bumper ends slightly on full flex



__________________
2000 Cherokee Country 4.0l, AW4 auto, NP242, RE/OME 6" lift, OME N35L & N36 shocks on raised mounts, JKS Quicker Disconnects, RE SYE, RE CV driveshaft, 33" Maxxis Bighorns, Cragar D window 15x8 with 4" backspacing, ARB bumper, Hella Comet 550's, Warn M8000 winch, GME GX300 29mhz, custom rocksliders, Gearmax Mod 89 rear axle, HP D30 front axle with WJ knuckles, steering and brakes, 4.56 ratios
gorman is offline
Unread 03-04-2009, 12:20 AM   #418
v2xj
Registered User
1999 XJ Cherokee

Join Date: Jan 2009
Location: jersey
Posts: 89

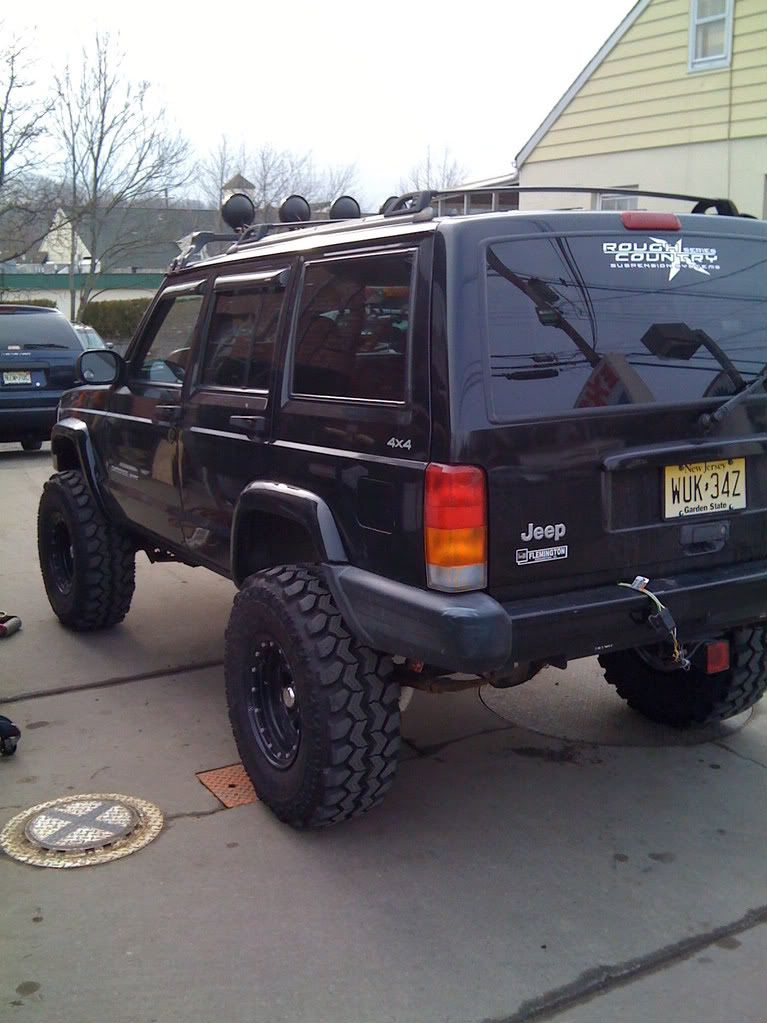

Year:1999
Lift height:6.5" Rough Country
Shocks: RC all around
Tire size :32" with tread= 33"
Wheel Size & backspacing:15x1

__________________
Heights 4x4
March 09 Cherokee of The Month
Black Jeep Society
v2xj is offline
Unread 03-08-2009, 03:46 PM   #419
AustinTexasXJ
I break Things

AustinTexasXJ's Avatar
2008 JK Wrangler

Join Date: Feb 2009
Location: Buda, Austin, San Marcos, Texas
Posts: 5,742
Year: 2001
Lift kit: Stock
Shocks: Stock
Tire size: 235 75 R15 Hankook AT
Wheel size & backspacing: Stock 15x7
Notes: soon to get 2" RE BB


<img src="http://i41.photobucket.com/albums/e251/vivalaskaters78/PIC-0615.jpg" border="0" alt="Photobucket">
__________________
Benjamin
>Dirty Betty R.I.P<
>ATXJ's $800 Dollar seXJ Build<
>2008 JKU "The Daily"<

ΜΟΛΩΝ ΛΑΒΕ!
AustinTexasXJ is offline
Unread 03-09-2009, 04:20 AM   #420
nrpalmer32
Registered User
1987 XJ Cherokee

Join Date: Mar 2007
Location: Milwaukie, Oregon
Posts: 1,511
Click Free and fuctional link
Quote:
Originally Posted by BMWalive View Post
Year: 2001
Lift kit: Stock
Shocks: Stock
Tire size: 235 75 R15 Hankook AT
Wheel size & backspacing: Stock 15x7
Notes: soon to get 2" RE BB
nrpalmer32 is offline
