XJ lift setups (read first post before replying!!!) - Page 2

rocknerd · 04-07-2004, 12:05 PM

Lift: 3.5" RE super ride + 2" coil spacers up front, 2" blocks in the back. total: ~4.75 front & back.
Tires: 33x12.5 TSL's
Wheels: 15x8 Rock Crawlers. 4.5" bs
Engine Mods: 62mm throttle body spacer, custom air intake, flowmaster 40 series exhaust.
Quick discos
Body work: tin snip and hammer special.

This post has been edited by the moderator. Please refer to the beginning of this thread for rules.

**EricsXJ** · 05-10-2004, 11:09 PM

Another old setup - see ericsxj.com for current specs

Here's my 2nd lift. The first one was RE4.5" with a small coil spacer. Specs:

Year: 2000
Lift height: listed - RE 5.5" kit actual - estimated 6.5". Because I kept my old RE1462 leaf packs that were already broken in, I replaced the RE shackle witha TeraFlex shackle which is about an inch taller.
Tire size: 33x12.50 MT/R's (actual diameter = 32.8")
Wheels: 15x8 Tech 1's with 4.5" backspace
Fenders: trimmed and the stock flares moved up
Notes: No flex pics yet, but tires will clear fenders. Tires rub the LCAs a little at full turn. Wishing I had a slightly wider stance with this set up. I'm going to keep these wheels however and if I do a hub conversion, that should move the tires out just enough to make me happy.

dm7297 · 05-11-2004, 11:17 AM

my rig

see sig for specs

This post has been edited by the moderator. Please refer to the beginning of this thread for rules.

joshsg · 05-12-2004, 11:21 AM

Year: 1990
Lift: RE 4.5 with full Leafs
Tires: 33x12.50 TrXus M/T
Wheels: Pro Comp Extreme Alloy 15x8
Notes: Iv'e started trimming the fenders some. Nothing too much, just the front and back corners. It still rubs a little but it's fixing itself. No T-case drop, no vibes, and no bumpstops.

silverxj2001 · 05-14-2004, 09:54 PM

Year: 2001
Lift: Rustys 3" w/2" coil spacers front
Shocks: Rustys
Tires: 31x10.50 Dakota RVTs
Wheels: 15x8" Rockcrawlers w/3/75" BS
Notes: Heavy trimming front & rear, no rubbing anywhere at all

b(k)ill94xj · 06-12-2004, 03:35 PM

Year: 1994
Lift height 3.5 front 4.0 rear (rubicon express)
Shocks: skyjacker nitro shocks (for 3 to 5 inchs of lift)
Tire size 31" kumho Venture MT's
Wheel Size & backspacing: stock 15x7

there is minor fender rubbing at full flex from both the front and rear tires but nothing that has damaged anything yet. the tires rub LCA's at full lock. the shocks are to short they limit my flex. (you can see in thepicture were the tire is still off the ground)

nfinkbe · 06-24-2004, 01:32 PM

Year: 2001
Lift height: listed - RE 3.5" kit actual - estimated 4.5".
Driveshaft: RE hack-n-tap with cv driveshaft
Tire size: 31x10.50 Kumho MT's
Wheels: 15x8 Tech 1's with 4.5" backspace

before

after

Sterling90XJ · 06-25-2004, 04:30 PM

.
Year: 1990
Lift height: 6" Total - 4.5" Leafs, 1.5" Shackles / 3" Coils, ACOS
Driveshaft: AA SYE & Tom Woods CV Shaft
Tire size: 33x12.50x15 Goodyear MTR's
Wheels: 15x8 American Racing 136's (Venturas) 3.75" BS, 19mm offset

Front Fenders trimmed at line traced on top of stock flare. Flare relocated. Rear, slight trimming.

.

tdwjeep · 07-08-2004, 01:51 PM

Year: 2000
Lift height: RE 3.5 SuperRide - Actual 3.5 Front, 4.5 Rear
Shocks: DT 3000
Tire size: 31x10.50 R15 Kumho Venture MT
Wheel Size & backspacing: Factory
Notes: No rubbing - adding BB soon though.

**jasfro** · 07-17-2004, 10:34 PM

Stock

After

3.5RE W/32x11.5

redjeepguy · 07-21-2004, 01:10 PM

Year:92
Lift height (listed & actual):rusty's 4.5-gave 5.5 + longarms
Shocks: trailmaster ssv for 4" lift
Tire size (Listed & actual):33x12.50
Wheel Size & backspacing:15x8 with 3.5" backspacing
Notes:no sye was needed, integrated a 1" drop in the custom crossmember. rub on longarms at full steering lock, and bumpstopped up front to keep from rubbing.

Mark

homerscj7 · 07-28-2004, 03:17 PM

RE 2" Lift
30" Cooper STT's
Trimmed front air dam
Tow Hooks and Skidz

blk2000xjc · 08-10-2004, 10:34 AM

Year: 2000
Lift kit: RE 5.5" XD w/ .75" coil spacer for bull bar, JKS discos
Shocks: Rancho 9000x
Tire size: 285 75 R15 Goodyear MT/Rs
Wheel size & backspacing: AEV Argent 16x8 4.7" BS

xjninja · 08-28-2004, 01:53 PM

Year: 2000 Cherokee Sport
Lift Kit: Rusty's 2" BB
Shocks: Stock
Tire Size: Stock on day of post, new 30x9.50x15 BFG A/T Tomorrow
Wheels: Stock

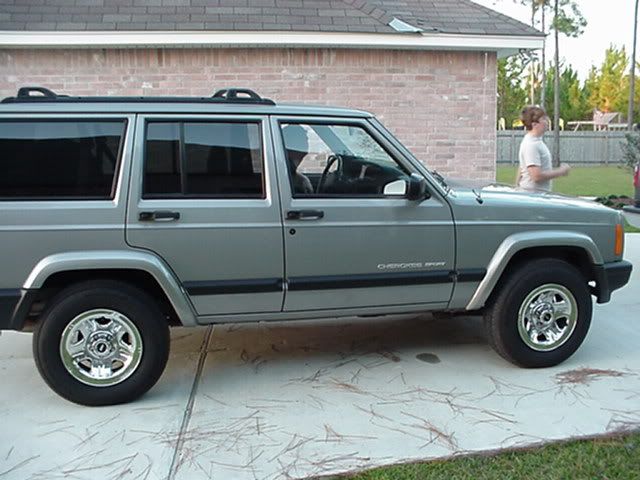

Before:

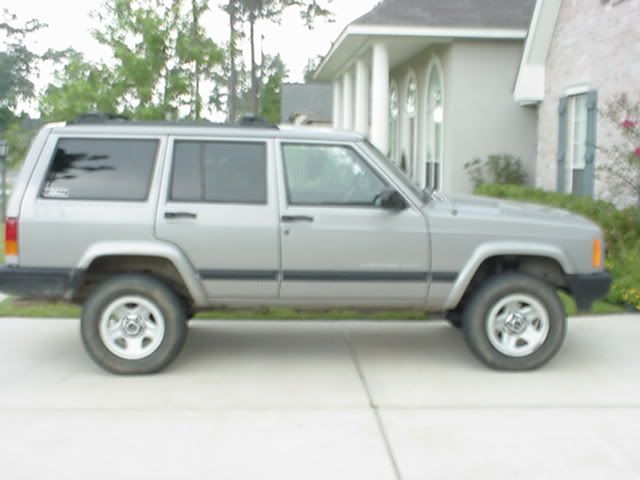

After: 2" BB

atfrith · 08-29-2004, 05:59 PM

1990 Cherokee
Rusty's 3" AAL kit (4" rear, 3" front"
shocks: some blue monroe shocks (dunno the actual name or anything)
tires/wheels: stock
no vibes at all, but do have some death wobble.

05-12-2004, 11:21 AM	#19
joshsg Registered User Join Date: Apr 2003 Location: Forks, Washington Posts: 284 Profile Gallery Classifieds My Jeeps	Year: 1990 Lift: RE 4.5 with full Leafs Tires: 33x12.50 TrXus M/T Wheels: Pro Comp Extreme Alloy 15x8 Notes: Iv'e started trimming the fenders some. Nothing too much, just the front and back corners. It still rubs a little but it's fixing itself. No T-case drop, no vibes, and no bumpstops. __________________ '90 xj Laredo 15% tint all around RE 4.5 and TrXus 33's Last edited by joshsg; 05-13-2004 at 01:05 PM..

05-14-2004, 09:54 PM	#20
silverxj2001 Registered User Join Date: Dec 2003 Location: boulder, CO / the OC Posts: 1,263 Profile Gallery Classifieds My Jeeps	Year: 2001 Lift: Rustys 3" w/2" coil spacers front Shocks: Rustys Tires: 31x10.50 Dakota RVTs Wheels: 15x8" Rockcrawlers w/3/75" BS Notes: Heavy trimming front & rear, no rubbing anywhere at all __________________ 2001 2-door XJ prerunner 6.5" RE 33x10.5" BFG A/T KO 15x8" rockcrawlers w/3.75" bs hannemann 6" bulge flat top fiberglass fenders bilstein 11" travel 5150's RE XD trackbar / frame mount RE adj. LCA/UCA's beard triple thick limit straps rusty's steering box brace truckfarm pre-runner bumper intake / exhaust procomp lighting system... yada yada yada [URL=http://www.cardomain.com/memberpage/437678/1]PICS OF MY XJ[/URL]

06-12-2004, 03:35 PM	#21
b(k)ill94xj Registered User Join Date: Jul 2003 Location: nj Posts: 708 Profile Gallery Classifieds My Jeeps	Year: 1994 Lift height 3.5 front 4.0 rear (rubicon express) Shocks: skyjacker nitro shocks (for 3 to 5 inchs of lift) Tire size 31" kumho Venture MT's Wheel Size & backspacing: stock 15x7 there is minor fender rubbing at full flex from both the front and rear tires but nothing that has damaged anything yet. the tires rub LCA's at full lock. the shocks are to short they limit my flex. (you can see in thepicture were the tire is still off the ground) __________________ Rocks bite hard, but trees just piss me off... 97 Wrangler sport - 2 inch RE BB - Teraflex adjustable trac bar - 3.73's d30 and d35 - 31x10.5 yokhama geolander's - 15X8 American Racing Outlaw 2 wheels 3.75 backspacing - JKS LCA skids - hella vision headlights - Alpine amp and 6.5 type S speakers 94 Cherokee Sport - 3.5 Rubicon Express Kit - RE adjustable trac bar- 31X10.5 Kumho Venture MT's - 15X8 Crager Soft 8 Class III Hidden Hitch - Hand Throttle - High flow cat w/ Delta Flow 40 muffler Transfer Case Skid Plate Removable Doors --SOLD :( :( i miss it so much Last edited by b(k)ill94xj; 06-12-2004 at 03:49 PM..

06-24-2004, 01:32 PM	#22
nfinkbe Registered User Join Date: Apr 2004 Posts: 47 Profile Gallery Classifieds My Jeeps	Year: 2001 Lift height: listed - RE 3.5" kit actual - estimated 4.5". Driveshaft: RE hack-n-tap with cv driveshaft Tire size: 31x10.50 Kumho MT's Wheels: 15x8 Tech 1's with 4.5" backspace before after Last edited by EricsXJ; 06-01-2008 at 07:27 PM..

06-25-2004, 04:30 PM	#23
Sterling90XJ Registered User Join Date: Apr 2004 Location: Cheyenne, Wyoming (Previously Alaska) Posts: 178 Profile Gallery Classifieds My Jeeps	. Year: 1990 Lift height: 6" Total - 4.5" Leafs, 1.5" Shackles / 3" Coils, ACOS Driveshaft: AA SYE & Tom Woods CV Shaft Tire size: 33x12.50x15 Goodyear MTR's Wheels: 15x8 American Racing 136's (Venturas) 3.75" BS, 19mm offset Front Fenders trimmed at line traced on top of stock flare. Flare relocated. Rear, slight trimming. . __________________ [B][I][COLOR=INDIGO]Username should now be SilverstoneXJ[/COLOR][/I][/B] [B][COLOR=silver]'00 XJ 'Freedom Edition' 6" Lift and 33" MTRs[/COLOR][/B] [COLOR=darkslateblue][URL=www.arcticoffroad.com]www.arcticoffroad.com[/URL] [/COLOR] [url=http://www.cardomain.com/memberpage/637794]My Jeep Site[/url] .

07-08-2004, 01:51 PM	#24
tdwjeep Registered User Join Date: Jan 2004 Location: Birmingham, AL Posts: 91 Profile Gallery Classifieds My Jeeps	here's Johnny Year: 2000 Lift height: RE 3.5 SuperRide - Actual 3.5 Front, 4.5 Rear Shocks: DT 3000 Tire size: 31x10.50 R15 Kumho Venture MT Wheel Size & backspacing: Factory Notes: No rubbing - adding BB soon though. __________________ TDWJeep "Last time I checked, my name was Ron Burgundy! What's yours?" - Ron Burgundy 2000 Sport, 4 Door, RE 3.5 SR w/ 1" BB, RE H&T and RE DS, RE HD Track Bar, DT3000s, 31x10.50R15 Kumhos, KargoMaster Roof Rack, JKS Discos, JKS BPEs (rear), RRO BPEs (front), K&N FIPK, IPF Headlight Harness, Hidden Hitch, yada yada yada. PICs @ Car Domain Pictures

07-17-2004, 10:34 PM	#25
jasfro Member Join Date: Mar 2004 Posts: 133 Profile Gallery Classifieds My Jeeps	Stock After 3.5RE W/32x11.5 __________________ Jason '89 Jeep Cherokee [color=white]White Jeep Club Member #1111[/color] Last edited by afroman; 08-28-2004 at 11:30 AM..

07-21-2004, 01:10 PM	#26
redjeepguy Registered User Join Date: Jul 2004 Location: greenville, SC Posts: 60 Profile Gallery Classifieds My Jeeps	Year:92 Lift height (listed & actual):rusty's 4.5-gave 5.5 + longarms Shocks: trailmaster ssv for 4" lift Tire size (Listed & actual):33x12.50 Wheel Size & backspacing:15x8 with 3.5" backspacing Notes:no sye was needed, integrated a 1" drop in the custom crossmember. rub on longarms at full steering lock, and bumpstopped up front to keep from rubbing. Mark __________________ current--93 zj limited-3"-31" bfg at's former--92 xj-d44's-locked-36" TSL's-caged-rear 3 link

07-28-2004, 03:17 PM	#27
homerscj7 Registered User Join Date: Oct 2003 Location: Pennsyltuckey Posts: 1,075 Profile Gallery Classifieds My Jeeps	RE 2" Lift 30" Cooper STT's Trimmed front air dam Tow Hooks and Skidz __________________ [size=1] The road to destruction is paved with good intentions[/size]

08-10-2004, 10:34 AM	#28
blk2000xjc Registered User Join Date: Apr 2004 Location: Colorado Posts: 27 Profile Gallery Classifieds My Jeeps	Black Bear Year: 2000 Lift kit: RE 5.5" XD w/ .75" coil spacer for bull bar, JKS discos Shocks: Rancho 9000x Tire size: 285 75 R15 Goodyear MT/Rs Wheel size & backspacing: AEV Argent 16x8 4.7" BS Last edited by blk2000xjc; 08-11-2004 at 12:53 PM..

08-28-2004, 01:53 PM	#29
xjninja Registered User Join Date: Aug 2004 Posts: 5 Profile Gallery Classifieds My Jeeps	Year: 2000 Cherokee Sport Lift Kit: Rusty's 2" BB Shocks: Stock Tire Size: Stock on day of post, new 30x9.50x15 BFG A/T Tomorrow Wheels: Stock Before: After: 2" BB

08-29-2004, 05:59 PM	#30
atfrith Registered User Join Date: Jun 2004 Location: colorado Posts: 666 Profile Gallery Classifieds My Jeeps	1990 Cherokee Rusty's 3" AAL kit (4" rear, 3" front" shocks: some blue monroe shocks (dunno the actual name or anything) tires/wheels: stock no vibes at all, but do have some death wobble. __________________ 90 Sport 2dr 4.0 L Straight 6 Auto Transmission (AW4) Rusty's Air Tube and K&N Filter Dynomax Cat-Back Cobra 19Gtl CB Radio w/PA system 2 Cheapo Baja Driving Lights mounted on front bumper 3" Rusty Coils up front, 3.5" RE leaf springs in the rear 31" Dunlop Mud Rovers on 15x8 Cragar Soft 8's [COLOR=red]Under 21 XJ CLUB member #9[/COLOR] Hondas Are Like Tampons...Every Pu**y Has One
