post #151 of 495 Old 07-02-2006, 03:22 PM
RollerHman
Make Jeep Great Again

RollerHman's Avatar
1999 XJ Cherokee

Join Date: Jul 2005
Location: Littleton, CO
Posts: 1,680

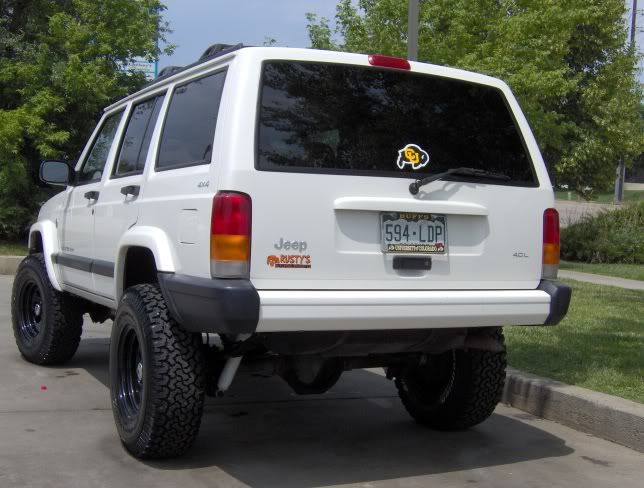

1999 Sport
3 inch Rusty's with full packs in rear
31 inch BFG's on Unique 297 4 inch BS
T-case drop = no vibes at all




Colorado Jeep Club Member #46

16 Renegade
99 XJ
RollerHman is offline
Sponsored Links
Advertisement

post #152 of 495 Old 07-08-2006, 11:16 AM
DeezUU
Registered User

Join Date: Jan 2004
Posts: 26
96 XJ 2dr 4.0 5spd
4.5"Rough Country w/rr springs
actual=@5.5" (just installed)
31X10.50-15 Mickey Thompson MTZ
t-case drop > a lil vibe , SYE coming soon



'07 JK Unltd, '64 bagged Bug, '76 Bus, '99 Passat
DeezUU is offline
post #153 of 495 Old 07-08-2006, 04:32 PM
Timo_90xj
Web Wheeler

Timo_90xj's Avatar
1998 ZJ

Join Date: Mar 2006
Location: Helsinki, Finland - on the European side of the Atlantic
Posts: 7,260
Year: 1990 Cherokee Limited, 4.0 litre I6, AW4, 242TC.
Lift height: RE 3½ inch superflex. Actual 5" front, 5.25" rear
Shocks: OME Nitrocharger
Tire size: My old winter tires, 235/75 R15 - upgrading to 31 x 10.50 x 15" as soon as I get money.
Wheel Size & backspacing: 15" American Racing AR767, 4" BS.
Steering: ORO U- turn kit (it feels GREAT!), OME steering damper waiting on the garage floor.
Brakes: Bendix ABS removed, replaced with factory serviced non- ABS parts. All new hardlines, ZJ front hoses, RE steel hose in rear.

Front air dam removed + some trimming on flares, rear quarter panels and rear bumper trimmed a little. Front bumpstopped 2", rear swaybar removed, factory bumpstops. Not rubbing anywhere. I've got a PTO; it's a power output module, a little thingy right after TC which also eliminates slip yoke. No CV driveshaft for the rear, seems to be working fine. Rear- end feels quite stiff right now (not even flexing that much), but I suppose it softens once I get more miles. My rig is still far from being "ready" (they never are.. ), I'll continue with the upgrades early August when I got time and money.

Sorry no before- pics, just a poser shot:


1998 Grand Cherokee 5.9 LX daily driver, 1.75" BB, 32" KM2s, HPD30 Eaton e-locker/D44a stock LSD, 4.56 gears, custom- fabbed tube bumpers and tube fenders,...

http://www.jeepforum.com/forum/f13/d...s-etc-1222317/


1990 XJ Limited (4-door), 4.0 I6, AW4, NP242, ***rolled and totalled @ 165k miles***

***Under construction***
1990 XJ (4-door), 4.0 I6, AW4, NP242, PBR 42" tires, Unimog 404 portal axles, 110" WB, full cage + uniframe completely rebuilt, front 3-link + panhard / double triangulated 4-link rear,... ***SOLD***

Last edited by Timo_90xj; 07-08-2006 at 04:46 PM.
Timo_90xj is offline
post #154 of 495 Old 07-15-2006, 05:14 PM
Timo_90xj
Web Wheeler

Timo_90xj's Avatar
1998 ZJ

Join Date: Mar 2006
Location: Helsinki, Finland - on the European side of the Atlantic
Posts: 7,260
Ok, updated with new tires on friday. Fedima Scirocco's, 31" x 10.50" x 15". They are actually very close to 32" in dia., had to do some trimming on front flares/ fenders to make them fit. Now not rubbing (front is ~2" bumpstopped)

Went wheeling today, absolutely great tires. They grip unbeliavably well, I didn't get myself stuck once - everyone else did



1998 Grand Cherokee 5.9 LX daily driver, 1.75" BB, 32" KM2s, HPD30 Eaton e-locker/D44a stock LSD, 4.56 gears, custom- fabbed tube bumpers and tube fenders,...

http://www.jeepforum.com/forum/f13/d...s-etc-1222317/


1990 XJ Limited (4-door), 4.0 I6, AW4, NP242, ***rolled and totalled @ 165k miles***

***Under construction***
1990 XJ (4-door), 4.0 I6, AW4, NP242, PBR 42" tires, Unimog 404 portal axles, 110" WB, full cage + uniframe completely rebuilt, front 3-link + panhard / double triangulated 4-link rear,... ***SOLD***
Timo_90xj is offline
post #155 of 495 Old 07-24-2006, 06:16 PM
Steamer98
Registered User

Steamer98's Avatar
1998 XJ Cherokee

Join Date: Jun 2006
Location: Cleveland
Posts: 1,297
I bought the Cherokee about a year ago, I am now starting to do what I want with it.

Year: 98 Limited
Lift: RE 6160 2" BB (actual 19 1/2" front, 19 1/4" rear. From hub center to bottom of flare)
Shocks: DT3000
Tire size: 30x9.50x15 Goodyear
Wheels: Ravine 15x8, Backspacing 5 1/2"
Notes: I love it! about 10,000 miles on the rebuilt 4.0 HO, new front axles, and other stuff. More on the way.... Huge thanks for this great forum!!!


98 XJ Limited

Stock XJ tire carrier for sale
http://www.jeepforum.com/forum/showthread.php?t=424930
Steamer98 is offline
post #156 of 495 Old 07-28-2006, 05:35 PM
Daves98XJ
Registered User

Daves98XJ's Avatar

Join Date: Jun 2006
Location: South Jersey
Posts: 91
Poser pics with new tires on. 31x10.50 BFG Mud terrains on 15x8 Rock Crawlers series 51 w 4.5 bs




SOLD-98 XJ.4.0L
RE 3.5 lift w full rear springs/ Rubicon Twin Tube Shocks/
RE SYE/CV Drive shaft
Surco roof rack 45x60 w J100 rail mounts
31x10.5 BFG MT KMs on 15x8 Black Rockcrawlers.
JKS Disconnects

Last edited by Daves98XJ; 08-04-2006 at 12:00 PM.
Daves98XJ is offline
post #157 of 495 Old 07-31-2006, 08:58 PM
mattl31
Registered User

Join Date: Dec 2004
Posts: 71
i've tried to post pics many a time, but have failed to succeed every time. maybe some of you more technology savvy guys out there can lend me a hand
anyway......

http://i80.photobucket.com/albums/j1...1/DSCF0256.jpg
http://i80.photobucket.com/albums/j1...1/DSCF0257.jpg
http://i80.photobucket.com/albums/j1...1/dscf0194.jpg

96 Cherokee Country
Rusty's 3" with Full Packs Actual: 3" Front 4.5" Rear
RE Hack N Tap SYE w/ XJ front shaft
AW4/242
30 Front, 8.25" Rear
32x11.50 Kumho Venture M/T's on ZJ "Canyons"
Homebrew Front Swaybar Disconnects, Trashed Rear
Custom Cool Air Intake, Bored TB, High-flow Cat, FM-40 Muffler
In the Oven:
Recovery, Hellas, Leather , Tint and A few other comfort related items
mattl31 is offline
post #158 of 495 Old 07-31-2006, 10:41 PM
cherokee xj
Registered User
2000 XJ Cherokee

Join Date: Mar 2005
Location: vb, VA
Posts: 1,387
Quote:
Originally Posted by mattl31
i've tried to post pics many a time, but have failed to succeed every time. maybe some of you more technology savvy guys out there can lend me a hand
anyway......





96 Cherokee Country
Rusty's 3" with Full Packs Actual: 3" Front 4.5" Rear
RE Hack N Tap SYE w/ XJ front shaft
AW4/242
30 Front, 8.25" Rear
32x11.50 Kumho Venture M/T's on ZJ "Canyons"
Homebrew Front Swaybar Disconnects, Trashed Rear
Custom Cool Air Intake, Bored TB, High-flow Cat, FM-40 Muffler
In the Oven:
Recovery, Hellas, Leather , Tint and A few other comfort related items
good lookin out.

stock 2000 Cherokee Sport
black 4 dr.

Last edited by EricsXJ; 07-31-2006 at 10:56 PM.
cherokee xj is offline
post #159 of 495 Old 08-07-2006, 03:52 PM
xhek
Registered User

xhek's Avatar

Join Date: Oct 2004
Location: Bangkok, Thailand
Posts: 218
Year: 1994
Lift kit: 3.5" RE SuperFlex
Shocks: DoetschTech DT3000
Tires: 31" Kumho Venture MTs
Wheels: Crager Soft 8's 15x8 4" backspacing

xhek is offline
post #160 of 495 Old 08-08-2006, 08:51 PM
cmassey_2006
Registered User
2006 WK

Join Date: Apr 2006
Location: Georgia
Posts: 515
My poser pics...

Year: 1998
Lift height : RE6030 3.5" SuperFlex
Shocks: Old Man Emu
Tire size (Listed & actual): 31x10.50 BFG MT KM (actual: 30.8" tall)
Wheel Size & backspacing: 15x8 Unique 297 & 4" backspacing
Notes: Haven't had a chance to trail test it yet, so other than flexing & rubbing, there isn't any rubbing when I turn full lock. I have no trimming.


cmassey_2006 is offline
post #161 of 495 Old 08-14-2006, 11:34 AM
drew and not u
Registered User

drew and not u's Avatar
1996 XJ Cherokee

Join Date: Jun 2006
Location: Henderson, NC
Posts: 697
Year: 1996
Lift: Rusty's 3" lift w/ full spring packs
Actual: more than three inches
Tire's/Wheels: Goodyear Wrangler GS-A 30x9.50 on Jeep Ravine rims (from 03 TJ Sport)
Coming soon: SYE (not really necessery), front locker, 31 or 32" M/Ts.

It flexes really well, and has proved itself surprisingly capable so far. I'm pleased as punch!

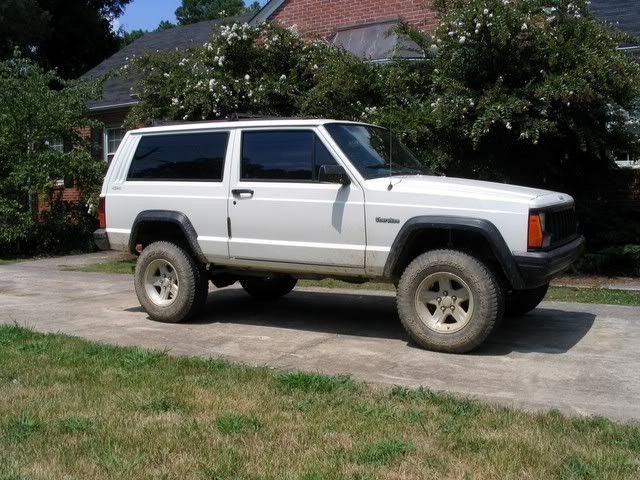

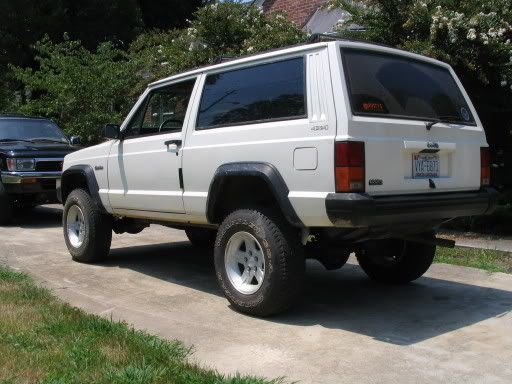

Poser pic:

I need to remember to bring the camera when I go wheeling!

Last edited by EricsXJ; 08-15-2006 at 05:39 PM.
drew and not u is offline
post #162 of 495 Old 08-18-2006, 08:04 AM
Fozzy_Bear
____Proud to be a

Fozzy_Bear's Avatar
1997 ZJ

Join Date: May 2005
Location: Hanover, MD
Posts: 196

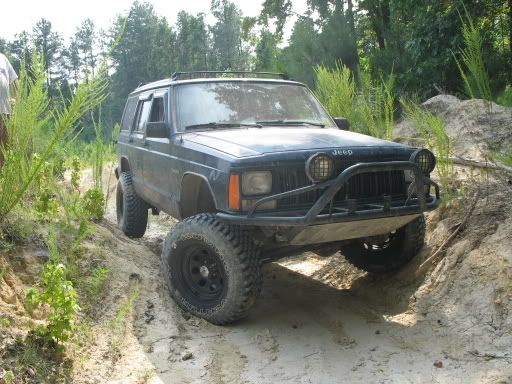

Well, this isn't quite a 'wheeling pic' since it was from the trail between obstacles, but it does show the lift fairly well.

this is 3" of lift from aftermarket springs and 33" tires.

I'm planning on adding spacers/shackles to a total of 4.5 inches, but I went out before I was finished because I Just Couldn't Wait ANY Longer.

In this pic, I'm down hill and compressing the front a bit, but you can see that the 33's Just Barely fit with only 3".




And yes, those ARE 33" tires on the stock rims. BFG makes the AT-KO's in 33x9.5, if you are willing to special order them.

.

Don't mind me... I'm just the comic-relief, talking bear.

.
Fozzy_Bear is offline
post #163 of 495 Old 08-20-2006, 02:57 PM
Magic2979
Registered User

Join Date: Jul 2004
Location: Mass
Posts: 774
Year: 2000
Lift height (listed & actual): rustys 3" full pack Front 5" Rear 5"
Shocks: Rustys
Tire size (Listed & actual):34x10.50x15 LTBS
Wheel Size & backspacing: 15x8 american racing 3.75 backspacing
Notes: Rubs with stock flares and caps. removed and it all good. still need to trim though. no drive line vibes yet. SYE will be in soon

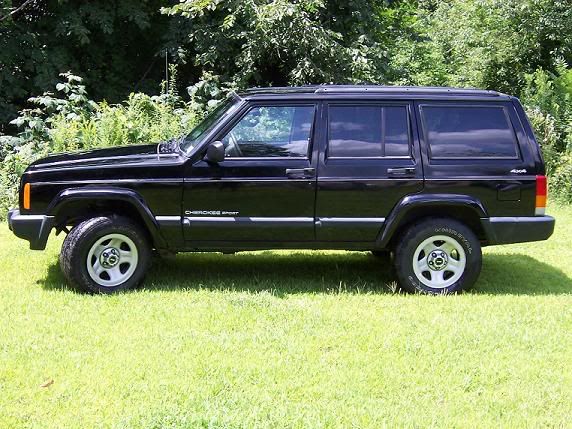

Stock

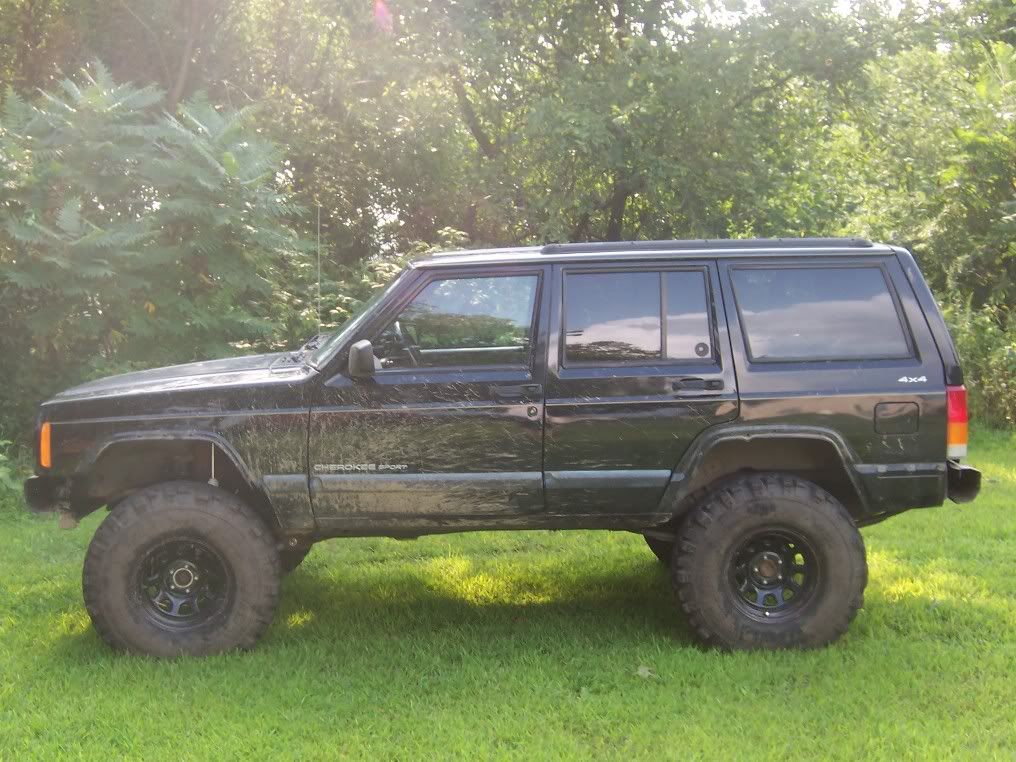

After

MY XJ Wheeling videos
Me and F-150
2000 Cherokee//3" lift 34s
1988 Cherokee- street xj project
Magic2979 is offline
post #164 of 495 Old 08-23-2006, 03:50 PM
johnconners
Registered User

Join Date: Nov 2005
Location: Savannah, GA
Posts: 132

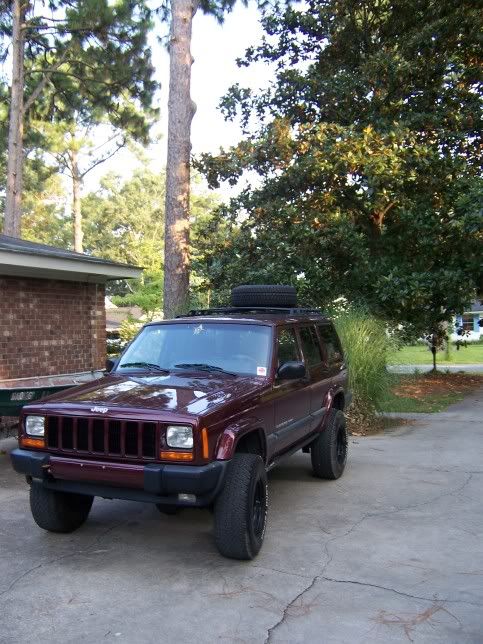

All my specs are in sig. I hope this works, still learning on how to post pics.


2000 Maroon XJ
4.0L I6, AW4, NP231, 4.5" Rubicon Express Superflex,
31" BFGs on black Cragars, Dynomax Super Turbo, Tomken skids, Warn rock sliders, Front and Rear SYE & custom CV driveshafts, Optima Yellow Top, Mopar roof-mounted tire carrier
johnconners is offline
post #165 of 495 Old 08-23-2006, 09:18 PM
ready to mud
Registered User

Join Date: Apr 2006
Posts: 213
Year: 1992
Lift height (listed & actual): rustys 3" full pack 3.5 front 5 rear
Shocks: Rustys
Tire size (Listed & actual):235 cheapos for now
Wheel Size & backspacing: stock
Notes: needed transfercase drop. longer brakelines recommended not much slack left. nice ride slightly stiff with heavy rate springs

http://www.cardomain.com/ride/2347288/1

92 xj laredo, 4.0l 5spd, 3 inch lift, chopped fenders, 33x12.5x15 wildcountry rvts, lincon locked rear, 9500 winch, hombrew bumpers and snorkle and the list goes on

Last edited by ready to mud; 10-17-2006 at 07:43 PM.
ready to mud is offline
