Unread 07-22-2003, 01:17 PM   #1
LOCKED UP
Senior Web Wheeler

LOCKED UP's Avatar
1998 XJ Cherokee

Join Date: Jun 2002
Location: Close to Austin, TX
Posts: 3,878
XJ lift setups (read first post before replying!!!)

In order to try to cut down on the repeat questions we get about lifts, this thread has been created. This thread will be made a sticky and edited for content. If you have a question for someone about their setup please PM them. Anything not fitting the format will most likely be edited/deleted by the Moderator.

Try to keep it to stuff that pertains the the suspension & tire fitment only. If you want to put what type of bumpers as a weight or tire fitment issue that is fine but please do not list mods that do not pertain to the lift/tire fitment issues. Remember this is not a registry section, so unnecessary information will be edited/deleted. IE stereo, or performance mods, lockers or what type of seats you have should not be posted here.

When viewing this thread, please keep in mind that the information listed here should be used only as reference and that XJs can vary from year to year or even within the same year. Some people get vibes etc at certain heights & some don't so be prepared for these differences.

Format:
Year:
Lift height (listed & actual):
Shocks: (brand or part # or what height lift they are made for)
Tire size (Listed & actual):
Wheel Size & backspacing:
Notes:
Notes=Add a short description as if trimming was needed how much. Please remember to include other details that may be important such as SYE's, bumpstop extensions & if it rubs, where.... but try to keep it as short as possible.

Post 2 (no more than 2) pics of your jeep, one on level ground and one flexed up (or at least from a different angle).

Here's an example for ya:
---------------------------------------------------------------------------------
Year: 2000
Lift kit: 2" Rustys BB (actual 1.75")
Shocks: Stock sizes
Tire size: 235 75 R15 Dunlop ATs (actual 28.8 x 9.3)
Wheel size & backspacing: Stock Eccos 15x7 with 5.25" BS
Notes: No rubbing, rear sway bar removed, front sway bar DQ'd.



__________________
... an no sidewindin' bushwackin', hornswagglin' cracker croaker is gonna rouin me bishen cutter.

98 XJ

Last edited by LOCKED UP; 12-31-2008 at 03:42 PM..
LOCKED UP is offline
Unread 07-22-2003, 01:54 PM   #2
LOCKED UP
Senior Web Wheeler

LOCKED UP's Avatar
1998 XJ Cherokee

Join Date: Jun 2002
Location: Close to Austin, TX
Posts: 3,878
Year: 2000
Lift kit: 3" composite BB (actual 3.25" front 2.75" rear) - combo of Rustys 2" BB, 1" block for rear & 2 extar coil isolators (.75" each)
Shocks: RE suggested size for 3.5" lift
Tire size: 31x10.5 Futura enforcers (actual 30.5x11.06)
Wheel size & backspacing: Stock Eccos 15x7 with 5.25" BS
Notes: Rubs the coil spring towers (lightly at full stuff), LCAs at full lock (lightly) and the flares mildly before removal (Fender trimmed approx 1.5" & flares removed in second pic) rear sway bar removed, front sway bar DQ'd. Front bumpstops extended 2", rear bumpstops extended 1.25". Brake lines extended 6"



Year: 2000
Lift kit: RE 5.5" Short Arm with Control Arm drops & leaf packs. 2 Extra Isolators up front.
Shocks: RE suggested size for 5.5" lift
Tire size: 33x12.5 BFG MTs
Wheel size & backspacing: AR-767 8" with 4.75" BS
Notes: Fenders trimmed approx 1.5" & flares removed. Rear sway bar removed, front sway bar DQ'd. Front bumpstops extended 3", rear bumpstops extended 3.25". Brake lines extended 6", SYE



Year: 2000
Lift kit: Front Alcan packs (for YJ), rear RE 5.5" leaf packs.
Shocks: RE suggested size for 5.5" lift
Tire size: 33x12.5 BFG MTs
Wheel size & backspacing: AR-767 8" with 4.75" BS
Notes: Fenders trimmed approx 1.5" & flares removed. Rear sway bar removed, front sway bar DQ'd. Front bumpstops extended 3", rear bumpstops extended 3.25". Brake lines extended 6", SYE, MORE Crossover Steering.

__________________
... an no sidewindin' bushwackin', hornswagglin' cracker croaker is gonna rouin me bishen cutter.

98 XJ

Last edited by LOCKED UP; 12-31-2008 at 04:02 PM..
LOCKED UP is offline
Unread 07-22-2003, 03:10 PM   #3
Bear549
Registered User

Join Date: May 2003
Location: Ohio
Posts: 492
SOLD




1998 Sport 2 Door

Lift:
-RE 5.5 E-Duty (actual 6.5")
Shocks:
-Old Man Emu Extended
Tires:
-BFG AT's 305/70R16 (actual 33" x 12.2")
Wheels:
-16" x 8" American Racing aluminum "Breakers" with 5" BS
Axles
- Dana 30 HP Front with ARB air locker and Warn axle shafts
- Chrysler 8.25 rear with PowerTrax No-Slip locker
- Yukon 4.56 gears
Armor:
-Rock Lizard Monitor Lizard Front Bumper
-BPI Trail Tuff rear bumper with tire carrier.
-DPG Rock Attack T-Case skid from Rock Lizard
-Rock Lizard Gas Tank Skid
-C-Rok inner steering box plate.
-Custom Rocker Panel/Rails from Fourward Momentum.
-Poison Spyder HD Steering
-Performance Metal Works Door Guards.
Notes/Extras:
-Tires slightly rub lower control arms on both sides at full lock.
-Trimed rear quarter behind wheel and front fendor flare to stop body rubbing.
-JKS Quicker Disconnects
-RE "Hack & Tap" SYE with RE CV driveshaft and 4* shims on rear.
-PowerTank CO2 System with ARB kit
-Gulf Coast Rovers pneumatic switches
-IPF 868 Lights
-Drivetrain Direct axle tube seals
-Rocky Road Outfitters cross drilled brake rotors
-35% Window Tinting

Click on sig. for more info and pics....!



__________________
SOLD
98 Cherokee Sport with RE 5.5 E-Duty (click for specs)
05 Grand Cherokee Limited

Last edited by Bear549; 12-03-2008 at 07:25 PM.. Reason: Updated
Bear549 is offline
Unread 07-23-2003, 07:19 AM   #4
Invisible
Registered User

Join Date: Oct 2002
Location: Taneytown, MD
Posts: 251
Year: 1995
Lift height: Daystar 1.75" Spacers and Shackles
Shocks: Stock shocks. (Replacements available at any Auto Parts store)
Tire size: BFG All Terrain LT30x9.50
Wheel Size & backspacing: Stock and stock
Notes: No more rubbing (rubbed with 30's and no lift) better ride quality than with stock.

Last edited by draftermatt; 01-11-2005 at 01:36 PM..
Invisible is offline
Unread 07-24-2003, 11:19 PM   #5
EricsXJ
The Post man

EricsXJ's Avatar
2000 XJ Cherokee

Join Date: Apr 2001
Location: Reno, Nevada
Posts: 8,570
Old setup - see ericsxj.com for current specs

Year:[/B] 2000
Lift height: listed - RE 4.5" kit actual - currently sitting at 5" (see notes)
Tire size: 31x10.50 MT/R's (actual diameter = 30.8")
Wheels: 15x8 Tech 1's with 4.5" backspace
Notes: I ordered the 4.5" leaf pack (RE1462's) with this kit and added a 3/4" coil spacer to level the front with the rear. This setup rubbed front bumper endcap (now have different bumper) and slight rubbing of fender flare at full stuff. I have done no fender trimming with this setup.

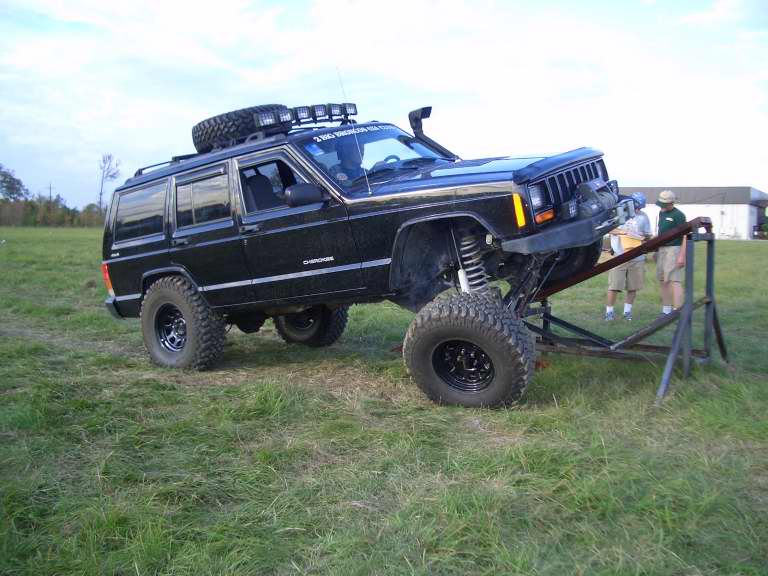

For other flex pics and information just see my site (link in sig).
__________________
Eric
2000 XJ "PROJECT RUBICON" 3-link front / 4-link rear / coilovers / running 37's on Dana 60s
My website - EricsXJ.com


Last edited by EricsXJ; 05-30-2008 at 11:48 PM..
EricsXJ is offline
Unread 07-25-2003, 10:37 PM   #6
CLB
Registered User

Join Date: Dec 2002
Location: yakima, wa
Posts: 429
Year: 1991
Lift height: Rough Country 3"
Tires: 31x10.50 Goodyear ATs
Wheels: 15x8 Allied Daytonas
Notes: Should be sittin 6.5" with trimmed fenders in a week. and bigger tires (34-35") once i can afford em, then the SYE



**edit** guess im to stupid to attach a pic

http://www.gameroom.com/blender/jeep2.jpg
__________________
[SIZE=1]91 XJ Laredo
6.5" Rustys, RR Adj Trac Bar, RE Adj UCAs/LCAs, DT3000, M.O.R.E steering box brace, Rancho steering stabalizer, custom cone intake, Poweraid TB spacer, home-brew roof rack, lights everywhere, +10 HP Jeep Seatbelt pads, hole in the fender from previous snorkel, plus a lot more crap
[COLOR=red]RJC[/COLOR] #42

[B][URL=http://www.imagestation.com/album/?id=4286688789&code=9974543&mode=invite&cmp=EMC-IS_other&creative=album-invite]Old XJ pics[/URL][/B][/SIZE]

Last edited by CLB; 07-25-2003 at 10:40 PM..
CLB is offline
Unread 07-27-2003, 01:52 PM   #7
BrianGibson
Registered User

Join Date: Jun 2003
Location: Bogart ga
Posts: 26
Year: 1995
Lift height: 4 1/2 rustys coils with dodge dakota rear springs and 1.5 shackle
Shocks: rustys shocks
Tire size: 32 9.50 TSLs (actual 32")
Wheel Size & backspacing: procomp knock off rock crawlers 15X7
Notes: Do not buy the adaleaf its not worth saving $100

__________________
95 4.0
4 1/2 lift
32 TSLs

Last edited by BrianGibson; 08-19-2003 at 07:36 PM..
BrianGibson is offline
Unread 10-21-2003, 08:25 PM   #8
DefaZ
Registered User
1999 XJ Cherokee

Join Date: Sep 2003
Location: Sacramento, CA
Posts: 856
Year: 1997
Lift height: 3" Black Diamond + RE 2" BB (5" Actual)
Shocks: Black Diamond AT
Tire size: 32x11.5" Dunlop Mud Rovers
Wheel Size: 15x8" Unique "StreetLocks"
Extras: BVG Basket, Homemade Lightbar, C4X4 Rock Rails, LeBaron Hood Vents, Flowmaster 40 Series...


Last edited by DefaZ; 09-07-2004 at 03:56 PM..
DefaZ is offline
Unread 11-01-2003, 04:29 PM   #9
Kicken_Jeep
Registered User

Join Date: Jan 2003
Location: Bloomsburg, PA
Posts: 477
Year: 1996
Lift kit:3" Rusty's (actual 3 front, 4" rear")
Shocks: Rustys
Tire size: 30X9.5X15 Goodyear MT/R's
Wheel size & backspacing: Stock 15x7 AR 767
Notes: LOVE IT



Lifted...


__________________
[size=4][color=white]WHITE JEEP CLUB #21[/color][/size]=====96 XJ, 30" Goodyear MT/R's on 15 X 7 AR 767's, Rusty 3" Lift and AirTube with K&N, Class III Hitch, SilverStars, Plus a 3G system..[size=2][color=white]Future Upgrades[/color][/size] Come check out my Jeep!!!!
[url]http://www.sounddomain.com/id/kicken_jeep[/url]

Last edited by EricsXJ; 11-17-2003 at 02:09 PM..
Kicken_Jeep is offline
Unread 11-21-2003, 04:00 PM   #10
Jason, aka: Jeepin.com
Vendor

Jason, aka: Jeepin.com's Avatar
1995 XJ Cherokee

Join Date: Mar 2002
Location: Lewisville, TX
Posts: 7,187
Year: 1995 Sport
Lift height (listed & actual): RE 5.5", measured 5.5" lift
Shocks: DT3000's that RE send with the kit.
Tire size (Listed & actual): 35x12.5" GY MT/R's, measured 34.5" tall mounted.
Wheel Size & backspacing: Rockcrawler 15x8's with 3.75" backspacing.
Notes: Only changes to the RE lift have been the addition of Daystar extended bumpstops front and rear along with DPG OffRoad's bumpstop plates on the back. Bushwacker flares provide clearance for the tires. Complete specs can be found here: http://jeepin.com/projects/bigred.shtml

Street:


Flexed:
__________________
Jason West - Jeepin.com | JeepinOutfitters.com
'09 JKUR, RE 3.5", 37" GY MT/R-Ks, Expedition One bumpers, T&T rockers & skids, XRC10 Comp
'95 XJ, RE 5.5", 35" MT/Rs, D30 w/hubs & ARB, D44 w/Detroit, 4.56s, C4x4 bumpers, etc, etc.
'00 TJ, SOLD, wife's, RE 4.5" long-arm, 35" MT/Rs, D30+OX, D44+ARB, 4.88s, full cage, winch, C4x4 & Jeeperman bumpers, etc, etc.


Jason, aka: Jeepin.com is offline
Unread 01-04-2004, 02:51 PM   #11
EnderUSAF
Registered User

Join Date: Jul 2003
Posts: 600
97 cherokee (All set and ready for the modified COM now.)
(I'm sitting at about 4-5".... I havn't really measured...
-4" Teraflex LA kit (LA's not installed yet).....-Stock rims
-1" coil spacer up front......
-The rear leaf's are actually 3" leaf packs with the Teraflex 2" shackle
-31 BFG AT's
-Trimmed Fenders
-Flareless
-I started taking off all the trim but so far I've only taken off the small section on the front fenders.
-Optima Red Top Battery
-Hidden Hitch
-Took off the wally world lights cause I thought they were ghey.
-ARB front bumper
-Smitty built rear bumper
-Adjustable Trac Bar
-Trail Master Shocks..... (these are some stiff suckers)
-Just put on 15X8 Black steel rims 4" BS



__________________
Combat Search and Rescue: If you go down, I'll come.

Last edited by EricsXJ; 05-13-2008 at 11:04 PM..
EnderUSAF is offline
Unread 01-21-2004, 06:20 PM   #12
FowlWthr
Registered User

Join Date: Nov 2003
Location: Wilmington, NC
Posts: 17
Year: 1999 Jeep Cherokee Sport 4.0L
Lift Height: 2" Tera-Flex Budget Boost
Shocks: Stock
Tire Size: 30x9.50x15 Liberator All-Terrain
Wheel Size and Backspacing: Stock 15x7 Steel 5 Spoke w/ 5.25 BS
Notes: No rubbing. Plan to add one more inch via a block and some more isolators, a soft locker like a Lock-Right, and 31x10.50x15 Bridgestone Dueler MT's.



__________________
[B]1999 Jeep Cherokee Sport[/B]
TeraFlex 2" Lift
30x9.50x15 AT's
Reese Class III Reciever
K&N Drop-In
Hella 500's
Sirius Satellite Radio

Workin on TrueTrac's and MT Claws!!!

[URL=http://www.ok4wd.com/rprofile.asp?id=273]My XJ Pictures[/URL]

Last edited by FowlWthr; 03-19-2004 at 09:31 AM..
FowlWthr is offline
Unread 03-12-2004, 11:27 PM   #13
rocknerd
Registered User

Join Date: Mar 2004
Location: CT.
Posts: 172
96 xj 4.0L 6cyl.
5" custom lift
33x12.5 TSL's on 15x8 rock crawlers
quick discos




Last edited by EricsXJ; 05-13-2008 at 11:05 PM..
rocknerd is offline
Unread 03-17-2004, 02:46 PM   #14
Drake69
Registered User

Join Date: Feb 2004
Posts: 296
Year: 2000 Patriot Blue XJ
Lift height: 3" Skyjacker Lift-Kit w/ Super-lift Flex Pak
Shocks: Skyjacker Nitro Shocks
Tire size: 31x10.5 R 15 BFG All Terrains
Wheel Size & backspacing: 15x9.5 (4.5" backspacing) Black wheels
Notes: Ride height is great, now just need to slap the bumper, winch, and roof rack on!!!

Imagestation Album

CarDomain Album Page

__________________
[COLOR=navy]--- [B]2000 JEEP Cherokee XJ[/B] ---[/COLOR]

[COLOR=navy]|
|____000_
[l_|__\___\,___
l--___--_[[U]=lllllll=[/U]][/COLOR]
()_)' '()_)---)_)

Last edited by Drake69; 02-28-2005 at 02:34 AM..
Drake69 is offline
Unread 03-23-2004, 06:43 PM   #15
silverxj2001
Registered User

Join Date: Dec 2003
Location: boulder, CO / the OC
Posts: 1,262
after the '94 zj springs, front fender trimming, 31's, 15x8 rockcrawlers w/3.75BS, rancho shocks, walmart lightbar, and 4' cb antenna (you cant really see it)



in the mail: rustys 3" aal kit and heckethorn LCA's
__________________
2001 2-door XJ prerunner
6.5" RE
33x10.5" BFG A/T KO
15x8" rockcrawlers w/3.75" bs
hannemann 6" bulge flat top fiberglass fenders
bilstein 11" travel 5150's
RE XD trackbar / frame mount
RE adj. LCA/UCA's
beard triple thick limit straps
rusty's steering box brace
truckfarm pre-runner bumper
intake / exhaust
procomp lighting
system... yada yada yada

[URL=http://www.cardomain.com/memberpage/437678/1]PICS OF MY XJ[/URL]

Last edited by silverxj2001; 04-15-2004 at 11:38 AM..
silverxj2001 is offline
Closed Thread
Thread Tools


Suggested Threads





Jeep, Wrangler, Cherokee, Grand Cherokee, and other models are copyrighted and trademarked to Jeep/Chrysler Corporation. JeepForum.com is not in any way associated with Jeep or the Chrysler Corp.
