xj 4x4 lever, stretched linkage maybe?

the 4x4 lever in my xj is kind of out of wack. when its in 2wd, the lever is positioned right above 4hi and when in 4hi its right above 4lo. and i can almost get into 4lo but it pops out as soon as i put it n drive.it seems like the lever needs to be pulled back just a little more for it to stay.( but the plastic of the console is in the way)has anyone had this issue, or any ideas what i could do with it? thanks guys

__________________
95 xj,5 speed,
5" lift, 33 12.5 dessert dogs
chrysler 8.25,
"my xj is so horny, sometimes im scared itll came right up in a wheelie"
gonejeepin04220 is offline   Reply With Quote
Unread 04-18-2010, 07:47 AM   #2
xjfever
Web Wheeler

xjfever's Avatar
1995 XJ Cherokee

Join Date: Feb 2008
Location: north Ga.
Posts: 14,212
You need to look under the jeep and see what is wrong with the linkage. My guess is that the bushing that connects the pivot rod to the t-case is bad and the linkage is seperated.
__________________
  1. '95 XJ country edition, 4" coils/3/4" spacers, HD leafs with extra main added in, Ironman adjustable control arms, rough country shackles, aussie locker, JK rubicon shocks, 35" mudder's, soft 8's, cobra cb
  2. Sold'99 WJ limited, 4.7L, 3" IRO lift. Bilstein shocks, JK rubicon wheels, 255/70/17's, carolina driveshaft, IRO adjustable control arms, IRO adjustable A-arm
  3. Sold '00 TJ, 4" lift, rusty's adjustable control arms, skyjacker shocks, rock krawler adj. trac-bar,rugged ridge SYE and RE driveshaft, soft 8's, 35" mud king xt's,XJ HP D30 w/aussie locker, 4:88 yukon gears, hella 500's, rock crusher diff covers
4. 04 Dodge ram 1500 quadcab, yes, it has a hemi.
5. '08 BMW X3, Mods in progress.
xjfever is offline   Reply With Quote
Unread 04-18-2010, 11:53 AM   #3
100dollarbill
Registered User

100dollarbill's Avatar
1993 XJ Cherokee

Join Date: Sep 2006
Location: kearny, nj
Posts: 264
You may just have to adjust the linkage. With the t-case in 2wd loosen the nut on the adjusting rod so you can freely move the shift lever forward to the 2wd mark then tighten up the nut. Then test it to verify you can get to N, 4hi and 4lo.
__________________
Quote:
Originally Posted by Muddeprived View Post
I also have this strange jerk at the steering wheel
Quote:
Originally Posted by JLC08JK View Post
P.S. please stop bringing up the CAI, Those Government Guys make me nervous!!!


'93 XJ 4 1/2" lift on 33's
'08 JK Unlimited Detonator Yellow DD
'11 Liberty Sport (the wife's)
100dollarbill is offline   Reply With Quote
Unread 04-18-2010, 02:00 PM   #4
LBLjunkie
Registered User
1997 XJ Cherokee

Join Date: Feb 2008
Location: Lexington/Murray
Posts: 82
Quote:
Originally Posted by 100dollarbill View Post
You may just have to adjust the linkage. With the t-case in 2wd loosen the nut on the adjusting rod so you can freely move the shift lever forward to the 2wd mark then tighten up the nut. Then test it to verify you can get to N, 4hi and 4lo.
X2

Place it in 2 wheel drive (actual). Look under the jeep. On the driver side of the transfer case is a series of levers connected to the part time handle. One of those levers has a nut you can loosen, loosen it (should be next to the running board). Push the part time handle forward it should now go all the way to the 2 wheel drive position. Tighten the nut.
__________________
97 Cherokee SE with:Locker, sway bar disconnects, 98 I6
LBLjunkie is offline   Reply With Quote
Unread 04-18-2010, 02:25 PM   #5
xjfever
Web Wheeler

xjfever's Avatar
1995 XJ Cherokee

Join Date: Feb 2008
Location: north Ga.
Posts: 14,212

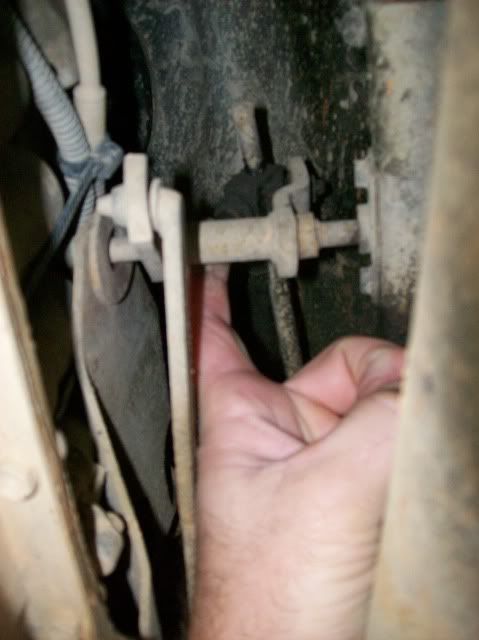

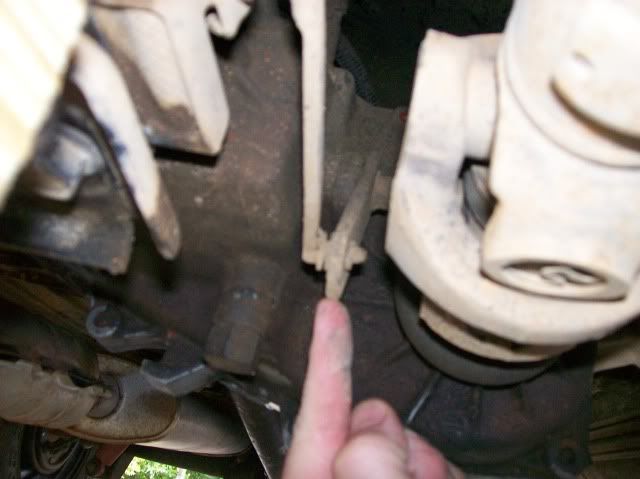

You can see the trunnion bolt on the shift rod at the end of my finger, this needs to be loosened to where the shift rod will slide freely though the trunnion. Then you can adjust the shifter to where it needs to be. I usually push the t-case into 4lo manually with the shift tab and then place the shifter into the 4lo position and tighten the trunnion bolt. This is the shift tab back next to the front driveshaft output, it needs to be all the way down and toward the rear to be in 4lo. In the first picture you can see the connecting bracket that goes from the t-case to the body that the linkage rotates on, make sure it is connected securely to both sides.
__________________
  1. '95 XJ country edition, 4" coils/3/4" spacers, HD leafs with extra main added in, Ironman adjustable control arms, rough country shackles, aussie locker, JK rubicon shocks, 35" mudder's, soft 8's, cobra cb
  2. Sold'99 WJ limited, 4.7L, 3" IRO lift. Bilstein shocks, JK rubicon wheels, 255/70/17's, carolina driveshaft, IRO adjustable control arms, IRO adjustable A-arm
  3. Sold '00 TJ, 4" lift, rusty's adjustable control arms, skyjacker shocks, rock krawler adj. trac-bar,rugged ridge SYE and RE driveshaft, soft 8's, 35" mud king xt's,XJ HP D30 w/aussie locker, 4:88 yukon gears, hella 500's, rock crusher diff covers
4. 04 Dodge ram 1500 quadcab, yes, it has a hemi.
5. '08 BMW X3, Mods in progress.
xjfever is offline   Reply With Quote
Unread 04-19-2010, 02:55 PM   #6
gonejeepin04220
Registered User
1995 XJ Cherokee

Join Date: Jun 2009
Location: Oxford County Maine
Posts: 504
wow thanks alot guys. XJFEVER, thank you very much for your pictures and very descriptive instructions.. i am going to get on this in the morning...thanks again everyone for all your help.
__________________
95 xj,5 speed,
5" lift, 33 12.5 dessert dogs
chrysler 8.25,
"my xj is so horny, sometimes im scared itll came right up in a wheelie"
gonejeepin04220 is offline   Reply With Quote
Unread 04-19-2010, 04:15 PM   #7
gonejeepin04220
Registered User
1995 XJ Cherokee

Join Date: Jun 2009
Location: Oxford County Maine
Posts: 504
Quote:
Originally Posted by xjfever View Post
You can see the trunnion bolt on the shift rod at the end of my finger, this needs to be loosened to where the shift rod will slide freely though the trunnion. Then you can adjust the shifter to where it needs to be. I usually push the t-case into 4lo manually with the shift tab and then place the shifter into the 4lo position and tighten the trunnion bolt. This is the shift tab back next to the front driveshaft output, it needs to be all the way down and toward the rear to be in 4lo. In the first picture you can see the connecting bracket that goes from the t-case to the body that the linkage rotates on, make sure it is connected securely to both sides.

allright,so i did just that, i even took the nut off but it wouldnt budge..even beat it witha hammer
__________________
95 xj,5 speed,
5" lift, 33 12.5 dessert dogs
chrysler 8.25,
"my xj is so horny, sometimes im scared itll came right up in a wheelie"
gonejeepin04220 is offline   Reply With Quote
Unread 04-19-2010, 05:47 PM   #8
xjfever
Web Wheeler

xjfever's Avatar
1995 XJ Cherokee

Join Date: Feb 2008
Location: north Ga.
Posts: 14,212
You may have to hit it with some PB blaster for a few days and then if you have access to a propane torch you can use some heat to loosen the rust free from the trunnion and shift rod. If you do use heat watch out for the fuel lines, they run along the inside of the framerail there.
__________________
  1. '95 XJ country edition, 4" coils/3/4" spacers, HD leafs with extra main added in, Ironman adjustable control arms, rough country shackles, aussie locker, JK rubicon shocks, 35" mudder's, soft 8's, cobra cb
  2. Sold'99 WJ limited, 4.7L, 3" IRO lift. Bilstein shocks, JK rubicon wheels, 255/70/17's, carolina driveshaft, IRO adjustable control arms, IRO adjustable A-arm
  3. Sold '00 TJ, 4" lift, rusty's adjustable control arms, skyjacker shocks, rock krawler adj. trac-bar,rugged ridge SYE and RE driveshaft, soft 8's, 35" mud king xt's,XJ HP D30 w/aussie locker, 4:88 yukon gears, hella 500's, rock crusher diff covers
4. 04 Dodge ram 1500 quadcab, yes, it has a hemi.
5. '08 BMW X3, Mods in progress.
xjfever is offline   Reply With Quote
Unread 04-20-2010, 05:28 AM   #9
gonejeepin04220
Registered User
1995 XJ Cherokee

Join Date: Jun 2009
Location: Oxford County Maine
Posts: 504
alright. ill try the pb blaster first. hey xjfever,howcan i tell if i have a blown u joint? i have a lot of clunkin when i put it in 4wd, everyones says its a u joint anyways. thanks
__________________
95 xj,5 speed,
5" lift, 33 12.5 dessert dogs
chrysler 8.25,
"my xj is so horny, sometimes im scared itll came right up in a wheelie"
gonejeepin04220 is offline   Reply With Quote
Unread 04-20-2010, 05:33 PM   #10
xjfever
Web Wheeler

xjfever's Avatar
1995 XJ Cherokee

Join Date: Feb 2008
Location: north Ga.
Posts: 14,212
Grab a hold of the driveshaft and shake it up and down and side to side, ther should be no movement. The driveshaft will turn back and forth a bit due to gear wear, but the u-joints shouldn't move up or down or side to side.
__________________
  1. '95 XJ country edition, 4" coils/3/4" spacers, HD leafs with extra main added in, Ironman adjustable control arms, rough country shackles, aussie locker, JK rubicon shocks, 35" mudder's, soft 8's, cobra cb
  2. Sold'99 WJ limited, 4.7L, 3" IRO lift. Bilstein shocks, JK rubicon wheels, 255/70/17's, carolina driveshaft, IRO adjustable control arms, IRO adjustable A-arm
  3. Sold '00 TJ, 4" lift, rusty's adjustable control arms, skyjacker shocks, rock krawler adj. trac-bar,rugged ridge SYE and RE driveshaft, soft 8's, 35" mud king xt's,XJ HP D30 w/aussie locker, 4:88 yukon gears, hella 500's, rock crusher diff covers
4. 04 Dodge ram 1500 quadcab, yes, it has a hemi.
5. '08 BMW X3, Mods in progress.
xjfever is offline   Reply With Quote
Unread 04-20-2010, 06:07 PM   #11
Brg0012
Registered User
1983 CJ7

Join Date: Oct 2009
Location: Chattanooga,TN
Posts: 506
i had a similar issue on my 95 xj, dont know if it will help you, but my jeep wouldnt go into 4 lo and it was bc the po put the cross member on backwards
Brg0012 is offline   Reply With Quote
Unread 04-21-2010, 04:19 PM   #12
gonejeepin04220
Registered User
1995 XJ Cherokee

Join Date: Jun 2009
Location: Oxford County Maine
Posts: 504
ya i got some play in the u joint hooking to the front axle. but man i can turn it back and fourth about an inch both ways.
__________________
95 xj,5 speed,
5" lift, 33 12.5 dessert dogs
chrysler 8.25,
"my xj is so horny, sometimes im scared itll came right up in a wheelie"
gonejeepin04220 is offline   Reply With Quote
Unread 01-26-2013, 02:31 PM   #13
xman2yman
Registered User
2002 WJ

Join Date: Sep 2011
Location: philadelphia, pa
Posts: 181
this will help me a lot thanks
