Write-up: interior LED-strip lighting

I installed some LED strips (which usually go for about $10-20 per foot) for my interior, what you can do to get them for cheap is call a major producer of LED strips and ask for some cut-offs or any extras they have laying around and be creative with the conversation because they don't just give away free crap to anyone who asks.

MAKE SURE THAT THE LEDs YOU BUY ARE THE VOLTAGE OF YOUR VEHICLE!! They sell 12V and 24V out there so make sure you choose the right ones.

Here are some helpful links:
ledliquidators
ledwholesalers
http://www.amazon.com/Flexible-Lighting-LED-Ribbon-2026BU/dp/B002Q93CGM/ref=sr_1_5?ie=UTF8&qid=1295939557&sr=8-5http://www.amazon.com/Flexible-Lighting-LED-Ribbon-2026wh/dp/B002QQ1YOM/ref=pd_rhf_p_t_2http://www.amazon.com/Flexible-Lighting-LED-Ribbon-Yellow/dp/B002Q97MGI/ref=sr_1_19?s=home-garden&ie=UTF8&qid=1295940184&sr=1-19http://www.amazon.com/LED-Flexible-Waterproof-Ribbon-2047RD/dp/B003O95PAY/ref=sr_1_11?s=home-garden&ie=UTF8&qid=1295940184&sr=1-11http://www.amazon.com/Changing-LED-Flexible-Lighting-2053RGB-24V/dp/B003VQNEGM/ref=sr_1_12?s=home-garden&ie=UTF8&qid=1295940184&sr=1-12http://www.amazon.com/LED-Flexible-Waterproof-Sleeve-Ribbon/dp/B003O95UPE/ref=sr_1_10?s=home-garden&ie=UTF8&qid=1295940184&sr=1-10


There are easier alternatives like replacing the filament bulbs with LED bulbs that plug into the existing sockets.

Doing this may damage some of your parts as the old plastic is very brittle, so I recommend getting some spares from your local JY and working on those.

If you have an idea for an LED mod, post your idea here and i will see if i can get it done. (thats what section 5 is for)

PM or post if you have any questions or comments. I will update when needed.

If you are a noob at electrical stuff and if you live near Huntington Beach let me know me and i can drive over and help.

Section 1: Under-dash lights
Section 2: Dome lights
Section 3: Gauge cluster and center console lights
Section 4: Tailgate light
Section 5: Suggested mods
-Amber and blue strobe lights
-Daytime running lights
-Wheel well/rock lights

__________________
http://www.jeepforum.com/forum/f11/96-xj-build-hybrid-1311863/

96 XJ, geared, 8.8, 5", 33s, dash
DoctorTim is offline   Reply With Quote Quick reply to this message
Unread 01-10-2011, 06:22 PM   #2
DoctorTim
Registered User
1996 XJ Cherokee

Join Date: Sep 2010
Location: Huntington Beach, CA
Posts: 2,460
|||||||||||||||||||||||||||||||| Section 1: Under-dash lights



Ok, so we will start with under the dash lights.

You need:
-paint stick or similar
-LED ribbon (I call them strips)
-wire
-soldering iron
-solder
-cable (zip) ties

Step 1: get a paint stick or something similar that is long and stiff (ha), make any necessary cuts and holes for proper mounting. I just used cable-ties for mounting, it's cheap and simple.



*Step 2: With a soldering iron, make some leads on the LED strip so you can later connect it to a power source.



*Step 3: Stick the LED strip to the paint stick and mount it underneath the dash.



*Step 4: Find a power source (i used the socket from the stock lights) and tap into it somehow (crimp, solder, or whatever works for you)



*Step 5: Some LED strips have to option of red, green, and blue, all on the same piece. if you want to be able to change the colors, all you need to do is make some switches wherever you want and have the leads going to the LEDs.

__________________
http://www.jeepforum.com/forum/f11/96-xj-build-hybrid-1311863/

96 XJ, geared, 8.8, 5", 33s, dash
DoctorTim is offline   Reply With Quote Quick reply to this message
Unread 01-10-2011, 06:22 PM   #3
DoctorTim
Registered User
1996 XJ Cherokee

Join Date: Sep 2010
Location: Huntington Beach, CA
Posts: 2,460
|||||||||||||||||||||||||||||||| Section 2: Dome lights




Next we have the overhead dome lights

You will need:
-LED ribbon
-soldering iron
-solder
-wire



Step 1:Stick the LEDs onto the dome light, find your power source (stock light socket), and make necessary connections.(Follow Steps 2-5 from Section 1) It's pretty simple.
__________________
http://www.jeepforum.com/forum/f11/96-xj-build-hybrid-1311863/

96 XJ, geared, 8.8, 5", 33s, dash
DoctorTim is offline   Reply With Quote Quick reply to this message
Unread 01-10-2011, 06:22 PM   #4
DoctorTim
Registered User
1996 XJ Cherokee

Join Date: Sep 2010
Location: Huntington Beach, CA
Posts: 2,460
|||||||||||||||||||||||||||||||| Section 3: Center console and gauge cluster lights.




You need:
-LED ribbon
-soldering iron
-solder
-any tools for getting into the cluster/console
-time

Step 1: Take the part (gauge cluster, shifter display, etc..) out carefully, take it apart so you can see the stock sockets and bulbs. I didn't manage to get a picture of it but you can completely take it apart and see underneath the plastic cover.



Step 2: fit the LEDs in there and follow Steps 2-5 from Section 1.

NOTE: It is very important that you remember how everything was assembled so you can put it back together properly.
__________________
http://www.jeepforum.com/forum/f11/96-xj-build-hybrid-1311863/

96 XJ, geared, 8.8, 5", 33s, dash
DoctorTim is offline   Reply With Quote Quick reply to this message
Unread 01-10-2011, 06:22 PM   #5
DoctorTim
Registered User
1996 XJ Cherokee

Join Date: Sep 2010
Location: Huntington Beach, CA
Posts: 2,460

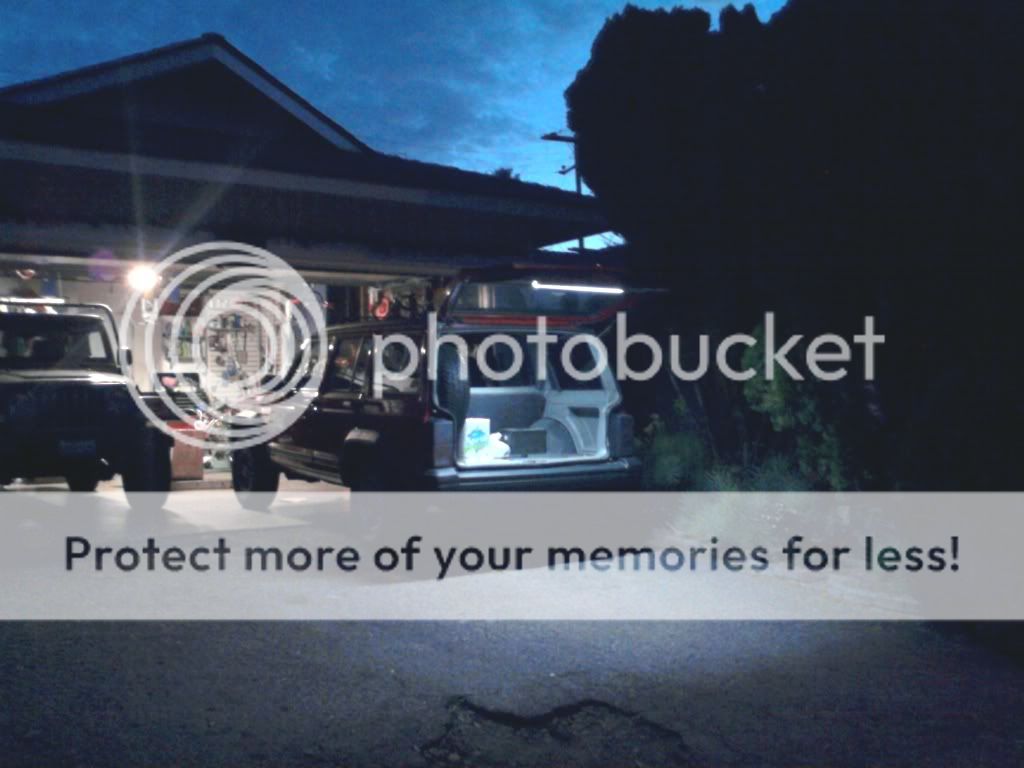

|||||||||||||||||||||||||||||||| Section 4: Rear hatch lights.



This one will require removing the interior panels

You need:
-LED ribbon
-screwdriver
-momentary button (make sure it's not plastic)
-SPST on-off over-ride switch (optional) (you need to get one that has a low profile because it might some into contact with the body and short)
-drill and bit
-aluminum c-channel or similar

Step 1: go to local electronic parts store (radio shack will work but it has crappy selection) and find a "normally open automotive momentary button" (this will turn the lights on when the hatch is open) and find an over-ride switch rated for over 10A @ 12V (optional, but makes sense to have one).

Step 2: remove the driver side interior cargo panels and the hatch interior panel.



Step 3: drill a hole here (hole must be big enough for your momentary button to fit)



Step 4: take your momentary switch and ground one contact to the chassis (usually already done when you mount it into the hole), and solder a wire to the other contact.

Step 5: take the lead from the momentary switch and secure it to your over-ride switch.



Step 6: take the lead from your over-ride switch and a positive and feed it to the hatch (I just taped it down beside the window). You can see the holes where i tried to feed a wire through, there was something blocking it right about where the shocks mounted. If you find a way please tell.



Step 7: mount and connect the LEDs



(Step 5 from Section 1 is for connecting RGB (red, green, and blue) LED strips)
__________________
http://www.jeepforum.com/forum/f11/96-xj-build-hybrid-1311863/

96 XJ, geared, 8.8, 5", 33s, dash
DoctorTim is offline   Reply With Quote Quick reply to this message
Unread 01-10-2011, 06:22 PM   #6
DoctorTim
Registered User
1996 XJ Cherokee

Join Date: Sep 2010
Location: Huntington Beach, CA
Posts: 2,460
|||||||||||||||||||||||||||||||| Section 5: Any Suggestions???

Want to see an LED mod done? Post your idea and i will see if i can get it done.

Completed mods:
-Amber and blue strobe lights
-Daytime running lights
-Wheel well/rock lights

I have a list of mods i am currently working on.
-light-up middle finger for the back window
-grille lights (temporary set-up)
-door lights (literally on the bottom of the door to light up the ground that you're about to step on)

-I am going to work on a universal type of LED strip which can be mounted anywhere you can drill into.
__________________
http://www.jeepforum.com/forum/f11/96-xj-build-hybrid-1311863/

96 XJ, geared, 8.8, 5", 33s, dash
DoctorTim is offline   Reply With Quote Quick reply to this message
Unread 01-10-2011, 07:13 PM   #7
lk123
Registered User
1993 XJ Cherokee

Join Date: Mar 2009
Location: Spokane,Washington
Posts: 1,355
neat
__________________
My 93xj build4.0 I6ho Sport RC LA 6.5"
95 Lexus Sc300 coiled on 19's
94 ZJ 5.2 v8 Limited 3" rancho*sold*
93 2wd pos xj sport *sold*
89 nissan 240sx *wrecked*-03 Cbr954rr *traded*
2nd 89 nissan 240sx *sold*
lk123 is offline   Reply With Quote Quick reply to this message
Unread 01-10-2011, 08:29 PM   #8
XJsportG
Registered User
2001 XJ Cherokee

Join Date: Jan 2011
Location: Glen Allen, Virginia
Posts: 464
Did you order your's from LED liquidators?

Since they come in spools of 16.4 ft can you cut them in any length or you have to use the whole roll?
XJsportG is offline   Reply With Quote Quick reply to this message
Unread 01-10-2011, 09:03 PM   #9
-jeep-jeep-
Registered User
1983 CJ7

Join Date: Nov 2008
Location: BC, Canada
Posts: 278
looks sweet, i may have to try this

Ps thanks for sharing with us none paying members
__________________
Jeep # 1 - 1947 CJ2a - Restoration in progress...very slow progress
Jeep # 2 -1983 CJ7 - 31x10.5R15 Pro Comp Extreme mt's - 4.0 HO head - MC2100
Jeep # 3 - 1990 Cherokee - 4.0, AW4, dana 30 HP, dana 35 -31x10.5 R15 mud terrains, 2" PNP lift.....Gone to the crusher
Jeep # 4 - 1999 wj stock and still pretty
-jeep-jeep- is offline   Reply With Quote Quick reply to this message
Unread 01-10-2011, 09:50 PM   #10
BeepBeepGoJeep
Registered User
1994 XJ Cherokee

Join Date: Feb 2010
Location: Purcellville, Va
Posts: 1,369
Definitely cool stuff but kinda weird on a jeep lol.
__________________
[]IIIII[]
BeepBeepGoJeep is offline   Reply With Quote Quick reply to this message
Unread 01-10-2011, 11:02 PM   #11
DoctorTim
Registered User
1996 XJ Cherokee

Join Date: Sep 2010
Location: Huntington Beach, CA
Posts: 2,460
Quote:
Originally Posted by XJsportG View Post
Did you order your's from LED liquidators?

Since they come in spools of 16.4 ft can you cut them in any length or you have to use the whole roll?
yes i have ordered a 16.4ft spool. they can be split into 5mm, 10mm, or 20mm sections depending on which type of LEDs you get. but you can only cut them each third LED

Quote:
Originally Posted by -jeep-jeep- View Post
looks sweet, i may have to try this

Ps thanks for sharing with us none paying members


Quote:
Originally Posted by BeepBeepGoJeep View Post
Definitely cool stuff but kinda weird on a jeep lol.
as long as i dont have a 20" subwoofer and a light-up tailpipe i think it's alright
__________________
http://www.jeepforum.com/forum/f11/96-xj-build-hybrid-1311863/

96 XJ, geared, 8.8, 5", 33s, dash
DoctorTim is offline   Reply With Quote Quick reply to this message
Unread 01-11-2011, 12:05 AM   #12
FairlanePhil
Registered User
2000 XJ Cherokee

Join Date: Feb 2010
Location: Toledo Ohio
Posts: 1,555
Quote:
Originally Posted by Tim_XJ View Post
as long as i dont have a 20" subwoofer and a light-up tailpipe i think it's alright

word. Gotta draw the line at light up cup holders

Pretty sweet!
I was thinking about putting a few strips in my engine compartment for those late night breakdowns on the side of the highway. Put a switch in like on your hatch
__________________
Patriot Blue 2000 XJ. SOLD
Wife has an 01 stocker
FairlanePhil is offline   Reply With Quote Quick reply to this message
Unread 01-11-2011, 12:10 AM   #13
DoctorTim
Registered User
1996 XJ Cherokee

Join Date: Sep 2010
Location: Huntington Beach, CA
Posts: 2,460
the engine heat might kill the lights, but worth a try. when you get the LEDs look at their operating temperature.
__________________
http://www.jeepforum.com/forum/f11/96-xj-build-hybrid-1311863/

96 XJ, geared, 8.8, 5", 33s, dash
DoctorTim is offline   Reply With Quote Quick reply to this message
Unread 01-12-2011, 10:56 AM   #14
DoctorTim
Registered User
1996 XJ Cherokee

Join Date: Sep 2010
Location: Huntington Beach, CA
Posts: 2,460
Updated
__________________
http://www.jeepforum.com/forum/f11/96-xj-build-hybrid-1311863/

96 XJ, geared, 8.8, 5", 33s, dash
DoctorTim is offline   Reply With Quote Quick reply to this message
Unread 01-25-2011, 12:27 AM   #15
wipemedown
Registered User
1996 XJ Cherokee

Join Date: Nov 2010
Location: germantown, wisconsin
Posts: 111
found some cheap led strips
http://www.amazon.com/Flexible-Lighting-LED-Ribbon-2026BU/dp/B002Q93CGM/ref=sr_1_5?ie=UTF8&qid=1295939557&sr=8-5http://www.amazon.com/Flexible-Lighting-LED-Ribbon-2026wh/dp/B002QQ1YOM/ref=pd_rhf_p_t_2http://www.amazon.com/Flexible-Lighting-LED-Ribbon-Yellow/dp/B002Q97MGI/ref=sr_1_19?s=home-garden&ie=UTF8&qid=1295940184&sr=1-19http://www.amazon.com/LED-Flexible-Waterproof-Ribbon-2047RD/dp/B003O95PAY/ref=sr_1_11?s=home-garden&ie=UTF8&qid=1295940184&sr=1-11http://www.amazon.com/Changing-LED-Flexible-Lighting-2053RGB-24V/dp/B003VQNEGM/ref=sr_1_12?s=home-garden&ie=UTF8&qid=1295940184&sr=1-12http://www.amazon.com/LED-Flexible-Waterproof-Sleeve-Ribbon/dp/B003O95UPE/ref=sr_1_10?s=home-garden&ie=UTF8&qid=1295940184&sr=1-10Enjoy
