Transmission Cooler & Gauge Install *lots of pics*

Finally got around to installing this stuff over the past couple days... it's all really easy, but it's been nasty hot till this week, so I've been waiting. It's a B&M SuperCooler # 70268 (same one Jason uses in his writeup, was $51 new locally) and Autometer 2 1/16" GS Series trans temp gauge (I got this one because the colors match OE Jeep gauges , #3849, $70 local). Anyway, here's the write-up:

1) Remove the two screws in each headlight surround, and the four screws across the top of the grill.



2) Decide where to mount it. I had originally used the two left-most available holes, but got excessive engine temps (from blocking the fan almost entirely) and ended up moving it to where the arrows indicate. The right most hole (red dot below) just needs to be drilled through like 0.0625" aluminum, and there's a hole in the radiator support beneath that.



3) Bend up the supplied brackets (or some plumber's wrap or something) to hold the cooler in place. Mine looked like this, and this should work for any 97-01 model. There's even a hole in the lower radiator support that lines up.





4) Plumbing install is a tad more interesting... I just chopped the two trans lines going into the radiator, used the supplied bard fittings and hose (along with a galvanized T for the gauge thermometer) and it hooked up fine. There was one problem though, both Jason's write-up and the FSM list the FRONT trans line as supply (pressure out), which is it, but both say it goes into the top of the radiator. The FRONT line on mine goes into the bottom of the radiator (which actually makes more sense) and the top is return. So I assumed the top was supply, and have the thermometer on the cold side, which I'm going to switch. Pics to come with proper routing.

*plumbing pics here*

5) You're done installing. Snug everything up, replace the grill and light surrounds, and enjoy the piece of mind.



lost honda pro is offline   Reply With Quote Quick reply to this message
Unread 04-15-2008, 07:41 PM   #2
lost honda pro
Registered User
1997 XJ Cherokee

Join Date: Mar 2007
Location: Gainesville, FL
Posts: 813
Now that the cooler and thermometer are installed, it’s gauge time.

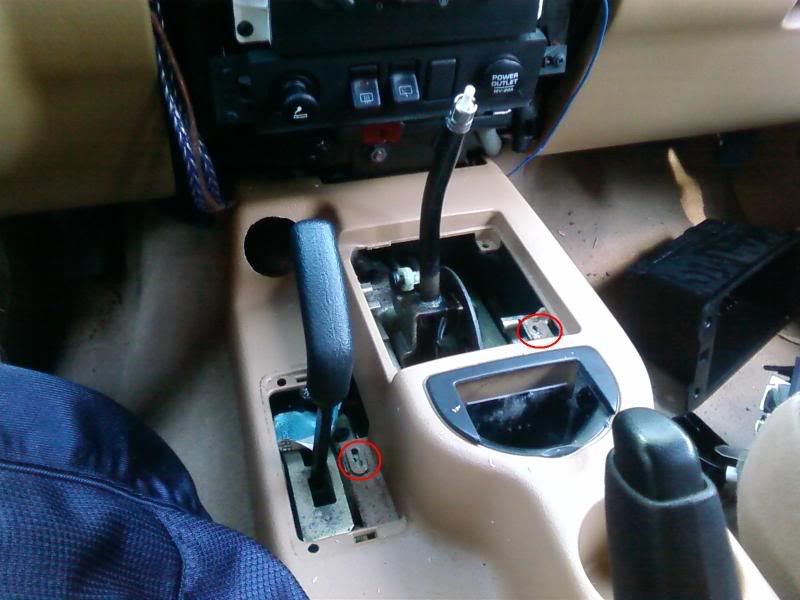

1) Remove the center console via the six screws in the storage bin, and these two here.

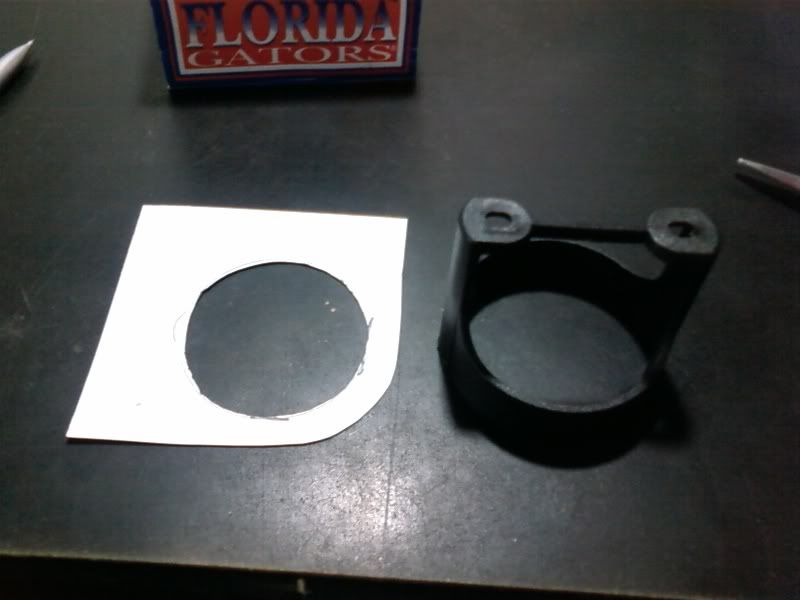

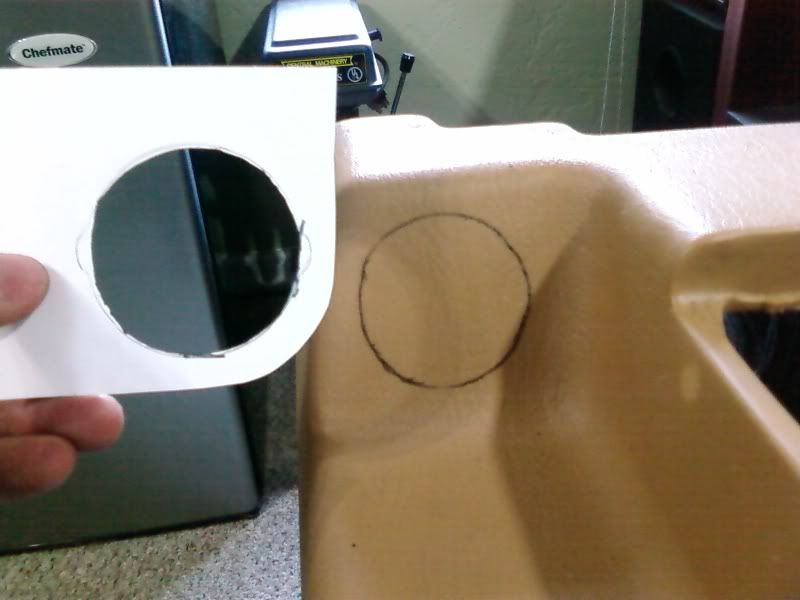

2) I traced the inside of the backing cup to get a rough idea of gauge diameter, traced that onto the flat spot on the console (in front of the TC lever), Dremel’d it (with a routing bit), and slowly went bigger till it fit snug.

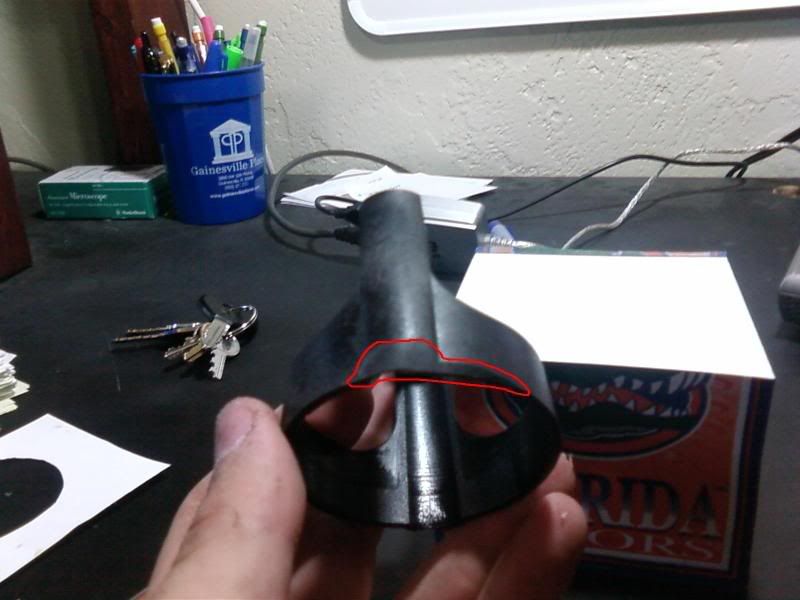

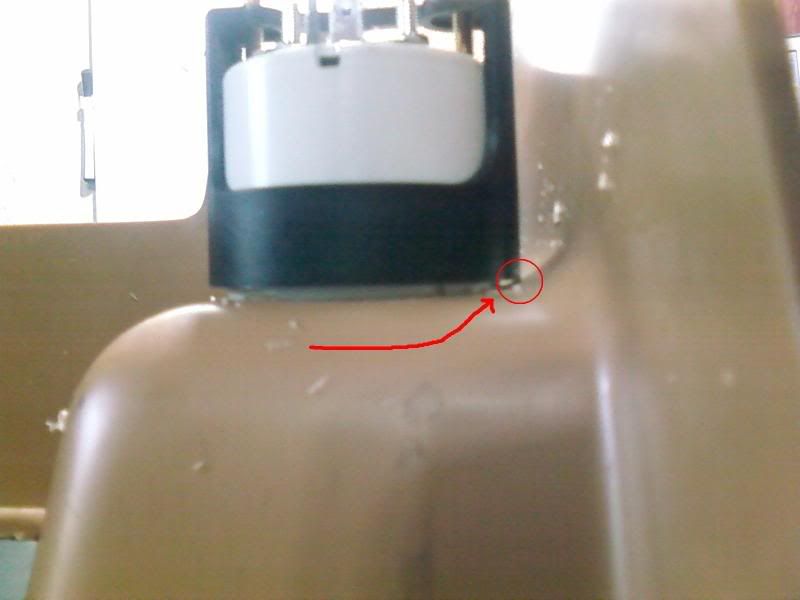

3) Now, test fitting the backing cup, we see that it interferes. Simply shave down the pointy side, outlined here in red, and voila.

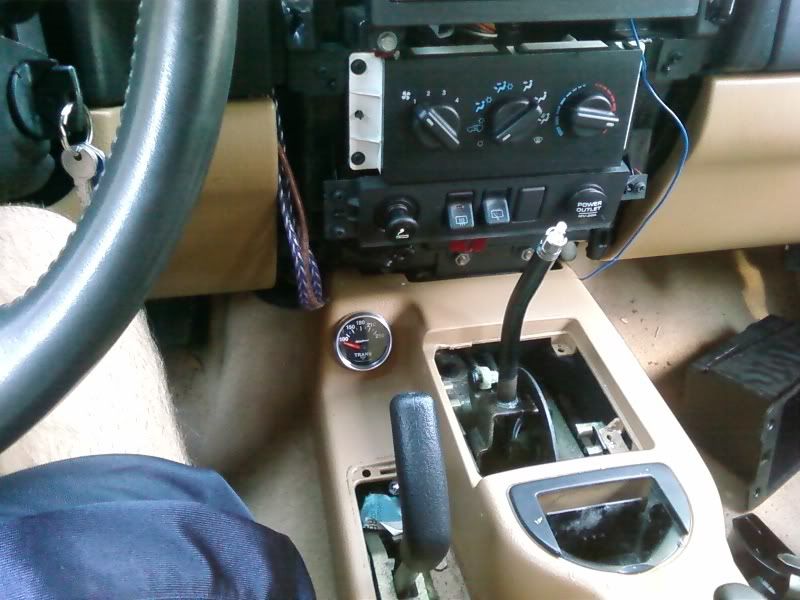

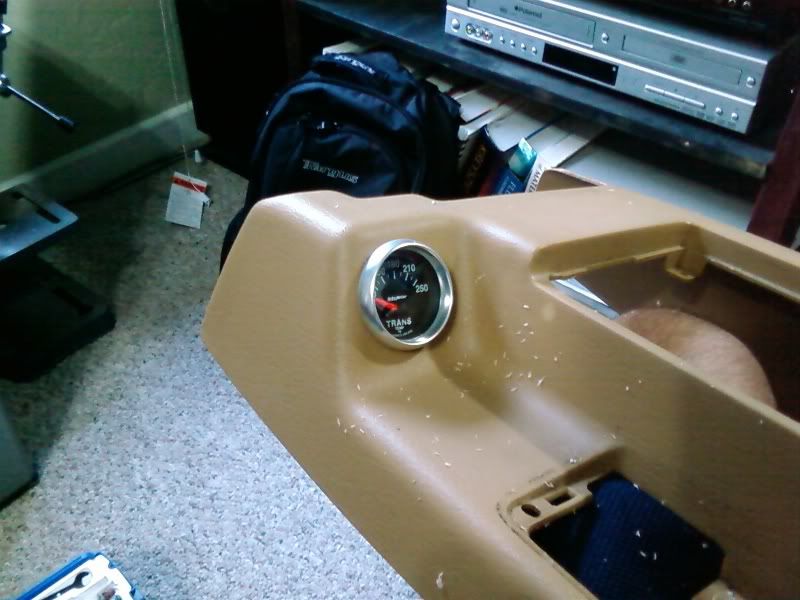

4) Wiring. I taped off one of the orange illumination supply wires for the trans/TC shift lever lights, dropped a ground around one of those bolts, and have yet to run the other two. (Pics will come, probably Thursday) Installed, it looks like this.

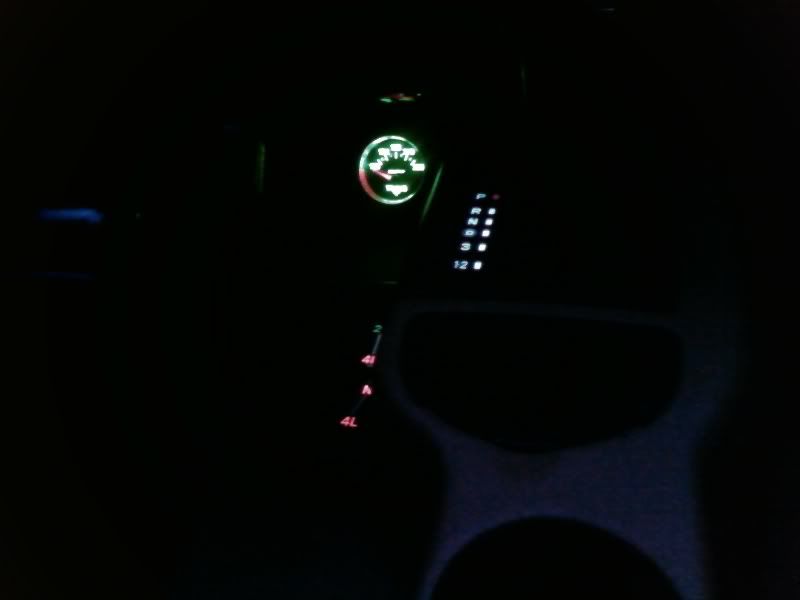

5) And the best part (though these pics suck, more coming) is that the gauge matches the color of the Jeep gauges very well. I’m thinking about brighter bulbs all around, but for the time being, I’m very pleased.



lost honda pro is offline   Reply With Quote Quick reply to this message
Unread 04-15-2008, 07:51 PM   #3
Magus2727
Registered User
1995 XJ Cherokee

Join Date: Mar 2007
Location: Utah
Posts: 1,671
thats a cool palce for the gauge... I will have to stick my next gauge there... Cool write up! do you have pic's were you mounted the sending unit for the Gauge?
__________________
NAXJA Member #2619

1995 Jeep Sport Cherokee 4x4 with an Auto and 4.0L
B&M Transmission Cooler and Autometer Tranny Temp Gauge, Ruff Stuff Diff Cover on D30.
Taraflex 1.5" BB (rear shackle only), HD Quadratec leaf springs, RE 3.5" front springs, OME Long shocks, JKS Adjustable Track Bar from K.O.R.
Daystar Control Arm Bushings, Bushwhacker Flairs, Rhino lining along bottom trim, AGR PS pump with Cooler & Filter.
Bored TB, APN Manifold, New Downpipe, Magnaflow High Flow Cat, Flowmaster Super 44.
Dual Oil Relocation Kit running two K&N301 size filters, Autometer Digital Cobalt Oil Temp and Oil Pressure Gauge.
Magus2727 is offline   Reply With Quote Quick reply to this message
Unread 04-15-2008, 07:56 PM   #4
lost honda pro
Registered User
1997 XJ Cherokee

Join Date: Mar 2007
Location: Gainesville, FL
Posts: 813
Quote:
Originally Posted by Magus2727 View Post
thats a cool palce for the gauge... I will have to stick my next gauge there... Cool write up! do you have pic's were you mounted the sending unit for the Gauge?
Thanks, the idea wasn't mine though... I think it was from the A/C compressor to OBA conversion write-up from a couple months ago, someone stuck an air pressure gauge there.

As for pics, no, not yet. I will take the rest on Thursday (no class ) when I switch the lines around run the wires.
lost honda pro is offline   Reply With Quote Quick reply to this message
Unread 04-15-2008, 08:30 PM   #5
dcorn
Registered User
1998 XJ Cherokee

Join Date: Aug 2007
Location: Washington, DC
Posts: 4,057
Good deal man. I thought about mounting mine there, but I ended up buying a gauge cup for my sport comp gauge and mounting it on the shifter bezel. Got my trans cooler in there too, mounted exactly like the writeup. I took off the whole front fascia, drilled into the core support and used the supplied sheet metal screws to hold the brackets. I was amazed how great everything fit in there. I'll take some pics sometime soon.
__________________
2004 Grand Cherokee Overland
OME HD/5100s - 31" Toyo AT2
dcorn is offline   Reply With Quote Quick reply to this message
Unread 04-15-2008, 10:14 PM   #6
xjfan
Registered User
1999 XJ Cherokee

Join Date: Jan 2008
Location: Miami, Florida
Posts: 475
Nice write-up... Another project for the jeep. I have the guage but wasn't sure were to put it, problem solved...

Thanks.
__________________
Joe

1999 XJ Sport, Black on Black, 4.0L

Follow build-up Cardomain XJfan Build Up
xjfan is offline   Reply With Quote Quick reply to this message
Unread 04-16-2008, 04:35 PM   #7
lost honda pro
Registered User
1997 XJ Cherokee

Join Date: Mar 2007
Location: Gainesville, FL
Posts: 813
thanks for the comments guys, i'll update tomorrow once i run the signal/power wires and get better pics of everything...
lost honda pro is offline   Reply With Quote Quick reply to this message
Unread 04-16-2008, 06:20 PM   #8
alexrule123
Registered User
2001 XJ Cherokee

Join Date: Dec 2005
Location: Jacksonville, Florida
Posts: 7,315
That is exactly the same place I put my transmission temp gauge and some people didn't think it would be a good idea to put it there but I love it there.
__________________
Quote:
The great thing about UDP jokes is no one cares if you get them or not.
2001 Cherokee Limited: My Build Thread
2005 Pontiac GTO 6.0L (DD)
May 2013 COTM
alexrule123 is offline   Reply With Quote Quick reply to this message
Unread 04-16-2008, 06:35 PM   #9
TehHelmet
Registered User
2008 KK Liberty

Join Date: Jul 2006
Location: Arvada, CO
Posts: 857
Very cool.
__________________
Colorado Jeep Club Member #76
TehHelmet is offline   Reply With Quote Quick reply to this message
Unread 04-17-2008, 06:59 PM   #10
nascarnation
Registered User
1997 XJ Cherokee

Join Date: Aug 2007
Location: Indianapolis
Posts: 84
I'm doing the identical install on my 97.
On mine the feed line "from" transmission is (like yours) connected to the bottom port on the radiator side tank cooler.
nascarnation is offline   Reply With Quote Quick reply to this message
Unread 04-17-2008, 08:03 PM   #11
88XJSport
Registered User
1988 XJ Cherokee

Join Date: Jul 2005
Location: Michigan
Posts: 4,324
Nice. Although it seems the shifter would be in your line of sight with the shifter in 2HI...
88XJSport is offline   Reply With Quote Quick reply to this message
Unread 04-17-2008, 08:38 PM   #12
xjarchaeologist
Registered User
2001 XJ Cherokee

Join Date: Jul 2006
Location: Chattanooga, TN
Posts: 405
Nice. Have you thought about hooking up a dimmer knob or a resistor so it's not as bright? I really like that, but it's really bright compared to everything else...
xjarchaeologist is offline   Reply With Quote Quick reply to this message
Unread 04-18-2008, 10:33 AM   #13
jeepnatv4life
Registered User
1999 XJ Cherokee

Join Date: Jan 2008
Location: Harrisonburg VA
Posts: 331
Pix of the Gauge Hook up? The T fitting that you used.
__________________
XJ 35's locked Gas Tank in the Trunk Shox Hoops in the rear.
'13 RZR 570
jeepnatv4life is offline   Reply With Quote Quick reply to this message
Unread 04-18-2008, 01:13 PM   #14
Rowingfish87
Registered User
2002 TJ Wrangler

Join Date: Dec 2007
Location: Milledgeville, GA
Posts: 314
on a somewhat unrelated note, how do you get the shifter handle off? I have to take my console out a few weeks ago and couldnt figure it out...
Rowingfish87 is offline   Reply With Quote Quick reply to this message
Unread 04-18-2008, 01:42 PM   #15
FitchVA
Jeeper 4 Life

FitchVA's Avatar
1998 XJ Cherokee

Join Date: Oct 2003
Location: Roanoke, VA
Posts: 3,128
the the gear selector handle just pulls off. the first time she's a stubborn SOB
__________________
'98 xj sport (trail toy) | specs
'98 xj classic (dd'er) | specs
'89 mj tinker toy | specs
My XJ Page | My Gallery
FitchVA is offline   Reply With Quote Quick reply to this message
