Track Bar axle bolt

Installed RC's adjustable track bar today. The axle mount limits access to the interior side of the bolt, where the nut is. Do you guys have any ideas how to clamp down on the nut so I can torque the bolt down properly. I can barely get anything in there.

Also, the track bar slides left and right as the wheels turn. I can see the axle mount bolt jump around. I'm not sure if once I get it torqued down that it would be enough to keep it still. I'm afraid the hole is a bit wallowed. But, I don't want to drill a new hole and weaken the axle mount either.





__________________
90 XJ-RC 3 in. Series II-31x10.5 Grabber AT2's-Soft 8's-Leigh's 60mm TB-K&N Rusty's tube-5.0 injectors
90xjlimited is offline   Reply With Quote
Unread 12-16-2011, 01:37 PM   #2
XtrailratedJ
Registered User
1996 XJ Cherokee

Join Date: Apr 2008
Location: Tampa, FL
Posts: 952
That track bar bolt needs to be TIGHT. There is a slot where you can fit an open ended wrench in flat then turn it vertical to hold the nut while you tighten the nut.

I just installed a RE Adjustable Track Bar on Wednesday.
__________________
96 XJ 4.0L/AX15/NP231/AUSSIE'D D30/C8.25/4.5" RE LIFT/33'S/BUMPERS, SLIDERS, ETC...
"I pitty the fool who lists D30's and 31's, then tries to talk **** on PBB":

Originally Posted by Durt_Diver:
Those pics might be a little too flexy for this thread. You don't happen to have any pics of your friends xj on a curb by chance?
XtrailratedJ is offline   Reply With Quote
Unread 12-16-2011, 04:25 PM   #3
theshaolin
Registered User
1996 XJ Cherokee

Join Date: Aug 2011
Location: Brookfield, Wisconsin
Posts: 393
I reused the stock flag nut without issue. If it's loose, I'd get a small plate, drill the proper sized hole in it, and weld it to the axle over the original hole.
__________________
1996 Cherokee Sport - 4x4 4.0L - Wheeling Project
1986 Mazda RX-7 Turbo - 400RWP project - 2000 Saturn SC1 - Turbo RWD project
1996 Suzuki Bandit 600 - Frame up restore project - Too Many Projects!!
1991 Chevrolet K1500 - 4x4 5.7L 5spd - For Sale (Cheap!)
theshaolin is offline   Reply With Quote
Unread 12-16-2011, 04:31 PM   #4
CJ7-Tim
Real Jeeps have dents.

CJ7-Tim's Avatar
2000 XJ Cherokee

Join Date: Apr 2002
Location: out in the garage - Minneapolis, Minnesota
Posts: 21,277

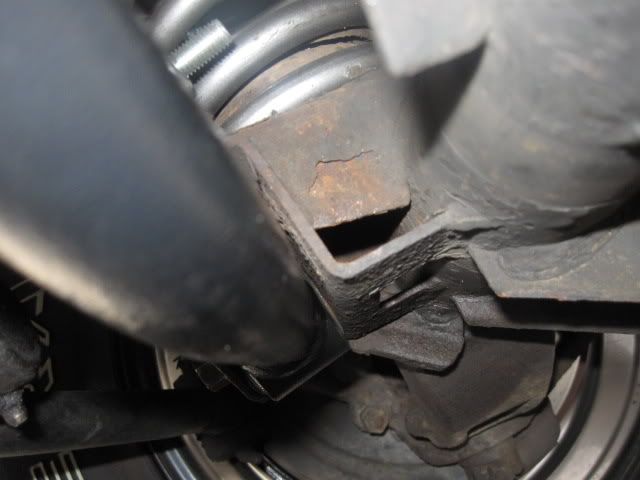

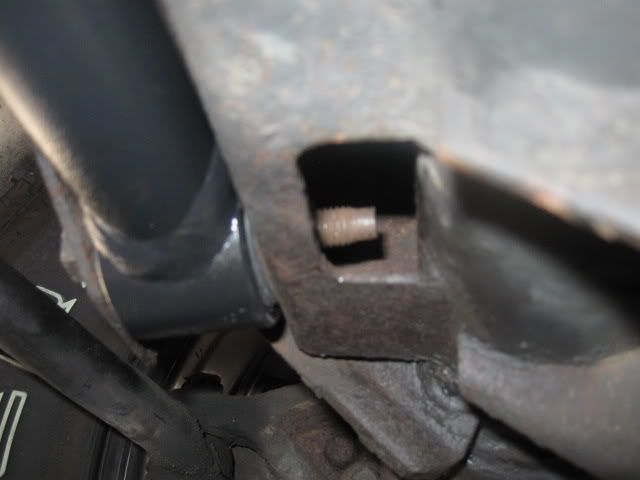

I always use a cold chisel or better yet, a tapered punch. Slide it into the red circle, parallel to the ground, and you can usually wedge it between the bracket and a flat on the nut. Once wedged in there the nut will not turn.

I have never had any luck getting a wrench in there.

.
__________________
.

According to the National Shooting Sports Foundation, AR-15 sporting rifles account for nearly 20% of all U.S. firearms sales.

Progressive Liberalism: Bringing you new Healthcare ideas so wonderful, they have to include mandatory participation ......

Originally Posted by Ronald W. Reagan: Government is not the solution to our problem; Government is the problem.
CJ7-Tim is offline   Reply With Quote
Unread 12-16-2011, 04:52 PM   #5
90xjlimited
Registered User
1990 XJ Cherokee

Join Date: Oct 2010
Location: atlanta
Posts: 81
Thanks for the replies, guys. The stock nut is 11/16 and there was no way I was getting a good bite in there. I just put two washers behind the nut. That moved the nut into a position that I could grab from the side access point. I took out all of my frustration into torquing that sucker down.

Where's the Tylenol?
__________________
90 XJ-RC 3 in. Series II-31x10.5 Grabber AT2's-Soft 8's-Leigh's 60mm TB-K&N Rusty's tube-5.0 injectors
90xjlimited is offline   Reply With Quote
Unread 12-16-2011, 05:23 PM   #6
rugsucka
Registered User
2000 XJ Cherokee

Join Date: Oct 2008
Location: Sumware Inn, Ontario
Posts: 2,548
The stock nut is NOT SAE - it is a 12mm metric.

If you use a SAE fastener you can wallow out the hole and encourage DW.

I used the wedge a screwdriver in there trick when I put the IRO double shear set up about a month ago.
__________________
'00 XJ - Somewhat modified
'01 Venture - high mileage, paid for, shut it
rugsucka is offline   Reply With Quote
Unread 12-16-2011, 08:30 PM   #7
egodfrey
Web Wheeler

egodfrey's Avatar
1998 XJ Cherokee

Join Date: Jul 2009
Location: Whitney Point, NY
Posts: 3,170
I like tim have used a pry bar and just reached in there and pryed on the nut jammign it while i tighten

I never torque it, just make it real tight and your fine.
__________________
This space reserved for future cool stuff

DO NOT DO WORK WITH DRAKEN OFFROAD IN NY!!!
(also known as dragons garage in Oneonta NY)
egodfrey is offline   Reply With Quote
Unread 12-16-2011, 08:41 PM   #8
EricsXJ
The Post man

EricsXJ's Avatar
2000 XJ Cherokee

Join Date: Apr 2001
Location: Reno, Nevada
Posts: 8,564
If the hole is wallowed which by your description sounds as if it is, then you will be fighting a losing battle with that bolt. You will not be able to keep it torqued tight enough to prevent the bolt from moving, or you risk breaking the bolt by putting too much torque on it.

When you get the chance fix the hole by welding a thick washer over the face of the bracket, creating a new hole with zero play with the bolt. Or weld a plate on it and drill a new hole.
__________________
Eric
2000 XJ "PROJECT RUBICON" 3-link front / 4-link rear / coilovers / running 37's on Dana 60s
My website - EricsXJ.com

EricsXJ is offline   Reply With Quote
Unread 12-16-2011, 10:30 PM   #9
90xjlimited
Registered User
1990 XJ Cherokee

Join Date: Oct 2010
Location: atlanta
Posts: 81
Quote:
Originally Posted by rugsucka View Post
The stock nut is NOT SAE - it is a 12mm metric.

If you use a SAE fastener you can wallow out the hole and encourage DW.

I used the wedge a screwdriver in there trick when I put the IRO double shear set up about a month ago.
No way the bolt that came on my XJ is 12mm. The bolt end is 15mm. I took the nut off and matched it to whatever I had that would grab it. If it's metric, it's more like 17mm or 18mm, 11/16 grabbed it pretty tight. My Jeep is a '90. Anything could have happened to it during the 19+ years I didn't know her.

I've got it torqued down well with the washers in place.

Thanks for the advice!
__________________
90 XJ-RC 3 in. Series II-31x10.5 Grabber AT2's-Soft 8's-Leigh's 60mm TB-K&N Rusty's tube-5.0 injectors
90xjlimited is offline   Reply With Quote
Unread 12-16-2011, 11:07 PM   #10
sAe23
Registered User
1995 XJ Cherokee

Join Date: Apr 2009
Location: Los Angeles / SFV, California
Posts: 2,316
What length did you adjust it to, and did you have to remove the jam nut to get it short enough??
sAe23 is offline   Reply With Quote
Unread 12-17-2011, 12:37 AM   #11
234hawgbelly
Registered User
2003 WJ

Join Date: Jun 2008
Location: San Francisco, California
Posts: 35
rugsucka is talking about the bolt diameter: 12mm, very close to a 1/2 inch SAE bolt.n The head of the bolt is 15mm hex and the nut (the one difficult to get to) is an 18mm hex nut, that's what I have in my 96 XJ
234hawgbelly is offline   Reply With Quote
Unread 12-17-2011, 07:31 PM   #12
90xjlimited
Registered User
1990 XJ Cherokee

Join Date: Oct 2010
Location: atlanta
Posts: 81
Quote:
Originally Posted by sAe23 View Post
What length did you adjust it to, and did you have to remove the jam nut to get it short enough??
I have no idea what length it is. The jam nut is in place, nowhere near where I would think about remove it to fit the bar.
__________________
90 XJ-RC 3 in. Series II-31x10.5 Grabber AT2's-Soft 8's-Leigh's 60mm TB-K&N Rusty's tube-5.0 injectors
90xjlimited is offline   Reply With Quote
Unread 12-17-2011, 07:38 PM   #13
90xjlimited
Registered User
1990 XJ Cherokee

Join Date: Oct 2010
Location: atlanta
Posts: 81
Quote:
Originally Posted by 234hawgbelly View Post
rugsucka is talking about the bolt diameter: 12mm, very close to a 1/2 inch SAE bolt.n The head of the bolt is 15mm hex and the nut (the one difficult to get to) is an 18mm hex nut, that's what I have in my 96 XJ
I thought rugsucka was referring to the bolt diameter. Those bolt/nut sizes are exactly what I have on the '90. 11/16th is real close to 18mm.

It took me 10 minutes to swap out the bars and about 2 hours of trying to get that one bolt snug.

On to something else that needs to be replaced............
__________________
90 XJ-RC 3 in. Series II-31x10.5 Grabber AT2's-Soft 8's-Leigh's 60mm TB-K&N Rusty's tube-5.0 injectors
90xjlimited is offline   Reply With Quote
Unread 12-17-2011, 08:20 PM   #14
DoctorTim
Registered User
1996 XJ Cherokee

Join Date: Sep 2010
Location: Huntington Beach, CA
Posts: 2,462
i welded a piece of 1/2" wide flat bar onto the nut and bent it so that it would stop on the small opening right under the mounting bolt. worked great.
__________________
http://www.jeepforum.com/forum/f11/96-xj-build-hybrid-1311863/

96 XJ, geared, 8.8, 5", 33s, dash
DoctorTim is offline   Reply With Quote
Unread 12-17-2011, 09:43 PM   #15
BriansCJ
Registered User
1994 XJ Cherokee

Join Date: Dec 2008
Location: South Jersey
Posts: 3,958
I got a new bolt/washers and lock nut. I managed to put the nut on finger tight, then put a 17mm box end wrench in there and got it over the nut. I used a regular craftsman wrench, I tried a different one and it didnt work. Also, if the bolt is too long, you might not be able to get the wrench out.
__________________
5 Speed XJ Build - Daily Driver & Weekend Wheeler
1978 CJ5 Resto, w/ heavy mods - Slow
BriansCJ is online now   Reply With Quote
