Thunderbird Coils + S10 Bastard Pack Lift

started at 10, just finished at 1:30. An extra hand would have been nice
Heres what i've done:

-Replaced springs with thunderbird springs.

-Added the thunderbird isolator which is necessary b/c the thunderbirdsprings have a wider diameter

-Redrilled hole for the trackbar

-Replaced the shocks

I didn't have coil compressors, but if you disconnect your shocks, sway bar, & trackbar, you won't need them to take the original springs out. I did need them however to put the thunderbird springs on, so I used my ratcheting tie downs. One is enough, you only need about 2" of compression.

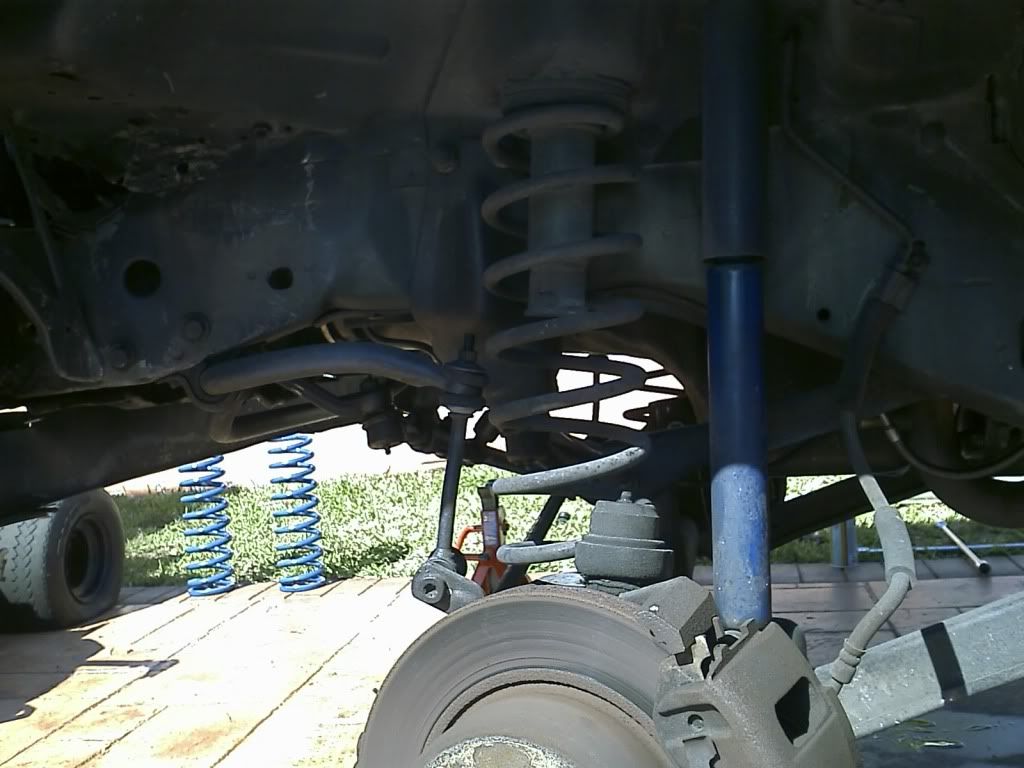

Before:

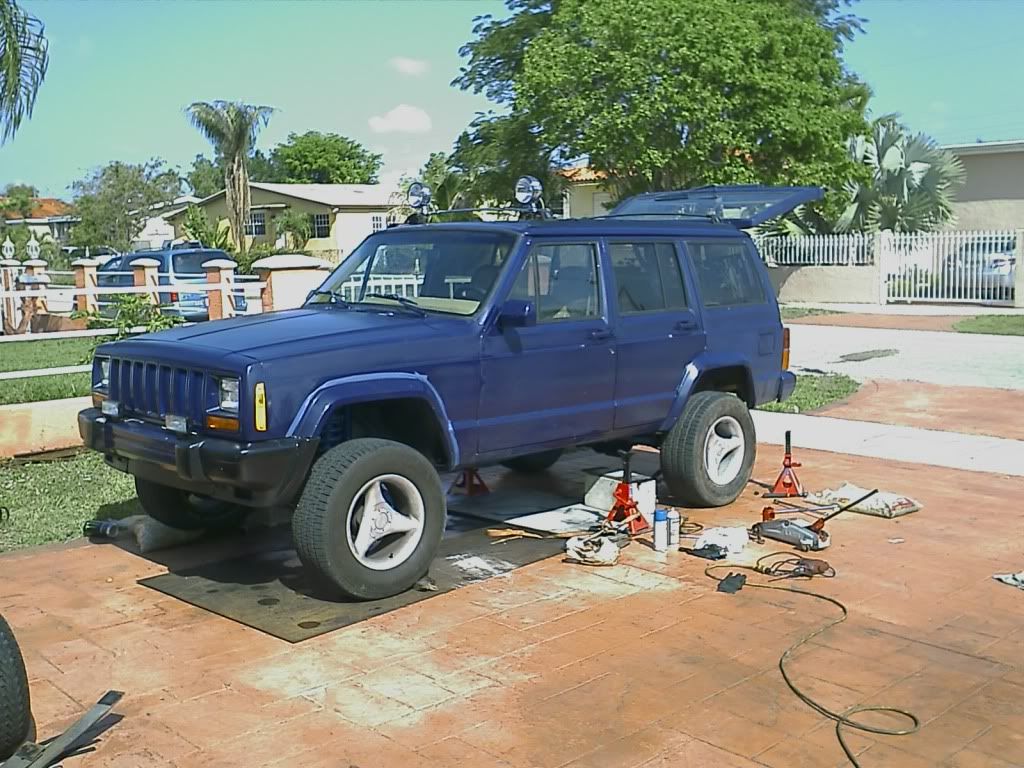

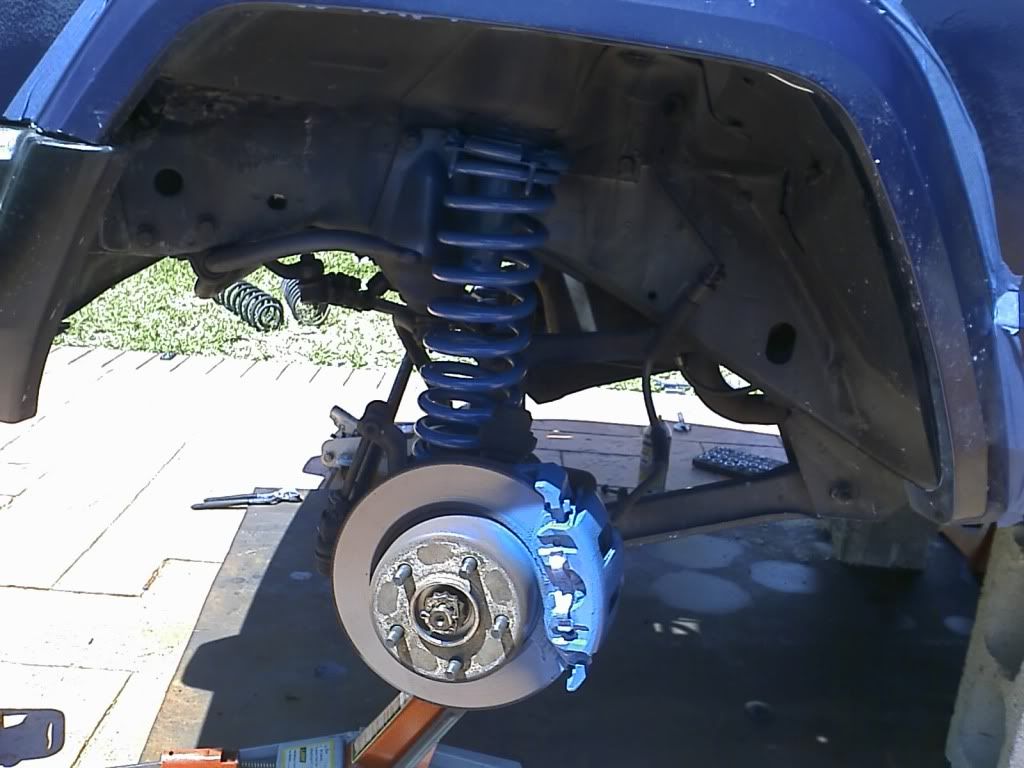

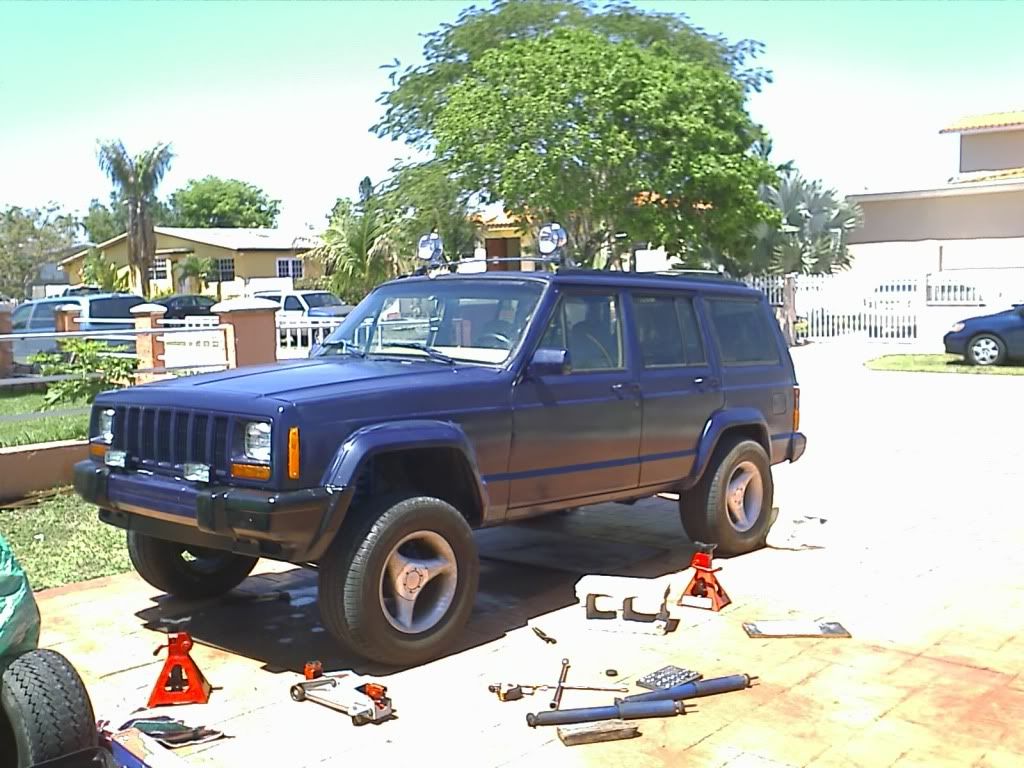

After



fedx95 is offline   Reply With Quote
Unread 04-02-2011, 11:50 AM   #2
fedx95
Registered User
1993 XJ Cherokee

Join Date: Nov 2010
Location: miami, fl
Posts: 996
i'm doing the rear when the sun comes down. The heat is unbearable, its like 86 degrees out and the humidity makes it worse. I have my s10 leaf springs. Should i keep the s10 overload or not? I don't do any towing, and I have air shocks which can be inflated if I have heavy stuff in the back.
fedx95 is offline   Reply With Quote
Unread 04-02-2011, 12:09 PM   #3
sicma99ot
Registered User
1998 XJ Cherokee

Join Date: Oct 2009
Location: Florida, Lake Wales
Posts: 273
looking good. yea it is pretty freaking hot but atleast its not raining anymore like it has been the last 3 days.
__________________
98 XJ 4x2 to 4x4 converted
sicma99ot is offline   Reply With Quote
Unread 04-02-2011, 12:28 PM   #4
Cherokee-at-16
Registered User
2000 XJ Cherokee

Join Date: Oct 2009
Location: Milford, CT
Posts: 1,041
nice wheels, very unique
__________________
2000 Cherokee Sport Build: http://www.jeepforum.com/forum/f22/2000-xj-build-slow-uneventful-1162913/
Cherokee-at-16 is offline   Reply With Quote
Unread 04-02-2011, 01:27 PM   #5
fedx95
Registered User
1993 XJ Cherokee

Join Date: Nov 2010
Location: miami, fl
Posts: 996
Cherokee at 16 - thanks, i'm having a hard time finding the centercap for one of them. One guy on ebay wants 70bux for it, no thank you

sicma99ot - seems like you live close, i have to wait till this sun gives a little. I'll roast

How do you adjust the steering geometry? My wheel is turned one full revolution to the left when the wheels are centered, so I have a super tight turning radius in one direction, and a crappy one in the other direction
fedx95 is offline   Reply With Quote
Unread 04-02-2011, 01:32 PM   #6
XJcruiser
Registered User
1999 XJ Cherokee

Join Date: Feb 2009
Location: San Antonio, Texas
Posts: 1,268
Pull off the pitman arm, center the steering wheel, and put it back on. I just left it for the alignment shop to do.
__________________
Friends dont let friends do DUBS.
XJcruiser is offline   Reply With Quote
Unread 04-02-2011, 01:47 PM   #7
Crunch
Registered User
2000 XJ Cherokee

Join Date: Apr 2005
Location: NW, PA
Posts: 299
Quote:
Originally Posted by fedx95 View Post
How do you adjust the steering geometry? My wheel is turned one full revolution to the left when the wheels are centered, so I have a super tight turning radius in one direction, and a crappy one in the other direction
Adjust the collar on the draglink up by the pitman arm.. Loosen the 2 nuts, and rotate it.. Have some one sit in the jeep and tell you when it centers... DO NOT PULL YOUR PITMAN ARM to center it.
__________________
New one-2000 XJ sport- Now has 3.5" lift, Hp 30/8.25 w/4.10's, V8 Zj steering
Totaled 3/18/10-'99 Black 2 door XJ DD, 3.5+" bastard lift.
SOLD-'98 TJ 4 banger 5 speed, 4.88's, Hp 30 ARB'd, S35 w/Detroit and truss, RK LA's, Kilby skids and LOTS of other junk. Should have kept it!
Traded for my XJ - '98 ZJ was pretty and built at one time- Hp30, 8.8 and 5" lift and other stuff.
Crunch is offline   Reply With Quote
Unread 04-02-2011, 02:11 PM   #8
keepishop
Registered User
1989 XJ Cherokee

Join Date: Oct 2008
Location: Seattle
Posts: 3,372
Do you have the year and trim level from the thunderbird donor? My parents are going to be scrapping a 97 v8 tbird soon and I'm got dibs on the springs if they will work.
__________________

Current: Black 89 limited, dakota bastard pack, zj coils, 1.5" lift, open cooling swap, bronco 2 carrier, rad fan switch
Rest in Pieces: Red 1990 cherokee dana30/8.25 - v8 zj coils & s10 bastard pack 2.5" lift - 31x10.5r15 tires - v8 zj tierod

Quote:
Originally Posted by talentjeep View Post
Bleed or Quit.
jf irc @ irc.freenode.net #jeepforum
keepishop is offline   Reply With Quote
Unread 04-02-2011, 02:16 PM   #9
xjfever
Web Wheeler

xjfever's Avatar
1995 XJ Cherokee

Join Date: Feb 2008
Location: north Ga.
Posts: 14,208
Quote:
Originally Posted by Crunch View Post
Adjust the collar on the draglink up by the pitman arm.. Loosen the 2 nuts, and rotate it.. Have some one sit in the jeep and tell you when it centers... DO NOT PULL YOUR PITMAN ARM to center it.
This is correct. You will also need to adjust the tierod to set the toe after the lift, or take it to the alignment shop. Doing it yourself is easy though, I just finished both on my TJ after installing my new d30 hp today.
__________________
  1. '95 XJ country edition, 4" coils/3/4" spacers, HD leafs with extra main added in, Ironman adjustable control arms, rough country shackles, aussie locker, JK rubicon shocks, 35" mudder's, soft 8's, cobra cb
  2. Sold'99 WJ limited, 4.7L, 3" IRO lift. Bilstein shocks, JK rubicon wheels, 255/70/17's, carolina driveshaft, IRO adjustable control arms, IRO adjustable A-arm
  3. Sold '00 TJ, 4" lift, rusty's adjustable control arms, skyjacker shocks, rock krawler adj. trac-bar,rugged ridge SYE and RE driveshaft, soft 8's, 35" mud king xt's,XJ HP D30 w/aussie locker, 4:88 yukon gears, hella 500's, rock crusher diff covers
4. 04 Dodge ram 1500 quadcab, yes, it has a hemi.
5. '08 BMW X3, Mods in progress.
xjfever is offline   Reply With Quote
Unread 04-02-2011, 07:28 PM   #10
fedx95
Registered User
1993 XJ Cherokee

Join Date: Nov 2010
Location: miami, fl
Posts: 996
thanks XJ cruiser xjfever, and crunch, will do. I was worried for a second. I wan't able to finish the rear, b/c i was looking for air lines all over miami, and no one sells them (for my air shocks). I came back at 6, but while sourcing out tools as well as a non cooperating drill bit, the sun came down, and I don't have lights. Meanwhile, the leaf spring is almost in place, the center pin just has to be fished through the hole on the main leaf. Then I can reassemble the drivers side and move on to the passenger
fedx95 is offline   Reply With Quote
Unread 04-02-2011, 07:31 PM   #11
fedx95
Registered User
1993 XJ Cherokee

Join Date: Nov 2010
Location: miami, fl
Posts: 996
keepishop, I'm almost positive thats an exact match as a donor thunderbird. I don't quite remember, but it was certainly the same generation thunderbird, and im pretty sure it was the v8.
Note:
I really like the new ride. The springs are much stiffer, and now my cherokee doesn't wallow like a water buffalo. You do feel more of the bumps, but its not harsh. Mind you, this was LA style - the front in the air, and the rear on the floor. I will give an update on ride qualities once the lift is completed

measured at the front, front the center of the hub to the bottom of the flare - 22"
fedx95 is offline   Reply With Quote
Unread 04-02-2011, 10:08 PM   #12
MCrock
Registered User
2001 XJ Cherokee

Join Date: Jan 2011
Location: Fort Collins, Colorado
Posts: 407
Um. I think you got paint on your rotors.
__________________
-Mark
MCrock is offline   Reply With Quote
Unread 04-03-2011, 06:06 AM   #13
fedx95
Registered User
1993 XJ Cherokee

Join Date: Nov 2010
Location: miami, fl
Posts: 996
i drove it around and it came right off. My brakes need replacing. I have to find the root of the problem. Violent shaking while braking.
fedx95 is offline   Reply With Quote
Unread 04-03-2011, 06:31 AM   #14
xjfever
Web Wheeler

xjfever's Avatar
1995 XJ Cherokee

Join Date: Feb 2008
Location: north Ga.
Posts: 14,208
That is usually caused by warped rotors.
__________________
  1. '95 XJ country edition, 4" coils/3/4" spacers, HD leafs with extra main added in, Ironman adjustable control arms, rough country shackles, aussie locker, JK rubicon shocks, 35" mudder's, soft 8's, cobra cb
  2. Sold'99 WJ limited, 4.7L, 3" IRO lift. Bilstein shocks, JK rubicon wheels, 255/70/17's, carolina driveshaft, IRO adjustable control arms, IRO adjustable A-arm
  3. Sold '00 TJ, 4" lift, rusty's adjustable control arms, skyjacker shocks, rock krawler adj. trac-bar,rugged ridge SYE and RE driveshaft, soft 8's, 35" mud king xt's,XJ HP D30 w/aussie locker, 4:88 yukon gears, hella 500's, rock crusher diff covers
4. 04 Dodge ram 1500 quadcab, yes, it has a hemi.
5. '08 BMW X3, Mods in progress.
xjfever is offline   Reply With Quote
Unread 04-03-2011, 06:29 PM   #15
fedx95
Registered User
1993 XJ Cherokee

Join Date: Nov 2010
Location: miami, fl
Posts: 996

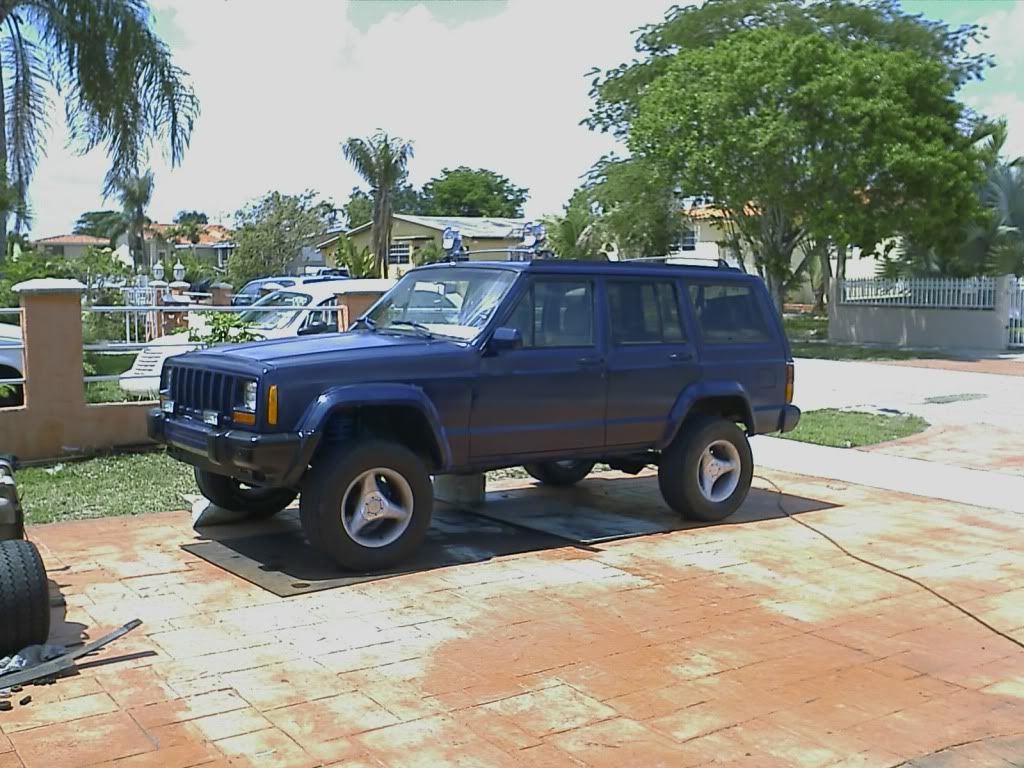

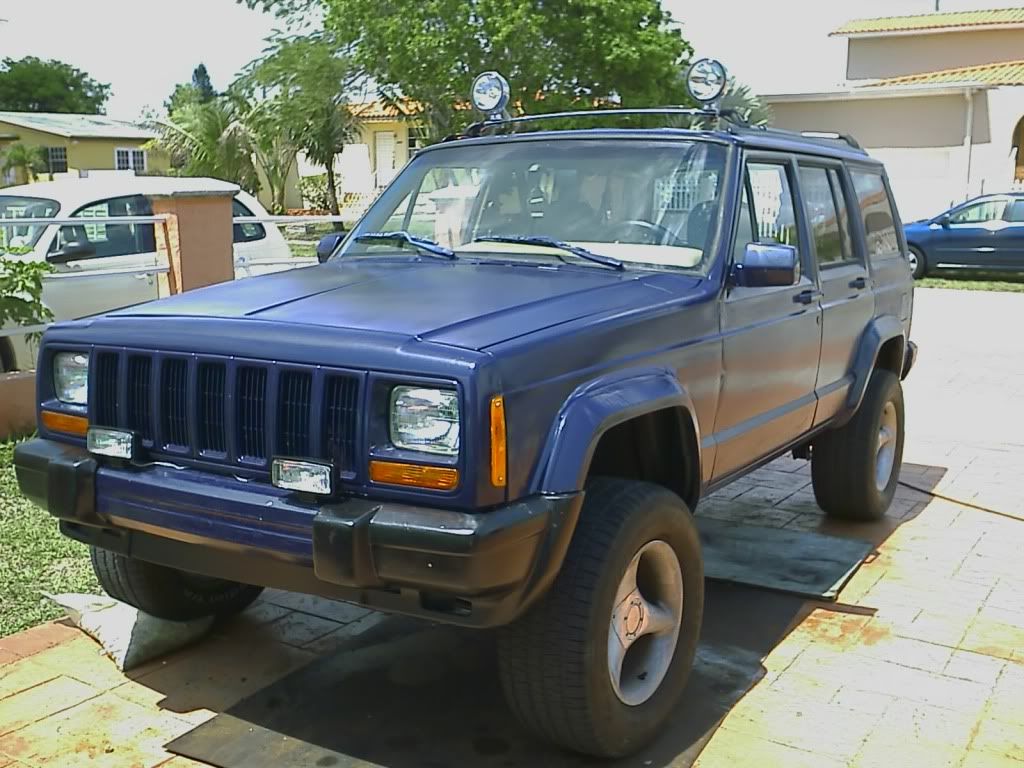

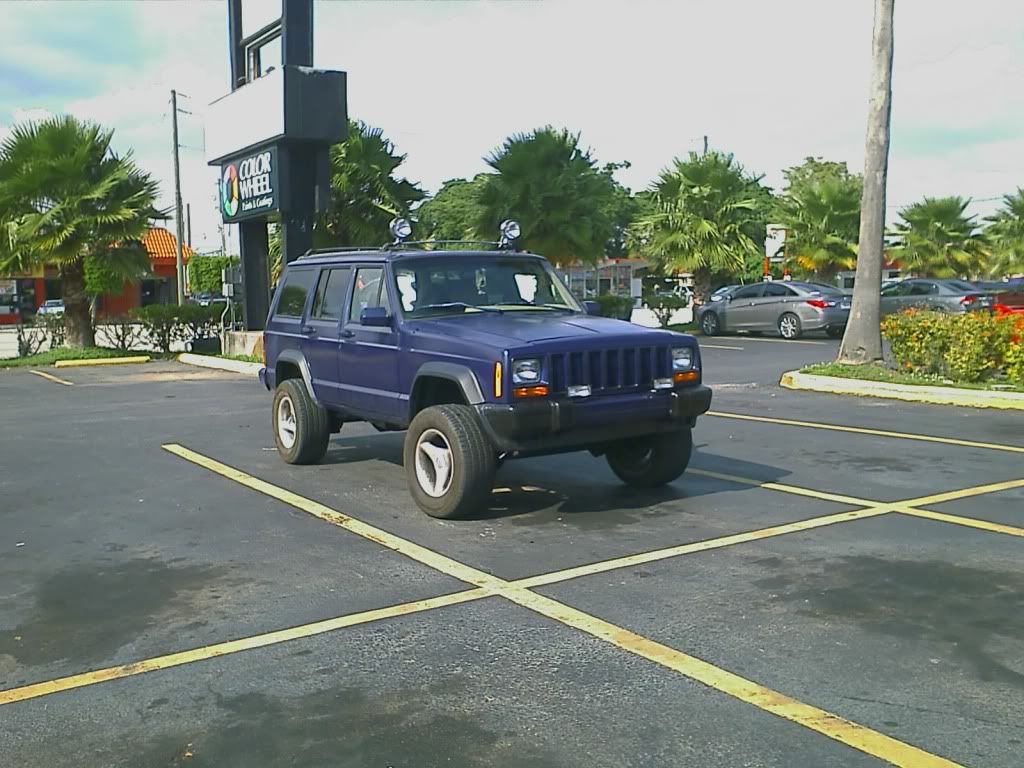

lift is done. here are some pictures





ride is a little harsh. But its not a boat anymore so it's a tradeoff.
I'm going to do a write up soon with instructions

Thanks XJFever. I was looking into that. Seems to fit the symptoms perfectly.
fedx95 is offline   Reply With Quote
