Suspension Lift component identification

After searching and reading and searching some more and not finding what I'm looking for, I've decided to start a new thread, which I really didn't want to do but here I am....

My 97 XJ Sport was lifted by the PO, but I don't have much information about what was actually done. I'm pretty sure it's a 3 1/2" lift but again, not sure what was done to lift the suspension. To me, all of the parts look stock because they're all covered in dirt and grime and I really don't know what's what under there. Does someone have a good diagram or maybe a flash video or something that shows how a lift is installed? Most threads about lift just show the Jeep from a front or side view of what it looks like lifted with larger tires. The company websites for lift kits show what parts come in the box but I don't know where they go, which doesn't help me identify what I have installed on my Jeep.

A couple weeks ago I had it on jacks and decided to lube everything that had lube points with grease. Most of the rubber boots that seems to expand when grease is squeezed in are cracked and has grease just coming right out of it. Does this need to be replaced? If so, what is it called?

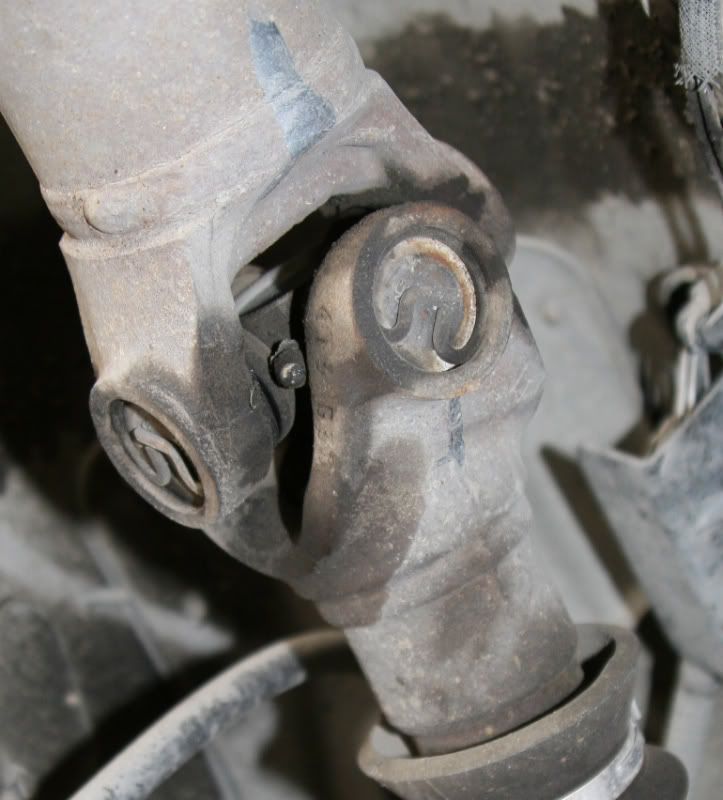

Also, I'm unsure if my driveshaft angles are okay/safe. My CV or U-joints have got to be wearing down because I can't grease a couple of them because of the angle, I think. Due to the angle, the grease fittings are off to one side and just enough to make it impossible to fit any attachment onto them. I thought about buying the needle attachment but not sure if it will work in this situation.

I keep reading about DW, and wheel bearing play, front end alignment, and what to check but honestly, it's starting to get a little overwhelming because I don't know where each component is located on the vehicle. I have a FSM and a Hayne's but I still get confused, and now frustrated.

I rotated my tires after changing the rear drum brakes last weekend, which haven't been rotated since installed almost 3 years ago...terrible, I know. And now I'm thinking they need to be rebalanced but every time I do a search for a local alignment shop, the reviews are horrible.

After reading for hours and hours, it's all starting to look like a bunch of words in a language I don't understand. I'm tempted to bring my XJ to some kind of shop or something, put it on a lift and have someone point everything out to me so I'll know wth is going on and what things are called.

If anyone has pictures from under their rig and wouldn't mind adding text or something I would greatly appreciate it! Wow, I feel like such a loser, lol.
