Snapped the head off the NSS module

I was swapping out my NSS and I snapped the head off the only bolt holding it on. Any suggestions on how I can get the rest of the bolt out? It's a very tight spot and only about 1/4" of thread sticking out. Any help is appreciated.

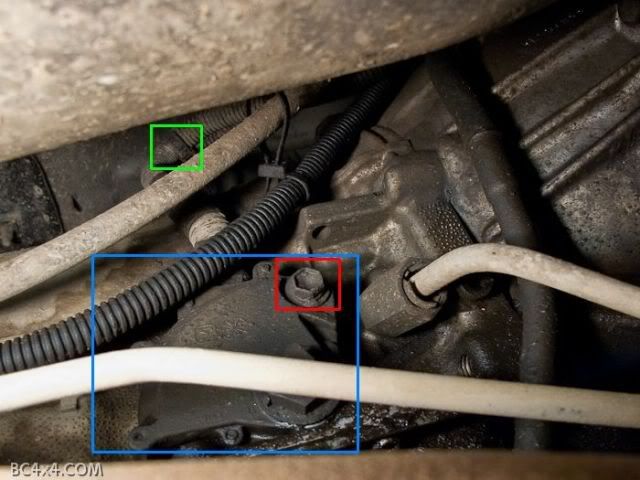

For reference it's the red box



2001 Silverstone Metallic Classic XJ
Build Thread
April 2014 & 2015 COTM
MOBBiN is offline
Sponsored Links
Advertisement

post #2 of 15 Old 05-31-2013, 09:34 PM
wgirvine
Registered User
1992 XJ Cherokee

Join Date: Oct 2007
Location: Rosamond, CA
Posts: 652
How to get the bolt out? With a reversible, 90-degree drill and a left-handed drill bit. Don't have one of those? Then you may have no choice but to drop the transmission.

The road goes on forever, the party never ends....
wgirvine is offline
post #3 of 15 Old 06-01-2013, 12:26 AM Thread Starter
MOBBiN
Mall Crawler Level 3

MOBBiN's Avatar
2001 XJ Cherokee

Join Date: Mar 2010
Location: Palmer
Posts: 1,202
So far on the other forum I asked I've gotten the responses of: easy out or weld a nut on it. Ill see if an easy out works

2001 Silverstone Metallic Classic XJ
Build Thread
April 2014 & 2015 COTM
MOBBiN is offline
post #4 of 15 Old 06-01-2013, 02:45 AM
sAe23
Registered User
1995 XJ Cherokee

Join Date: Apr 2009
Location: Los Angeles / SFV
Posts: 3,275
Good luck removing the broken bolt. Maybe dropping the exhaust will free up some space?
Be careful when prying the unit off that shaft. The "fingers" that the nut tightens up on can break off easily.
sAe23 is offline
post #5 of 15 Old 06-01-2013, 05:52 AM
cruiser54
Web Wheeler

cruiser54's Avatar
1990 MJ Comanche

Join Date: Oct 2009
Location: Prescott
Posts: 11,034
If you've got 1/4" sticking out, you've got something to grab or weld on to. I'm guessing you don't have a welder. The welding deal works well because not only do you get something to grip the broken piece, but the heat from welding the nut on usually releases the rust and crap binding the threaded piece into the aluminum.

If you own a Renix Jeep, you'll want to check this out.

An index to over 30 write-ups can be found in the link below

www.cruiser54.com

My Jeep Technical Photos

http://www.cherokeeforum.com/g/album/1725214
cruiser54 is offline
post #6 of 15 Old 06-01-2013, 11:31 AM
wgirvine
Registered User
1992 XJ Cherokee

Join Date: Oct 2007
Location: Rosamond, CA
Posts: 652
How are you going to drill the hole for the Easy-Out?

The road goes on forever, the party never ends....
wgirvine is offline
post #7 of 15 Old 06-05-2013, 02:31 PM Thread Starter
MOBBiN
Mall Crawler Level 3

MOBBiN's Avatar
2001 XJ Cherokee

Join Date: Mar 2010
Location: Palmer
Posts: 1,202
Quote:
Originally Posted by wgirvine View Post
How are you going to drill the hole for the Easy-Out?
I went this route:

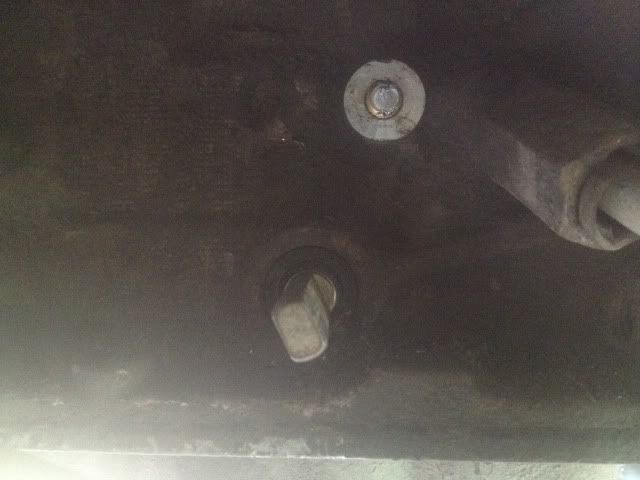

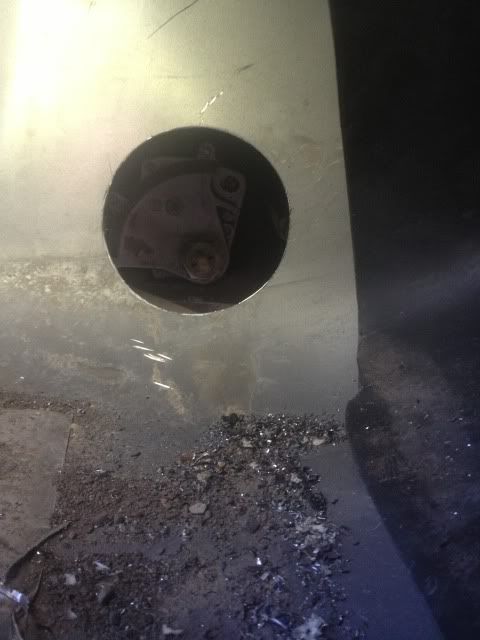

I used a 3.25" hole saw

There was yellow locktite on it

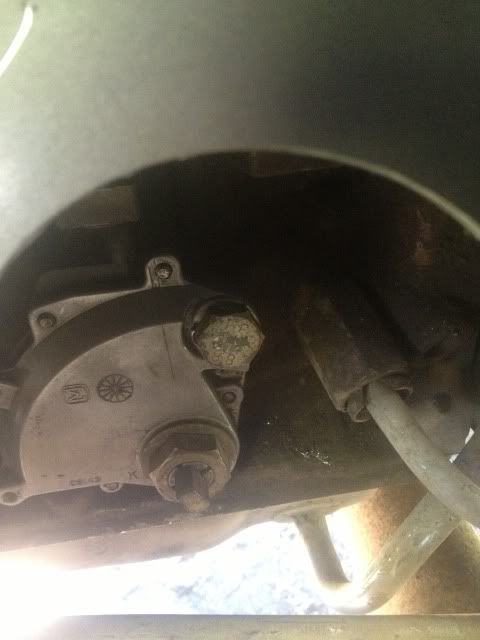

messed up a few threads so I drilled and tapped a bigger hole


2001 Silverstone Metallic Classic XJ
Build Thread
April 2014 & 2015 COTM
MOBBiN is offline
post #8 of 15 Old 06-05-2013, 04:45 PM
sAe23
Registered User
1995 XJ Cherokee

Join Date: Apr 2009
Location: Los Angeles / SFV
Posts: 3,275
What is the metal plate you drilled a hole through??
sAe23 is offline
post #9 of 15 Old 06-05-2013, 06:45 PM Thread Starter
MOBBiN
Mall Crawler Level 3

MOBBiN's Avatar
2001 XJ Cherokee

Join Date: Mar 2010
Location: Palmer
Posts: 1,202
The passengers side tranny tunnel.

2001 Silverstone Metallic Classic XJ
Build Thread
April 2014 & 2015 COTM
MOBBiN is offline
post #10 of 15 Old 06-05-2013, 11:33 PM
sAe23
Registered User
1995 XJ Cherokee

Join Date: Apr 2009
Location: Los Angeles / SFV
Posts: 3,275

sAe23 is offline
post #11 of 15 Old 06-06-2013, 11:44 AM Thread Starter
MOBBiN
Mall Crawler Level 3

MOBBiN's Avatar
2001 XJ Cherokee

Join Date: Mar 2010
Location: Palmer
Posts: 1,202
It's going to be patched, sealed then bed lined. Shouldn't be an issue

2001 Silverstone Metallic Classic XJ
Build Thread
April 2014 & 2015 COTM
MOBBiN is offline
post #12 of 15 Old 06-06-2013, 01:35 PM
Jeep_Tech
Registered User
2004 TJ Wrangler

Join Date: Jun 2013
Location: Aurora
Posts: 141
wow guess you dont hit water much
Jeep_Tech is offline
post #13 of 15 Old 06-06-2013, 01:59 PM Thread Starter
MOBBiN
Mall Crawler Level 3

MOBBiN's Avatar
2001 XJ Cherokee

Join Date: Mar 2010
Location: Palmer
Posts: 1,202
It's a large drain hole! Haha it'll be patched before I go threw anything deep.

2001 Silverstone Metallic Classic XJ
Build Thread
April 2014 & 2015 COTM
MOBBiN is offline
post #14 of 15 Old 06-06-2013, 06:03 PM
sAe23
Registered User
1995 XJ Cherokee

Join Date: Apr 2009
Location: Los Angeles / SFV
Posts: 3,275
Quote:
Originally Posted by MOBBiN View Post
It's going to be patched, sealed then bed lined. Shouldn't be an issue
My icon-ic reply referred to Me not realizing the fact, not that you did it
sAe23 is offline
post #15 of 15 Old 06-06-2013, 07:23 PM Thread Starter
MOBBiN
Mall Crawler Level 3

MOBBiN's Avatar
2001 XJ Cherokee

Join Date: Mar 2010
Location: Palmer
Posts: 1,202
Gotcha lol with the hole still being there its like having a second heater on full blast

2001 Silverstone Metallic Classic XJ
Build Thread
April 2014 & 2015 COTM
MOBBiN is offline
