shifter cable problems aw4

a while ago i had a u joint fail, i made a separate thread about it. a week ago or so i got a new shifter cable from the dealer, installed it but now my gear ranges are messed up. i still have part, and reverse, but neutral is also reverse, drive is neutral. im not sure about 3rd and 1-2 it seems that 3rd is drive, and 1-2 is 3rd. im wondering if there was a certain gear that the trans should have been in before i installed the cable? also it shifts high 3k. i have been told that "resetting" the downshift cable from the button on top of the valve cover might help with the high shifting. would that work?

__________________

95 green 4dr. natural pinstriping, 4.5inch lift, 33 mud terrains, not much else, but working on it
front bumper 99%(need a winch), roof rack 35%, rockers 99%, rear swing out bumper 90%, trip to Ohio 0%
mr_imposible is offline   Reply With Quote Quick reply to this message
Unread 03-12-2010, 09:46 AM   #2
mr_imposible
Registered User
1995 XJ Cherokee

Join Date: Mar 2009
Location: Lebanon, NH
Posts: 235
OEM ranges
current ranges

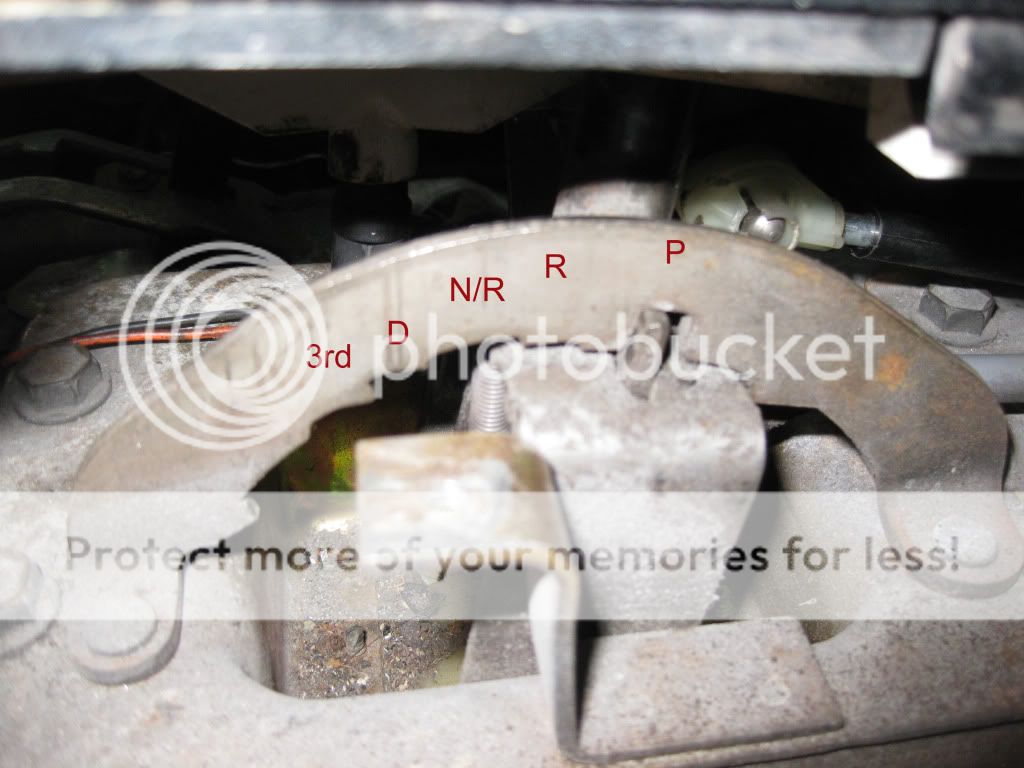

well here are some pictures of the shifter if it helps.
__________________

95 green 4dr. natural pinstriping, 4.5inch lift, 33 mud terrains, not much else, but working on it
front bumper 99%(need a winch), roof rack 35%, rockers 99%, rear swing out bumper 90%, trip to Ohio 0%
mr_imposible is offline   Reply With Quote Quick reply to this message
Unread 03-12-2010, 12:38 PM   #3
CJ7-Tim
Real Jeeps have dents.

CJ7-Tim's Avatar
2000 XJ Cherokee

Join Date: Apr 2002
Location: out in the garage - Minneapolis, Minnesota
Posts: 21,809
ADJUSTMENTS GEARSHIFT CABLE

Check adjustment by starting the engine in Park
and Neutral. Adjustment is OK if the engine starts
only in these positions. Adjustment is incorrect if the
engine starts in one but not both positions. If the
engine starts in any position other than Park or Neutral,
or if the engine will not start at all, the park/
neutral position switch (NSS) may be faulty.

Gearshift Adjustment Procedure
(1) Shift transmission into Park.
(2) Raise vehicle.
(3) Release cable adjuster clamp (at transmission
end of cable) to unlock cable.
(4) Unsnap cable from cable mounting bracket on
transmission (Fig. 300).
(5) Slide cable eyelet off transmission shift lever.
(6) Verify transmission shift lever is in Park
detent by moving lever fully rearward. Last rearward
detent is Park position.
(7) Verify positive engagement of transmission
park lock by attempting to rotate propeller shaft.
Shaft will not rotate when park lock is engaged.
(8) Slide cable eyelt onto transmission shift lever.
(9) Snap shift cable adjuster into mounting
bracket on transmission.
(10) Lock shift cable by pressing cable adjuster
clamp down until it snaps into place.
(11) Lower vehicle and check engine starting.
Engine should start only in Park and Neutral.

BRAKE TRANSMISSION SHIFT INTERLOCK
CABLE ADJUSTMENT

(1) Shift transmission into PARK.
(2) Remove shift lever bezel and console screws.
Raise bezel and console for access to cable.
(3) Pull cable lock button up to release cable (Fig.
301).
(4) Turn ignition switch to LOCK position.
(5) Use a spacer to create a one millimeter gap
between the shifter pawl and top of the shift gate.
(6) Pull cable forward. Then release cable and
press cable lock button down until it snaps in place.
(7) Check adjustment as follows:
(a) Check movement of release shift handle button
(floor shift) or release lever (column shift). You
should not be able to press button inward or move
column lever.
(b) Turn ignition switch to RUN position.
(c) Shifting out of park should not be possible.
(d) Apply the brake and attempt to shift out of
PARK. Shifting should be possible.
(e) While the transmission is shifted out of
PARK, release the brake and attempt to shift
through all gears. Release the shift button at least
once during this procedure. The ignition key should
not go to the LOCK position.
(f) Return transmission to the PARK position
without applying the brake.
(8) Move shift lever back to PARK and check ignition
switch operation. You should be able to turn
switch to LOCK position and shift lever release button/
lever should not move.

TRANSMISSION THROTTLE VALVE (Kickdown) CABLE
ADJUSTMENT

(1) Shift transmission into Park, shut engine off
and raise hood.
(2) Press cable release button (Fig. 302).
(3) Push cable conduit back into cable sheath as
far as possible (Fig. 303).
(4) Rotate lever on throttle body to wide open
throttle position. Cable will ratchet to correct adjustment
point as lever is rotated (Fig. 303)
__________________
.

Between 2009 when Obama took office, and 2013, median annual household incomes have fallen by more than $2,100.

Progressive Liberalism: Bringing you new Healthcare ideas so wonderful, they have to include mandatory participation ......

Originally Posted by Ronald W. Reagan: Government is not the solution to our problems; Government is the problem.
CJ7-Tim is offline   Reply With Quote Quick reply to this message
Unread 03-12-2010, 12:39 PM   #4
mr_imposible
Registered User
1995 XJ Cherokee

Join Date: Mar 2009
Location: Lebanon, NH
Posts: 235
is that from the FSM? but big thanx i will try
__________________

95 green 4dr. natural pinstriping, 4.5inch lift, 33 mud terrains, not much else, but working on it
front bumper 99%(need a winch), roof rack 35%, rockers 99%, rear swing out bumper 90%, trip to Ohio 0%
mr_imposible is offline   Reply With Quote Quick reply to this message
Unread 08-01-2010, 10:14 AM   #5
fishermanfloyd
Registered User
1997 XJ Cherokee

Join Date: Jul 2006
Location: In the pines
Posts: 206
I'm having the exact same problem, but the adjustment does not correct the problem. What else could it be?
__________________
Quote:
Originally Posted by afbond03 View Post
I am trimmed and hope to get a pair one day.
fishermanfloyd is offline   Reply With Quote Quick reply to this message
