Serpentine Belt Coming Off

Hey guys,

So my buddy was driving down the street when the dash lit up like a christmas tree and everything went haywire. Well turns out the belt has somehow come loose and shredded itself into three ribbons where became tangled in the fan and crankshaft pulley. Today we managed to get the old belt off an put on the new one on and fire it up, but after about a minute of running, the fan started clanking, so we shut it off. The belt was coming loose AGAIN and was riding on the edge of the alternator pulley. The fan was bent downwards, causing it to barely strike the crankshaft pulley. So something is outta wack somewhere. Anybody got an good ideas?

aldersonfilm is offline   Reply With Quote Quick reply to this message
Unread 10-13-2014, 07:29 AM   #2
M35A2
Registered User
1995 XJ Cherokee

Join Date: Jun 2012
Location: Monrovia, California
Posts: 715
It sounds like the fan bearing went away or the damper has separated. See if you can wiggle the fan.
__________________
Volunteer, American Society of Military History. http://tankland.com/
Just got a 1989 YJ too!
M35A2 is offline   Reply With Quote Quick reply to this message
Unread 10-13-2014, 09:41 AM   #3
Paradise XJ
Registered User
1990 XJ Cherokee

Join Date: Jan 2007
Location: Paradise, CA, Northern California
Posts: 2,222
It is almost certainly your harmonic balancer (crank pulley dampner) separating. The pulley is mad of two pieces of steel, with a hard rubber sleeve in between them. The rubber shrinks and expands over time causing it to allow the two pieces of steel to "walk" in or out or both. The fix is to replace the whole pulley.

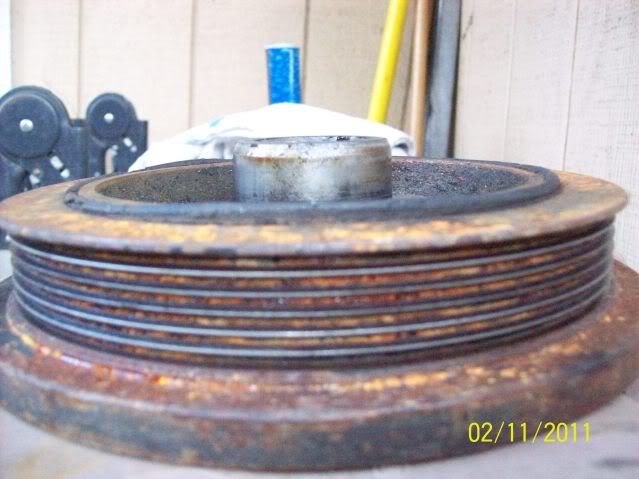

If it looks like this, it's toast...or almost toast. If it looks WORSE than this, you will not be able to keep belts on there and eventually could wear a hole in your timing cover. Climb under there and take a look.

__________________
1990 XJ Laredo - White & Chrome
1988 MJ Pioneer - Metallic Green and Black
¢
Paradise XJ is offline   Reply With Quote Quick reply to this message
Unread 10-13-2014, 03:10 PM   #4
aldersonfilm
Registered User
1998 TJ Wrangler

Join Date: Jun 2012
Location: Pasadena, CA
Posts: 189
Both of these are good suggestions, but if it's the harmonic balancer, why is the belt actually coming off again? It is slipping to the edge of the fan pulley and it is riding on the rim of the alternator pulley.
aldersonfilm is offline   Reply With Quote Quick reply to this message
Unread 10-13-2014, 03:21 PM   #5
AZ Jeff
Web Wheeler
2014 JK Wrangler

Join Date: Sep 2005
Location: San Tan Valley Arizona, AZ
Posts: 7,464
Quote:
Originally Posted by aldersonfilm View Post
Both of these are good suggestions, but if it's the harmonic balancer, why is the belt actually coming off again? It is slipping to the edge of the fan pulley and it is riding on the rim of the alternator pulley.
Balancer has taller ribs on inner/outer edges to force belt into position. It's pulling the belt in/out and causing it to become shredded on taller edges.
__________________
AZ-Jeff
1992 XJ -- stock (RIP)
2000 XJ -- lots of basic mods. Sold to fellow forum member. I miss it.
2014 JK -- the project is just starting!
AZ Jeff is offline   Reply With Quote Quick reply to this message
Unread 10-14-2014, 01:16 PM   #6
Paradise XJ
Registered User
1990 XJ Cherokee

Join Date: Jan 2007
Location: Paradise, CA, Northern California
Posts: 2,222
Quote:
Originally Posted by aldersonfilm View Post
, but if it's the harmonic balancer, .
Crawl under there and look at the pulley
__________________
1990 XJ Laredo - White & Chrome
1988 MJ Pioneer - Metallic Green and Black
¢
Paradise XJ is offline   Reply With Quote Quick reply to this message
Unread 10-14-2014, 01:39 PM   #7
Ajax1972
Registered User
1997 XJ Cherokee

Join Date: May 2006
Location: North Carolina
Posts: 34
Cash money it's the Harmonic Balancer. I just did this last weekend after Old Blue left me on the side of the road on my way to the airport. There's some threads about changing it out and it took me (even after doing some STUPID things I really know not to do) only about 2 hours.

If you have the time, Amazon has a good price on a pulley and Gatorback belts. You'll need those two, an oil seal for about 8-10 bucks and a harmonic balancer puller. Look in the el cheapo tools at Harbor Freight or Advance. You'll need the 15 MM wrench for the idler pulley and a 3/4 socket for the bolt holding it on the front of the shaft.
