S-10 Hybrid Leafpack build....

OOPS!!

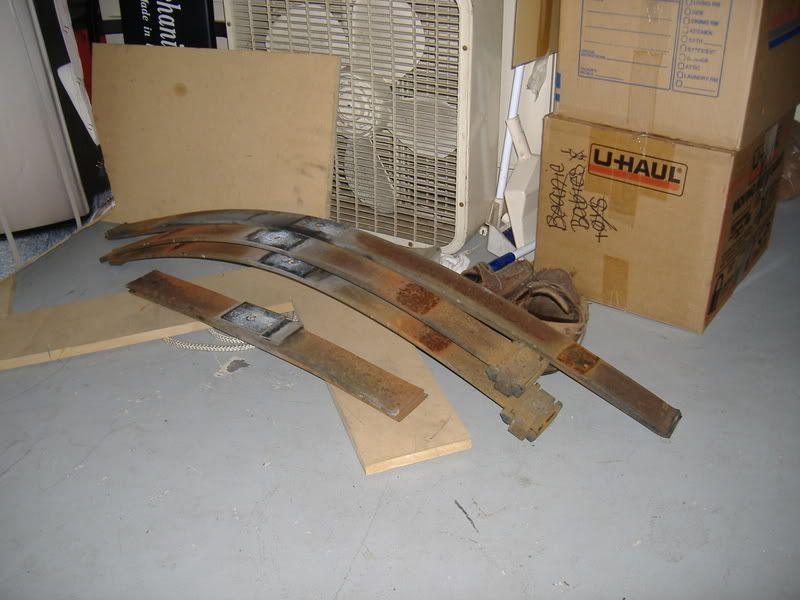

These '93 S-10 2wd rear leaf packs seem to have lost their eyes, shackles, and centering pins....







To be continued tomorrow, once I've acquired U-bolts and leaf spring clamps....

lost honda pro is offline   Reply With Quote
Unread 08-06-2007, 03:54 PM   #2
mrboom
Registered User
1995 XJ Cherokee

Join Date: Jul 2006
Location: Virginia
Posts: 803
Oh no.. What could of happened to them?

HAHA..
__________________
My Jeep Hates Me..

95 Sport. 4.5 homebrew lift.. *Bastard Pack and loving it*

Everytime a Commander Roles off the Lot, a Cherokee Dies.
mrboom is offline   Reply With Quote
Unread 08-06-2007, 04:33 PM   #3
jmundale
Registered User
1981 J-Series Truck

Join Date: Oct 2006
Location: Sturgeon Bay WI
Posts: 400
nice
... beware, its a stiff ride with those guys... they are way more beefy than the stock springs. And they can make big liftie lift
__________________
[SIZE="3"]live free or die[/SIZE]
[SIZE="1"]98xxx, 33's, 4.10's, and plenty of flaky red stuff[/SIZE]
jmundale is offline   Reply With Quote
Unread 08-06-2007, 04:37 PM   #4
CKUPQ
Registered User
1999 XJ Cherokee

Join Date: Sep 2006
Location: Cedar Rapids, IA 52402
Posts: 513
A torch and some 5/16'' bolts would have given you spring clamps. At least that's what I did to the stock S-10 spring clamps.
__________________
Either our language or our culture needs to be expanded/improved so that there is a polite way to say:
Stop talking now, because I am going to stop listening.
99 XJ 3" Rusty's coils DT3000 front shocks, 3" S-10 bastard back, Homemade T-case drop, recovery points front and rear.
CKUPQ is offline   Reply With Quote
Unread 08-06-2007, 06:09 PM   #5
lost honda pro
Registered User
1997 XJ Cherokee

Join Date: Mar 2007
Location: Gainesville, FL
Posts: 813
Quote:
Originally Posted by mrboom
Oh no.. What could of happened to them?

HAHA..
haha, i dont know dude... my 4.5" angle grinder musta ate 'em


Quote:
Originally Posted by jmundale
nice
... beware, its a stiff ride with those guys... they are way more beefy than the stock springs. And they can make big liftie lift
i was only going to use the chopped main leaf, and the S-10 overload instead of the wimpy XJ overload... still think its too much? and does that mean no flexy?

Quote:
Originally Posted by CKUPQ
A torch and some 5/16'' bolts would have given you spring clamps. At least that's what I did to the stock S-10 spring clamps.
autozone stocks spring clamps and the 3" u-bolts, so i think ill be ok. good idea tho!




will have updates tomorrow
lost honda pro is offline   Reply With Quote
Unread 08-06-2007, 06:18 PM   #6
cc cherokee
Registered User
1988 YJ Wrangler

Join Date: Dec 2005
Location: cape cod, ma
Posts: 401
I used the same 3 leaf packs. Put my 3rd XJ leaf under them and have 3.5" over stock. I initially put in the S10 overload and got 4", but not very good flex. I pulled the overload and moved the front and rear spring clamps all the way the axle. Stuffs nicely now. Good luck!
__________________
Cape Cod Jeep Club
cc cherokee is offline   Reply With Quote
Unread 08-06-2007, 06:39 PM   #7
lost honda pro
Registered User
1997 XJ Cherokee

Join Date: Mar 2007
Location: Gainesville, FL
Posts: 813
Quote:
Originally Posted by cc cherokee
I used the same 3 leaf packs. Put my 3rd XJ leaf under them and have 3.5" over stock. I initially put in the S10 overload and got 4", but not very good flex. I pulled the overload and moved the front and rear spring clamps all the way the axle. Stuffs nicely now. Good luck!
3.5" OVER stock? damn...

my prob is that with the storage box in back, and with the sag, im like 1.5-2" low, and the leafs are almost inverting. so i just want get those 2" back, and match a 1.75" coil spacer in front. so 1.75" over stock would be perfect, but i needy the flexy!

thanks for the input man!
lost honda pro is offline   Reply With Quote
Unread 08-06-2007, 07:03 PM   #8
cc cherokee
Registered User
1988 YJ Wrangler

Join Date: Dec 2005
Location: cape cod, ma
Posts: 401
Quote:
Originally Posted by lost honda pro
... but i needy the flexy!
flexy is sexy
__________________
Cape Cod Jeep Club
cc cherokee is offline   Reply With Quote
Unread 08-06-2007, 07:26 PM   #9
lost honda pro
Registered User
1997 XJ Cherokee

Join Date: Mar 2007
Location: Gainesville, FL
Posts: 813
Quote:
Originally Posted by cc cherokee
flexy is sexy
so how much below stock was yours before the lift? i.e., how much total lift did u get, from where you were to now?

any other opinions are appreciated.
lost honda pro is offline   Reply With Quote
Unread 08-06-2007, 07:57 PM   #10
balloo93
Little Red Menace

balloo93's Avatar
1993 XJ Cherokee

Join Date: Aug 2002
Location: Austin, TX
Posts: 20,822
I ran the S10 hybrid packs like this:

XJ main -- S10 Main -- Second S10 leaf -- Third XJ leaf -- S10 load leaf

That netted real close to 4.25" of lift. I took the S10 overload out and they settled down to about 4 even. I just used the XJ overload on them. Flex is so-so though I haven't had a REAL chance to work them out.

I read a write up on NAXJA about using Dodge van main leafs to get an extra inch or two of added length in the rear. I have the TnT boomerang shakles on now and the hybrid pack is firm enough to keep the shakles damn near upright. The added length of the Dodge main will put a little preload and flatten the pack a tiny bit. That should translate to a softer ride.

I'm also looking for MJ or BroncoII packs as well. They are said to be thinner springs and will offer the same lift, but with better flex and ride.

This just screwing around in the driveway after the shakle install.




Jack ran out of travel even with the 4x4 under it. I really need to get her out and stretch her legs.
__________________
93 Sport
Beer is proof that God loves us and wants us to be happy............Ben Franklin


Specs in Profile.

http://www.cardomain.com/ride/325707/1
http://www.cardomain.com/ride/2406854/1
balloo93 is offline   Reply With Quote
Unread 08-06-2007, 08:24 PM   #11
black2door
Web Wheeler

black2door's Avatar
1994 XJ Cherokee

Join Date: Aug 2006
Location: Springfield, MO
Posts: 1,895
Fancy balloo



I have the bastard pack and it rides great.
__________________
-Andrew
2012 RAM 1500 - Hemi


1994 Black XJ 2 door - 4.0 - Auto - Making a wheelin rig
Beefy steering - 33" Bighorns - 3" bastard lift - Welded rear

black2door is offline   Reply With Quote
Unread 08-06-2007, 08:46 PM   #12
Shoobie
Registered User
1989 XJ Cherokee

Join Date: Mar 2006
Location: Reno, Nevada
Posts: 67
I'm looking to build a bastard pack for ~2" of lift as well. looking forward to seeing your results!
Shoobie is offline   Reply With Quote
Unread 08-06-2007, 10:09 PM   #13
cc cherokee
Registered User
1988 YJ Wrangler

Join Date: Dec 2005
Location: cape cod, ma
Posts: 401
Quote:
Originally Posted by lost honda pro
so how much below stock was yours before the lift? i.e., how much total lift did u get, from where you were to now?
When I first lifted with a 2.5" RE full length AAL, it was less than 1" below stock.
I trimmed last month but before that, it was 20.5" from wheel center to bottom of stock flare, so 3.5" over.
When I was preparing to do the S10 swap I heard from a few folks around here that your XJ main ought to be in good shape, not inverted. I would be concerned if the packs were inverted at the shackle end. The forward main eye shouldn't be a big deal b/c you can cut the S10 main to length so that it can sit under the eye. My S10 main doesn't quite reach the shackle and I've been watching it to see if the XJ main starts to invert. OK so far... Here's a pic from when the overload was still in.
__________________
Cape Cod Jeep Club
cc cherokee is offline   Reply With Quote
Unread 08-07-2007, 08:11 PM   #14
lost honda pro
Registered User
1997 XJ Cherokee

Join Date: Mar 2007
Location: Gainesville, FL
Posts: 813
so, got the leafs in, and results were JUST AS I HAD HOPED!

i used just the chopped main S-10 leaf, between the main XJ leaf and the last three XJ leafs. got new centering pins (grade 8, ~$4) and leaf spring clamps (~$14, autozone stocks em), so with the S-10 leaf packs ($20), its a total of $38.

ride is really not much different, little stiffer, but i still think it will flex fine. from the ground, my middle of the OE flare measurement went from 30.5" to 33.5". this yields a net gain of 3", but it was about 1.5" low from the flat leafs, so i'm calling it right at 1.5/1.75" of over-stock-gain. (should match some 1.75" spacers nicely)

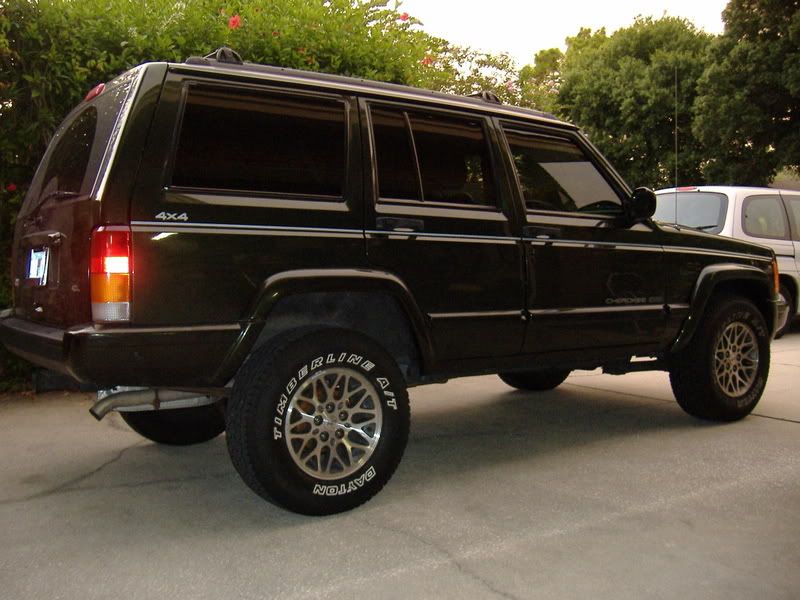

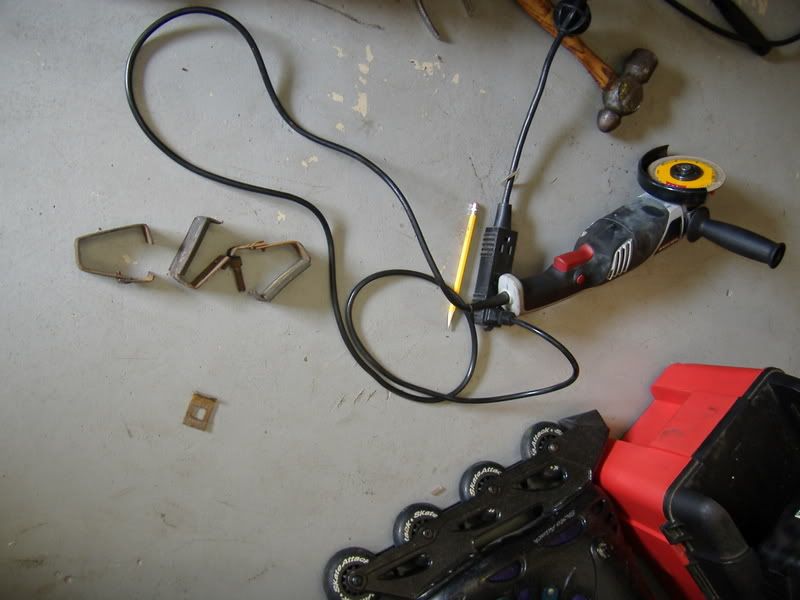

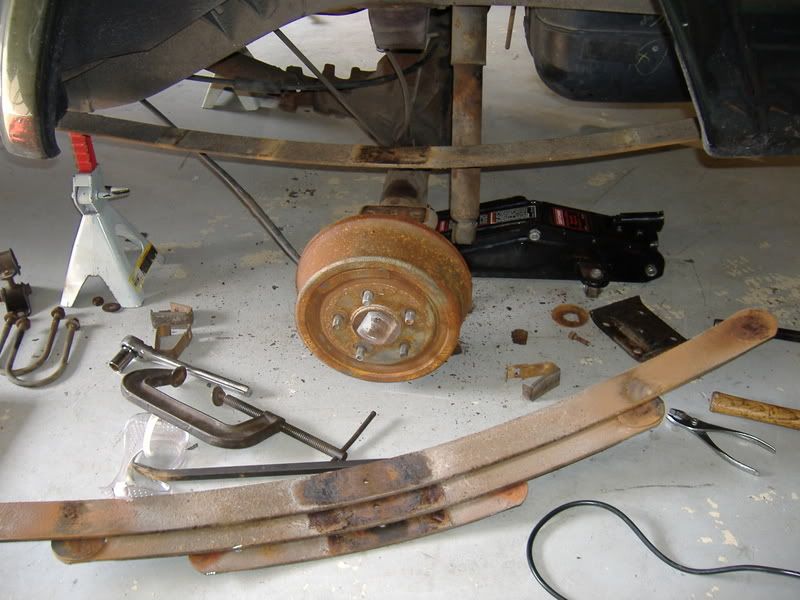

on to the pics... there are tons of writeups on this, so ill just show mid-process, the chop off tool, and how it sits said and done. keep in mind i have a full size (29") spare and a massive storage box probably sitting around 80 lbs.





lost honda pro is offline   Reply With Quote
Unread 08-07-2007, 08:58 PM   #15
Shoobie
Registered User
1989 XJ Cherokee

Join Date: Mar 2006
Location: Reno, Nevada
Posts: 67
Looks good. Now stuff some bigger tires under it. :P
Shoobie is offline   Reply With Quote
