Removable Rough country Long crossmember center

Hey everyone,
I thought that i would share this with everyone since i know how much i disliked my rough country long arm crossmember, especially since it wasnt a removable center section. So since my jeep is in a state of limbo with the new 4.6 stroker goin in and doig some plating on the unibody i thought it might be a good time to make that piece of crap crossmember center section removable. It isnt the hardest modification but it is time consuming. I dont know if this will work on any other rough country long arm crossmember i am doing it to my XJ and that is what the write up is based on.

What youll need:

I used 1.5x3x3/16 tubing 2x4 will also work about 25 inches
1/4 plate about a square foot
welder
drill
grinder
cut wheels
grinding wheels (sanding,flap,or hard wheel)

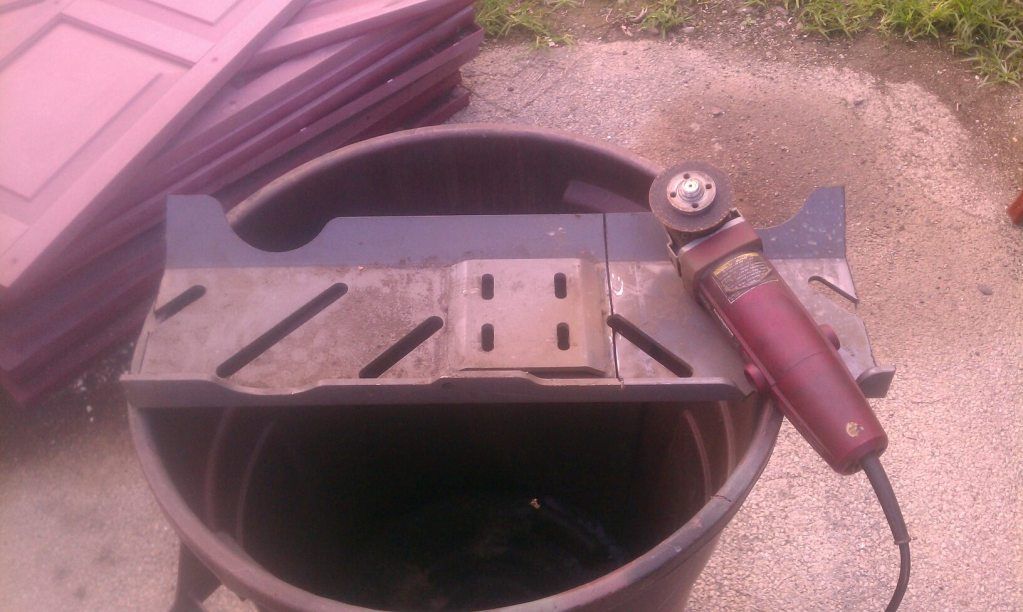

Here is what you will start with



The first thing you wanna do is find your preffered layout may varry depending on your set up. the piece below is cut off the original crossmember at 5 3/4 from the outside square edge. Both sides are done at this measurement. It allows you to keep the link mounts in the same place and still clear the unibody. Once you lay out 5 3/4 on each side you will be left with about 24 3/8 in between. this is what your are cutting out and replacing with the tubing.



--1998 XJ "Mater"- RIP

2000 XJ--- 4.6 stroker. Saved from the grave- everything swapped or modded. I hate this thing :)
Showtime3492 is offline
Sponsored Links
Advertisement

post #2 of 10 Old 08-28-2012, 06:10 PM Thread Starter
Showtime3492
Registered User
2000 XJ Cherokee

Join Date: Jun 2010
Location: York
Posts: 961

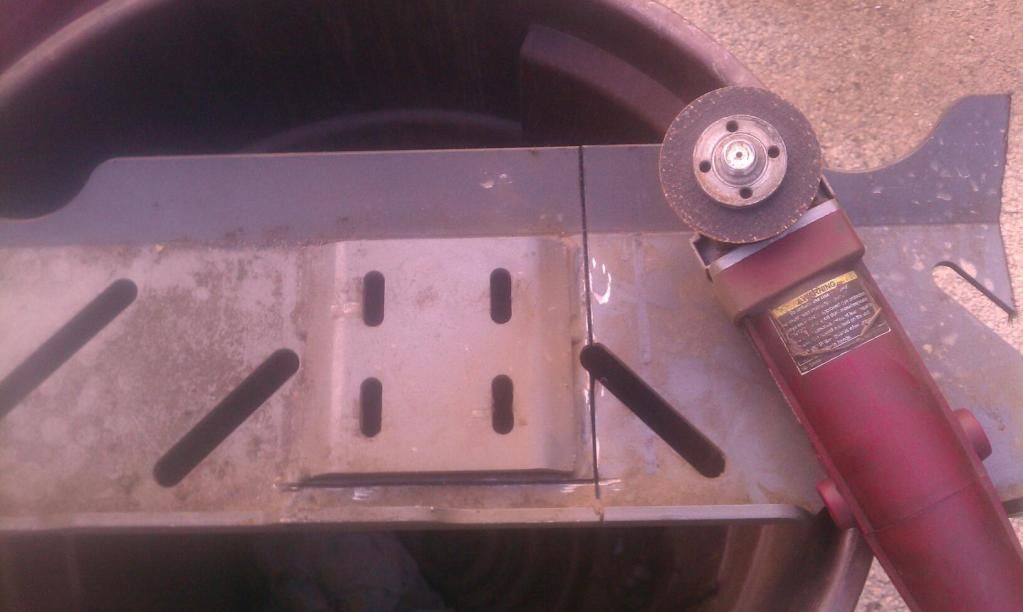

Once you cut the ends off the crossmember at 5 3/4 you need to start to fab your new center section.
I cut the piece of 1.5x 3 tubing to 23 7/8. The reason you do this is because you need 24 3/8 but are going to be adding a 1/2 inch of material to the ends of it making it 24 3/8.


--1998 XJ "Mater"- RIP

2000 XJ--- 4.6 stroker. Saved from the grave- everything swapped or modded. I hate this thing :)
Showtime3492 is offline
post #3 of 10 Old 08-28-2012, 06:27 PM Thread Starter
Showtime3492
Registered User
2000 XJ Cherokee

Join Date: Jun 2010
Location: York
Posts: 961
Next what you need to do is cut out the transmission mount area of the old rough country crossmember.




The reason you need to do this is the 3 inch wide tubing isnt wide enough for the xj's transmission mount, But the reason you wanna use the 3 inch is so that there is room for bolts here.

--1998 XJ "Mater"- RIP

2000 XJ--- 4.6 stroker. Saved from the grave- everything swapped or modded. I hate this thing :)
Showtime3492 is offline
post #4 of 10 Old 08-28-2012, 06:29 PM Thread Starter
Showtime3492
Registered User
2000 XJ Cherokee

Join Date: Jun 2010
Location: York
Posts: 961
This is as far as I got today on it but it will be finished tomorrow after work.
Ill fill in some more of the gaps when it is 100% finished tomorrow.


--1998 XJ "Mater"- RIP

2000 XJ--- 4.6 stroker. Saved from the grave- everything swapped or modded. I hate this thing :)
Showtime3492 is offline
post #5 of 10 Old 09-13-2012, 01:06 PM Thread Starter
Showtime3492
Registered User
2000 XJ Cherokee

Join Date: Jun 2010
Location: York
Posts: 961
Updates coming. Sorry for the delay other projects claimed priority.

--1998 XJ "Mater"- RIP

2000 XJ--- 4.6 stroker. Saved from the grave- everything swapped or modded. I hate this thing :)
Showtime3492 is offline
post #6 of 10 Old 09-13-2012, 02:50 PM
GetLifted
Registered User
1996 XJ Cherokee

Join Date: Mar 2010
Location: SoCal
Posts: 1,198
Very interesting
GetLifted is offline
post #7 of 10 Old 09-13-2012, 04:06 PM Thread Starter
Showtime3492
Registered User
2000 XJ Cherokee

Join Date: Jun 2010
Location: York
Posts: 961
Ok so here are some updates.

-Once you cut out your end pieces where your bolt holes will go you are going to want to select a bolt and drill the appropriate sized hole. I chose 1/2 inch x 1 inch long.
Attached Thumbnails
xmem drill.jpg

--1998 XJ "Mater"- RIP

2000 XJ--- 4.6 stroker. Saved from the grave- everything swapped or modded. I hate this thing :)
Showtime3492 is offline
post #8 of 10 Old 09-13-2012, 04:10 PM Thread Starter
Showtime3492
Registered User
2000 XJ Cherokee

Join Date: Jun 2010
Location: York
Posts: 961

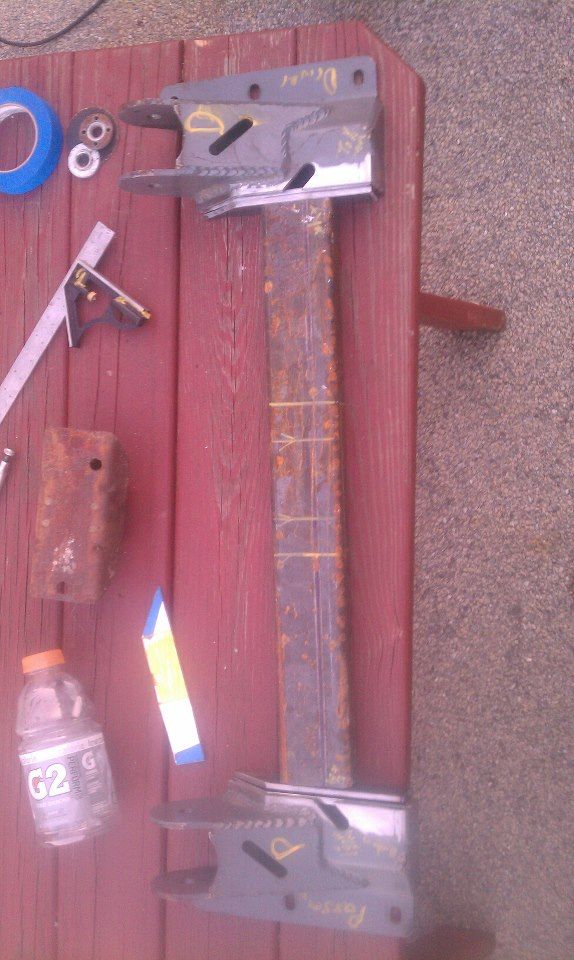

Once you select your bolts and drill holes its time to mock the ends up and make sure that the tranny crossmember will line up appropriately.

Every cherokee is probably a little different but i set mine at 1.375 from the back of the original cross member to the edge of the new removable section.
Attached Thumbnails
241623_3815963963228_35742947_o.jpg   579847_3815966203284_895119170_n.jpg

--1998 XJ "Mater"- RIP

2000 XJ--- 4.6 stroker. Saved from the grave- everything swapped or modded. I hate this thing :)
Showtime3492 is offline
post #9 of 10 Old 04-30-2013, 10:33 AM
travisk
Registered User

Join Date: Sep 2005
Posts: 7
I came here just to comment on how much I hate removing this crossmember to work on my transfercase or remove the front driveshaft.

That is all.
