Unread 01-30-2011, 06:33 AM   #151
swamp_runner
Registered User
1997 XJ Cherokee

Join Date: May 2009
Location: mt. pleasant, michigan
Posts: 71
I know this is a old post, but figured for future readers I'll add my 2 cents. I did this to my zj already, and really love it! I wanna do it to my xj, but its the nicest an newest thing I own, so I cannot bring myself to do it yet! lol! I had to remove my carpet in my zj after the first summer. Also another issue is remembering to lift the doors when you shut them (mostly passengers) or else it hits just on the edge of the hole an ruins you door ability to retain its latch after so many slams...I'm on my second passenger door now... lol

__________________
Sven
swamp_runner is offline   Reply With Quote
Unread 01-30-2011, 06:59 AM   #152
DKDunn04
Registered User
2001 XJ Cherokee

Join Date: Feb 2009
Location: Colorado
Posts: 80
I did it to my 01 XJ, using the 5/16 bolts. There is no sag after taking them off 4 or 5 times. Best mod ever.
DKDunn04 is offline   Reply With Quote
Unread 02-26-2011, 07:22 AM   #153
brianglawson
Registered User
1998 XJ Cherokee

Join Date: Jun 2006
Location: Virginia Tech, Blacksburg, VA
Posts: 43
I drilled the Body side of the hinge out and use McMaster Carr door bushings
__________________
http://i12.photobucket.com/albums/a2...Pilot010-1.jpg
1998 Cherokee, 4.0, Auto, D30, 8.25, np231: Froehlich 3-Link, Rusty's 4.5" Coils & Leafs w/ Spacers & Shackles, TNT Trackbar, SS Brake Lines, JKS Discos, Iron Rock Tie Rod, 33" Firestone M/T's, Spidertrax Spacers, Rubicon 16x8, HD Offroad Stiffeners, JCR Stage2 Rails, AA SYE, Nitro 4.88, ARB 30 Spline F. Locker, 30 Spline Chromoly Front axles, Trac-lock R. LSD.
brianglawson is offline   Reply With Quote
Unread 04-30-2011, 08:10 PM   #154
jeepboy1990
Registered User
2000 XJ Cherokee

Join Date: Dec 2010
Location: Lindenhurst, New York
Posts: 6
what size cotter pins or quick pins i want them to b snug i really dont want much sag
jeepboy1990 is offline   Reply With Quote
Unread 05-02-2011, 05:23 AM   #155
Bandit1
Registered User
2000 XJ Cherokee

Join Date: Jan 2009
Location: Rensselaer, NY
Posts: 885
I would say to get ones that are a lil bigger and drill the hole out so they are snug to avoid the door sag...
__________________
2000 Jeep Cherokee Sport...Project Beast- Stock height , winch, recovery gear, roof basket, and a few other mods...

Outlawed Offroad Forums

NY State ORV Park Project
Bandit1 is offline   Reply With Quote
Unread 05-02-2011, 07:03 AM   #156
dcorn
Registered User
1998 XJ Cherokee

Join Date: Aug 2007
Location: Washington, DC
Posts: 3,985
Quote:
Originally Posted by DKDunn04 View Post
I did it to my 01 XJ, using the 5/16 bolts. There is no sag after taking them off 4 or 5 times. Best mod ever.
Give it some time
__________________
2004 Grand Cherokee Overland
OME HD/5100s - 31" Toyo AT2
dcorn is offline   Reply With Quote
Unread 05-03-2011, 09:15 AM   #157
blackfire
Registered User
1998 XJ Cherokee

Join Date: Oct 2009
Location: st.pete
Posts: 124
What do you guys think about drilling the top hinge for a removable bolt, but just unbolting the bottom hinge at the door? The way I've thought it through the door won't be as likely to sag since the stock hinge is holding on at the bottom. The downside is it'll take longer to put on and take off.
__________________
E6 HAZMAT. IAFF Local 754
FIREFIGHTERS JEEP CLUB
blackfire is offline   Reply With Quote
Unread 05-03-2011, 12:01 PM   #158
dcorn
Registered User
1998 XJ Cherokee

Join Date: Aug 2007
Location: Washington, DC
Posts: 3,985
At first I just popped out the door pins and used 5/16" bolts with the stock bushings. Worked fine, but the doors sagged pretty bad over time due to the bushings wearing out. It was also a huge pain to pull the bolts out each time and then line them up to put back in while holding an 80 lb door.

http://www.jeepforum.com/forum/f11/time-beef-things-up-build-thread-sorts-540357/index3.html#post5076958

This post shows what I've done now pretty much. Take the hinge off the door, cut the bottom half off, drill out the top hole to 3/8" and weld a 3/8" bolt in there. Take the bushings out of the body side of the hinge and the bolt fits perfect in there. So now you bolt the hinge back up and taking off the doors is as easy as disconnecting wires and lifting the door off. The doors close much better now too, line up like stock (unless you come down hard on the a-pillar and tweak it...)


Oh, I think this is like the 4th time I've posted this same thing in this thread. People keep asking the same damn questions instead of just reading the thread...

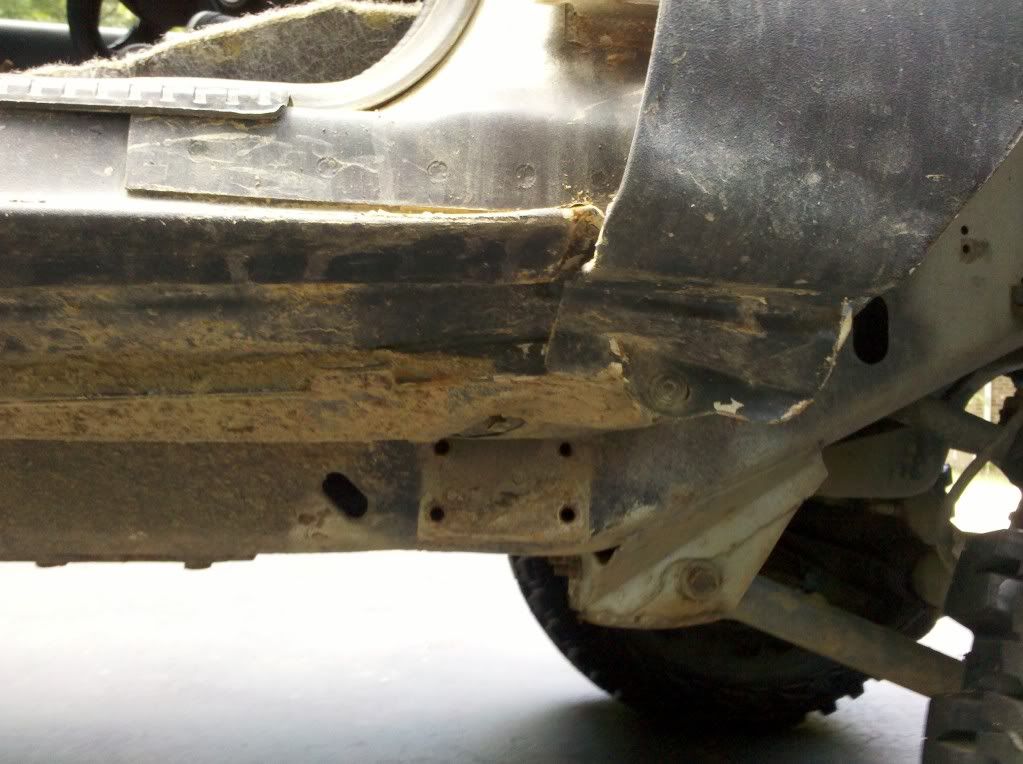

And this is why my door doesn't close right


__________________
2004 Grand Cherokee Overland
OME HD/5100s - 31" Toyo AT2
dcorn is offline   Reply With Quote
Unread 05-05-2011, 06:59 AM   #159
brianglawson
Registered User
1998 XJ Cherokee

Join Date: Jun 2006
Location: Virginia Tech, Blacksburg, VA
Posts: 43
everyone that's breaking ****, you guys need to do some drilling, put some mcmastercarr 7/8 OD, 5/16 ID bushings in the body side, and use 5/16 bolts for pins. You are leaving to muchroom for slop!!!
__________________
http://i12.photobucket.com/albums/a2...Pilot010-1.jpg
1998 Cherokee, 4.0, Auto, D30, 8.25, np231: Froehlich 3-Link, Rusty's 4.5" Coils & Leafs w/ Spacers & Shackles, TNT Trackbar, SS Brake Lines, JKS Discos, Iron Rock Tie Rod, 33" Firestone M/T's, Spidertrax Spacers, Rubicon 16x8, HD Offroad Stiffeners, JCR Stage2 Rails, AA SYE, Nitro 4.88, ARB 30 Spline F. Locker, 30 Spline Chromoly Front axles, Trac-lock R. LSD.
brianglawson is offline   Reply With Quote
Unread 05-05-2011, 07:01 AM   #160
brianglawson
Registered User
1998 XJ Cherokee

Join Date: Jun 2006
Location: Virginia Tech, Blacksburg, VA
Posts: 43
Dcorn, I plan to do the same thing you did, but instead i will use aftermarket bushings in the body side of the Jeep, and 5/16 bolts welded instead of 3/8 due to the bushing sizes
__________________
http://i12.photobucket.com/albums/a2...Pilot010-1.jpg
1998 Cherokee, 4.0, Auto, D30, 8.25, np231: Froehlich 3-Link, Rusty's 4.5" Coils & Leafs w/ Spacers & Shackles, TNT Trackbar, SS Brake Lines, JKS Discos, Iron Rock Tie Rod, 33" Firestone M/T's, Spidertrax Spacers, Rubicon 16x8, HD Offroad Stiffeners, JCR Stage2 Rails, AA SYE, Nitro 4.88, ARB 30 Spline F. Locker, 30 Spline Chromoly Front axles, Trac-lock R. LSD.
brianglawson is offline   Reply With Quote
Unread 05-05-2011, 12:01 PM   #161
dcorn
Registered User
1998 XJ Cherokee

Join Date: Aug 2007
Location: Washington, DC
Posts: 3,985
How are the bushings going to stay in there? My stock bushings were pretty much destroyed and eventually fell out. Take the doors off a few times and any bushing will fall out of there. I haven't had problems with mine squeaking or anything without bushings.
__________________
2004 Grand Cherokee Overland
OME HD/5100s - 31" Toyo AT2
dcorn is offline   Reply With Quote
Unread 05-09-2011, 03:48 PM   #162
Hummeron37s
Registered User
2000 XJ Cherokee

Join Date: May 2011
Location: selden, NY
Posts: 17
Great writeup.
Hummeron37s is offline   Reply With Quote
Unread 06-04-2011, 07:28 PM   #163
zacharydruhm
Registered User
1998 XJ Cherokee

Join Date: Aug 2010
Location: L.I. NY
Posts: 43
Hey decorn i like the idea and plan to do the same however the holes on the door jam side are larger than 3/8 and cant find 7/16 bolts anywhere, i dont really want to drill them out to 1/2 inch, i think that would weaken them too much, any suggestions?
zacharydruhm is offline   Reply With Quote
Unread 06-09-2011, 07:39 AM   #164
BeachinXJ
Resident McGeek

BeachinXJ's Avatar
2000 XJ Cherokee

Join Date: Jun 2003
Location: The Beach®, DE
Posts: 5,837
If you really can't find them, grind down a 1/2" bolt.. wont take much. Don't really need the threads...
__________________
2000 Jeep XJ - Chopped / Locked
1997 Jeep XJ - Daily Driver
2003 Dodge Ram 2500 CTD - 6-speed, 4" MBRP Turbo Back Exhaust
Join the XJ Owners Club | Download the iMarn® iPhone App!
SIRA 4x4 Offroad Association
Rule #1 - No talking about the weather!
Homepage | Jeepspace Group|Twitter!|Facebook
BeachinXJ is offline   Reply With Quote
Unread 01-10-2012, 12:26 PM   #165
tshay0
Registered User
1998 XJ Cherokee

Join Date: Jan 2012
Location: clarksville, TN
Posts: 46
so where should i get new bushings for these and how much would they run i need to have 0 sag to actually do this but i want to so bad
tshay0 is offline   Reply With Quote
