Power window troubles

Hey guys looking for some help or point me in the right direction.

2000 XJ

One day all of my power windows completely stopped working. Mirrors also don't work as well as driver side door lock.

I took out the driver switch and saw some burned contacts so I ordered a new switch. Put that in, didn't fix the problem.

Passenger switch has green light on the door locks which work, but no green light on window switch. All other windows have no green light.

Have 12 volts on the passenger side harness going to the passenger switch.

Every single fuse in the car is good I checked them all.

I can't understand the schematic for this.. Is there a relay or something not shown in the manual? Is my passenger switch screwed?
Any help is appreciated, all I've figured out to this point is that the power originates on the passenger side.

Sick of jumpering my windows open and closed at the motors with a piece of 14/2 romex =)


Last edited by nofnof; 08-07-2013 at 07:32 PM..
nofnof is offline   Reply With Quote Quick reply to this message
Unread 08-07-2013, 09:04 PM   #2
jserna
Registered User
1987 YJ Wrangler

Join Date: Jun 2012
Location: Albuquerque, New Mexico
Posts: 450
Did you check the wiring in the rubber boot that connects the door to the door frame. It is not uncommon for Chero's and Grand Chero's can have broken wires inside the boot. Check all the doors.
jserna is offline   Reply With Quote Quick reply to this message
Unread 08-08-2013, 07:41 PM   #3
nofnof
Registered User
2000 XJ Cherokee

Join Date: Feb 2011
Location: massapequa, ny
Posts: 3
after counting number of wires from the harness and in the boot i noticed was 1 short, it ended up getting sucked back into the door =/ thanks. assuming the worst scenario possible first is not the way to go sometimes
nofnof is offline   Reply With Quote Quick reply to this message
Unread 08-08-2013, 07:49 PM   #4
Taylor00XJSPORT
Registered User
2000 XJ Cherokee

Join Date: Jul 2013
Location: Durham, NC
Posts: 5
Quote:
Originally Posted by nofnof View Post

I took out the driver switch and saw some burned contacts so I ordered a new switch. Put that in, didn't fix the problem.
Glad you got it fixed.

How much did the switch cost and where did you buy it?

Thanks!
Taylor00XJSPORT is offline   Reply With Quote Quick reply to this message
Unread 08-11-2013, 06:36 PM   #5
nofnof
Registered User
2000 XJ Cherokee

Join Date: Feb 2011
Location: massapequa, ny
Posts: 3
ended up returning the switch from autozone because my old one was fine, it was 100ish from autozone, later i found amazon to have it for about 70. Glad I didn't have to waste my money on that.
nofnof is offline   Reply With Quote Quick reply to this message
Unread 08-25-2014, 10:47 AM   #6
Sykes
Registered User

Join Date: Jul 2003
Location: MILAGRO
Posts: 221
How did you wire jump your power window? I have a passenger window stuck down. Tried to wire jump at the opened switch - nothing but some sparking.
__________________
93 XJ 4.0L S6 Auto 190000 LLANO SPORT
87 XJ 4.0L S6 Auto 244000 DESERT RAT
Sykes is offline   Reply With Quote Quick reply to this message
Unread 08-25-2014, 08:38 PM   #7
BagusJeep
Web Wheeler

BagusJeep's Avatar
1981 CJ7

Join Date: Jul 2009
Location: Bali, Indonesia
Posts: 4,685
Which one are you looking at, the 87 or the 93?

The power windows are very straightforwad, a series of switches and wires to a motor in the door that through a track moves an arm up and down to open and close the windows. The switch is powered and all it does is reverse the polarity when it feeds the power to the motor.

It is not uncommon to find a motor problem, sometimes corrosion in the motor or the electrical connectors rusted off. Sometimes there is a track problem due to not being lubricated an sometimes the glass gets stuck. Mostly it is the dumb switches.

From your post I presume the other 3 windows work so it is not a curcuit breaker issue or a general problem at the driver's dooor switch panel.

There are two switches, one on the driver's door and one on the door itself. I presume neither are working.

Taking the passener side door switch first. These are the tests to make sure the switch itself is working when removed from the door and then you can test the connector inside the door.

You should have power coming in on that second row of pins, if teh diagram is correct whcih I have doubts about. Test the connector, I use a 12V test lamp for theis sort of stuff but a multimeter will also work. You are lookinh for 12V across the second row of pins. If you do not have it your problems are further back.

If you find voltage and really really want to jump it you will need two short pieces of insulated wire with the ends bared. Looking at the connector to go UP bridge between top right and middle right and then bottom right and middle left.

If it still does not go remove the door trim and go to the connector to the motor. You can test at this point for voltage. If you have it then it is the motor or mechanism or glass.


__________________
BagusJeep lives in Bali, the Land of Temples.
With a Jeep every prayer counts.

1981 CJ7 258ci - Bagusjeep
1984 CJ7 258ci - Puthijeep
1981 J20 258ci - Gladys
1995 Cherokee 4.0 - CHEROKEE
BagusJeep is offline   Reply With Quote Quick reply to this message
Unread 08-25-2014, 09:02 PM   #8
Sykes
Registered User

Join Date: Jul 2003
Location: MILAGRO
Posts: 221
Great info! I have been looking all day for the specifics covered. The jeep is a 93 Sport and the original problem had been wires worn through under the driver's mat. After soldering all new splices on the floor, all windows and switches worked.

After the repair, the passenger switch opened while trying to seat the switch into the door and the contacts fell out. Yesterday, I got the window to power down but no power up.

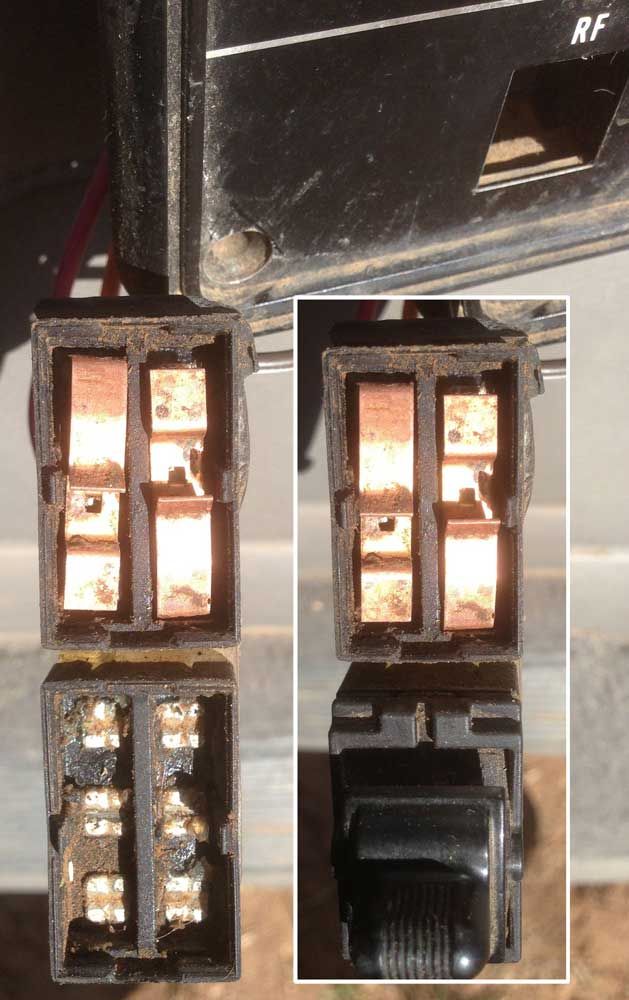

Attached is a picture with copper rocker contacts placed back into switch, and a second inset shot with the switch pushed into place. The small clips that hold the switch into the door frame need to be replaced; trying to get around the missing clips is when the Eaton switch popped open. Thanks for the wiring/switch info!!!

__________________
93 XJ 4.0L S6 Auto 190000 LLANO SPORT
87 XJ 4.0L S6 Auto 244000 DESERT RAT
Sykes is offline   Reply With Quote Quick reply to this message
