My Homebrew Intake System

Most people said to KISS it. But I did anything but that. My heatshield is very elaborate. It was pretty much inspired by Dino Saava from JU. This was his for his FIPK. http://www.jeep4.0performance.4mg.com/FIPK.html

Mine is a little more inovative.

I used Rusty's Air Tub and a 6x9 K&N Air Filter. There is nothing to special there. This thread mainly reflected my heat shield/splash guard.

It was a pain in the *** to figure out all the dimensions. It just just fitted pieces of poster board first to get some aproximate sizes. Then I used them a template to cut out my cardboard. (I actaully used the box that Rusty's sent my stuff in)

This was the shape I got. See those black things.....


These are silicone pot pads I bought at wal-mart. There's good up to 675 F so I thought they would be good from insulation in my heat shield.


I covered those pads with a another section of cardboard that fit perfectly over them.

Next, I covered the entire cardboard with Foil Tape.


I put flaps with the foil tape on most the edges to make sure there wasn't going to any spaces between the heat shield and engine compartment when I install it.






This is what it looks like installed....


I had to use a couple extra strips of foil tape to tape it right in the compartment to make sure it was all waterproof in the corners.


Top View


I used the stock bolts plus some new big flat washers to bolt it down. I also used some RTV Sealant on the bolts to make sure it waterproof there.


I am going to make a lid for it too when I get the time. If you are interested in bulding one for yourself let me know. I'll help with some sizes and everything.

__________________
[I]00' XJ Sport. 4.0 I6.
[B]|15" Canyon Crawlers | 30x9.5 Bridgestone Dueler A/T Revos | [Lifted (2" Teraflex Spacers | 2.5" RE AAL | Edlebrocks IAS)| K&N Homebrew Intake | Flow Master 70 |Clear Corners/Side Markers| Class III Hidden Hitch | C4x4 Fronts Tow Hooks | JKS Discos | Surco Safari Rack | Hella 500s |
00xj54 is offline   Reply With Quote Quick reply to this message
Unread 03-04-2006, 04:50 PM   #2
XJ4oh
Registered User
1997 XJ Cherokee

Join Date: Nov 2004
Location: Hot & sunny south..
Posts: 4,465
Nice.. Looks alot like Dino's. Only thing I would have done different would be to hit it with some hi-temp paint. Probaly black, but thats just me..
__________________
'97 XJ... 4.0 4x4 AW4. 2" budget boost w/t-case drop.
31x10.5 Cooper Discoverer ST's on 15x7 Cragar Soft 8's.
Intake, Ported TB, TB spacer, Super 40 Flowmaster.
Baja Aux. Lighting.
Green Jeep Club #185, Nowhere to Wheel Jeep Club member #1
'04 WJ - Columbia Edition - 4.7HO 2WD
XJ4oh is offline   Reply With Quote Quick reply to this message
Unread 03-04-2006, 07:01 PM   #3
FitchVA
Jeeper 4 Life

FitchVA's Avatar
1998 XJ Cherokee

Join Date: Oct 2003
Location: Roanoke, VA
Posts: 3,128
that looks like it took some time! good work
__________________
'98 xj sport (trail toy) | specs
'98 xj classic (dd'er) | specs
'89 mj tinker toy | specs
My XJ Page | My Gallery
FitchVA is offline   Reply With Quote Quick reply to this message
Unread 03-04-2006, 07:17 PM   #4
XJ-NoDough
Registered User

Join Date: Nov 2003
Location: Four corners--Eugene, Oregon
Posts: 1,686
I'm impressed, I just stuffed one of my wheel well liners, after some trimming down, under mine to act as a splash shield, I call it my deep water forging kit. It also helps to funnel the blow-by down into one little area vs. all over my engine compartment.
__________________
[SIZE=2][B][COLOR=Blue][B]My DD
'89 XJ Limited
204,XXX miles
Leather, Loaded[/B][/COLOR]
[COLOR=Red][B]4L Selec-trac[/B][/COLOR]
[COLOR=White][B]Automatic[/B][/COLOR]
[COLOR=Red][B]3"-4.5"ish Homebrew lift[/B][/COLOR]
[COLOR=White][B]16x8 MB Motoring Rockers[/B][/COLOR]
[COLOR=Red][B]265/75R16(31[SIZE="1"]ish[/SIZE]"X10.4") Goodyear Wrangler M/TRs[/B][/COLOR]
[COLOR=White][B]Trimmed w/ Bushwackers[/B][/COLOR]
[COLOR=Red][B]Stock 3:55 gears[/B][/COLOR][/B][/SIZE]
[B][COLOR=White]sans big audio[/COLOR][/B]
[B][COLOR=Red]Homebrew intake w/cone filter[/COLOR][/B]
"Some people are like a slinky... Not really good for anything, but you still can't help but smile when you see one tumble down the stairs." :my dad
XJ-NoDough is offline   Reply With Quote Quick reply to this message
Unread 03-04-2006, 07:42 PM   #5
nick_deno
Registered User

Join Date: Aug 2005
Location: Wichita, KS
Posts: 125
Looks good. Sorry I wasn't able to get you some pictures of mine in time.
__________________
'93 Cherokee Country 4.0L HO: 158k,
235/75/R15 Sport King AT's,
K&N Filter w/ custom tube,
'01 Intake Manifold,
Banks Torque Tube Header,
Hella 550 Fog Lights,
JVC CD Player
[url]http://www.cardomain.com/ride/2188725[/url]
nick_deno is offline   Reply With Quote Quick reply to this message
Unread 03-04-2006, 10:58 PM   #6
00xj54
Registered User
2000 XJ Cherokee

Join Date: Oct 2005
Location: San Diego
Posts: 1,442
Quote:
Originally Posted by FitchVA
that looks like it took some time! good work
Yeah it took sometime. I felt like I was doing a science project for 6th grade.

Quote:
Originally Posted by nick_deno
Looks good. Sorry I wasn't able to get you some pictures of mine in time.
It's cool. It worked out fine.
__________________
[I]00' XJ Sport. 4.0 I6.
[B]|15" Canyon Crawlers | 30x9.5 Bridgestone Dueler A/T Revos | [Lifted (2" Teraflex Spacers | 2.5" RE AAL | Edlebrocks IAS)| K&N Homebrew Intake | Flow Master 70 |Clear Corners/Side Markers| Class III Hidden Hitch | C4x4 Fronts Tow Hooks | JKS Discos | Surco Safari Rack | Hella 500s |
00xj54 is offline   Reply With Quote Quick reply to this message
Unread 03-05-2006, 12:13 AM   #7
beckXJ
Registered User
1998 XJ Cherokee

Join Date: May 2005
Location: Michigan
Posts: 315
Quote:
Originally Posted by 00xj54
Yeah it took sometime. I felt like I was doing a science project for 6th grade.



It's cool. It worked out fine.
I wouldn't have used cardboard. I would have used something a little bit more heavy duty. But it still looks WONDERFUL, great fabrication.
__________________
[CENTER][COLOR="LightBlue"]1998 Cherokee Sport[/COLOR]
[SIZE="1"][COLOR="Black"]Dynomax Cat-back and Magnaflow Cat
Pioneer Premier DEH-P880PRS
Image Dynamics 12" IDQ's
2" BB with 30"s and more on the way[/COLOR][/SIZE][/CENTER]
beckXJ is offline   Reply With Quote Quick reply to this message
Unread 03-05-2006, 12:37 AM   #8
5point9Limited
Registered User
1998 ZJ

Join Date: Oct 2003
Location: South Jersey
Posts: 668
Nice Job Markk! looks great! notice any difference in performance?? I would imagine so. Call me...
__________________
Goodyear MT/R 245-75-16, Mopar PCM ECU, 52mm APS Throttle Body AND spacer, Flowmaster Exhaust, Homebrew K&N Intake, Summit 3" exhaust cutout, OME steering stabilizer, 2.25" B. Boost, ProComp MX-6 adjustable shocks,
Up-Country springs.
5point9Limited is offline   Reply With Quote Quick reply to this message
Unread 03-05-2006, 08:23 AM   #9
spitfirees20
Registered User

Join Date: Oct 2005
Posts: 387
Wow, I was just going to make one of dino's for my xj but this looks great! I am intirested in making one exactly like it, is there any way you could send me all the info you have? measurements etc Thanks!
spitfirees20 is offline   Reply With Quote Quick reply to this message
Unread 03-05-2006, 10:46 AM   #10
00xj54
Registered User
2000 XJ Cherokee

Join Date: Oct 2005
Location: San Diego
Posts: 1,442
Quote:
Originally Posted by spitfirees20
Wow, I was just going to make one of dino's for my xj but this looks great! I am intirested in making one exactly like it, is there any way you could send me all the info you have? measurements etc Thanks!

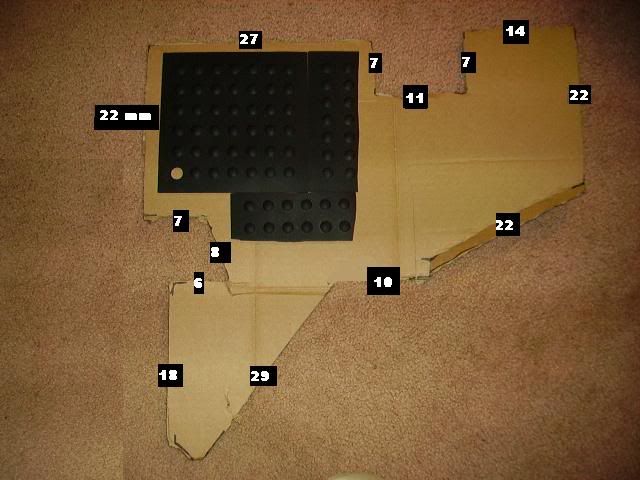

Dimensions are in mm. This isn't perfect, so trying do that on spare peice of cardboard first and see if it fits.


Make sure put the flaps on these edges. Just over hang one strip of tape on both sides.


I got the Filter and the Air Tube from Rusty's Offroad,
I got the 2 ply cardboard ffrom that Rusty's shipped me things in
I got the 234 Foil Tape from Home Debot
I got the "pot pads" from Wal-mart

What else do you need to know????
__________________
[I]00' XJ Sport. 4.0 I6.
[B]|15" Canyon Crawlers | 30x9.5 Bridgestone Dueler A/T Revos | [Lifted (2" Teraflex Spacers | 2.5" RE AAL | Edlebrocks IAS)| K&N Homebrew Intake | Flow Master 70 |Clear Corners/Side Markers| Class III Hidden Hitch | C4x4 Fronts Tow Hooks | JKS Discos | Surco Safari Rack | Hella 500s |
00xj54 is offline   Reply With Quote Quick reply to this message
Unread 03-05-2006, 10:47 AM   #11
TheWombaT
Registered User

Join Date: Oct 2004
Location: NJ
Posts: 292
Whats the performance gain?
__________________
-2001 Cherokee Sport 4.0 - auto - 80,000m
-1996 Cherokee Sport 4.0 - manual - 160,000m
TheWombaT is offline   Reply With Quote Quick reply to this message
Unread 03-05-2006, 10:53 AM   #12
00xj54
Registered User
2000 XJ Cherokee

Join Date: Oct 2005
Location: San Diego
Posts: 1,442
Quote:
Originally Posted by 5point9Limited
Nice Job Markk! looks great! notice any difference in performance?? I would imagine so. Call me...
Quote:
Originally Posted by TheWombaT
Whats the performance gain?
I'd say it's really only a small change right now. That is, until I bore the TB and get a new exhaust system.

But I definatly see the RPMs jumping up faster when I floor it. Esp when I'm already going.
__________________
[I]00' XJ Sport. 4.0 I6.
[B]|15" Canyon Crawlers | 30x9.5 Bridgestone Dueler A/T Revos | [Lifted (2" Teraflex Spacers | 2.5" RE AAL | Edlebrocks IAS)| K&N Homebrew Intake | Flow Master 70 |Clear Corners/Side Markers| Class III Hidden Hitch | C4x4 Fronts Tow Hooks | JKS Discos | Surco Safari Rack | Hella 500s |
00xj54 is offline   Reply With Quote Quick reply to this message
Unread 03-05-2006, 11:27 AM   #13
TheWombaT
Registered User

Join Date: Oct 2004
Location: NJ
Posts: 292
Is there any place you can get it dyno'd? Like it'd be neat to dyno it now, then mod the TB and exhaust and see what kind of numbers you come up with. I'm interested in a new intake for my 1996 Cherokee but im afraid the "no significant bolt ons" theory for jeeps is true.
__________________
-2001 Cherokee Sport 4.0 - auto - 80,000m
-1996 Cherokee Sport 4.0 - manual - 160,000m
TheWombaT is offline   Reply With Quote Quick reply to this message
Unread 03-05-2006, 11:35 AM   #14
spitfirees20
Registered User

Join Date: Oct 2005
Posts: 387
Ah thanks, I'm going to make one as soon as possible
spitfirees20 is offline   Reply With Quote Quick reply to this message
Unread 03-05-2006, 11:52 AM   #15
00xj54
Registered User
2000 XJ Cherokee

Join Date: Oct 2005
Location: San Diego
Posts: 1,442
Quote:
Originally Posted by spitfirees20
Ah thanks, I'm going to make one as soon as possible
Also make sure you reinforce that triangle peice on the bottom with some extra tape. That's where the bolts are going through
