My front and rear bumper w/tire carrier build pics

I thought i would share a couple small projects that I've been working to finish before school starts again..

Rear bumper with swing out tire carrier

For the rear bumper i wanted something a little different then the typical square tube bumper, i went for something with some more lines and contour. I'm pretty happy with how it came out..

Started out by opening up the rear cross member for my square tube mounts, which i added a piece of 3/8 flat to the inside and drilled and tapped 1/2in holes. I could have just done a nut strip but i went this route.. I also added the ears to use the stock mounting holes as well. Ended up with a total of 14 bolts holding it on.



The main section of the center of the bumper is 2x4x3/16th.. provides a nice base structure for the hitch and a little easier to work off of then plate.




Some gussets. receiver burned in



Sides started, welded some flat on an angle to the bottom to give it a nice contour.




top skin tacked in

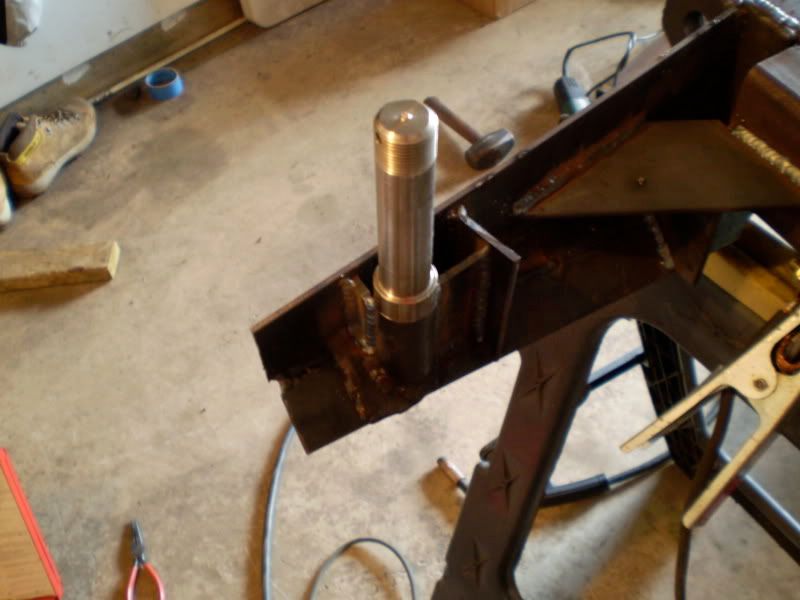

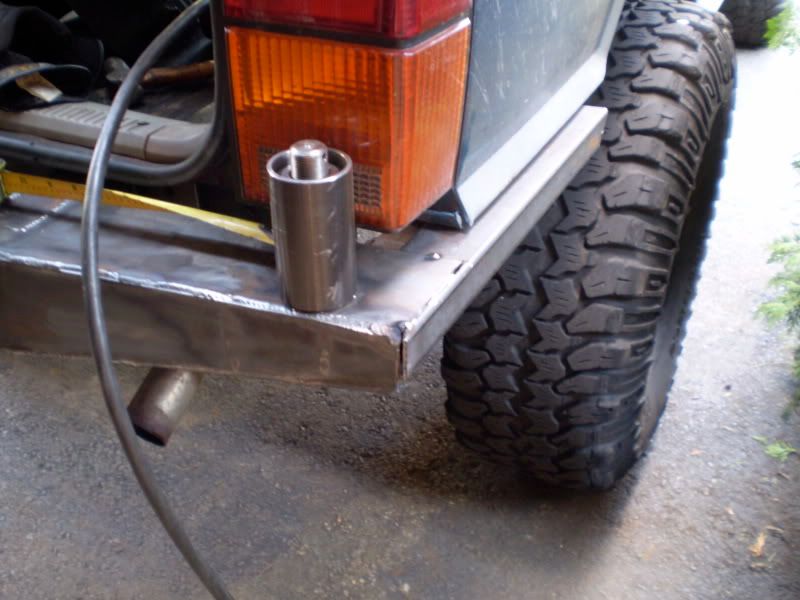

swing out tire carrier spindle welded in.. this is basically a weld on trailer axle spindle.. I was going to put together my own but i ended up ordering it from A to Z fab, seems to be more cost effective.

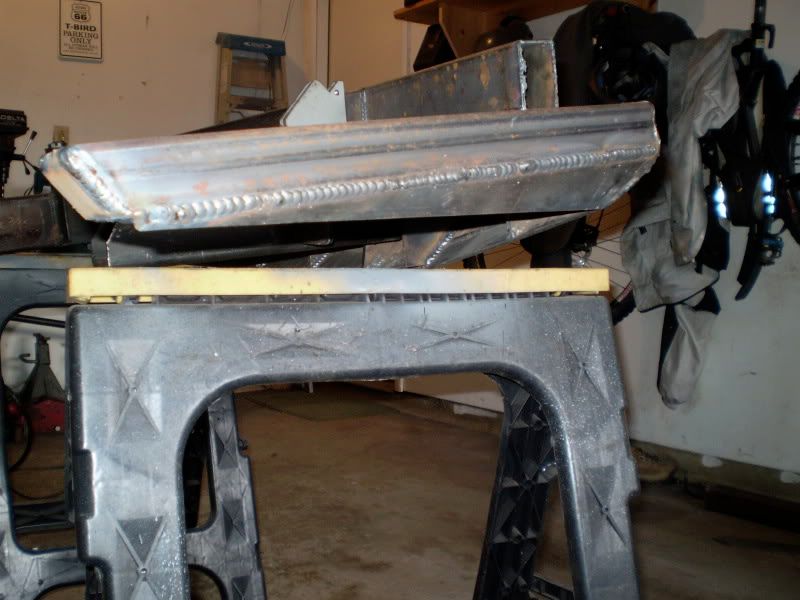

Side wrap around started..

side wrap around finished and tire carrier started


carrier ready to be welded up, minus mounting plate.

ground down and mostly finished off, ready for paint.


Painted and mounted up..


I braced these side pieces with some square stock into the spring mounts to stiffen it up for side hits. You cant see it in this picture, but this one gives you a good view of the wrap arounds and the latch.



with the winch..


Il post pics up of the front tomorrow morning..

RussoGuitar is offline
Sponsored Links
Advertisement

post #2 of 61 Old 08-31-2009, 11:47 PM
ckisela
Registered User
1994 XJ Cherokee

Join Date: Oct 2008
Location: Sacramento
Posts: 240
that looks tight!
ckisela is offline
post #3 of 61 Old 08-31-2009, 11:51 PM
polizi212
Registered User

Join Date: Mar 2008
Location: Brimfield, Ohio
Posts: 400
That is a nice looking bumper you made. Very classy and looks strong as a Sherman tank.

2000 Jeep Cherokee Sport.
polizi212 is offline
post #4 of 61 Old 09-01-2009, 12:44 AM
cheepjeep96
Registered User
1990 XJ Cherokee

Join Date: Jan 2007
Location: Columbus, Montana
Posts: 355
I hope to never rear-end you. Nice bumper. Welds are pretty too.

Quote:
Originally Posted by chance_p
i have come to the conclusion that snow kills braincells
Quote:
Originally Posted by Indy
If you only have the 1 clutch however, I'd suggest keeping it if you expect to move by anything other than 1. gravity or 2. transcontinental drift. Both are time tested to work, but you might not get exactly where you want to go.
Quote:
Originally Posted by cheapfix View Post
Scanner? You don't even have doors... :p
cheepjeep96 is offline
post #5 of 61 Old 09-01-2009, 12:48 AM
McWood
Registered User

McWood's Avatar
1996 XJ Cherokee

Join Date: Sep 2007
Location: South Idaho
Posts: 398
excellent work man! that thing a gorgeous.

nothing to see here.
McWood is offline
post #6 of 61 Old 09-01-2009, 12:49 AM
DylanYazel
Registered User
2000 XJ Cherokee

Join Date: Aug 2009
Location: greenwood arkansas
Posts: 294
that bumper is beautiful

Give all your worries to the lord and he will comfort you
DylanYazel is offline
post #7 of 61 Old 09-01-2009, 01:00 AM
Sir_Ken
Registered User
2010 JK Wrangler

Join Date: May 2008
Location: Central Florida
Posts: 109
Very nice.

2010 Jeep Wrangler Sport
Automatic/Hardtop/2-Door
Cherokee Roof Rack
Kenco Roof Basket
Sir_Ken is offline
post #8 of 61 Old 09-01-2009, 02:33 AM
Mickey_D
Registered User
1997 ZJ

Join Date: Aug 2008
Location: 40 3'42.36"N 112 2'16.73"W
Posts: 6,867
Damnit, why do all the people that do such nice work like this live so damned far away from me???

I'd keep you stocked in your drink of choice for several months if you made me one exactly like that!!

But shipping would be the deal killer.

1997 ZJ 5.2 Orvis, Baby!
1953 Willys M100 trailer Tagalong
________________
[_][][][][][][][][_]


Mickey_D is offline
post #9 of 61 Old 09-01-2009, 02:37 AM
AdidasCJ
Registered User
1996 ZJ

Join Date: Jun 2009
Location: Adelanto
Posts: 760
Garage
DUDE... I like it... that is nice. I like how the tire fallows the lines of the rear window. Very Nice.
AdidasCJ is offline
post #10 of 61 Old 09-01-2009, 05:37 AM
stevieboy
Registered User
1999 XJ Cherokee

Join Date: Apr 2009
Location: Chicago
Posts: 579
Beautiful fabrication and attention to detail. You should market that in your area

99' XJ ~4.0L6~NP231~6" Hybrid RC lift~MT Classic Lock~Detours Custom Light Bar Brushguard~Detours TailBone~Hooker Aero~aFe stage2~KC slimlines~JKS ACOS~JKS Disco.~JKS track bar~JCR T.C.Skid~JCR Stage 3 sliders~JK bumper fogs
stevieboy is offline
post #11 of 61 Old 09-01-2009, 06:04 AM
rc76
Registered User
1998 XJ Cherokee

Join Date: Nov 2005
Location: Maine
Posts: 613
Very Nice!

98 Cherokee Sport- 4.5", AA SYE and TW Shaft, 33" Cooper Discoverer STTs, XCr8000, Jcroffroad Stage 2 Winch Bumper , 60" Hi-lift, Cobra Ultra III, Gragar Soft 8s, Detour Tail Bone, jcr Offroad Stage 2 Sliders, RockCrusher Diff Covers Front, Lockright in the front, Aussie in the Rear (Ford 8.8) with 488s... More $$$ for Bank Account (On Back Order...)

99 Cherokee Sport- Stock and Staying that Way (Wife's DD)

Christian Jeep Group Member #160
rc76 is offline
post #12 of 61 Old 09-01-2009, 06:08 AM
K9trnr
Registered User
1995 YJ Wrangler

Join Date: May 2009
Location: Southwest, Ohio
Posts: 218
great design and fine work!!

Chuck
formerly known as "cwagoner"

"Things will remain the same until they change"

1995 YJ Wrangler
1989 F350
K9trnr is offline
post #13 of 61 Old 09-01-2009, 06:10 AM
Kenbo-Slice
Registered User
1998 TJ Wrangler

Join Date: Aug 2008
Location: New York
Posts: 4,146
Kenbo-Slice is offline
post #14 of 61 Old 09-01-2009, 07:40 AM Thread Starter
RussoGuitar
Registered User
1989 XJ Cherokee

Join Date: Jan 2006
Location: West Milford, NJ
Posts: 1,609
Thanks guys!
On to the front.. I wanted the front to match the rear, just basically keep the same design and lines and make it work with a front bumper. As it started to come together I realized it started to look similar to the rigidco bumper, which is really nice looking so i just went with it. The overall construction i did the same way as the rear for the most part..

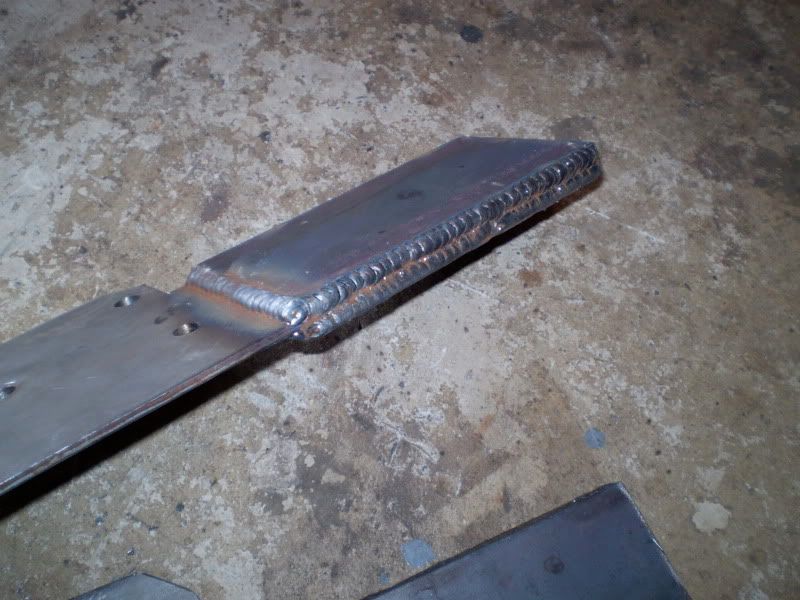

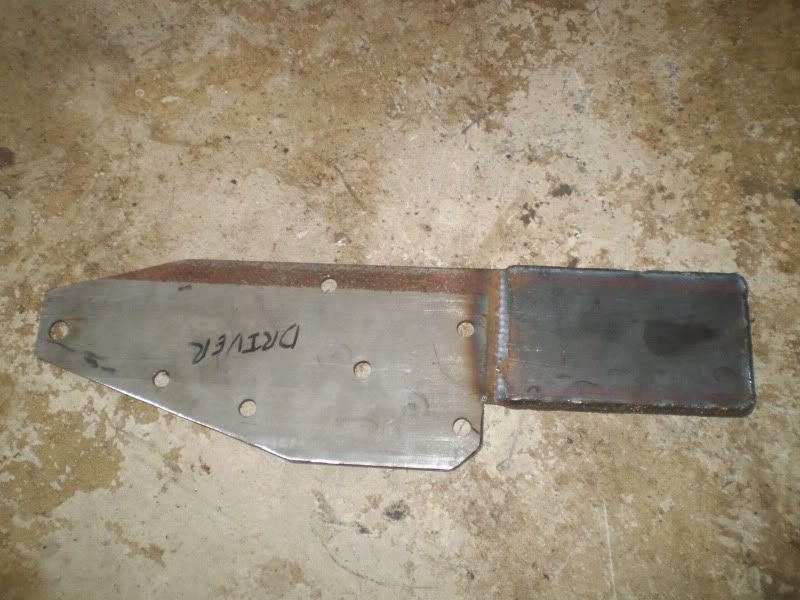

Mounts:

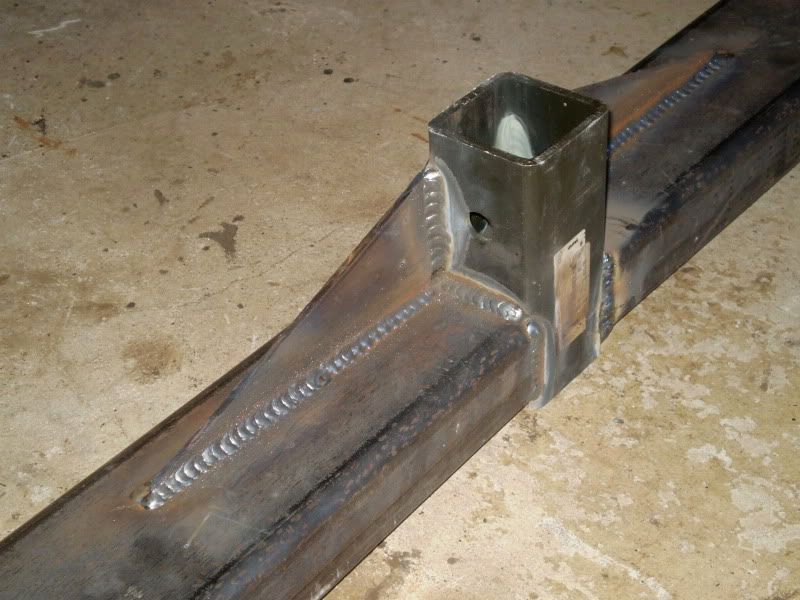

center tube, receiver and gussets

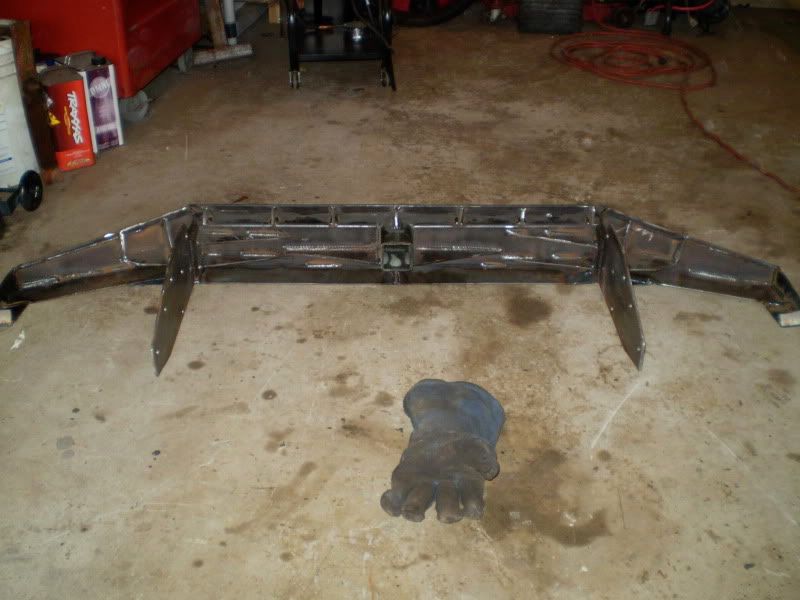

Sides started..

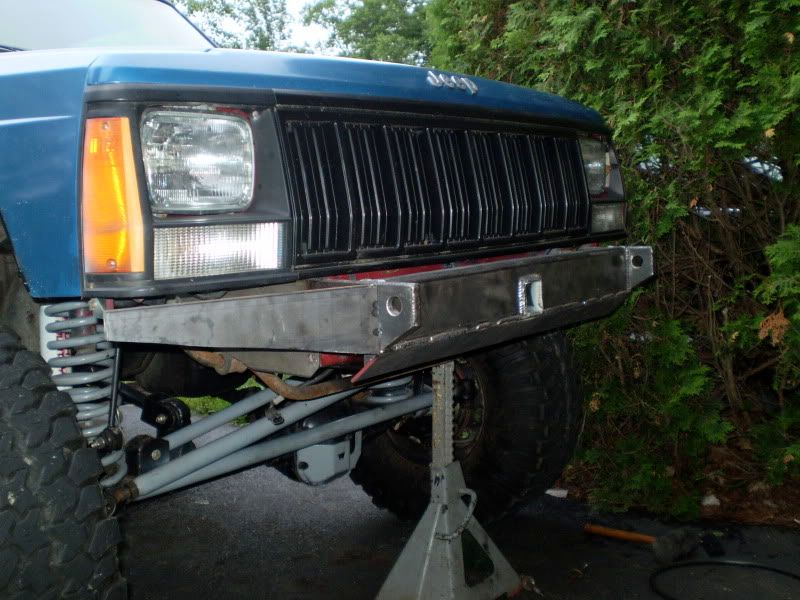

Mostly done, gusset detail. After this i added a brace from the mounts out to the side wings to ensure that they cant move.

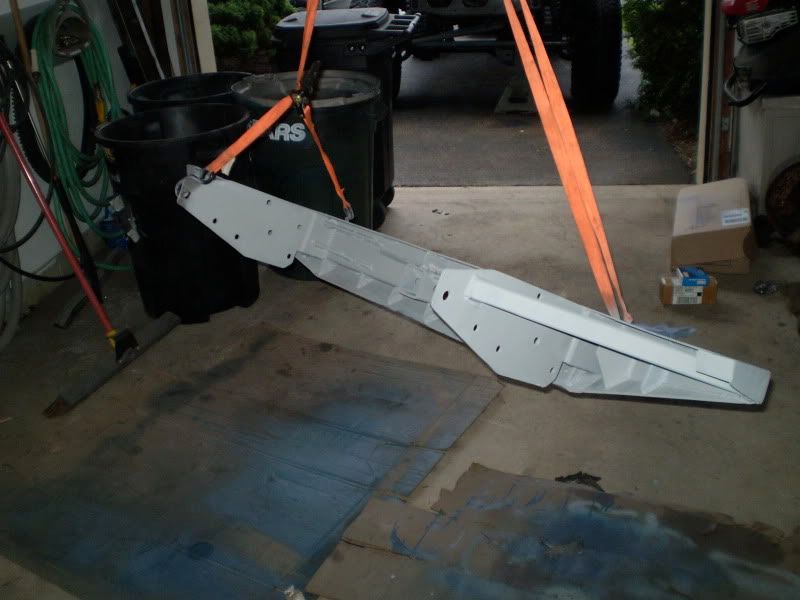

Ground down, finished off and primed

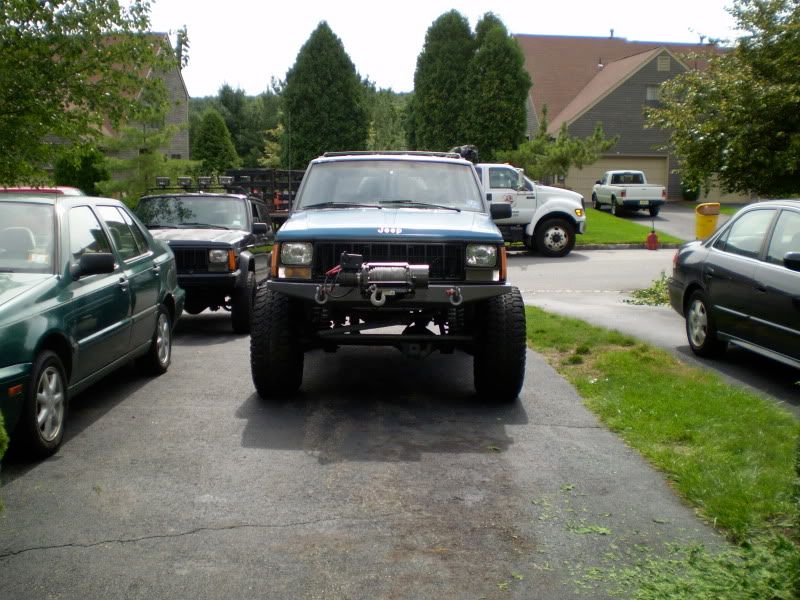

Painted and mounted..



RussoGuitar is offline
post #15 of 61 Old 09-01-2009, 07:49 AM
98cherokee19
Registered User
1998 XJ Cherokee

Join Date: Feb 2009
Location: NH
Posts: 122
very nice job on both front and rear bumpers, im inlove with the rear one tho rlly like your design

98 Cherokee Sport, |6 4.0, custom coldair intake, Poweraid TB spacer, 235/75/15's dunlop radial rover a/t, cobra Cb, cherrybomb turbo exhaust, E3 performance spark plugs, hood scoop,2 Hella 700ff, 4 Navigator NV-331 mounted to custom lightbar, smoked out tail lights, alpine indash dvd, jl audio 10" sub. Lift coming soon.
98cherokee19 is offline
