My attempt at a cowl snorkel.

I recently got a second intake hose from a wrecked xj, so I got inspired to finally make a cowl snorkel. There's a good amount of water crossing where Im moving next year, so why not.

Parts-
About 3 feet of straight, black pvc 3 inch pipe.
One sharp 90 degree elbow
One normal 90 degree elbow
One factory air tube elbow (from the air cleaner to the TB)

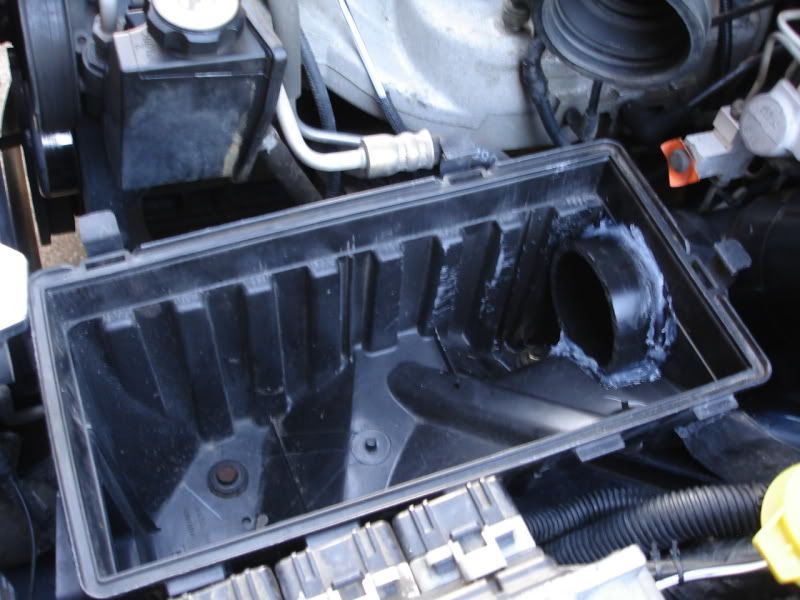

I cut a hole in the cowl, and a hole in the filter box, and figured out the best way to put it all together.

Already, I can feel a HP increase, and I can hear the air it is sucking.
I still need to block off and seal the front of the air box.






__________________
2001 XJ, patriot blue, 4 inch RE lift, IRO long arms, 33's. Caged, locked, armored -Trail Rig
2004 WJ Special Edition, Silver, 3 inch IRO lift, 4.7, JK graphite moab wheels/SRA's- Mom's dd
2004 WJ Overland, Onyx Green, 90% dechromed, soon to have JK moab's, BFG MT's, and a 3 inch IRO lift My new DD/ project
srmitchell is offline   Reply With Quote
Unread 03-14-2009, 11:25 AM   #2
jakemary
Registered User
1977 CJ7

Join Date: Feb 2006
Location: st.paul mn
Posts: 368
thats diffrent would water comming over your hood get into the air intake?
jakemary is offline   Reply With Quote
Unread 03-15-2009, 10:44 AM   #3
srmitchell
Registered User
2001 XJ Cherokee

Join Date: Dec 2007
Location: Humboldt County, CA
Posts: 3,485
Yeah, thats possible, however, I don't intend on going through more than 2-3 feet of water, ever.

When dropping into a crossing, your grill and lights tend to dip pretty low, then level out, this adds some piece of mind, as the factory intake is very low, and right behind the lights.
__________________
2001 XJ, patriot blue, 4 inch RE lift, IRO long arms, 33's. Caged, locked, armored -Trail Rig
2004 WJ Special Edition, Silver, 3 inch IRO lift, 4.7, JK graphite moab wheels/SRA's- Mom's dd
2004 WJ Overland, Onyx Green, 90% dechromed, soon to have JK moab's, BFG MT's, and a 3 inch IRO lift My new DD/ project
srmitchell is offline   Reply With Quote
Unread 03-15-2009, 11:08 AM   #4
nrpalmer32
Registered User
1987 XJ Cherokee

Join Date: Mar 2007
Location: Milwaukie, Oregon
Posts: 1,511
I like that idea, I've been trying to think of something like that as well. I know that some people even continue that pipe over to the other side so that rain doesn't effect it as well. I have been trying to think of a way to make a short hmmwv style snorkel for mine. The problem is that I would have to actually cut the hood a bit to do what I am wanting, but the hinges for hood are where I am wanting to do it. Probably not going to happen the way I am wanting to do it. I like your idea as well with the hard pvc pipe.

Im also guessing your already planning on closing the front part of the box right

I was wanting to mod an intake with something like this.

Last edited by nrpalmer32; 03-15-2009 at 11:27 AM..
nrpalmer32 is offline   Reply With Quote
Unread 03-15-2009, 11:28 AM   #5
srmitchell
Registered User
2001 XJ Cherokee

Join Date: Dec 2007
Location: Humboldt County, CA
Posts: 3,485
Yeah, I really don't like cutting sheet metal. I love the look of an un cut, un hacked xj, so all my mods are pretty reversible, or not visible.
Since my jeep is only 8 years old, and Im only 17, I've got lots of time to trim fenders, make a rear snorkel, go doorless, cut stuff, all of which are somewhat irreversible.

So Im digging the totally stock look, and then you look underneath, and big surprise.
__________________
2001 XJ, patriot blue, 4 inch RE lift, IRO long arms, 33's. Caged, locked, armored -Trail Rig
2004 WJ Special Edition, Silver, 3 inch IRO lift, 4.7, JK graphite moab wheels/SRA's- Mom's dd
2004 WJ Overland, Onyx Green, 90% dechromed, soon to have JK moab's, BFG MT's, and a 3 inch IRO lift My new DD/ project
srmitchell is offline   Reply With Quote
Unread 03-15-2009, 11:33 AM   #6
Goldenknob
Registered User
2007 WK

Join Date: Jun 2006
Location: Antlers, Ok
Posts: 1,023
looks great man.. does it restrict your instant throttle?
Goldenknob is offline   Reply With Quote
Unread 03-15-2009, 11:41 AM   #7
nrpalmer32
Registered User
1987 XJ Cherokee

Join Date: Mar 2007
Location: Milwaukie, Oregon
Posts: 1,511
Yeah, definitely keeping it clean is a good look, I want to keep it somewhat clean looking, thats my prob with the hmmwv intake, it'd take some modding. Yours seems good though and let us know how it works for you!
nrpalmer32 is offline   Reply With Quote
Unread 03-15-2009, 06:13 PM   #8
srmitchell
Registered User
2001 XJ Cherokee

Join Date: Dec 2007
Location: Humboldt County, CA
Posts: 3,485
Thanks. Yeah, I really like it. Plus, the tube was about 5 bucks, and the intake hose was free, so this was a very economic mod.

Oh, and of course, eventually I will seal the front.

And Goldenknob, it does NOT restrict it, in fact, I feel quite a bit of power increase.
__________________
2001 XJ, patriot blue, 4 inch RE lift, IRO long arms, 33's. Caged, locked, armored -Trail Rig
2004 WJ Special Edition, Silver, 3 inch IRO lift, 4.7, JK graphite moab wheels/SRA's- Mom's dd
2004 WJ Overland, Onyx Green, 90% dechromed, soon to have JK moab's, BFG MT's, and a 3 inch IRO lift My new DD/ project
srmitchell is offline   Reply With Quote
Unread 03-15-2009, 07:21 PM   #9
bdb12586
Registered User
1995 ZJ

Join Date: Apr 2007
Location: Walden N.Y., NY
Posts: 146
Quote:
Originally Posted by nrpalmer32 View Post
I like that idea, I've been trying to think of something like that as well. I know that some people even continue that pipe over to the other side so that rain doesn't effect it as well. I have been trying to think of a way to make a short hmmwv style snorkel for mine. The problem is that I would have to actually cut the hood a bit to do what I am wanting, but the hinges for hood are where I am wanting to do it. Probably not going to happen the way I am wanting to do it. I like your idea as well with the hard pvc pipe.

Im also guessing your already planning on closing the front part of the box right

I was wanting to mod an intake with something like this.

not to hijack the thread but here is what I came up with
http://www.jeepforum.com/forum/f177/my-version-hummer-intake-701415/
bdb12586 is offline   Reply With Quote
Unread 03-15-2009, 07:45 PM   #10
srmitchell
Registered User
2001 XJ Cherokee

Join Date: Dec 2007
Location: Humboldt County, CA
Posts: 3,485
No worries, looks good.
__________________
2001 XJ, patriot blue, 4 inch RE lift, IRO long arms, 33's. Caged, locked, armored -Trail Rig
2004 WJ Special Edition, Silver, 3 inch IRO lift, 4.7, JK graphite moab wheels/SRA's- Mom's dd
2004 WJ Overland, Onyx Green, 90% dechromed, soon to have JK moab's, BFG MT's, and a 3 inch IRO lift My new DD/ project
srmitchell is offline   Reply With Quote
Unread 03-15-2009, 09:36 PM   #11
Tweeternpi
Registered User
2003 TJ Wrangler

Join Date: Aug 2005
Posts: 143
I would love to do something like that, But my Jeep has ABS. And the ABS is right behind the air box!! Looks good by the way.
__________________
Tweeternpi

New 2003 Green Tj Rubicon. 4 Inch lift 305/70/16 MTR's Milemarker 8000 winch.

OLD 92 Cherokee Larado. Red and Grey. 7" lift, trim fenders Long arm 4:10 gears with lockers and 35/12.50/15 Toyo AT. So to be parted out to the wifes YJ.
Tweeternpi is offline   Reply With Quote
Unread 03-15-2009, 11:34 PM   #12
EricsXJ
The Post man

EricsXJ's Avatar
2000 XJ Cherokee

Join Date: Apr 2001
Location: Reno, Nevada
Posts: 8,570
That looks good.

I will say there won't be any problem with rain water with the intake at that location. Heck you could probably splash a bunch of water up onto the hood and into the cowl and it will still be fine.

I'm in the process of changing mine from the traditional ARB snorkel to a cowl snorkel also however I am going with a cone filter inside the passenger side cowl. My only concern is how loud it will be with the filter in there. I got most of it done yesterday, but am now back into the work week so it probably won't be done until Thursday.
__________________
Eric
2000 XJ "PROJECT RUBICON" 3-link front / 4-link rear / coilovers / running 37's on Dana 60s
My website - EricsXJ.com

EricsXJ is offline   Reply With Quote
Unread 03-16-2009, 06:46 PM   #13
srmitchell
Registered User
2001 XJ Cherokee

Join Date: Dec 2007
Location: Humboldt County, CA
Posts: 3,485
Thanks.

Yeah, water isn't a problem, the face of the cowl/ firewall is angled similar to the windshield angle, so it won't act as a bilge pump or anything.

I think I recall you saying you were getting rid of the arb snorkel. Is there a specific reason?

Oh, and as far as sound goes, it growls a lot when it starts cold, but once you throw it in gear it quiets down.
__________________
2001 XJ, patriot blue, 4 inch RE lift, IRO long arms, 33's. Caged, locked, armored -Trail Rig
2004 WJ Special Edition, Silver, 3 inch IRO lift, 4.7, JK graphite moab wheels/SRA's- Mom's dd
2004 WJ Overland, Onyx Green, 90% dechromed, soon to have JK moab's, BFG MT's, and a 3 inch IRO lift My new DD/ project
srmitchell is offline   Reply With Quote
Unread 03-16-2009, 06:54 PM   #14
srmitchell
Registered User
2001 XJ Cherokee

Join Date: Dec 2007
Location: Humboldt County, CA
Posts: 3,485
A completed pic.
__________________
2001 XJ, patriot blue, 4 inch RE lift, IRO long arms, 33's. Caged, locked, armored -Trail Rig
2004 WJ Special Edition, Silver, 3 inch IRO lift, 4.7, JK graphite moab wheels/SRA's- Mom's dd
2004 WJ Overland, Onyx Green, 90% dechromed, soon to have JK moab's, BFG MT's, and a 3 inch IRO lift My new DD/ project
srmitchell is offline   Reply With Quote
Unread 03-16-2009, 11:10 PM   #15
EricsXJ
The Post man

EricsXJ's Avatar
2000 XJ Cherokee

Join Date: Apr 2001
Location: Reno, Nevada
Posts: 8,570
Quote:
Originally Posted by srmitchell View Post
I think I recall you saying you were getting rid of the arb snorkel. Is there a specific reason?
It will be in the way of the cage I'm going to build. I don't want to go back to just a stock exhaust or exposed cone filter and I still want the fording capability of a snorkel.
__________________
Eric
2000 XJ "PROJECT RUBICON" 3-link front / 4-link rear / coilovers / running 37's on Dana 60s
My website - EricsXJ.com
