Homemade Winch Bumper

So I have always liked the look of the ARB winch bumpers for the XJ. Problem is, I could never justify spending $900 on a bumper

I started in Autocad and Google Sketchup and after about 932 revsions and tweaks I finally think I got a design I like:



On to cutting:




And throw in a few tack welds:

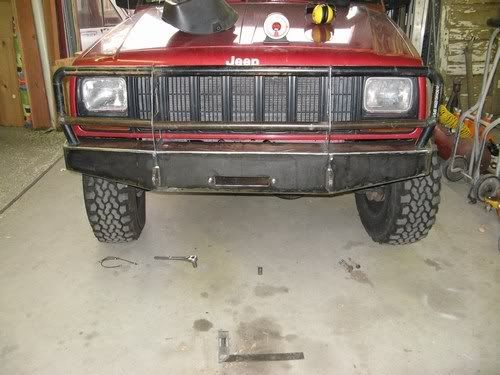

I'm pretty happy so far. My SmittyBilt winch is going to fit nicely and be totally hidden behind the bumper. Frame tie in plates and the winch tray will be made from 3/16. The bumper itself is 10 ga (.1345 thick). Probably throw a couple rectangular lights on it, paint it and call it good.

I'm just dreading all the finish grinding I have to do

__________________
98 SE XJ
4.0L, AW4
RE 6130 w/ 3.5" springs
31x10.50 High Tec OTR Muds
Cragar 397 15x8 4" BS
Terra 2Lo, HD SYE, Bilstein 5150 & 5100s
racer32 is offline   Reply With Quote Quick reply to this message
Unread 07-30-2007, 02:06 PM   #2
Motorvated
Registered User

Join Date: May 2007
Location: South Jersey
Posts: 349
Saw this on NAXJA too...awsome job man! Lok foward to seeing the final product.
Motorvated is offline   Reply With Quote Quick reply to this message
Unread 07-30-2007, 02:10 PM   #3
captain_ruggy
Registered User
1994 XJ Cherokee

Join Date: Sep 2005
Location: Pennsylvania
Posts: 1,355
I'll take mine in black please.
__________________
1994 Jeep Cherokee 4x4
4.0 HO, Auto, 4dr., NP231, 8.25 rear
6 inches of bastard pack lift, 35/12.5/R15's
Aux. fan switch, homemade BPE's
moved intake, OEM towhooks
Rear disc brakes, JKS disco's
captain_ruggy is offline   Reply With Quote Quick reply to this message
Unread 07-30-2007, 02:19 PM   #4
tipsovr
Registered User
1995 XJ Cherokee

Join Date: Jul 2007
Location: the western part of eastern VA
Posts: 28
Nice work, wish I knew how to weld..... Good luck with it. Post up some more pix when it is completed.
tipsovr is offline   Reply With Quote Quick reply to this message
Unread 07-30-2007, 02:22 PM   #5
Jeremy_Cherokee
Registered User
2001 XJ Cherokee

Join Date: Jun 2007
Location: Ames, Ia
Posts: 236
That's nothing compared to this



Just kidding. That is sweet. Where are the complete blueprints or diagrams of this. I'd love to make that. That's about exactly what I've been looking for!
__________________
I've got a Jeep...isn't that all that really matters in life ;)

Build Thread:
2001 Cherokee Build Thread (The Work Horse)
Jeremy_Cherokee is offline   Reply With Quote Quick reply to this message
Unread 07-30-2007, 02:42 PM   #6
BlkBird
Registered User
2004 TJ Wrangler

Join Date: Apr 2003
Location: Moscow Mills, Missouri
Posts: 954
I like it. Its simple and clean yet does everything it needs to. If you make any to sell, let me know.
__________________
2004 Wrangler X 4.0
2000 Cherokee Sport 4.0
1992 Dakota Sport 5.9
1971 Pontiac Firebird
BlkBird is offline   Reply With Quote Quick reply to this message
Unread 07-30-2007, 04:45 PM   #7
drew and not u
Registered User
1996 XJ Cherokee

Join Date: Jun 2006
Location: Henderson, NC
Posts: 697
Quote:
Originally Posted by Jeremy_Cherokee
What is that?
__________________
my xj
"I Feel Sorry For Jeeps that Don't Go Off-Road" Facebook Group
<- specs go over there, man!
drew and not u is offline   Reply With Quote Quick reply to this message
Unread 07-30-2007, 04:46 PM   #8
Jeremy_Cherokee
Registered User
2001 XJ Cherokee

Join Date: Jun 2007
Location: Ames, Ia
Posts: 236
Quote:
Originally Posted by drew and not u
What is that?
The ENORMOUS bumper that WAS on my Jeep when I purchased it
__________________
I've got a Jeep...isn't that all that really matters in life ;)

Build Thread:
2001 Cherokee Build Thread (The Work Horse)
Jeremy_Cherokee is offline   Reply With Quote Quick reply to this message
Unread 07-30-2007, 05:31 PM   #9
wil badger
Registered User

Join Date: May 2005
Location: Utah
Posts: 2,895
you plan on welding some ribs in that right?

i would make a slit in the front panel and pass the frame tie in through the front.this way it welds in all the way around the inside then around the piece on the outside.then weld plate to each side of the piece that passed through the front.this will leave you a nice chunk to drill out for a tab.

thats how Terry from Rigid builds the tabs on his bumpers.

back view


the front
__________________
One Built XJ
wil badger is offline   Reply With Quote Quick reply to this message
Unread 07-30-2007, 11:24 PM   #10
racer32
Registered User
1998 XJ Cherokee

Join Date: Jul 2004
Location: Southwest Idaho
Posts: 70
Nice pics wil - yeah I'm going to pass the frame brackets through and make shackle tabs on the front somewhere... I'll probably brace it up a bit too like that...

__________________
98 SE XJ
4.0L, AW4
RE 6130 w/ 3.5" springs
31x10.50 High Tec OTR Muds
Cragar 397 15x8 4" BS
Terra 2Lo, HD SYE, Bilstein 5150 & 5100s
racer32 is offline   Reply With Quote Quick reply to this message
Unread 07-30-2007, 11:26 PM   #11
XJK
The Guru of Nothing

XJK's Avatar
1999 XJ Cherokee

Join Date: Jan 2007
Location: Santa Rosa, Ca
Posts: 6,699
really good design, looks like the beginnings of a great winch bumper

-Kyle
XJK is offline   Reply With Quote Quick reply to this message
Unread 07-31-2007, 01:47 AM   #12
KevinKrupp
Registered User
1994 XJ Cherokee

Join Date: Mar 2007
Location: Acworth, GA
Posts: 178
that thing look GOOOOOD
__________________
[B]-'94 Xj Country
6.5" Rough Country lift with bushwacker fender flares, 35" Maxxis Bighorn Tires, 15" Extreme black steel rims, Rancho steering stabilizer, 40 series Flowmaster Muffler, Custom 1/4" steel Front and rear bumpers with stinger on the front, 4 6.5ton D-Rings, 5' whip on the rear bumper, and a Warn 8,000lb winch on the front bumper, side rock sliders[/B]
KevinKrupp is offline   Reply With Quote Quick reply to this message
Unread 07-31-2007, 01:53 AM   #13
wojtizzlator
Registered User
1987 XJ Cherokee

Join Date: Jan 2007
Location: arvada, colorado
Posts: 2,177
i like man i think i might invest i a welder and save a couple hundred bucks in bumpers and shat
__________________
Wojtek


"who needs paved roads when u have a jeep"

87 xj 6" long arm lift, 35's, 4.88 yukon gears, front detroit true trac

colorado jeep club member # 74
wojtizzlator is offline   Reply With Quote Quick reply to this message
Unread 07-31-2007, 02:52 AM   #14
collkid
Registered User
2000 XJ Cherokee

Join Date: Apr 2007
Location: Highlands Ranch, Colorado
Posts: 1,842
Wow looks pretty dang good... how much is that going to cost you?
__________________
2000 Jeep Cherokee. 4.5', Long arms, Bumpers front and rear, Winch.
1992 Toyota Paseo DD 35+ MPG
Colorado Member #89
collkid is offline   Reply With Quote Quick reply to this message
Unread 10-02-2007, 11:50 AM   #15
racer32
Registered User
1998 XJ Cherokee

Join Date: Jul 2004
Location: Southwest Idaho
Posts: 70
Update:

Well i did some tube work this weekend and got all the frame tie ins welded up. I should be able to finish welding/grinding and paint next weekend...





I love my roof rack too. 21 feet of pipe up there :
