Homemade Bump stops!

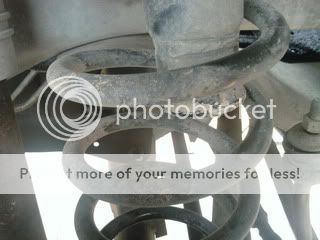

I was installing the new lift, and found this:

I needed a quick fix to finish my install so I had to come up with a way to make the universal type bump stop work. I bought some 1.25" steel pipe and a cap to make this:

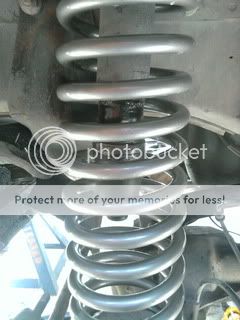

This combination extended my bump stop by about 1.25 inches. You could use longer pipe, but Id weld it in if you do. I dtrilled a hole in the cap and bolted the universal bumpstop to it. I then threaded the cap onto the pipe. I ground the dimples out of the inside of where the factory bump stops go and inserted the 1.25" pipe. I drilled straight through and bolted in place with a .25"x2" bolt. Finished product:



You can make these longer using longer pipe, but you would want to weld it in. They way I made mine, the pipe cap rests flush against the factory bump stop location, so it should be strong enough without welding.

XJcruiser is offline
Sponsored Links
Advertisement

post #2 of 10 Old 09-25-2010, 02:40 PM
crem
Registered User
1998 XJ Cherokee

Join Date: Sep 2008
Location: Bend, OR
Posts: 413
Thats is a pretty sweet idea!

1992 White (SOLD)
1993 Green (SOLD)
1998 Red XJ - Stock for now
crem is offline
post #3 of 10 Old 09-25-2010, 02:49 PM
ChEaPsK87
Registered User
1987 XJ Cherokee

Join Date: Jul 2010
Location: Concord NC
Posts: 602
this is awesome! i am a plumber so i have access to these materials everyday. think i am going to keep this one

i have one small concern though. it is strong pipe in short lengths and low stress driving. but i think anything longer than a shoulder nipple or 2" nipple or lots of daily driving-hard offroading might make the bolt wear through or pipe shatter in 1/2. just a thought!!! not saying it will not work great for many years. i love the idea and will be trying it out

and really you also created an easily removable bupstop also! this could work if you plan on later changing lifts and want more bumpstop you could just unbolt and replace with longer pipe. just a great writeup!
ChEaPsK87 is offline
post #4 of 10 Old 09-25-2010, 02:59 PM
austinaubinoe
Registered User
2000 XJ Cherokee

Join Date: Jan 2009
Location: Maryland
Posts: 1,225
what was total cost of the project? You can buy poly ones that fit in the stock hole for like 30 bucks.

good idea though.
austinaubinoe is offline
post #5 of 10 Old 09-25-2010, 03:23 PM
jeepxjadam
Registered User
1999 XJ Cherokee

Join Date: May 2009
Location: Oil City PA
Posts: 537
[QUOTE=ChEaPsK87;10183598]
i have one small concern though. it is strong pipe in short lengths and low stress driving. but i think anything longer than a shoulder nipple or 2" nipple or lots of daily driving-hard offroading might make the bolt wear through or pipe shatter in 1/2. just a thought!!! not saying it will not work great for many years. i love the idea and will be trying it out
[QUOTE]

you could buy schedule 80 or 160 pipe nipples. the wall thickness of them should easily hold up to offroad use.

i think ill make a few of these at work monday. i make nipples and caps daily so i can snag a few

1999 XJ Sport
3" RC coils, 2'' coil spacer, 4'' Procomp leafs, 4* shims, Rusty's LCA's
Rubicon Express trac-bar, IRO t case drop, homebrew bumpers, reciever hitch, Riddler front and rear diff covers,
Warn t-case skid, M.O.R.E steering box brace, D-Windows, 33x10.5 KM2's
cut and folded rear, flare relocation up front
jeepxjadam is offline
post #6 of 10 Old 09-25-2010, 05:10 PM
ChEaPsK87
Registered User
1987 XJ Cherokee

Join Date: Jul 2010
Location: Concord NC
Posts: 602
yeah sch 80 should be perfect actually! i am so used to working with 40 i dont even think about the others
ChEaPsK87 is offline
post #7 of 10 Old 09-25-2010, 09:54 PM Thread Starter
XJcruiser
Registered User
1999 XJ Cherokee

Join Date: Feb 2009
Location: San Antonio
Posts: 1,268
Total cost was like $16. I would have gotten the stock replacements, but it meant another day of downtime. I just needed something I could throw in right now. The 1/4" bolt really just holds the plumbing up. If the axle were to contact the bumpstop, the cap hits the tower, so the bolt doesnt actually take any of the force. I did think of that though, which is why I say if you go longer to weld it. I will likely still end up putting a hockey puck on the spring perch, being as I have a 4.5" lift. I did this lift in my driveway with no air tools and only a few power tools, so I had to be creative.
XJcruiser is offline
post #8 of 10 Old 09-26-2010, 08:50 AM
ChEaPsK87
Registered User
1987 XJ Cherokee

Join Date: Jul 2010
Location: Concord NC
Posts: 602
Quote:
Originally Posted by XJcruiser View Post
Total cost was like $16. I would have gotten the stock replacements, but it meant another day of downtime. I just needed something I could throw in right now. The 1/4" bolt really just holds the plumbing up. If the axle were to contact the bumpstop, the cap hits the tower, so the bolt doesnt actually take any of the force. I did think of that though, which is why I say if you go longer to weld it. I will likely still end up putting a hockey puck on the spring perch, being as I have a 4.5" lift. I did this lift in my driveway with no air tools and only a few power tools, so I had to be creative.
my project is not even in the driveway...back yard on the ground! it does make things harder and you have to be more creative. and i feel you on the power toolless too. i have a wrench set, socket set, screw drivers, BFH and SFH, angle grinder, 3" pnuematic cutoff wheel and air compressor...thats it!!!
ChEaPsK87 is offline
post #9 of 10 Old 12-03-2010, 10:18 AM
ChEaPsK87
Registered User
1987 XJ Cherokee

Join Date: Jul 2010
Location: Concord NC
Posts: 602
i just happened to notice something in your pic. how the hell does your thumb bend like that!?!
ChEaPsK87 is offline
post #10 of 10 Old 12-19-2010, 11:56 AM Thread Starter
XJcruiser
Registered User
1999 XJ Cherokee

Join Date: Feb 2009
Location: San Antonio
Posts: 1,268
double jointed. That hard part is getting my thumb to NOT bend like that.
