Unread 10-08-2004, 06:11 PM   #1
mbood82
Registered User
1999 XJ Cherokee

Join Date: Nov 2003
Location: Lewiston, ME
Posts: 1,727
Gear Install in a Chryco 8.25

I recently installed some 4.56 gears in my 8.25. Having found it to be slightly different from the typical Dana axles, and not being able to find a real write-up on this axle easily, and at the request of a few people on the forum, I figured I'd write up a tip sheet or something. I am by no means an expert gear installer, this was my first time doing gears even. It is very likely I'll leave out a few steps. And I don't know many of the technical terms, so expect dohickey and thing-a-ma-bob to be used alot. As a result, do not hold me liable to anything said here. With that out of the way, I will try to get some stuff clarified.

Tools needed:

BFH (big f*cking hammer)
Complete socket set
Foot pound torque wrench
Inch pound torque wrench - beam style
Assorted punches
Bearing press
Gear paint
Other assorted crap I forgot I used

Step 1.)

Remove the diff cover. I suggest placing a pan under the diff that can hold 2 quarts of gear oil. Starting at the bottom, undo the bolts evenly towards the top. If the oil has not started to drain by the time you get to the top bolt, loosen it but do not remove it and take a screwdriver and gently pry it off from the bottom. Let the oil drain, then remove the top bolt.

Edited - Step 2.) Remove the retaining clips holding the adjusters in place. A picture of the bearing cap, adjuster and adjuster clip courtesy of XJ99.



Step 3.)

Remove the center pin. There is a bolt holding it in on one side of the carrier. I believe it is a 5/16ths bolt. Be very careful, I rounded it over when I tried taking it out. Could ruin the day right there. Proceed to remove the axle shafts now. You will need to push in on each one individually so you can remove the c-clips as they are held in place by the side gears. After the c-clip is removed, the axle shaft should slide out of the axle. Be careful the spider gears don't fall out, and put the center pin back into the carrier after the axles are removed.

Step 4.)

Remove the two blocks retaining the carrier bearings, one of which is pictured in the above picture. Make sure to mark them as need to go back on the same way they came off. The carrier should fall out at this point, so be prepared to catch it. If it doesn't just fall out you can run a rag through the gears and it will force them out. You can remove the old bearings off of the carrier at this point.

Step 5.)

Now you need to remove the yoke and pinion. You will need a yoke wrench to hold the yoke while you loosen the pinion nut. We made one, it looks something like this:

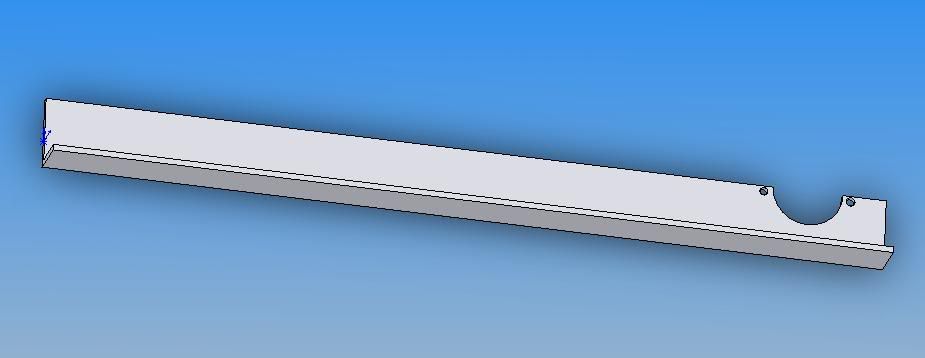

Basically, it's a piece of angle iron with a semicircle cut through it and two holes. The two holes line up with the holes on the yoke and the semicircle lets you put the socket onto the nut. It will rest against the ground and prevent the yoke from moving while you take the nut off.

Once the pinion is out, note the assembly of the bearings and shims, in addition to shim size. You will want to use this information later.

Step 6.)

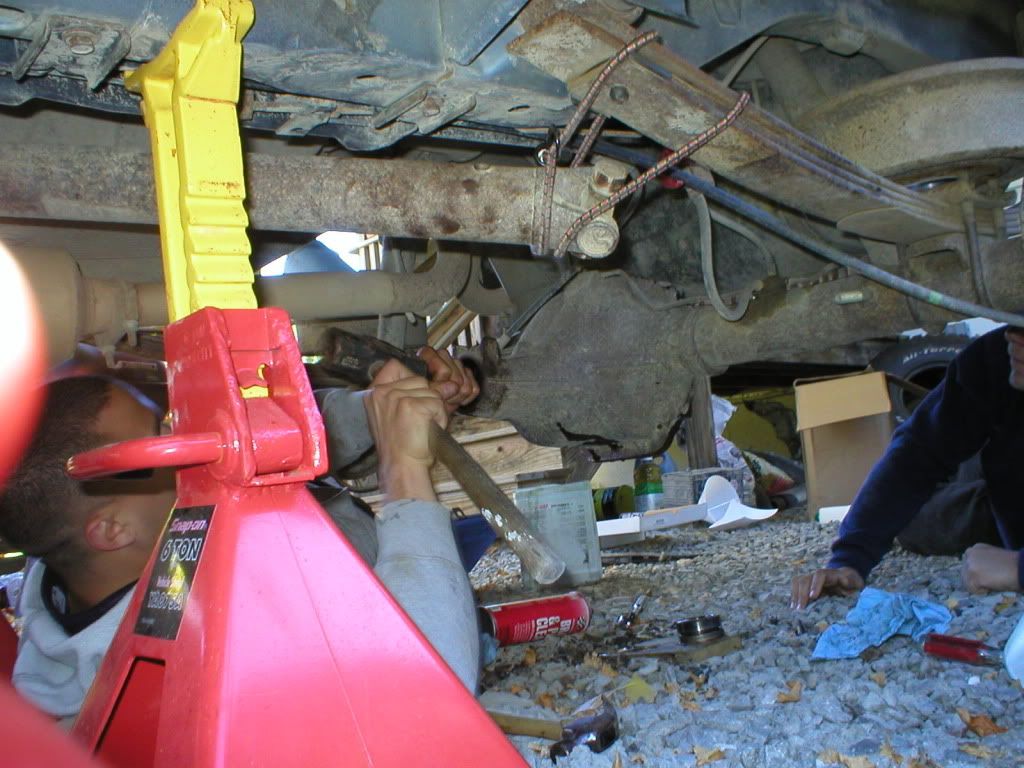

Now that the pinion nut is off, you gotta get the yoke off and the pinion out. The yoke should just slide off. The pinion will be press-fit in though and requires a large hammer and a block of wood. Have at it. Once they are out, you will have to remove the races for the bearings if you are not reusing them. It will require a punch and a hammer.




Step 7.)

At this point, unless I forgot something, the entire diff should be empty. Clean it liberally with some brake cleaner (non-chlorinated kind if you like having normal kids in the future) and some paper shop towels.

Step 8.)

Remove the ring gear from the carrier. Unless you have some form of vise in which you can grab the carrier well, it will probably require two people. We used two socket wrenches and put a person on each one, pushing on opposite sides of the carrier to break the bolts free. You can reassemble the new ring gear onto the carrier at this point. Depending on the gears you go with they may be too tall to allow the center pin to go back into the carrier. What I did was grind down one tooth on the ring gear in front of the hole in the carrier, and grind down the bottom of the center pin. These won't affect the overall strength of the gear set too much because the area of the gear tooth being used shouldn't be infringed upon by the grinding.



Be sure to use lock-tight on any bolts you put back into the carrier.

Step 9.)

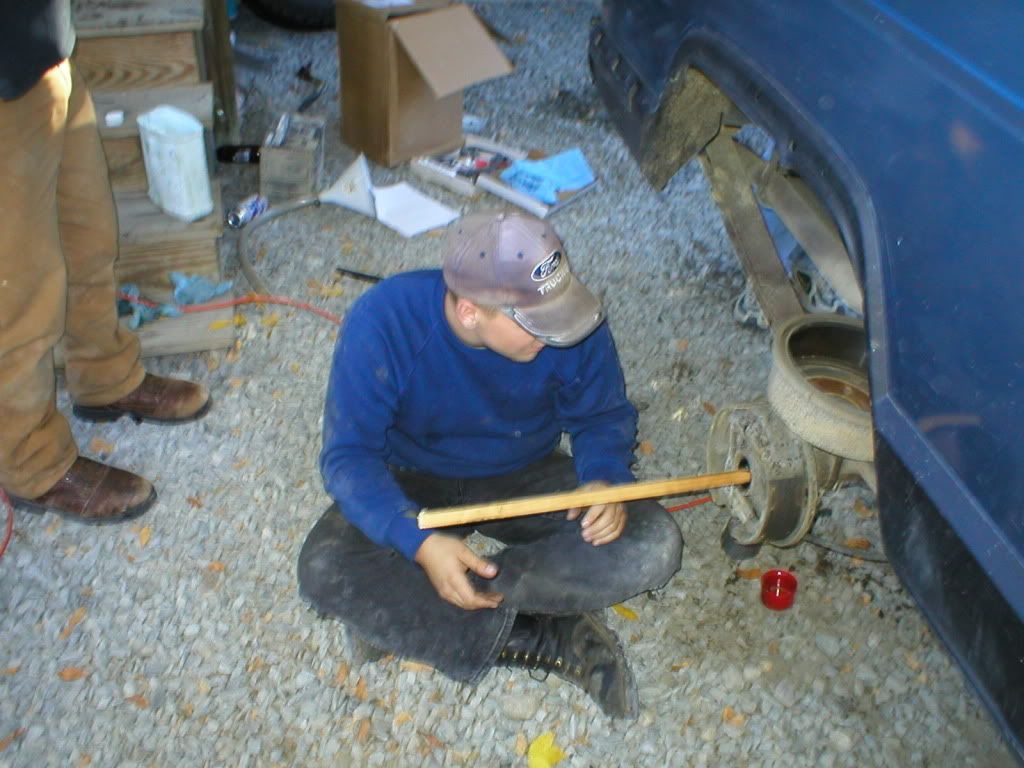

Assemble the new races back in the axle. This will require careful hammering and a punch that will cover the face of the races so you don't damage them. It's a fairly idiot proof process as long as you make sure they go in straight.

__________________
'99 Jeep Cherokee - RE 3.5" SuperFlex with 32s
'06 Dodge Magnum R/T
'03 Toyota MR2 Spyder

Last edited by mbood82; 08-29-2009 at 07:35 AM..
mbood82 is offline   Reply With Quote Quick reply to this message
Unread 10-08-2004, 06:13 PM   #2
mbood82
Registered User
1999 XJ Cherokee

Join Date: Nov 2003
Location: Lewiston, ME
Posts: 1,727
Step 10.)

At this point the pinion has to go back in. It is recommended to start with the same size shim as what was removed originally, as 90% of the time it will remain the same. It didn't for me, but thats how the cookie crumbles. I'd recommend using the old bearings for test fitting until you are sure of the shim size. I had to assemble my pinion twice before we hit on the correct shim size. The correct procedure (if I recall correctly) for checking for proper shim size is to install the new pinion with the old bearings and crush sleeve so that the pinion is tight, and then measure the backlash and pattern markings with the carrier put in temporarily. If you were make setup bearings by taking a dremel and grind out the inside of the old bearing a bit so it will slide down the pinion easier it makes it alot easier to test fit.

Step 11.)

Now you are ready to put the pinion in for good. Put your new bearings, shims, and crush sleeve into the diff. Using your yoke wrench again and the socket wrench, tighten the pinion nut down until there is no play in the pinion back and forth. Only tighten it up to that point, you don't want to over crush the crush sleeve yet. Now you will need to get out your inch-pound torque wrench and see how much preload is on the bearings. I believe we aimed for around 12 in-pounds. If it is below that still, slowly tighten up the nut until you get there.


Step 12.)

Now you get to install the carrier again. You will want to get it roughly centered back in the diff and install the bearings and adjusters. At this point you will need your handy tool that I'd assume Chrysler had special made for the axle, but we fabbed up out of threaded rod and a nut. We originally used a piece of wood and a nut, but you can't get enough torque out of it since we just threaded the nut onto the wood. Attached below are pictures of the rig and how it gets implemented:





And the improved one:



This is what it will look like with the wrench going into the adjusters:



Inside the diff view:



And this is setting up to measure the backlash:



To adjust the backlash, you will need to turn both adjusters until they are tight. You don't need to reef on it too much we found, but good and snug is appropriate. The two bolts holding each brace on will need to be loose for the adjusters to be able to be adjusted. Be sure to tighten them up though before checking backlash, we found that out the hardway after the first half hour of setting it up. Be sure to use some thread locker on the bolts after your final adjustment, and tighten them to 60 ft-lbs.

Step 13.)

Once the gears are all set, you'll want to install the clips on each brace. These will prevent the adjusters from turning too much in the diff.

Step 14.)

Now you will want to put the axles back in place. Once each one is in, you can install the c-clips and then pull the axle back flush within the spider gears. The center pin can then be put back in. Be sure to use thread locker on the bolt holding the center pin in place.

Step 15.)

At this point, you should be able to reseal the diff cover and put 2 quarts of oil in. You'll want to take it for a spin and listen for gear howl and the like. If you go with really low gears, they will probably howl anyways, at least on the coast side. It's a noisy axle. The proper break in period is, from what my research shows, to run the axle for about 15 minutes at varying speeds to warm it up, and then let it cool for a while. Do this a few times to let the gears work harden and you should be set.

I hope this helps, any inaccurate info I would love to be notified on and I will change. Similarly, anything you can add that I missed or would simply be helpful I'd appreciate.

Special thanks to Josh Walls, Dan Wilson, and assorted others for their expertise/manual labor help. I greatly appreciate it.
__________________
'99 Jeep Cherokee - RE 3.5" SuperFlex with 32s
'06 Dodge Magnum R/T
'03 Toyota MR2 Spyder

Last edited by mbood82; 08-29-2009 at 07:21 AM..
mbood82 is offline   Reply With Quote Quick reply to this message
Unread 10-08-2004, 06:28 PM   #3
balloo93
Little Red Menace

balloo93's Avatar
1993 XJ Cherokee

Join Date: Aug 2002
Location: Austin, TX
Posts: 20,821
NICE write up, deff going into the Tech/FAQ section if you don't mind.
__________________
93 Sport
Beer is proof that God loves us and wants us to be happy............Ben Franklin


Specs in Profile.

http://www.cardomain.com/ride/325707/1
http://www.cardomain.com/ride/2406854/1
balloo93 is offline   Reply With Quote Quick reply to this message
Unread 10-08-2004, 06:31 PM   #4
mbood82
Registered User
1999 XJ Cherokee

Join Date: Nov 2003
Location: Lewiston, ME
Posts: 1,727
Quote:
Originally Posted by balloo93
NICE write up, deff going into the Tech/FAQ section if you don't mind.
As long as it's accurate enough, I sure don't mind.
__________________
'99 Jeep Cherokee - RE 3.5" SuperFlex with 32s
'06 Dodge Magnum R/T
'03 Toyota MR2 Spyder
mbood82 is offline   Reply With Quote Quick reply to this message
Unread 10-09-2004, 12:21 AM   #5
chow
Member

Join Date: Nov 2003
Location: (951) Baby!!! Wildomar, CA
Posts: 380
WOW you read my mind, but I'm just going to have someone do it for me what I get my ARB set-up
__________________
[B]Mitsu Diamante~92[/B]
[B]Chevy 2500HD Diesel~06[/B]
[B]Jeep Cherokee~96[/B]

Rusty's Intake & TB Spacer, Banks Header, CSF 3-Core Radiator & MagnaFlow 2.5 SS Cat-Back Exhaust....
R.E. 6200 5" w/Bilstein 5150, JKS UCA & LCA, HighAngle CV Drive shaft, 1987 Dana 44 & R.E. SYE....
Custom 4X4 Fabrication Diff Gards D30 & D44, JKS SuperNerf Rails, DPG OFFROAD T-Case, Custom Roll Cage, Front & Rear Bumper by Ryan's Roll Cage.....
AR 797 15X8 W/FireStone Destination MT 31" , Warn 9.5 XP Winch ~
chow is offline   Reply With Quote Quick reply to this message
Unread 10-09-2004, 11:04 AM   #6
XJ99
Draft Line

XJ99's Avatar
2006 XK Commander

Join Date: Jan 2002
Location: Raleigh, NC
Posts: 9,635
hehehe fun wasn't it? I didn't do a write when I did mine it was my first time too!



Here's a shot of the shim and a bearing cap:














I bought the tool from Randy's Ring and Pinion ($65.00). Probably could have fabbed one up but this has a place for a half inch breaker bar in the end. (for torque)















I didn't re-gear mine I bought new gears when I broke the pinion:

















Your right about the shim, I just reused the old one. If your changing the ratio you will most likely have to change the shim. It's been almost 50,000 miles since I rebuilt the rear.




All in all you made one hell of a write up!
__________________
When we do right, no one remembers. When we do wrong, no one forgets.

Last edited by XJ99; 08-08-2005 at 04:45 PM..
XJ99 is online now   Reply With Quote Quick reply to this message
Unread 10-09-2004, 11:06 AM   #7
mbood82
Registered User
1999 XJ Cherokee

Join Date: Nov 2003
Location: Lewiston, ME
Posts: 1,727
Thanks!

And thanks for the pictures, that was what I had missed. :-D
__________________
'99 Jeep Cherokee - RE 3.5" SuperFlex with 32s
'06 Dodge Magnum R/T
'03 Toyota MR2 Spyder
mbood82 is offline   Reply With Quote Quick reply to this message
Unread 02-18-2007, 04:46 PM   #8
mbood82
Registered User
1999 XJ Cherokee

Join Date: Nov 2003
Location: Lewiston, ME
Posts: 1,727
Update: I graduated school back in May, the pictures have been down since about then. I was recently contacted by someone asking for information on it and I figured I'd start looking for the pictures again and try to update this post. In the meantime, feel free to e-mail me at matt.bodwell@gmail.com with any questions.
__________________
'99 Jeep Cherokee - RE 3.5" SuperFlex with 32s
'06 Dodge Magnum R/T
'03 Toyota MR2 Spyder
mbood82 is offline   Reply With Quote Quick reply to this message
Unread 02-19-2007, 05:16 PM   #9
mbood82
Registered User
1999 XJ Cherokee

Join Date: Nov 2003
Location: Lewiston, ME
Posts: 1,727
Pictures up, as close as I can remember at least. Added a real picture of the yoke wrench I found on the internet as compared to the Solidworks picture I had up previously. Hope it helps someone.
__________________
'99 Jeep Cherokee - RE 3.5" SuperFlex with 32s
'06 Dodge Magnum R/T
'03 Toyota MR2 Spyder
mbood82 is offline   Reply With Quote Quick reply to this message
Unread 02-20-2007, 01:01 AM   #10
Jeepwheeler2
Registered User

Join Date: Nov 2006
Location: Mid. Suffolk, NY
Posts: 146
Just a heads up for anyone working on a 8.25 axle. (or a 9.25 for that matter) The torsion bar from 4WD 97-00 Dakota or 98-00 Durango will fit the carrier adjusting nuts well. You should be able to find one in the junkyard for alot less then the $65 price for the actual tool.
__________________
'96 XJ 4.0 AW4, 3" Homebrew lift, homebuilt tree felling bumper, warn x-case skid, roof mounted spare and hi-lift, lots of custom bent sheetmetal.
Jeepwheeler2 is offline   Reply With Quote Quick reply to this message
Unread 02-20-2007, 11:26 AM   #11
rob92xj
Registered User
1992 XJ Cherokee

Join Date: Nov 2004
Location: Fayetteville, NC
Posts: 2,293
I use a Miller tool #C-4164
From dealerconnect service manual section.
DIFFERENTIAL BEARING PRELOAD AND GEAR BACKLASH
The following must be considered when adjusting bearing preload and gear backlash:

The maximum ring gear backlash variation is 0.003 inch (0.076 mm)
Mark the gears so the same teeth are meshed during all backlash measurements.
Maintain the torque while adjusting the bearing preload and ring gear backlash.
Excessive adjuster torque will introduce a high bearing load and cause premature bearing failure. Insufficient adjuster torque can result in excessive differential case free-play and ring gear noise.
Insufficient adjuster torque will not support the ring gear correctly and can cause excessive differential case free-play and ring gear noise.
NOTE: The differential bearing cups will not always immediately follow the threaded adjusters as they are moved during adjustment. To ensure accurate bearing cup responses to the adjustments:

Maintain the gear teeth engaged (meshed) as marked.

The bearings must be seated by rapidly rotating the pinion gear a half turn back and forth.

Do this five to ten times each time the threaded adjusters are adjusted.

Use Wrench C-4164 to adjust each threaded adjuster inward until the differential bearing free-play is eliminated Threaded Adjuster Tool Allow some ring gear backlash (approximately 0.01 inch/0.25 mm) between the ring and pinion gear. Seat the bearing cups with the procedure described above.
Install dial indicator and position the plunger against the drive side of a ring gear tooth Ring Gear Backlash Measurement Measure the backlash at 4 positions (90 degrees apart) around the ring gear. Locate and mark the area of minimum backlash.
Rotate the ring gear to the position of the least backlash. Mark the gear so that all future backlash measurements will be taken with the same gear teeth meshed.
Loosen the right-side, tighten the left-side threaded adjuster. Obtain backlash of 0.003 to 0.004 inch (0.076 to 0.102 mm) with each adjuster tightened to 14 N·m (10 ft. lbs.) Seat the bearing cups with the procedure described above.
Tighten the differential bearing cap bolts 95 N·m (70 ft. lbs.)
Tighten the right-side threaded adjuster to 102 N·m (75 ft. lbs.) Seat the bearing cups with the procedure described above. Continue to tighten the right-side adjuster and seat bearing cups until the torque remains constant at 102 N·m (75 ft. lbs.)
Measure the ring gear backlash. The range of backlash is 0.006 to 0.008 inch (0.15 to 0.203 mm)
Continue increasing the torque at the right-side threaded adjuster until the specified backlash is obtained
NOTE: The left-side threaded adjuster torque should have approximately 102 N·m (75 ft. lbs.) If the torque is considerably less, the complete adjustment procedure must be repeated.

Tighten the left-side threaded adjuster until 102 N·m (75 ft. lbs.) torque is indicated. Seat the bearing rollers with the procedure described above. Do this until the torque remains constant.
Install the threaded adjuster locks and tighten the lock screws to 10 N·m (90 in. lbs.)
After the proper backlash is achieved, perform the Gear Contact Analysis procedure.

8.25 specs are
8 1/4 INCH AXLE

Axle TypeSemi-floating, hypoid LubricantSAE 80W-90 Lube Capacity2.08 L (4.4 pts.) Trac-Lok Additive118 ml (4 oz.) Axle Ratio3.07, 3.55,.
4.10 Differential Case Clearance0.12 mm (0.005 in.) Case Flange Runout0.076 mm (0.003 in.) Ring Gear Diameter20.95 cm (8.25 in.) Backlash0.12-0.20 mm (0.005-0.008 in.) Runout0.127 mm (0.005 in.) Pinion Bearing Preload-Used Bearings1-2 N·m (10-20 in.lbs.) Preload-New Bearings1-5 N·m (10-30 in.lbs.)The pinion bearing torque numbers are a turning torque.

I work for a Jeep dealer as a tech.
Good write up though.
rob92xj is offline   Reply With Quote Quick reply to this message
Unread 08-29-2009, 07:38 AM   #12
mbood82
Registered User
1999 XJ Cherokee

Join Date: Nov 2003
Location: Lewiston, ME
Posts: 1,727
Canceled Facebook a while ago, too creepy. I've rehosted the photos on Photobucket now and tried to read through to see if there was anything I could update or correct as I've done a couple more axles since then.
__________________
'99 Jeep Cherokee - RE 3.5" SuperFlex with 32s
'06 Dodge Magnum R/T
'03 Toyota MR2 Spyder
mbood82 is offline   Reply With Quote Quick reply to this message
Unread 03-27-2010, 07:27 PM   #13
justanotherjpr
Registered User

Join Date: Nov 2007
Posts: 6,337
Thanks, this write up is great and helped a lot
__________________
Quote:
Originally Posted by Motorcharge View Post
So do you actually hear your thoughts in your head or is it just sort of a dull roar before you smash your face into your keyboard and just submit whatever dumb **** ended up on the page?
justanotherjpr is offline   Reply With Quote Quick reply to this message
Unread 05-31-2010, 05:35 PM   #14
Diamond-x
Registered User
1991 XJ Cherokee

Join Date: Aug 2008
Location: Socal
Posts: 1,195
What size nut is that on the end of the home-meade tool?

Thanks
Diamond-x is offline   Reply With Quote Quick reply to this message
Unread 05-31-2010, 06:20 PM   #15
mbood82
Registered User
1999 XJ Cherokee

Join Date: Nov 2003
Location: Lewiston, ME
Posts: 1,727
your guess is as good as mine, something big? I don't have the adjuster around anymore so I can't offer any help.
__________________
'99 Jeep Cherokee - RE 3.5" SuperFlex with 32s
'06 Dodge Magnum R/T
'03 Toyota MR2 Spyder
mbood82 is offline   Reply With Quote Quick reply to this message
Reply

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the JeepForum.com forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid e-mail address for yourself.
Note: All free e-mails have been banned due to mis-use. (Yahoo, Gmail, Hotmail, etc.)
Don't have a non-free e-mail address? Click here for a solution: Manual Account Creation
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.


Thread Tools


Suggested Threads





Jeep, Wrangler, Cherokee, Grand Cherokee, and other models are copyrighted and trademarked to Jeep/Chrysler Corporation. JeepForum.com is not in any way associated with Jeep or the Chrysler Corp.
