Gastank protection w partial Relocation

So, the one modification to my Jeep that i am the most happy about is the gastank. So, i fugure iŽd write something on here. Its my first post so beare with me.

Not really so complicated to do but what a cool mod for offroading i think!

So, my old gas tank was with more holes than ever expected. I ran my hand over it to clear som dirt and gas just started pouring out. So something needed to be done.

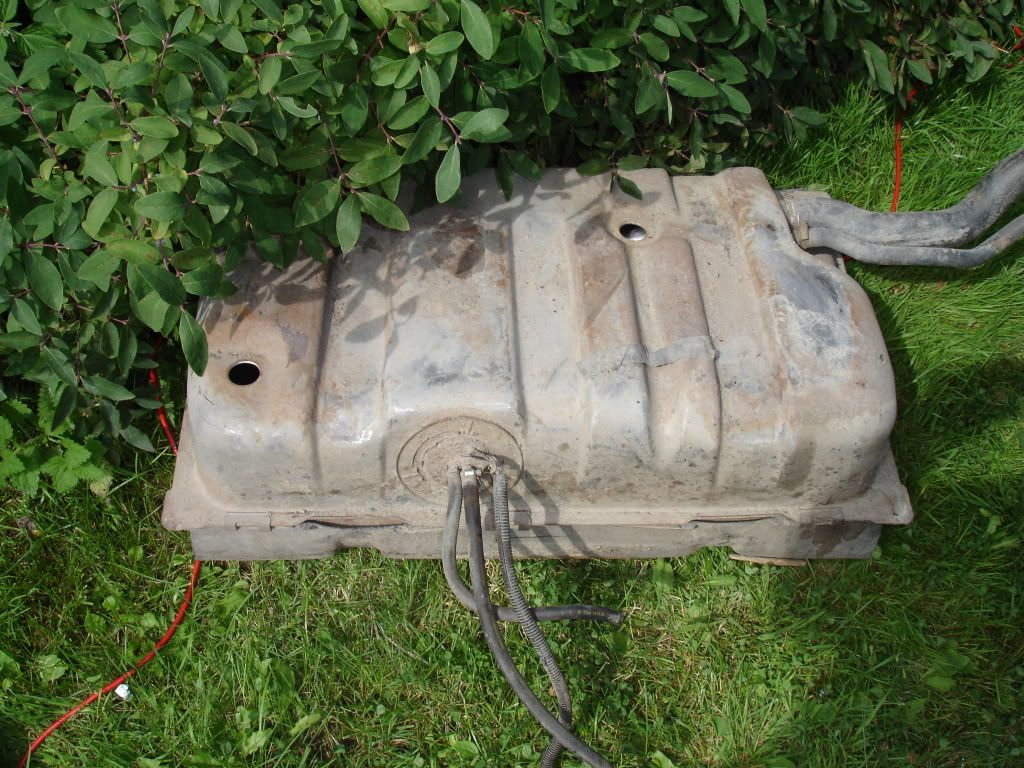

Out with the old rusty thing!

New shiny one!



Take the tank out from beneath the Jeep, measure the tank, then mark the floor of the trunk. (Mark it at least 2 inches smaller than measured. You do NOT want to make the hole to big..


Measure again! If you came to a different result than earlier, then measure again!


After i measured it twice,i cut a hole. The first hole is just to get started, make it at least two inches smaller than nessecary, then try to fit the tank, see where it catches and trim the edges until it fits snugly.


Eventually this is what you have, here the fuel lines are connected also.


On the side of the gas tank you see, on each side a metal strip with holes in it. This is how i fastened the tank to the car. A couple of screws on each side and that is enough. Before i srewed the screws in to fasten the tank i put some residue of some sort.. I dont remember what it was but some asfalty stuff to minimize risk of vibrations and sound comming thru.

Detail of the Gas filler pipe, its changed now.. I cut a hole thru the wall so it is now in the (Almost) where it used to be. Its behind the lid anyway..


After this i just made a simple floor over the hole thing, put some carpet over the floor and its done. A bonus is some nice stow-away places next to, and behind the tank. Here i keep all my recovery gear, oils and other stuff that i always have with me in the Jeep.

Unfortunately i have no pics of the end result. The boot is not much smaller, almost everything that fit before still fits but.. For offroading, to have 3 - 4 extra inches of clearing under the gas tank is awesome! Actually, I also left the tow hook bar in its place. It looks a little redicuolus hanging there all by itself but, it is a double protection for the tank so i left it in place. There is no extra road sound or water or anything comming into the Jeep. Before i put the carpet then you could hear the gas pump but that is one second before you start the Jeep so that is no issue at all.

I think this took three or four hours to make. How much of this time was actually spent drinking beer, i couldŽnt tell you

I hope you like my simple and quite quick but highly effective mod! If you deecide to make this mod on your Jeep, i would love to hear about it and also see some Pics!

Best Regards
Peter Cederblad
Holland

PelleC is offline   Reply With Quote
Unread 11-06-2012, 02:38 PM   #2
rawk hard xj
Registered User
1989 XJ Cherokee

Join Date: Oct 2007
Location: Junction City, Oregon
Posts: 461
Interesting idea. Do you get much in the way of fumes in the cabin?
__________________
D.D. and wheelin' rig='89 Pioneer "Night-Train", used to be white '89 limited
I used to be XJ-NoDough (w/ 1688 posts) 'till I forgot my user name.
rawk hard xj is offline   Reply With Quote
Unread 11-06-2012, 03:36 PM   #3
PelleC
Registered User
1992 XJ Cherokee

Join Date: Sep 2008
Location: Sweden
Posts: 6
Quote:
Originally Posted by rawk hard xj View Post
Interesting idea. Do you get much in the way of fumes in the cabin?
Fumes? No absolutely not. 100% odor free. The filler cap is not in the cabin anymore. Its in its normal position under the lid on the side of the car. Its at a different angle since its comming in from higher wich makes it a bit trickyer to fil up but thats all.

The extra clearance is totally awesone, i used to scrape my tank all the time on rocks. This one, not a scratch on it!
PelleC is offline   Reply With Quote
Unread 11-06-2012, 03:58 PM   #4
rawk hard xj
Registered User
1989 XJ Cherokee

Join Date: Oct 2007
Location: Junction City, Oregon
Posts: 461
Good to know. Do you have any pictures with the new floor and everything buttoned up?
__________________
D.D. and wheelin' rig='89 Pioneer "Night-Train", used to be white '89 limited
I used to be XJ-NoDough (w/ 1688 posts) 'till I forgot my user name.
rawk hard xj is offline   Reply With Quote
Unread 11-06-2012, 04:01 PM   #5
ltrail
Registered User
1984 XJ Cherokee

Join Date: Sep 2010
Location: mesa, AZ
Posts: 1,461
I've been contemplating this one as I'm stretching the rear 4" or so. Not that my 9" rear is bulky, but shoving it back will mean if I don't do this or run a fuel cell($$$$$) I will have a little axle/tank tango. Only change I'd make is building a cover over the tank so it was completely flat topped.

Visual people here, how about some finished pics?
Nice work!
__________________
84 xj 350tbi, sm465, 203/205, 60/70. links and other junk.
what size sawzall blades does it take to fit 40's?
ltrail is offline   Reply With Quote
Unread 11-12-2012, 03:43 AM   #6
PelleC
Registered User
1992 XJ Cherokee

Join Date: Sep 2008
Location: Sweden
Posts: 6
Quote:
Originally Posted by ltrail View Post
I've been contemplating this one as I'm stretching the rear 4" or so. Not that my 9" rear is bulky, but shoving it back will mean if I don't do this or run a fuel cell($$$$$) I will have a little axle/tank tango. Only change I'd make is building a cover over the tank so it was completely flat topped.

Visual people here, how about some finished pics?
Nice work!
Stretching the rear, i have never heard that before. Sounds intresting. Why do you do that? To fit bigger tires? How big are you planning? I saw some pics of your Jeep but i couldnt find any that was just the hole truck.

I dont have any pictures of it finished. Also like a week ago i put the Jeep in winter storage at a farmers house not far from here. I guess i can go there and take a picture. It migth take a few days. (I know, winter storage for a Jeep is stupid and normally i wouldŽnt do it but we just moved here and well.. I need to save some money before i can go on with it. So.. Then better to put it away until then rather than have it on the street.)
PelleC is offline   Reply With Quote
Unread 11-13-2012, 12:46 AM   #7
sAe23
Registered User
1995 XJ Cherokee

Join Date: Apr 2009
Location: Los Angeles / SFV, California
Posts: 2,321
I like your bumper, especially the diamond plate
What brand is it?
sAe23 is offline   Reply With Quote
Unread 11-13-2012, 05:38 AM   #8
PelleC
Registered User
1992 XJ Cherokee

Join Date: Sep 2008
Location: Sweden
Posts: 6
Quote:
Originally Posted by sAe23 View Post
I like your bumper, especially the diamond plate
What brand is it?
It came from Mooser in sweden. It was one of their first ones. www.moosermetall.se, it was a really nice one, nice and thin and well tucked in..

Unfortunately i dont have that one anymore..

The new one is a little larger but from the same company and with a tyre carrier..




Oh.. Found a pic from under the Jeep. Standard the tank comes down to about 1,5 - 2 inces under the tow bar.. Now its an inch and a half over it.


Still working on the pics from inside.. IŽll try to get one today or maybe tomorrow.
PelleC is offline   Reply With Quote
Unread 11-13-2012, 11:49 AM   #9
JeepJohn92
Registered User
1988 XJ Cherokee

Join Date: Jun 2010
Location: Coloroado Springs, Colorado
Posts: 320
Has anyone ever considered two gas tanks like in the Ford 150 XLT's? My work has those and its pretty nice cause we travel a lot. I figured a new 12 gallon tank with the stock one would fit but what about maybe a 5 gallon auxiliary tank? I think Im gonna have to start pokin around her rear and under belly and see what I can do.
__________________
Colorado Jeep Club Member #343
Built not bought.
JeepJohn92 is offline   Reply With Quote
Unread 11-30-2012, 03:29 AM   #10
PelleC
Registered User
1992 XJ Cherokee

Join Date: Sep 2008
Location: Sweden
Posts: 6
Ok, finally i got some pics. The light was not perfect but hopefully you see enough. Still there are things that need to be done, like a protection between the trunk and the cabin but you see what it looks like.


Could have used a better colour matched carpet maybe but still, looks quite allright i think. It steals some room but not to bad.


Filler cap gone out of the cabin. Looks quite normal..


Made a hole through the wall and.. The hole in the plastic is larger, its the one you see, the hole through the metall is better fitting but you cant see it.


Stuck the filler pipe right through it..


Looking quite normal from the outside also.. But not really, the angle of the pipe is a little bit different.. Bit more shallow angle.. Makes it a little bit more tricky to fill up. The filler handle wants to cut of if i dont hold it a little bit sideways and up.. I can live with that.

Also the bottom end of the bumper needs to be cut to fit the modified.. Hm.. Whats it called.. Anyway..


Close up of the filler cap. No smell in the truck even if i spill a little here.


This is what its all about! The gas tank is just gone!! Its still there but not really..


Since the gastank doesŽnt take the hole depth of the trunk there is some space left behind it. Between the seat and the tank.. So i made an extra lid..
(Here the lid is closed)


With a small hinge and it is openable.. Its quite long but not very tall.. Also it will be under everything once i get out there so i keep oil and other stuff that i dont need so often there..
(Here it is open)


Difficult to get a good picture of it but it fits a lot of stuff.. I think i will have mostly oils and spare parts here. Stuff you dont use every time..


Detail of the floor from under neath. Its a frame made from wood with board over it. IŽm not sure exactly what it is, it was just stuff i had at home or found.
There is room for plenty of stuff here too, its acxessable from the back so i keep an axe, saw and well.. Stuff i use more often here..


And this is my sweet Jeep!

Ps. My english is not perfect but its probably a hell of a lot better than your Swedish so no language remarks or other personal crap please. Please keep it about Jeeps and Mods.

Best Regards
Peter
PelleC is offline   Reply With Quote
Unread 11-30-2012, 08:42 PM   #11
SFRautomotive
#WannaBeRockBouncer

SFRautomotive's Avatar
1992 XJ Cherokee

Join Date: May 2010
Location: Jacksonville,FL
Posts: 2,175
i like it man, that was one of my favorite mods ive done to my XJ so far. no more crushing the tank!
__________________
92xj....Linked, Locked, Caged, Armored...
what are leaf springs?
"You're what's wrong with America. You don't drink enough PBR and you probably run sway bars on the street. Fawking communist."-ibjeepin95
2013 COTY
SFRautomotive is offline   Reply With Quote
Unread 12-01-2012, 09:58 AM   #12
holycaveman
Registered User

Join Date: Oct 2012
Location: Johnstown, ohio/midwest
Posts: 37
Nice job! Been thinking about this also.
holycaveman is offline   Reply With Quote
