Drum brakes Help

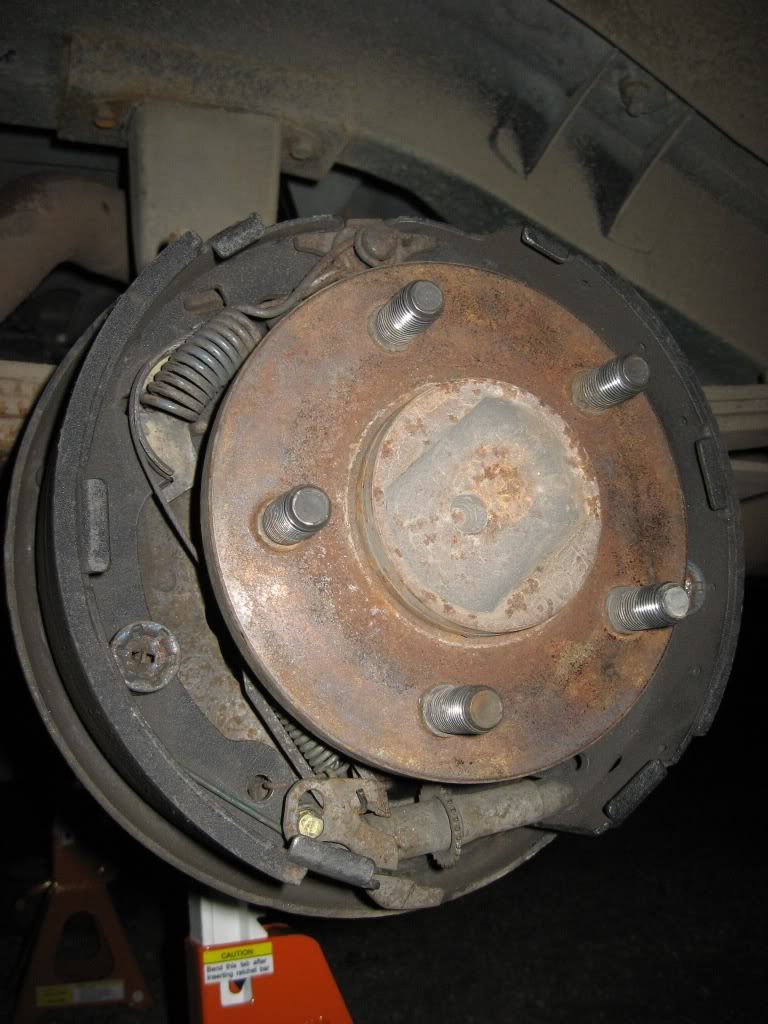

I replaced my brake shoes a while ago and it was my first time doing drum brakes. I learned what I could here then went at them. I thought it went pretty good up until today. I took the drums off today to find a nice gouge down the middle of both my brake drums, about 1/8" wide and 1/16" deep. I figured out that it was my adjuster lever digging into the drum. It looks like it all hooked up right to me except that the adjuster cable is too long. There is a spring that pulls it down but the cable doesn't pull it up at all. Did i do something wrong, or are the parts just worn out? also are the drums and shoes shot or can I still use them?


unistar is offline
Sponsored Links
Advertisement

post #2 of 8 Old 08-28-2011, 01:15 AM
bob6987
Registered User
1991 YJ Wrangler

Join Date: Jun 2009
Location: Colorado
Posts: 301
It looks like the adjuster guide (arched guide on left) is in the wrong spot..it should almost be touching the back of the shoe on the left

1991 YJ, 4.0, 6" lift, 40" tires, full cage, dana44/ford 9, detroit locker, 5.38 gear
2012 JKU
bob6987 is offline
post #3 of 8 Old 08-28-2011, 10:27 AM
CJ7-Tim
Real Jeeps have dents

CJ7-Tim's Avatar
2000 XJ Cherokee

Join Date: Apr 2002
Location: out in the garage - Minneapolis
Posts: 25,117
I have found that brake parts vary in their quality and fit. Usually cheap parts are cheap for a reason. I buy my parts at NAPA and always get the best quality parts they have. Compare the new adjuster cable to length to the one you have now.

Buy a brake kit with new parts and springs and re-do your brakes.

The self-adjuster lever spring should pull the adjuster into the star wheel.

You should be able to re-use the drums and brake shoes. If you think they are ruined, buy new ones.

.
Attached Thumbnails
Brake Diagram.jpg   1q.jpg

.

A recent Gallup public opinion poll shows the NRA, at 58% approval, has a higher approval rating than either Hillary Clinton or Barack Obama.

Progressive Liberalism: Bringing you new Healthcare ideas so wonderful, they have to include mandatory participation ...

Originally Posted by Ronald W. Reagan: Government is not the solution to our problems; Government is the problem.
CJ7-Tim is offline
post #4 of 8 Old 08-28-2011, 02:30 PM Thread Starter
unistar
Registered User
2001 XJ Cherokee

Join Date: Jan 2009
Location: Las Vegas
Posts: 22
I think I will try to move the adjuster guide, and if that doesn't work I'll replace the parts.
unistar is offline
post #5 of 8 Old 09-04-2011, 06:51 PM Thread Starter
unistar
Registered User
2001 XJ Cherokee

Join Date: Jan 2009
Location: Las Vegas
Posts: 22
So I got it back together with all new springs and whatnot and the drivers side worked just fine but the other side is still weird. The adjuster lever starts touching the star wheel but after it is adjusted it doesn't touch anymore.
unistar is offline
post #6 of 8 Old 09-04-2011, 06:55 PM
tangofox007
Web Wheeler

Join Date: May 2005
Location: GA
Posts: 5,911
The usual problem is with the adjuster cable guide not seating properly. There is a protrusion on the guide that needs to fit into the hole in the shoe. Otherwise, it just hangs on the spring, out of position. That leaves slack in the cable.

Plus, it looks like you have the cable spring guide backwards on the adjuster lever.
tangofox007 is offline
post #7 of 8 Old 09-04-2011, 10:14 PM
CJ7-Tim
Real Jeeps have dents

CJ7-Tim's Avatar
2000 XJ Cherokee

Join Date: Apr 2002
Location: out in the garage - Minneapolis
Posts: 25,117
Quote:
Originally Posted by tangofox007 View Post
....it looks like you have the cable spring guide backwards on the adjuster lever.
Good eye tangofox.

The cable adjuster goes on the front of the adjuster level like in my picture.

.

A recent Gallup public opinion poll shows the NRA, at 58% approval, has a higher approval rating than either Hillary Clinton or Barack Obama.

Progressive Liberalism: Bringing you new Healthcare ideas so wonderful, they have to include mandatory participation ...

Originally Posted by Ronald W. Reagan: Government is not the solution to our problems; Government is the problem.
CJ7-Tim is offline
post #8 of 8 Old 08-20-2012, 05:29 PM Thread Starter
unistar
Registered User
2001 XJ Cherokee

Join Date: Jan 2009
Location: Las Vegas
Posts: 22
That was it. Spot on tangofox. thanks a lot for the help.
