Part Three...

I got the last u-joint tonight, and decided to finish the thing.

Broke down the u-joint, prepared it with grease, just as the others.



Then I placed the joint in its place. the centering yoke will conform to the joint.



I put the yoke-side caps in first, to make it easier to manage.



Then I placed (hand tight) the caps into the cardan joint-side.

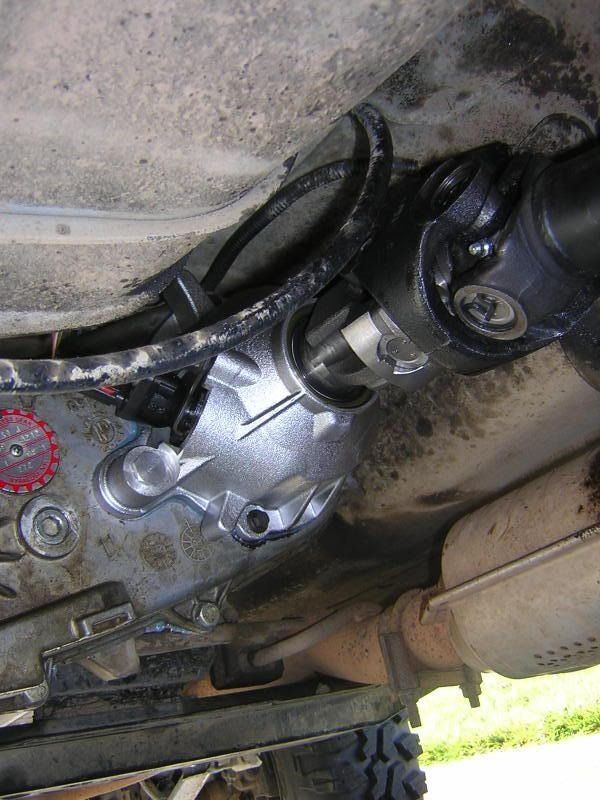

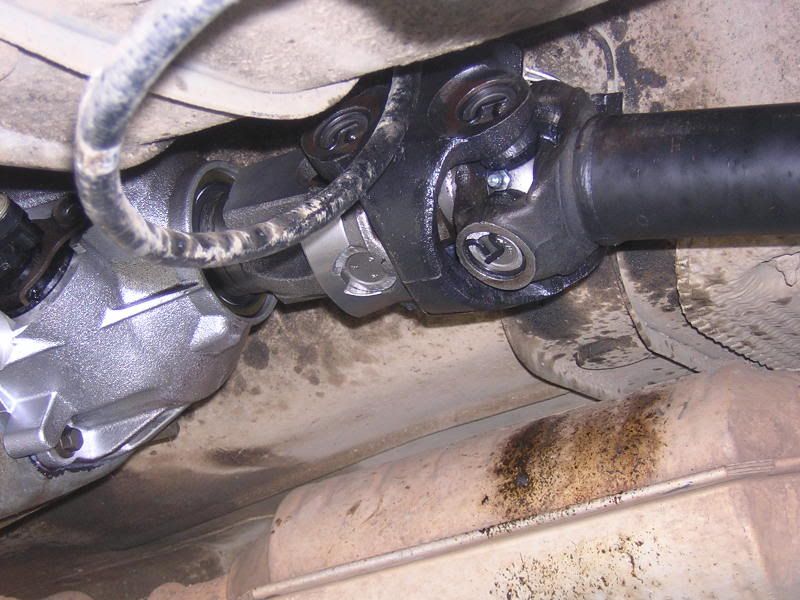

I pounded it the same way as the other u-joints, and placed the snap rings in. Here's the finished product.









This Sunday is the tenative date for the SYE, so another update may be on its way.

__________________
[SIGPIC][/SIGPIC]

Check out our shirts in the Vendor Display Forum!

- Brian
Drive Auto Gear
Drive Auto Gear Website

Like us on Facebook!


XJ Writeups:
| DOORLESS IN A 97+ | D44 SWAP | REBUILDING A CV DRIVESHAFT | HOME-BREWED CENTER CONSOLE
sharpie is offline   Reply With Quote
Unread 11-30-2006, 09:26 PM   #17
BS87
Registered User
2003 TJ Wrangler

Join Date: Aug 2005
Posts: 228
I love how your workstation is a freezer lid.
BS87 is offline   Reply With Quote
Unread 11-30-2006, 09:28 PM   #18
sharpie
go to driveautogear.com!

sharpie's Avatar
1999

Join Date: Aug 2006
Location: Irvine, CA
Posts: 2,351
Quote:
Originally Posted by BS87
I love how your workstation is a freezer lid.

me too. The workbench is actually next to it, but it's cluttered.
__________________
[SIGPIC][/SIGPIC]

Check out our shirts in the Vendor Display Forum!

- Brian
Drive Auto Gear
Drive Auto Gear Website

Like us on Facebook!


XJ Writeups:
| DOORLESS IN A 97+ | D44 SWAP | REBUILDING A CV DRIVESHAFT | HOME-BREWED CENTER CONSOLE
sharpie is offline   Reply With Quote
Unread 01-02-2007, 01:30 AM   #19
sharpie
go to driveautogear.com!

sharpie's Avatar
1999

Join Date: Aug 2006
Location: Irvine, CA
Posts: 2,351

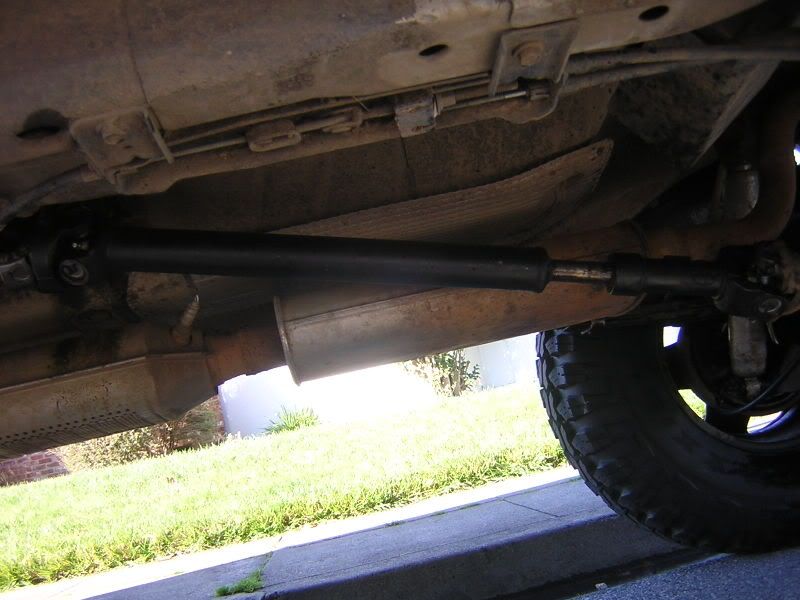

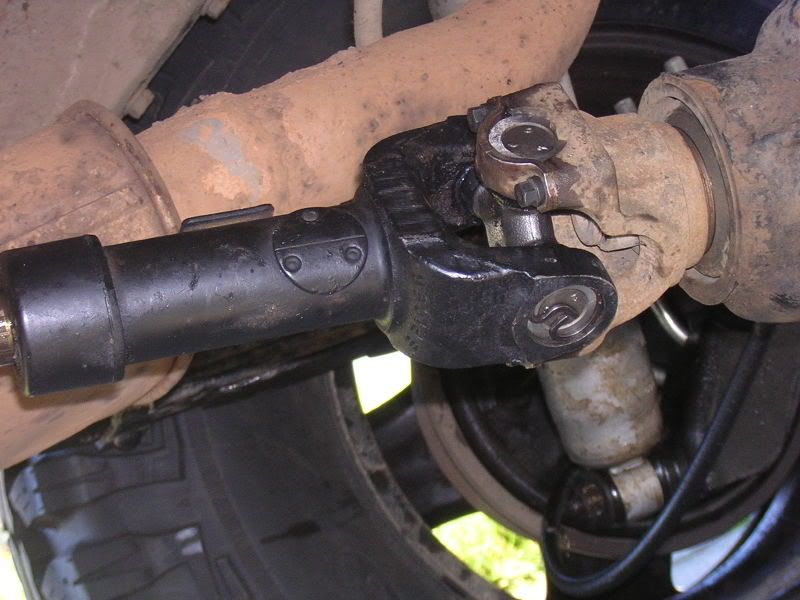

Well, I guess I'll just show the results. For your information, I have now driven 1000+ miles and through all sorts of terrain (even went to Prairie City off road park), and the front shaft is doing just fine in the rear.

Sorry I don't have a full writeup of the SYE, but cgrissom's video beats the hell out of anything I could ever do.

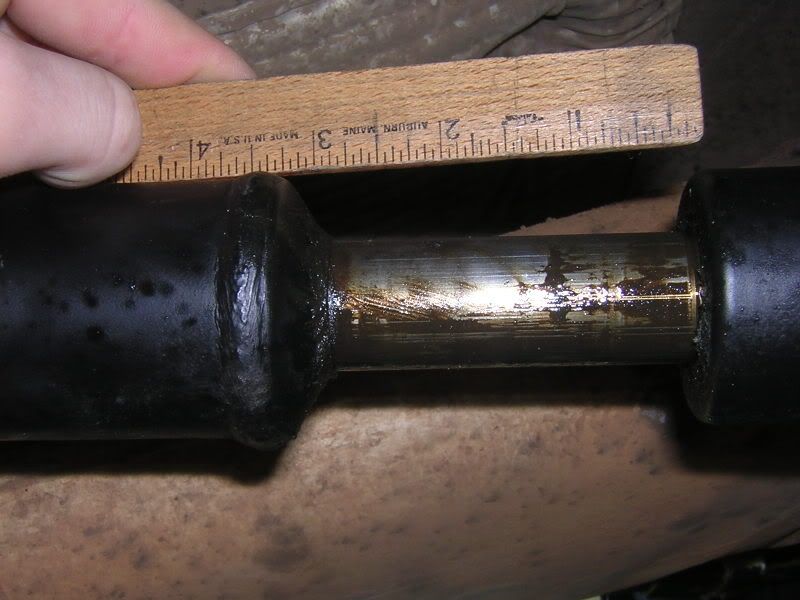

As you can see in the last picture, it's almost fully extended, but still has rigidity. There is no way that through normal use, and light to moderate use, that the splines are going to disengage and slip out. They will twist due to torque first.


I hope all of this has helped/can help at least one person.
__________________
[SIGPIC][/SIGPIC]

Check out our shirts in the Vendor Display Forum!

- Brian
Drive Auto Gear
Drive Auto Gear Website

Like us on Facebook!


XJ Writeups:
| DOORLESS IN A 97+ | D44 SWAP | REBUILDING A CV DRIVESHAFT | HOME-BREWED CENTER CONSOLE
sharpie is offline   Reply With Quote
Unread 01-02-2007, 01:54 AM   #20
robertr70
Registered User

Join Date: Aug 2006
Location: central kentucky
Posts: 74
Nice writeup. I just realized from reading this that I need to get to get a grease gun and go exploring underneath my XJ, I'll gaurantee nothings been greased in a llllllooooooonnnnnggggg time.
__________________
1993 Jeep Cherokee-- stock w/upgrades coming soon
robertr70 is offline   Reply With Quote
Unread 02-02-2007, 05:31 AM   #21
altierior
Y2KXJ

altierior's Avatar
2000 XJ Cherokee

Join Date: Oct 2006
Location: east norriton, pa
Posts: 212
my front CV is squeaking. it has been for a number of weeks now. of course, i tried greasing it. i have held off on replacing it because i am doing a tc rebuild and a 3" lift on my XJ soon. but now that paragon is closing, i MUST go wheeling this weekend. how fearful should i be about this cv causing me troubles offroading?
altierior is offline   Reply With Quote
Unread 02-02-2007, 07:53 AM   #22
TMCXJ
Registered User
1996 ZJ

Join Date: Sep 2006
Location: Clinton, NY
Posts: 1,145
Quote:
Originally Posted by sharpie1k



I hope all of this has helped/can help at least one person.

WOW!!!

I can do this! I have a ruler just like that!!!

Seriously, thank you, this is extremely helpful and I'm sure I'm not the only one.
__________________
"...a long habit of not thinking a thing wrong, gives it a superficial appearance of being right, and raises at first a formidable outcry in defense of custom. But tumult soon subsides. Time makes more converts than reason." Thomas Paine
TMCXJ is offline   Reply With Quote
Unread 05-03-2008, 02:55 PM   #23
MuDD OlllllllO
Registered User

Join Date: Nov 2005
Location: Encinitas, CA
Posts: 360
Did you replace the rubber dust cover that goes around the cv ball centering assembly?

I am in the middle of this same process and need to replace that part, but can't find it anywhere... NAPA or online... any recommendations?

Thanks!
__________________
2004 TJ Sahara Dana 44 Black Dual Tops w/Tinted Windows
Full Traction 3" Lift w/ M-Force Monotube Shocks
Superwinch EPi9.0 w/ Viking Synthetic Trail Line
33" Goodyear Wrangler MT/Rs, Spidertrax 1.25" Wheel Spacers
Rubicon Rocker Guards, MasterFlow OBA
MuDD OlllllllO is offline   Reply With Quote
Unread 11-14-2009, 01:59 PM   #24
florida
Registered User
1980 J-Series Truck

Join Date: Nov 2009
Location: florida
Posts: 1
dennysdriveshaft.com has the rubber boots for $9.00
Dennys Driveshafts > Rubber Boot for OEM Non Greaseable CV Centering Yoke
florida is offline   Reply With Quote
Unread 10-13-2010, 05:16 AM   #25
brigbeach
Registered User
1996 XJ Cherokee

Join Date: May 2010
Location: brigantine, Brigantine, NJ
Posts: 222
Great write up! How important is it to change the spring and ball? I recently changed the u-joints but nothing else. Also how easy should the spline move up and down when its all together? Mine has no tension at all. Maybe it just needs to be greased up thru the nipple.
brigbeach is offline   Reply With Quote
Unread 09-11-2013, 01:15 PM   #26
savagess2546
Registered User
1995 XJ Cherokee

Join Date: Apr 2012
Location: Grass Valley, CALIFORNIA
Posts: 1
This is an awesome write-up and I'm glad I found it. I didn't know how difficult rebuilding a CV-style driveshaft might be but this proved to me that it's easier than expected with the right tools and right attitude.
savagess2546 is offline   Reply With Quote
Unread 10-05-2013, 04:47 PM   #27
krawler510
Registered User
1999 XJ Cherokee

Join Date: Dec 2007
Location: MD
Posts: 1,820
I can't get the centering ball out for the life of me. Soaked it over night in a coffee can of ATF/acetone, heated it up.. No luck. Any more tips?

Sent from my iPhone using JeepForum
__________________
'The early bird may get the worm, but the second mouse gets the cheese.'
krawler510 is offline   Reply With Quote
Unread 10-05-2013, 04:58 PM   #28
sAe23
Registered User
1995 XJ Cherokee

Join Date: Apr 2009
Location: Los Angeles / SFV, California
Posts: 2,432
I dunno, I understand the do-it-yourself thing, but I can get a drive shaft rebuild and balanced for $150...
sAe23 is offline   Reply With Quote
Unread 03-26-2014, 02:06 AM   #29
sAe23
Registered User
1995 XJ Cherokee

Join Date: Apr 2009
Location: Los Angeles / SFV, California
Posts: 2,432
...AND now that it's gone up to $180 - $200 (IF the centering pin isn't damaged), and money is actually tight, I'll be re-reading this thread while I tear my front shaft apart
(It's funny what you find while Google-ing for info...)

If the centering pin IS worn out, is there a way to replace it or does it require a whole (new) shaft??

TIA
sAe23 is offline   Reply With Quote
