post #196 of 297 Old 04-06-2011, 10:44 PM
jeepin_in_a_94
Registered User
1994 XJ Cherokee

Join Date: Jul 2006
Location: McHenry, ILL.
Posts: 147
finished mine about a month ago but just now getting around to posting up pics. ive only had one chance to use it since i really only drive it when im home from school and that rarely happens these days, but any way it worked amazingly even with a couple of small leaks on the out going side of the compressor. filled up two sets of tires after airing down for the trail in about 15-20 minutes

I had to custom make a fitting on the incoming side because i couldnt find one at the store that would work. took the stock coupler nut from the stock a/c plumbing and machined it out a bit then took a piece of threaded pipe and ground the threads down on one side and welded the two together.







ran the hose through the fire wall, then through the glove box, then down along the trim on the passenger side, then under the back seat and then finally to the tank.







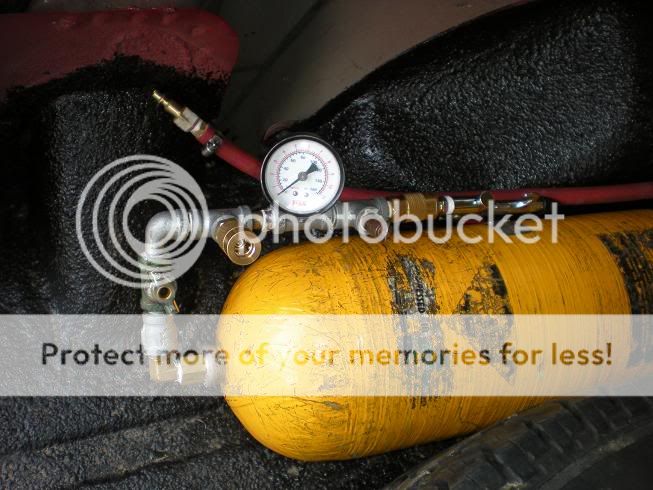

Manifold and switch box. Nice big pressure gauge, 175 psi safety valve, 120 - 150 pressure switch.




'94 XJ Sport (my toy) - 5.5-ish inches of lift, 33/12.5/r15, locked in the front, custom armor, OBA

'86 MJ XLS (family toy/budget build) - 5-ish inches of lift, 32/11.5/r15

'07 Dodge Ram 2500 (DD and Tow Rig) -6 speed with the last of the 5.9 Cummins...

If you wanna know more about the rides or if you need something made just ask! :)
jeepin_in_a_94 is offline
Sponsored Links
Advertisement

post #197 of 297 Old 04-07-2011, 12:22 PM
ThomasYJ
Registered User
1993 YJ Wrangler

Join Date: Dec 2008
Posts: 707
so using these stock compressors, there's no harm in ramping up to the pressures you guys are using? 120 or 150psi for example

The Toy:93 YJ
The DD:00 F250 7.3
Build:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
ThomasYJ is offline
post #198 of 297 Old 04-07-2011, 07:23 PM
jeepin_in_a_94
Registered User
1994 XJ Cherokee

Join Date: Jul 2006
Location: McHenry, ILL.
Posts: 147
Quote:
Originally Posted by ThomasYJ View Post
so using these stock compressors, there's no harm in ramping up to the pressures you guys are using? 120 or 150psi for example
you just have to make sure you use a one way check valve on the out going side of the compressor and an inline oilier (filled with atf or air tool oil) on the in going side. the check valve is needed because the compressor will build like 20 pounds in the tank then have to much back pressure from the system to build any more pressure causing the compressor to burn it self out. and the oilier is needed because with no refrigerant (what lubricated it before) it will fry the compressor also.

'94 XJ Sport (my toy) - 5.5-ish inches of lift, 33/12.5/r15, locked in the front, custom armor, OBA

'86 MJ XLS (family toy/budget build) - 5-ish inches of lift, 32/11.5/r15

'07 Dodge Ram 2500 (DD and Tow Rig) -6 speed with the last of the 5.9 Cummins...

If you wanna know more about the rides or if you need something made just ask! :)
jeepin_in_a_94 is offline
post #199 of 297 Old 04-07-2011, 07:28 PM
ThomasYJ
Registered User
1993 YJ Wrangler

Join Date: Dec 2008
Posts: 707
ooohhhh ok gotcha. makes sense now, thanks a lot man.

The Toy:93 YJ
The DD:00 F250 7.3
Build:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
ThomasYJ is offline
post #200 of 297 Old 04-13-2011, 12:05 AM
WJDesertRacer
Registered User
2004 WJ

Join Date: Oct 2008
Location: Poway
Posts: 500
I am thinking of doing this conversion to a 04 wj ac unit I believe it is a Denso 10pa17e model and doesnt have the connection lines like the xjs do. I do not have the stock ac anymore as I sold them. Are suggestions for how to hook up the air input and output on the compressor itself?
WJDesertRacer is offline
post #201 of 297 Old 04-13-2011, 04:36 PM
matthewh_1
Registered User
2003 TJ Wrangler

Join Date: Oct 2007
Location: Winnipeg, MB, Canada
Posts: 234
I just cut the old hoses and tapped into them with barb fittings

National Topless Day 2010 winner!
Zombie Outbreak Response Unit #70
Quote:
Originally Posted by jclauson View Post
When a girl tells you your flex is sexy then you are doing something right in life.
matthewh_1 is offline
post #202 of 297 Old 04-19-2011, 03:16 PM
RickyZJ
Registered User
1996 ZJ

Join Date: Oct 2008
Location: Colorado Springs
Posts: 378
Quote:
Originally Posted by RitterXJ View Post
My tank I used an old firefighter oxygen tank
Out of curiosity...How well would this set up work? Thinking this was the way I wanted to set it up, but was un-sure of its effectivness with the air having to flow backwards into the outlet.

1996 Grand Cherokee -- 4.5" IRO, 35's, Long Arms, so on and so forth.
RickyZJ is offline
post #203 of 297 Old 04-19-2011, 05:28 PM
MeanGreenBean
Registered User
1989 XJ Cherokee

Join Date: Nov 2010
Location: Houghton/Lambertville
Posts: 175
Awesome right up and discussion. Just convinced me it was easy enough for me to do!

89 2dr XJ - D60/10.25 wlded F/R, 5.38 gears, Front leafs, 38.5x11 Boggers
MeanGreenBean is offline
post #204 of 297 Old 04-19-2011, 07:30 PM
KF4SQB
Registered User
1994 XJ Cherokee

Join Date: Nov 2009
Location: SouthWest Georgia
Posts: 598
In response to the person asking about the output pressure, the high-side pressure on a properly working A/C system is around 300 psi. No, I don't think 150 psi will hurt it.....

4-wheeling: because football, basketball, baseball, and golf only require one ball!


Confidence: The feeling you get just before you fully understand the situation!
KF4SQB is offline
post #205 of 297 Old 08-23-2011, 01:09 AM
99_TJ_Wyoming
Web Wheeler
1999 TJ Wrangler

Join Date: Oct 2010
Posts: 1,111
Quote:
Originally Posted by RussoGuitar View Post
Thanks guys.. as for parts, i may miss a couple things but here are the basics:

1.A/C compressor (obviously)
2.About 30 feet of 3/8th air hose
3.Air filter
4.Lots of 1/4 NPT to 3/8 hose barb fittings.
5.Inline air tool oiler
6.Check valve.
7.Air manifold
8.Saftey reliefe valve
9.Pressure switch
10.Tank
11.Oil recovery filter
12.Hose quick connects and other fittings
13. switch.
I read this whole thread, this is the best thread I have seen yet on JF, a HUGE round of applause for Russo! ! ! !

To make sure I have all this right, the check valve is what prevents the pressure from feeding back in to the compressor?

What is NPT stand for?

I noticed someone say they got a compressor made just for OBA that doesnt need an oiler, what kind of compressor was that and do you have a link to a supplier?

My TJ is the 2.5, and was never equipped with an a/c, but the mount is there, will I need just a longer serpentine belt or will I have to add another idler pulley as well?

Thank you for all the replies everyone has made, this has been the greatest example of Jeep guys helping each other out and no bickering, its awesome.
99_TJ_Wyoming is offline
post #206 of 297 Old 08-24-2011, 03:58 PM
Necromancer_tat
Where'd all my money go?

Necromancer_tat's Avatar
2015 JK Wrangler

Join Date: Jul 2011
Location: Norfolk
Posts: 5,289
Quote:
Originally Posted by 99_TJ_Wyoming View Post

To make sure I have all this right, the check valve is what prevents the pressure from feeding back in to the compressor?
Yes.

Quote:
Originally Posted by 99_TJ_Wyoming View Post
What is NPT stand for?
National Pipe Thread
Necromancer_tat is offline
post #207 of 297 Old 09-20-2011, 06:30 PM
WJDesertRacer
Registered User
2004 WJ

Join Date: Oct 2008
Location: Poway
Posts: 500
Quote:
Originally Posted by jeepin_in_a_94 View Post
you just have to make sure you use a one way check valve on the out going side of the compressor and an inline oilier (filled with atf or air tool oil) on the in going side. the check valve is needed because the compressor will build like 20 pounds in the tank then have to much back pressure from the system to build any more pressure causing the compressor to burn it self out. and the oilier is needed because with no refrigerant (what lubricated it before) it will fry the compressor also.
Does the check valve need to have a set spring for pressure or can it be loose?
WJDesertRacer is offline
post #208 of 297 Old 09-21-2011, 08:41 AM
jeepin_in_a_94
Registered User
1994 XJ Cherokee

Join Date: Jul 2006
Location: McHenry, ILL.
Posts: 147
Quote:
Originally Posted by WJDesertRacer View Post
Does the check valve need to have a set spring for pressure or can it be loose?
i just have a loose one that you can buy at a local hardware store and it seems to work just fine... at least ive had no issues with it yet (crossing fingers knocking on wood lol). i picked that style because that is the one that RUSSO showed in his pictures of his original write up and if it worked for him then i assumed it would work for me.

'94 XJ Sport (my toy) - 5.5-ish inches of lift, 33/12.5/r15, locked in the front, custom armor, OBA

'86 MJ XLS (family toy/budget build) - 5-ish inches of lift, 32/11.5/r15

'07 Dodge Ram 2500 (DD and Tow Rig) -6 speed with the last of the 5.9 Cummins...

If you wanna know more about the rides or if you need something made just ask! :)
jeepin_in_a_94 is offline
post #209 of 297 Old 11-25-2011, 11:12 AM
jahlborn
Registered User
2006 WK

Join Date: Jun 2009
Location: Houghton, MI
Posts: 433

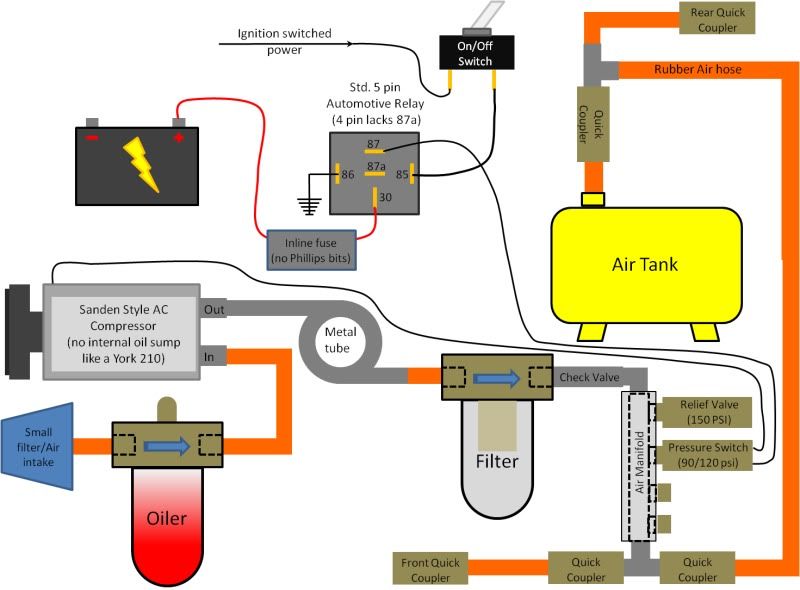

Here is a layout my buddy drew up for another forum our local club has. I found this very helpful when I put my setup together.


Jacob Ahlborn Four Wheelers of Michigan Tech Public Relations 2011-Present
2006 WK Limited 5.7L HEMI
1994 Cherokee 36" Tires, lots of body damage...rolled
1988 Comanche-New Project
jahlborn is offline
post #210 of 297 Old 12-05-2011, 11:00 PM
WJDesertRacer
Registered User
2004 WJ

Join Date: Oct 2008
Location: Poway
Posts: 500
Installed an oba few weeks ago. Worked great until last weekend. It appears now that my compressor is causing my wiring to short out.

After trouble shooting I learned that only plugging the compressor into the wiring causes fuse to blow.

I have a Denso compressor off an 04 wj

Any ideas what is causing this
