Unread 12-17-2012, 02:57 AM   #61
Project1
Registered User
1998 XJ Cherokee

Join Date: Feb 2010
Location: Florida
Posts: 3,223
Well got the e fans in ... I took some pics half way ill have to get some finished pics in here. Wiring cane out clean.

I put one pic to show the mechanical fan chopped and the new belt config.

image-641673614.jpg   image-3017028352.jpg   image-654505233.jpg
__________________
[ ]||||||[ ] ... http://www.jeepforum.com/forum/f11/98-green-xj-daily-driver-build-996260/
Project1 is offline   Reply With Quote
Unread 12-17-2012, 03:04 AM   #62
Project1
Registered User
1998 XJ Cherokee

Join Date: Feb 2010
Location: Florida
Posts: 3,223
Cleaned the nss sensor .... Might end up being a fail .... Tried to make a save, but well see.

First I broke the first screw head right off. And striped the next two. Ended getting most of them out with a pair of pliers.

One still in there, and I broke the cover getting it off.

The gasket was ripped, into two pieces.

Well I cleaned it, put new bolts, and rvt it once it was back together.m

I know.... Mad sketchy .... But it's working we'll right now............. But I may end up replacing it.

Here is the guide I used http://www.bc4x4.com/tech/2010/jeep-...ty-switch-nss/ Its a great guide, except the guys prys off the lock nut, when you can just unscrew it no problem?
image-922558841.jpg   image-4038200090.jpg   image-1103609810.jpg
__________________
[ ]||||||[ ] ... http://www.jeepforum.com/forum/f11/98-green-xj-daily-driver-build-996260/
Project1 is offline   Reply With Quote
Unread 12-17-2012, 03:05 AM   #63
Project1
Registered User
1998 XJ Cherokee

Join Date: Feb 2010
Location: Florida
Posts: 3,223
Changed the transmission mount




__________________
[ ]||||||[ ] ... http://www.jeepforum.com/forum/f11/98-green-xj-daily-driver-build-996260/
Project1 is offline   Reply With Quote
Unread 12-17-2012, 03:07 AM   #64
Project1
Registered User
1998 XJ Cherokee

Join Date: Feb 2010
Location: Florida
Posts: 3,223
Got the drivers side motor mount changed, but will have to come back for the passenger.

Here's a pic of the old broken motor mount. The pass side is also broken too.



__________________
[ ]||||||[ ] ... http://www.jeepforum.com/forum/f11/98-green-xj-daily-driver-build-996260/
Project1 is offline   Reply With Quote
Unread 12-18-2012, 01:26 PM   #65
Project1
Registered User
1998 XJ Cherokee

Join Date: Feb 2010
Location: Florida
Posts: 3,223
Back to those codes I was getting looks like its pointing toward the PCM.

P0113- intake air temp high volt

P0118- engine coolant high volt

P0123- tps high volt

P0122- tps low volt

P0121- tps signal

P0455- evap leak

P0705- transmission range sensor a circuit low input.


Quote:
Originally Posted by CCKen View Post
Cruiser54's data is good but it pertains to RENIX XJ's. You need data that applies to you '98 OBDII XJ.

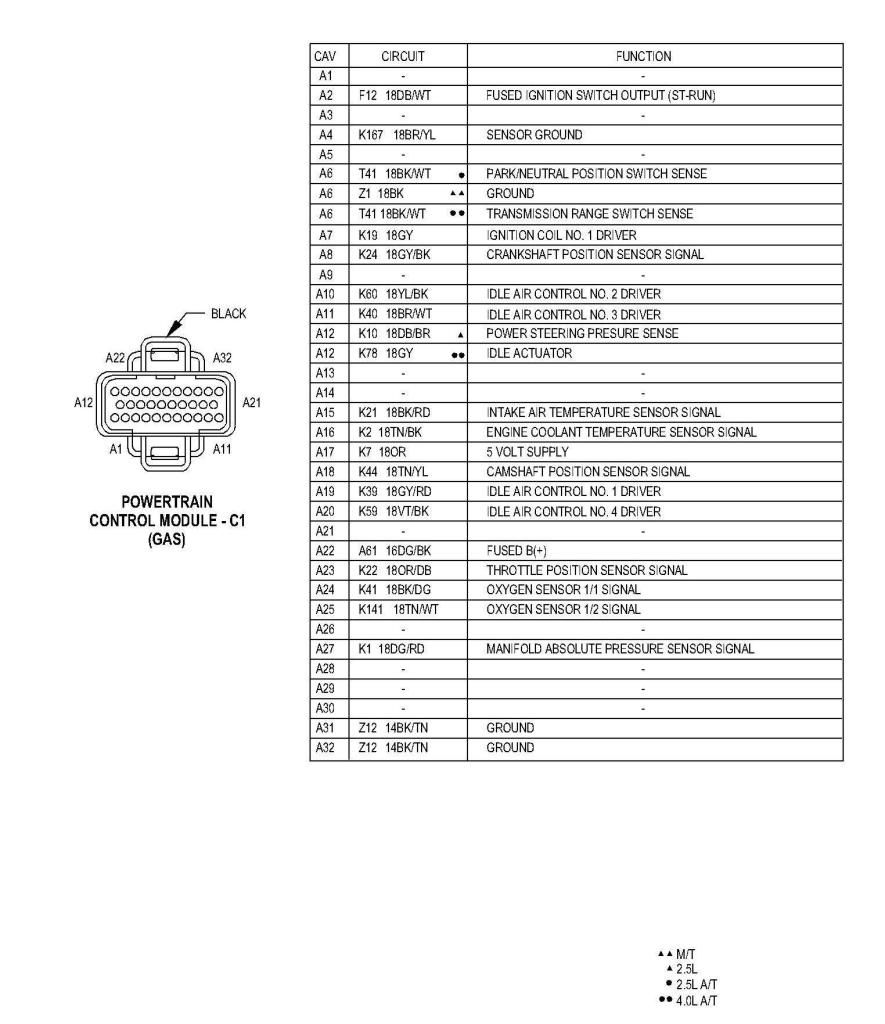

Trash those diagrams you posted. They don't pertain to your XJ. I've included the TPS diagram and some connector pinouts for you below.

As you cn see in the diagram the TPS is grounded at the PCM, connector C1. As you can see in the diagram the Intake Air Sensor and the Engine Coolant Temperature Sensor are spliced into the TPS ground, at splice S114, and get their PCM ground at the same PCM pin, A4. Splice S111 picks up the Right Speed Control Switch (cruise control) after it passes through the Clockspring. If there is a problem with the ground circuit between splice S114 and PCM connector C1, you would have IAT and ECT issues.

Diconnect the battery negative (-) post connector for the following test:

You can disconnect PCM connector C1 and the TPS connector, and using an Ohmmeter, read between pin socket A4 of PCM connector C1 and pin socket 1of the TPS connector. The resistance should be less than .5 Ohms. If this wire/circuit is okay, I don't think you have a TPS 'ground' problem.

Please post the actual codes you see so additional troubleshooting assistance can ge given.





__________________
[ ]||||||[ ] ... http://www.jeepforum.com/forum/f11/98-green-xj-daily-driver-build-996260/
Project1 is offline   Reply With Quote
Unread 12-25-2012, 05:44 PM   #66
Project1
Registered User
1998 XJ Cherokee

Join Date: Feb 2010
Location: Florida
Posts: 3,223
Just a pic of the jeep tonight... Got a few new parts to go on over the next few weeks.
__________________
[ ]||||||[ ] ... http://www.jeepforum.com/forum/f11/98-green-xj-daily-driver-build-996260/
Project1 is offline   Reply With Quote
Unread 12-28-2012, 05:26 PM   #67
Project1
Registered User
1998 XJ Cherokee

Join Date: Feb 2010
Location: Florida
Posts: 3,223
Rewired the intake manifold with all new sensors
__________________
[ ]||||||[ ] ... http://www.jeepforum.com/forum/f11/98-green-xj-daily-driver-build-996260/
Project1 is offline   Reply With Quote
Unread 12-28-2012, 05:29 PM   #68
Project1
Registered User
1998 XJ Cherokee

Join Date: Feb 2010
Location: Florida
Posts: 3,223
Here's the fans all done. One runs on auto and the hi powered on runs on manual from the cab








For sure a lot of clearance ..... Also put in a high flow water pump and the 3 core rad. When the head was done
__________________
[ ]||||||[ ] ... http://www.jeepforum.com/forum/f11/98-green-xj-daily-driver-build-996260/
Project1 is offline   Reply With Quote
Unread 12-28-2012, 05:31 PM   #69
Project1
Registered User
1998 XJ Cherokee

Join Date: Feb 2010
Location: Florida
Posts: 3,223
And a present from jcr .... I really have to say these are really well made ..... I know jcr is awesome but these really are perfect. ..... Jcr gets an A+ strait up.
image-84965199.jpg   image-4246821192.jpg   image-2786226895.jpg   image-2753822538.jpg
__________________
[ ]||||||[ ] ... http://www.jeepforum.com/forum/f11/98-green-xj-daily-driver-build-996260/
Project1 is offline   Reply With Quote
Unread 12-29-2012, 11:45 AM   #70
Vassago
Registered User
2001 XJ Cherokee

Join Date: Jul 2007
Location: Toms River, NJ
Posts: 2,385
Quote:
Originally Posted by Project1 View Post
And a present from jcr .... I really have to say these are really well made ..... I know jcr is awesome but these really are perfect. ..... Jcr gets an A+ strait up.




Attachment 532959



Attachment 532960



Attachment 532961



Attachment 532962
mess around test fitting these A LOT before installing them, my light covers dont even fit because i neglected to test those pics in my build thread somewhere
__________________
"He almost broke the land speed record in 1977, popular opinion amongst his team was that his beard caused to much wind resistance. He would have shaved it… No, no he wouldn’t have."

MY BUILD THREAD: http://www.jeepforum.com/forum/f177/...lding-1575841/

My Photography Paul Lehr's Flickr
Vassago is offline   Reply With Quote
Unread 12-29-2012, 01:09 PM   #71
Project1
Registered User
1998 XJ Cherokee

Join Date: Feb 2010
Location: Florida
Posts: 3,223
Quote:
Originally Posted by Vassago View Post
mess around test fitting these A LOT before installing them, my light covers dont even fit because i neglected to test those pics in my build thread somewhere
Hey man I love your xj build .... I just painted them an giving them a day to dry ..... My quarter panels are crushed in pretty good .... So this could turn into a project ....
__________________
[ ]||||||[ ] ... http://www.jeepforum.com/forum/f11/98-green-xj-daily-driver-build-996260/
Project1 is offline   Reply With Quote
Unread 12-29-2012, 02:10 PM   #72
Project1
Registered User
1998 XJ Cherokee

Join Date: Feb 2010
Location: Florida
Posts: 3,223
See what I'm working with here .... The other side is the same. Hence the reason you should get these guards BEFORE you trash your xj.

__________________
[ ]||||||[ ] ... http://www.jeepforum.com/forum/f11/98-green-xj-daily-driver-build-996260/
Project1 is offline   Reply With Quote
Unread 12-29-2012, 04:22 PM   #73
Project1
Registered User
1998 XJ Cherokee

Join Date: Feb 2010
Location: Florida
Posts: 3,223
Did some wheeling today with my buddy .... His tj is sick .... Stretched a lot .. Both front and rear ... Genright coils and some serious long arms .... 44s and arbs ....
__________________
[ ]||||||[ ] ... http://www.jeepforum.com/forum/f11/98-green-xj-daily-driver-build-996260/
Project1 is offline   Reply With Quote
Unread 12-30-2012, 06:48 PM   #74
Project1
Registered User
1998 XJ Cherokee

Join Date: Feb 2010
Location: Florida
Posts: 3,223
Got the jcr quarter panels on....they fit awesome. Had some body damage to deal with so it took me about 7 hours to get them installed. Here are some pics.

In the second to last pic you can see some of the damage left some gaps behind the armor.

And the wires .... I just wired right to the factory wires and some heat shrink (the pics are before the shrink.) I read online people do a lot of stuff with relays and converter boxes.
Everything works perfect right to stock. I guess if you wanted to use a second pair of back up light with your reverse light you would need a relay.

I uses red instead of white for the reverse light for now, just until the white comes in, had to order it.

For the wires, If I remember right ....

White was power from the brake.
Brown was your regular light that comes on when your headlights are on.
Black is ground. .... That's the last pic.

with your other lights black is ground and the other wire is power.
image-4285153447.jpg   image-3559623199.jpg   image-4100563919.jpg   image-3644271416.jpg   image-4095688441.jpg

__________________
[ ]||||||[ ] ... http://www.jeepforum.com/forum/f11/98-green-xj-daily-driver-build-996260/
Project1 is offline   Reply With Quote
Unread 12-30-2012, 08:31 PM   #75
Project1
Registered User
1998 XJ Cherokee

Join Date: Feb 2010
Location: Florida
Posts: 3,223
Night shot
