97+ XJ Taurus Fan Swap Installation Write-up

Finished up most of the Taurus Fan Swap installation this weekend. Got a few pictures and some instructions for you guys.

Parts:

1. The fan (obviously). From a 3.8L V6 Taurus or some 3.0L Wagons. The difference is the fan motor - the fan shroud and blades should be the same. Most sources rate this as 2500CFM on low speed and 4500CFM on high speed.
2. 80.5" 6-rib belt. At least, that's what was needed for my 2000 4.0 Auto XJ with AC and power steering. Always remove your old belt, route a wire or string as the new belt and measure.
3. (2) 40A relays with appropriate fuses, wire connectors, and wiring.
4. (1) 85A relay with appropriate fuses, wire connectors, and wiring.
5. On-Off toggle switch
6. On-Off-On toggle switch
7. Electrical tape

Tools:
1. 15mm socket, extensions
2. 15mm wrench
3. Grinder with cut off wheel, grinding dics, appropriate safety equipment
4. Drill with various bits
5. 8mm socket and appropriate wrench
6. Appropriate wiring tools

Procedure:

Step one: Remove and modify the AC bracket

I chose to cut off the the mount and bearing for the clutch fan. Some have gotten away without doing this - it wouldn't fit for me.

Remove the AC pump. Four 13mm bolts hold it down. Flip it over backwards. I unplugged the electrical to keep from stressing the wires. To remove the AC bracket, you will need to remove the two 15mm bolts holding it to the head, and one 15mm holding it to the block. There is also another long bolt with a nut on the back side of the bracket. Hold the bolt head with a wrench and back the nut off with your socket wrench. The bracket slides out toward the fire wall.

You could probably do this with the fan still on the mount, and the bracket out of the Jeep. You can see where the bearing is pressed in to the housing. The boss it is pressed into has several ribs. Using a 4.5" Angle grinder, cut around just behind where the fan mounts, then using a hammer and a drift, bang the bearing out. To make it look a little more factory, I cut the boss off flush with the rest of the bracket. This is hard to describe in text, but those of you with the bracket in front of you will get the picture. This would be much easier with a large (7") grinder.

Alternatively, you could cut this off with a sawzall without removing the bracket. Be sure you cover the alternator if you go this route.

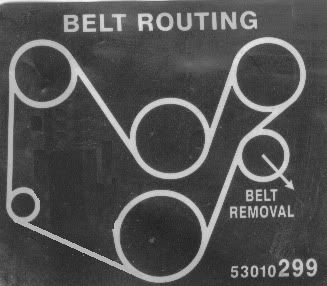

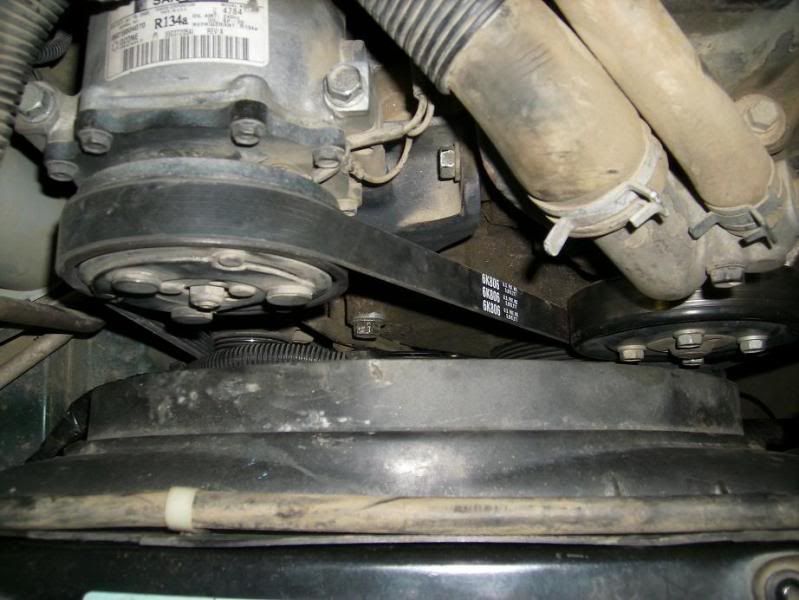

Here is the new belt routing with that pulley deleted:



Step Two: Modify the alternator bracket
Install your new ~81" belt and you will see where it hits the alternator bracket. I used my grinder with a cut off wheel to cut that section of the rib off the bracket. It does not appear to effect the integrity of the bracket. Then, using the grinding wheel, I ground it down smooth and painted it. Re-install your belt and double check for clearance. This may take a few 'adjustments'. Repeat until you have sufficient clearance (~1/4")

Step Three: Make the fan physically fit
This can be tricky. With the stock shroud removed, you can see the tabs it locks into at the bottom of the core support. Cut these off flush with the rest of the core support - be careful of your radiator!

With the belt and bracket removed, I had a friend watch the motor while I revved it. My 4.0 moves forward ~1/4" and side to side ~1/4", but it seems to pivot around the water pump - where the fan motor is close to. Keep in mind when trimming your fan that your motor will move just a bit.

Now slide the fan in vertically and you can see it is too thick. Placing the fan motor side down, you can see that the sides of the shroud are taller than the ends. I used a piece of wood and a marker to scribe a line to cut the fan shroud down length wise so it would not be as deep. It still mounts to the core support and has plenty of clearance before it would hit the radiator. You will also need to trim a 'step' in the fan on the battery side to clear the frame rail. The transmission cooler hoses will be in your way as well. I cut about 2.5" off the bottom of the fan because it hung below the crossmember. This helped a lot with the transmission cooler hoses. The hose on the right will tuck forward into the cross member, the hose on the left will need another 'step' or a slot cut out.

Continue trimming your fan until it fits properly. You will have to mount the AC bracket first with the long bolt in if you want to use the long bolt. The long bolt is only 1/4" from my fan, but everything else is 1/2" to 3/4".

Step Four: Mount the fan
Slip the belt in place before you do the final fit of your fan - the belt is difficult if not impossible to install with the fan in place.

The factory shroud had two bolts that went into clip nuts. My XJ had two holes spaced closer together than the stock bolts. I moved the clip nuts to those holes. The Taurus fan already had holes in the correct spot - you may have to drill one or the other. Be careful if you drill the core support, the radiator is right behind there! Once you have it where you want it, cut it nice and even across the top.

For the bottom, I bent a piece of my hood left over from the vents and bolted it to the shroud, then bolted it to the crossmember. Pull the bottom of the fan in tight, but spin the blades by hand to make sure you haven't warped the housing.

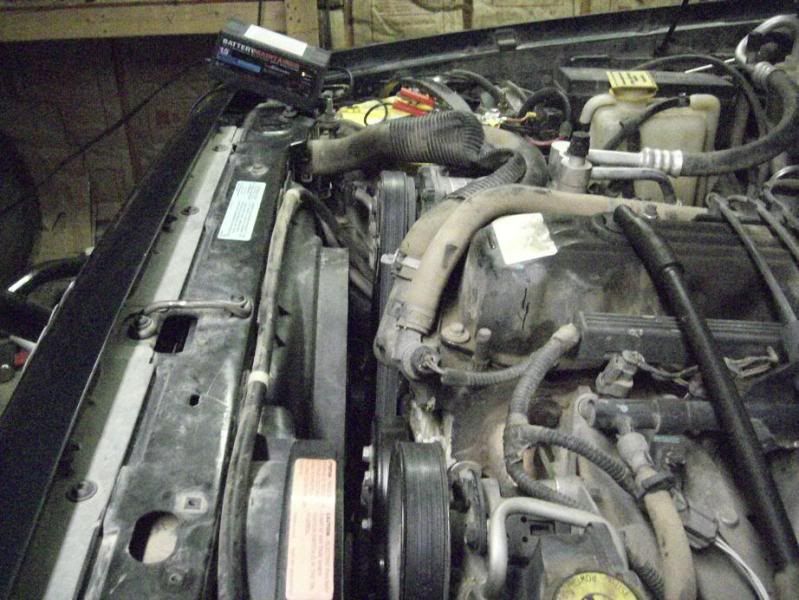

Double check all your clearances and that the fan is securely mounted.





At this point, if you cut your AC bracket and fan nicely, this setup should look pretty much stock.


Step Five: Wiring your fan
Here is the wiring diagram I sketched out in Paint to help with this:



The green 'From Aux fan' will receive power any time the aux fan has been switched on - either by the ECU or by your handy manual fan switch.

Using two switches as pictured it will work like so:
Aux fan switch OFF will be Auto and Aux fan switch ON will be Manual.

Auto works like so: Taurus fan will operate at desired speed (UP = High, DOWN = Low) when Aux fan is switched on by ECU. Taurus fan can be switched off using the center position.

Manual: Will operate aux fan manually and Taurus fan at speed desired via switch. Can be operated without ignition.

For manual control to work, you must wire in manual control of your aux fan. Basically, set up another relay that trips power into the fan when you activate the switch. Use the 'low speed' diagram above if you need instruction. You can use a large butt connector or solder the connections so the power feed from the ECU will still operate the Aux fan as well.

I ran five wires into the dash.
1. To activate high speed relay
2. To activate low speed relay
3. To activate aux fan relay
4. Power tapped from the aux fan power (For auto operation)
5. Constant 12V (For manual operation)

I routed the Taurus fan wires behind the grille and chose to mount the relays by the battery to keep the wires as short as possible. The Aux fan relay is under the brake booster.

I removed the battery and ran the harness for the fan between the battery tray and fender. Connect all the wires, and always use an in-line fuse. I soldered all connections except the terminals on the relays. Always tape over your connections at the relays for safety, and use relays that include a mounting tab. Be sure your fan harness is far from the belt.

Mount your AC pump, and belt. Connect the coolant hoses. Connect and mount your switches, check again for clearance and double check all your electrical connections and you should be done!

Edit: If someone wants to post pics of a Taurus fan, I will happily edit them to show where I cut the fan. Would need pics of the side of the fan and the radiator side of the fan.

I'll likely edit this thread with any more info I think of or pis. Questions?

__________________
Quote:
Originally Posted by Motorcharge View Post
So do you actually hear your thoughts in your head or is it just sort of a dull roar before you smash your face into your keyboard and just submit whatever dumb **** ended up on the page?

Last edited by justanotherjpr; 11-29-2009 at 10:04 PM.. Reason: 85A Relay for the high speed is fine.
justanotherjpr is offline   Reply With Quote
Unread 11-09-2009, 10:18 AM   #2
justanotherjpr
Registered User

Join Date: Nov 2007
Posts: 6,336
Overall early impressions with this mod are great. The engine is much quieter and warms up faster. Even the low speed moves a TON of air. There is noticeably more power. The fans kick on around 212 and only take a few seconds to drop the temp. Idling at 210 degrees, I can kick both fans on low and drop the temp to 200 degrees within 2-3 minutes. When the fans kick on, you can feel the hot air being kicked out of the vents. The Taurus fan moves a TON of air.
__________________
Quote:
Originally Posted by Motorcharge View Post
So do you actually hear your thoughts in your head or is it just sort of a dull roar before you smash your face into your keyboard and just submit whatever dumb **** ended up on the page?
justanotherjpr is offline   Reply With Quote
Unread 11-09-2009, 10:22 AM   #3
ckisela
Registered User
1994 XJ Cherokee

Join Date: Oct 2008
Location: Sacramento
Posts: 240
can the Taurus fan replace the existing electric fan or is it too large?
ckisela is offline   Reply With Quote
Unread 11-09-2009, 10:28 AM   #4
justanotherjpr
Registered User

Join Date: Nov 2007
Posts: 6,336
Quote:
Originally Posted by ckisela View Post
can the Taurus fan replace the existing electric fan or is it too large?
I have head of of some mounting it horizontally and removing the aux fan, but I chose to mount it vertically and retain the Aux fan. I imagine it could be made to fit horizontally, but I didn't try it.
__________________
Quote:
Originally Posted by Motorcharge View Post
So do you actually hear your thoughts in your head or is it just sort of a dull roar before you smash your face into your keyboard and just submit whatever dumb **** ended up on the page?
justanotherjpr is offline   Reply With Quote
Unread 11-09-2009, 01:37 PM   #5
USMC_XJ
Registered User
2003 WJ

Join Date: May 2008
Location: Jacksonville, NC
Posts: 1,641
Looks really good. One question on the wiring though.

If the aux fan is off, you can't turn the Taurus fan on? Or am I missing something?

How much did this roughly cost you?

Definitely bookmarked. Good job.
__________________
1994 Cherokee Sport - 4.0 HO - AW4 - 4WD

Quote:
Originally Posted by Rob99
The next time you want to tell a story but not get people's opinions, rather than post it on an internet forum, open up Microsoft Word, type your story there, then click on the little X in the top right corner and then hit yourself in the head with a sledge hammer.
Quote:
Originally Posted by bigsquat
If he finds the yj section im putting round headlights on mine.
USMC_XJ is offline   Reply With Quote
Unread 11-09-2009, 01:41 PM   #6
justanotherjpr
Registered User

Join Date: Nov 2007
Posts: 6,336
Quote:
Originally Posted by BuckeyeXJ View Post
Looks really good. One question on the wiring though.

If the aux fan is off, you can't turn the Taurus fan on? Or am I missing something?

How much did this roughly cost you?

Definitely bookmarked. Good job.
Thanks!

If the Aux fan is off, you cannot manually turn on the Taurus fan. I tried doing this, but the problem was when I ran another 12v unswitched source to my Taurus switch, it would create a loop, powering the aux fan through the small guage wiring I had used to run the relays - and I couldn't shut the aux fan off.

I don't think I'll have the need to kick on the Taurus fan w/o the aux fan..I hope.

The Taurus fan was something like $15. The relay was $8, $3 for the in-line 30a fuse socket, $6 on a huge connector pack from Harbor Freight and $25 on a 400ft wire storehouse from Harbor Freight. $5 each on the switches and some solder. The high speed relay is $18 but I haven't gotten that yet.

so..$80 ish.
__________________
Quote:
Originally Posted by Motorcharge View Post
So do you actually hear your thoughts in your head or is it just sort of a dull roar before you smash your face into your keyboard and just submit whatever dumb **** ended up on the page?
justanotherjpr is offline   Reply With Quote
Unread 11-09-2009, 01:52 PM   #7
USMC_XJ
Registered User
2003 WJ

Join Date: May 2008
Location: Jacksonville, NC
Posts: 1,641
Quote:
Originally Posted by justanotherjpr View Post
Thanks!

If the Aux fan is off, you cannot manually turn on the Taurus fan. I tried doing this, but the problem was when I ran another 12v unswitched source to my Taurus switch, it would create a loop, powering the aux fan through the small guage wiring I had used to run the relays - and I couldn't shut the aux fan off.

I don't think I'll have the need to kick on the Taurus fan w/o the aux fan..I hope.

The Taurus fan was something like $15. The relay was $8, $3 for the in-line 30a fuse socket, $6 on a huge connector pack from Harbor Freight and $25 on a 400ft wire storehouse from Harbor Freight. $5 each on the switches and some solder. The high speed relay is $18 but I haven't gotten that yet.

so..$80 ish.
$15 for a electric fan? Nice. Was that from a pick n pull?

I think I'm going to hit the one up down here pretty soon. I have all the stuff I need lying around. The only thing I need is the 100 AMP relay. I have heard that you could use a ford starter relay. Can anyone confirm this?
__________________
1994 Cherokee Sport - 4.0 HO - AW4 - 4WD

Quote:
Originally Posted by Rob99
The next time you want to tell a story but not get people's opinions, rather than post it on an internet forum, open up Microsoft Word, type your story there, then click on the little X in the top right corner and then hit yourself in the head with a sledge hammer.
Quote:
Originally Posted by bigsquat
If he finds the yj section im putting round headlights on mine.
USMC_XJ is offline   Reply With Quote
Unread 11-09-2009, 02:16 PM   #8
justanotherjpr
Registered User

Join Date: Nov 2007
Posts: 6,336
Quote:
Originally Posted by BuckeyeXJ View Post
$15 for a electric fan? Nice. Was that from a pick n pull?

I think I'm going to hit the one up down here pretty soon. I have all the stuff I need lying around. The only thing I need is the 100 AMP relay. I have heard that you could use a ford starter relay. Can anyone confirm this?
It was a pick N pull. I have heard you can use a starter solenoid, but they are not designed to switch power long term. I have instead found a marine relay rated for 100A continuous.
__________________
Quote:
Originally Posted by Motorcharge View Post
So do you actually hear your thoughts in your head or is it just sort of a dull roar before you smash your face into your keyboard and just submit whatever dumb **** ended up on the page?
justanotherjpr is offline   Reply With Quote
Unread 11-09-2009, 02:32 PM   #9
2GPS4ME
Senior Member

2GPS4ME's Avatar
1998 TJ Wrangler

Join Date: Jan 2008
Location: 44.1N, 103.2W
Posts: 840
So, in a nutshell, BOTH fans will either:

1 - Turn on at the same time automatically on LOW speed
OR
2 - Turn on at the same time automatically on HIGH speed
OR
3 - Turn on manually with a switch
???

Got a little confused, sorry....
__________________

WJ (WIFE JEEP) PROJECT COMING SOON
2GPS4ME is offline   Reply With Quote
Unread 11-09-2009, 02:42 PM   #10
justanotherjpr
Registered User

Join Date: Nov 2007
Posts: 6,336
Quote:
Originally Posted by tirefryer93 View Post
So, in a nutshell, BOTH fans will either:

1 - Turn on at the same time automatically on LOW speed
OR
2 - Turn on at the same time automatically on HIGH speed
OR
3 - Turn on manually with a switch
???

Got a little confused, sorry....
There are several different modes:
Auto or manual control on both

1. Aux fan only - Taurus fan off
2. Aux fan, Taurus fan low
3. Aux fan, Taurus fan high
__________________
Quote:
Originally Posted by Motorcharge View Post
So do you actually hear your thoughts in your head or is it just sort of a dull roar before you smash your face into your keyboard and just submit whatever dumb **** ended up on the page?
justanotherjpr is offline   Reply With Quote
Unread 11-09-2009, 03:28 PM   #11
USMC_XJ
Registered User
2003 WJ

Join Date: May 2008
Location: Jacksonville, NC
Posts: 1,641
Quote:
Originally Posted by tirefryer93 View Post
So, in a nutshell, BOTH fans will either:

1 - Turn on at the same time automatically on LOW speed
OR
2 - Turn on at the same time automatically on HIGH speed
OR
3 - Turn on manually with a switch
???

Got a little confused, sorry....
Regardless, the aux fan needs to be one FIRST, then the Taurus follows. With the aux fan off, there Taurus fan can't be on. Once the aux fan is on, then he can adjust the switch to high or low. At least, that is how I am interpreting it.
__________________
1994 Cherokee Sport - 4.0 HO - AW4 - 4WD

Quote:
Originally Posted by Rob99
The next time you want to tell a story but not get people's opinions, rather than post it on an internet forum, open up Microsoft Word, type your story there, then click on the little X in the top right corner and then hit yourself in the head with a sledge hammer.
Quote:
Originally Posted by bigsquat
If he finds the yj section im putting round headlights on mine.
USMC_XJ is offline   Reply With Quote
Unread 11-09-2009, 03:29 PM   #12
justanotherjpr
Registered User

Join Date: Nov 2007
Posts: 6,336
Quote:
Originally Posted by BuckeyeXJ View Post
Regardless, the aux fan needs to be one FIRST, then the Taurus follows. With the aux fan off, there Taurus fan can't be on. Once the aux fan is on, then he can adjust the switch to high or low. At least, that is how I am interpreting it.
You are correct.
__________________
Quote:
Originally Posted by Motorcharge View Post
So do you actually hear your thoughts in your head or is it just sort of a dull roar before you smash your face into your keyboard and just submit whatever dumb **** ended up on the page?
justanotherjpr is offline   Reply With Quote
Unread 11-09-2009, 03:32 PM   #13
USMC_XJ
Registered User
2003 WJ

Join Date: May 2008
Location: Jacksonville, NC
Posts: 1,641
Where are you getting power from to power the Taurus switch? Where did you splice into the aux fan wiring at?
__________________
1994 Cherokee Sport - 4.0 HO - AW4 - 4WD

Quote:
Originally Posted by Rob99
The next time you want to tell a story but not get people's opinions, rather than post it on an internet forum, open up Microsoft Word, type your story there, then click on the little X in the top right corner and then hit yourself in the head with a sledge hammer.
Quote:
Originally Posted by bigsquat
If he finds the yj section im putting round headlights on mine.
USMC_XJ is offline   Reply With Quote
Unread 11-09-2009, 03:41 PM   #14
justanotherjpr
Registered User

Join Date: Nov 2007
Posts: 6,336
Quote:
Originally Posted by BuckeyeXJ View Post
Where are you getting power from to power the Taurus switch? Where did you splice into the aux fan wiring at?
I spliced in for power at the relay that sends power to the Aux fan. The ECU sending power to the aux fan also allows me to draw it there, and the relay sending power to the aux fan obviously sends it there. That's how the auto or manual control is achieved.
__________________
Quote:
Originally Posted by Motorcharge View Post
So do you actually hear your thoughts in your head or is it just sort of a dull roar before you smash your face into your keyboard and just submit whatever dumb **** ended up on the page?
justanotherjpr is offline   Reply With Quote
Unread 11-27-2009, 08:43 PM   #15
USMC_XJ
Registered User
2003 WJ

Join Date: May 2008
Location: Jacksonville, NC
Posts: 1,641
I finally got a Taurus fan. Where did you get the 100 amp relay from? Link?

Thanks.
__________________
1994 Cherokee Sport - 4.0 HO - AW4 - 4WD

Quote:
Originally Posted by Rob99
The next time you want to tell a story but not get people's opinions, rather than post it on an internet forum, open up Microsoft Word, type your story there, then click on the little X in the top right corner and then hit yourself in the head with a sledge hammer.
Quote:
Originally Posted by bigsquat
If he finds the yj section im putting round headlights on mine.
USMC_XJ is offline   Reply With Quote
Reply
Thread Tools


Suggested Threads





Jeep, Wrangler, Cherokee, Grand Cherokee, and other models are copyrighted and trademarked to Jeep/Chrysler Corporation. JeepForum.com is not in any way associated with Jeep or the Chrysler Corp.
